Plan your UniFi Access Button fitting and compatibility in Perth with Servicewest. We assess the site and supporting equipment before specifying UA-Button.

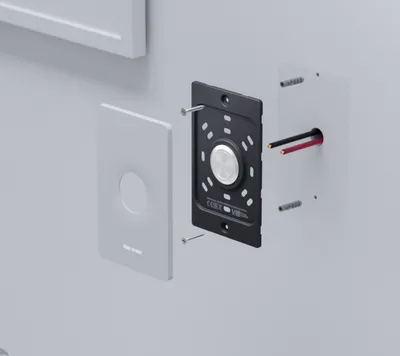

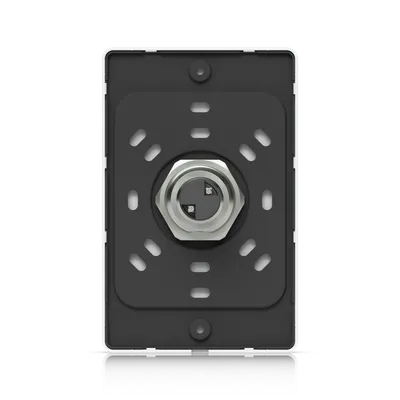

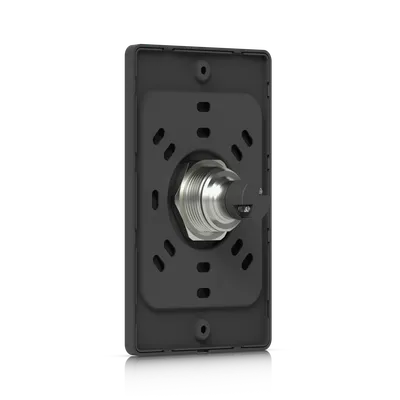

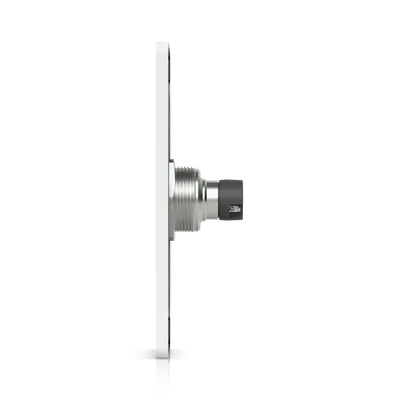

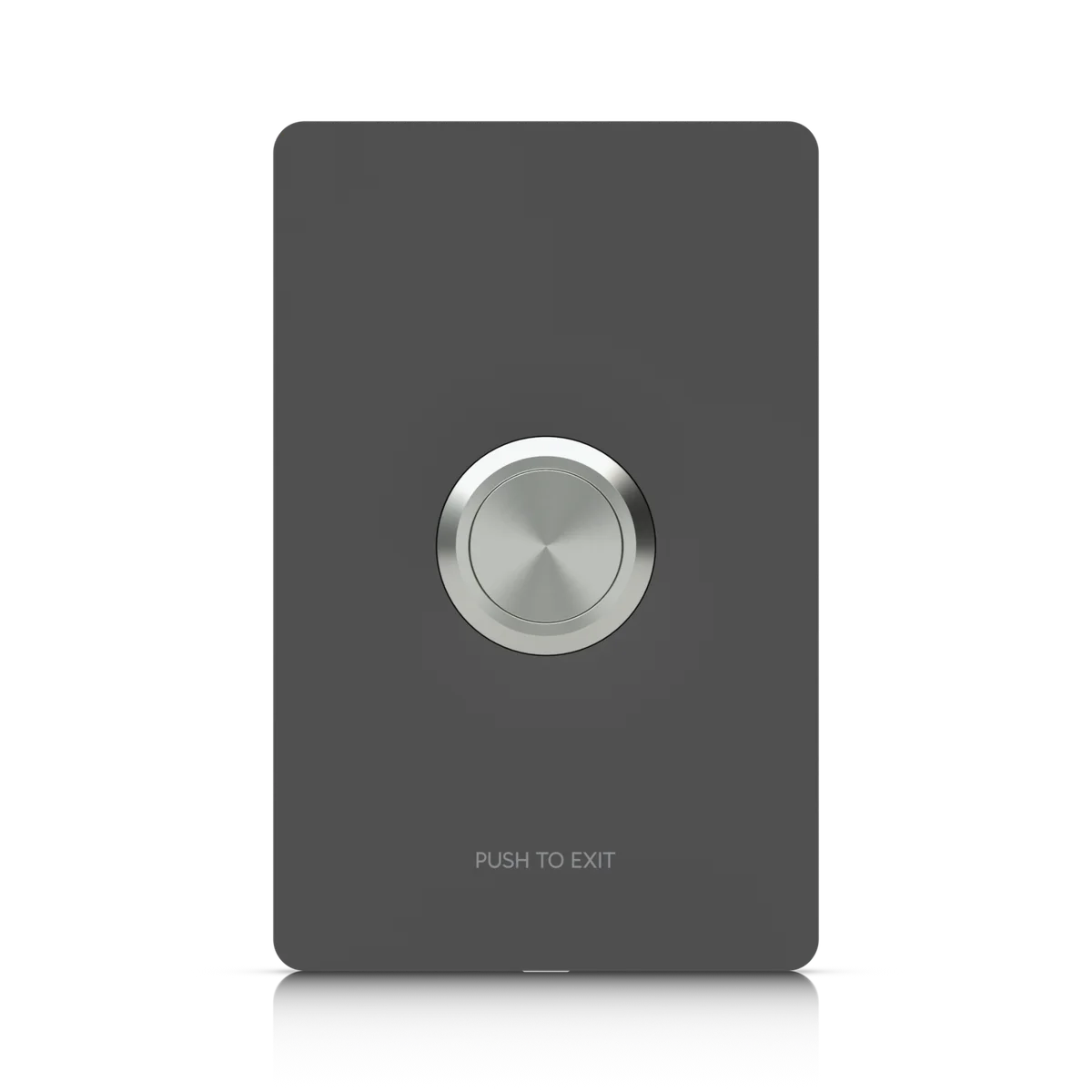

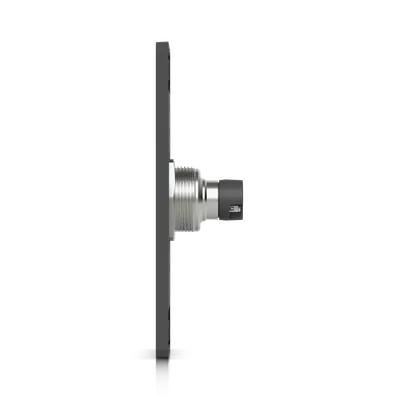

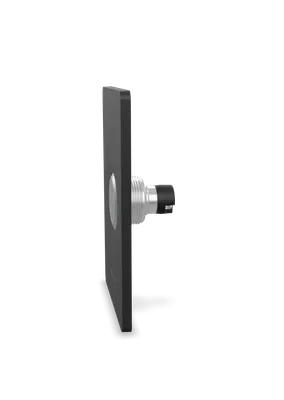

The Access Button (UA-Button) needs to be matched to the host device and the intended installation. Similar-looking mounts, adapters and accessories can have different attachment points or electrical requirements. Send us the model number of the equipment you already own so we can check the pairing before quoting.
Power Method: UniFi Access Hubs UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU. Dimensions: 137 x 88 x 38.1 mm (5.4 x 3.5 x 1.5"). Ambient Operating Temperature: 0 to 40° C (32 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check the manufacturer compatibility information, the location where the accessory will be used and any supporting parts required. The installation scope identifies what is included, what is already on site and any items that need replacement.
Accessory work is scoped alongside the equipment it supports. Tell us whether this is part of a new installation, a repair or an expansion. We can then plan access to the equipment and any interruption needed to fit and test the part.

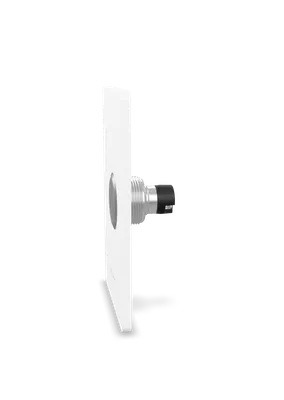

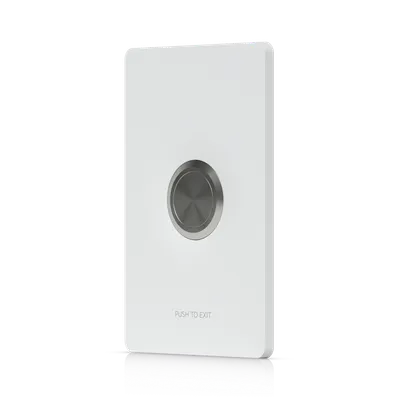

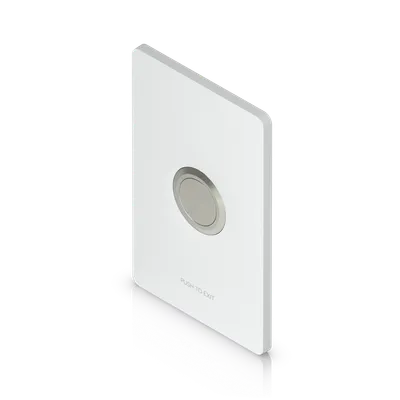

Manufacturer specifications for UA-Button. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 137 x 88 x 38.1 mm (5.4 x 3.5 x 1.5") |
|---|---|
| Weight | 180 g (6.3 oz) |
| Enclosure Material | Polycarbonate |

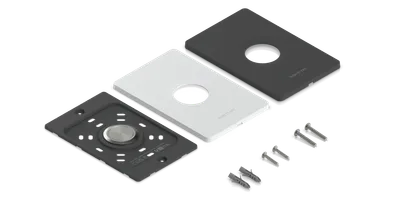

| Mount Material | Polycarbonate, SGCC steel |
| Available Colors | Black, white |
| Indoor and Outdoor Use | Indoor only |
| Mechanical Life | 1,000,000 clicks |
|---|---|
| Power Method | UniFi Access Hubs UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Contact Type | (1) Normal open |
| Contact Rating | 30V DC, 2A |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Document number, and issue date and/or revision level | UA-Button, V01 |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Storage Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, UL 294, CAN/ULC-60839-11-1 |

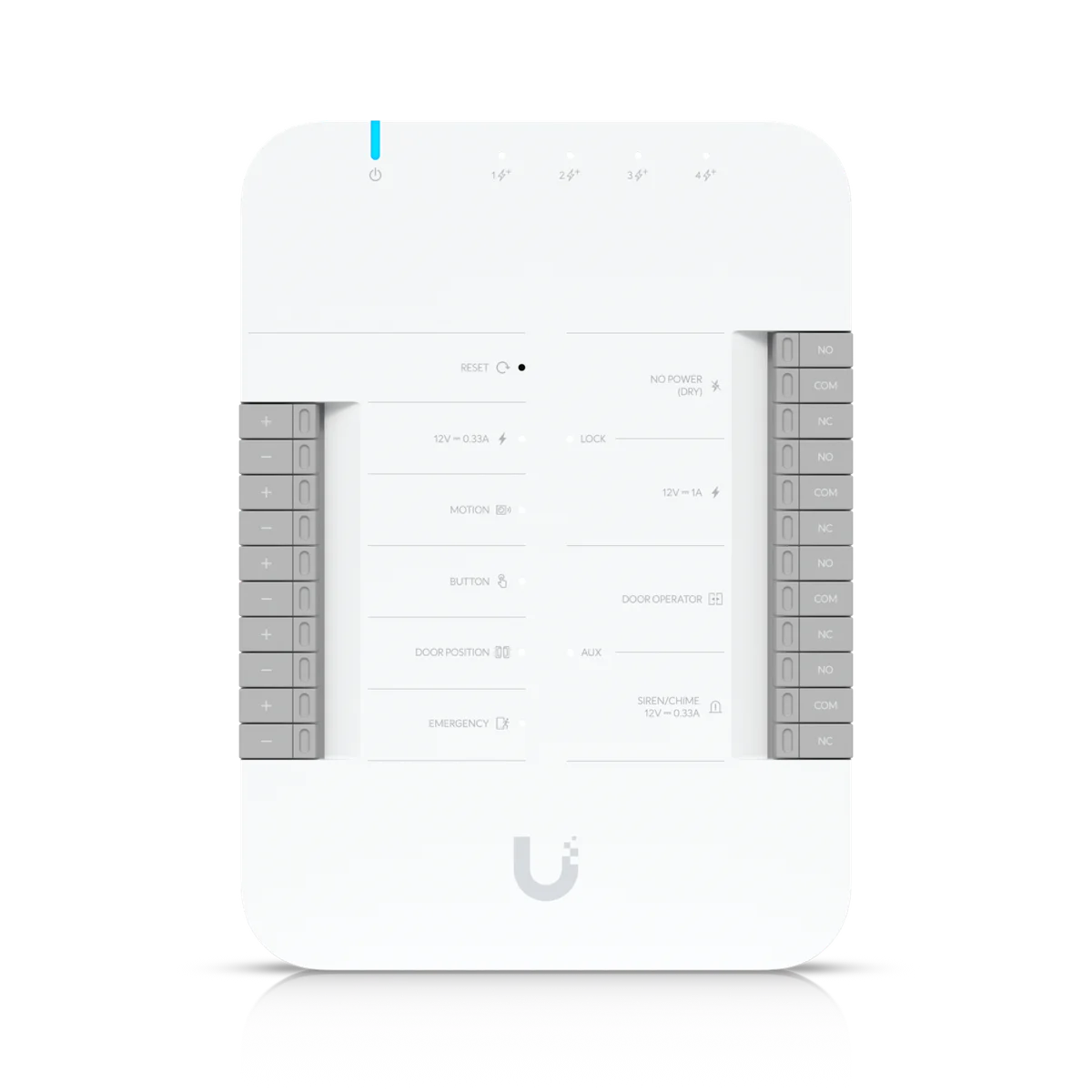

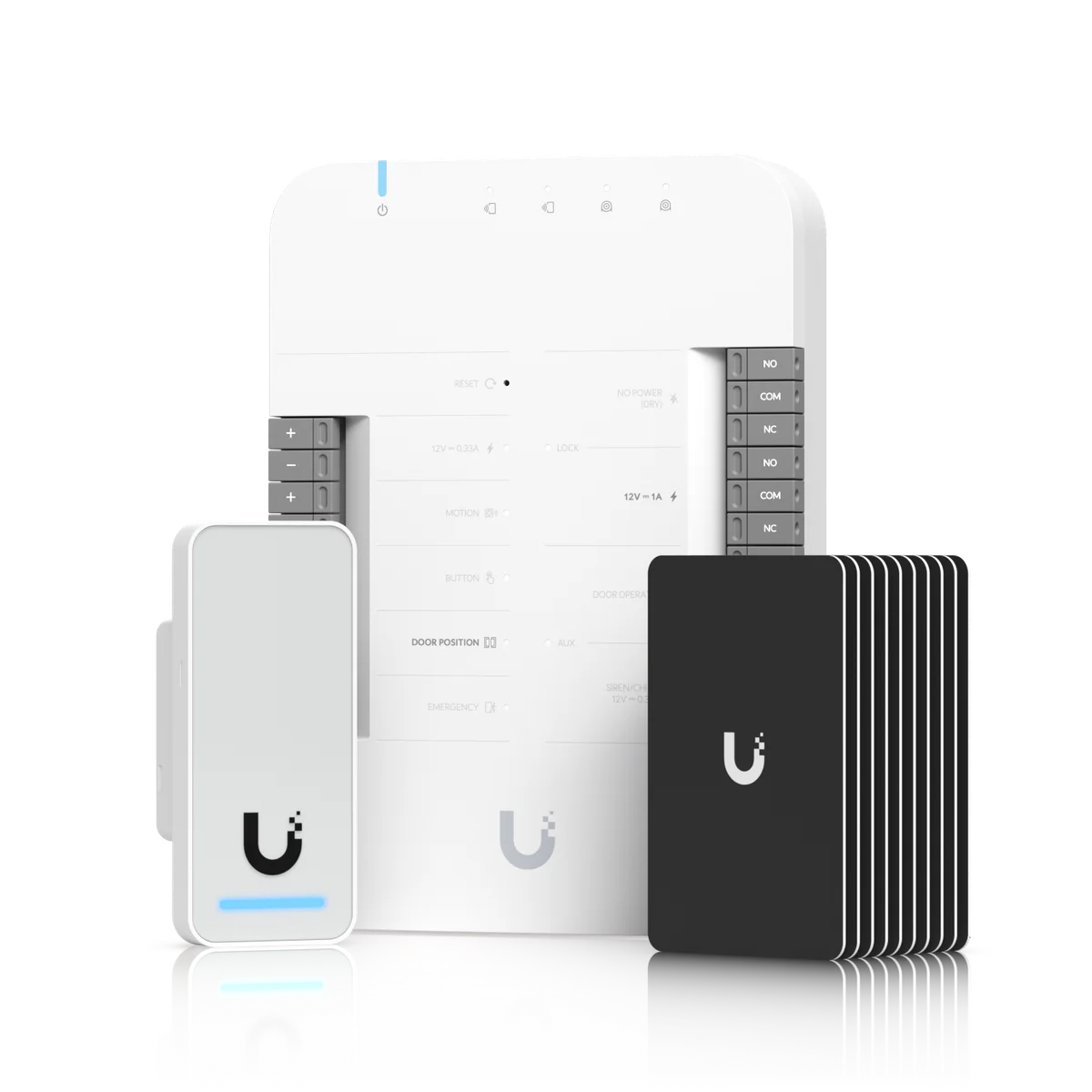

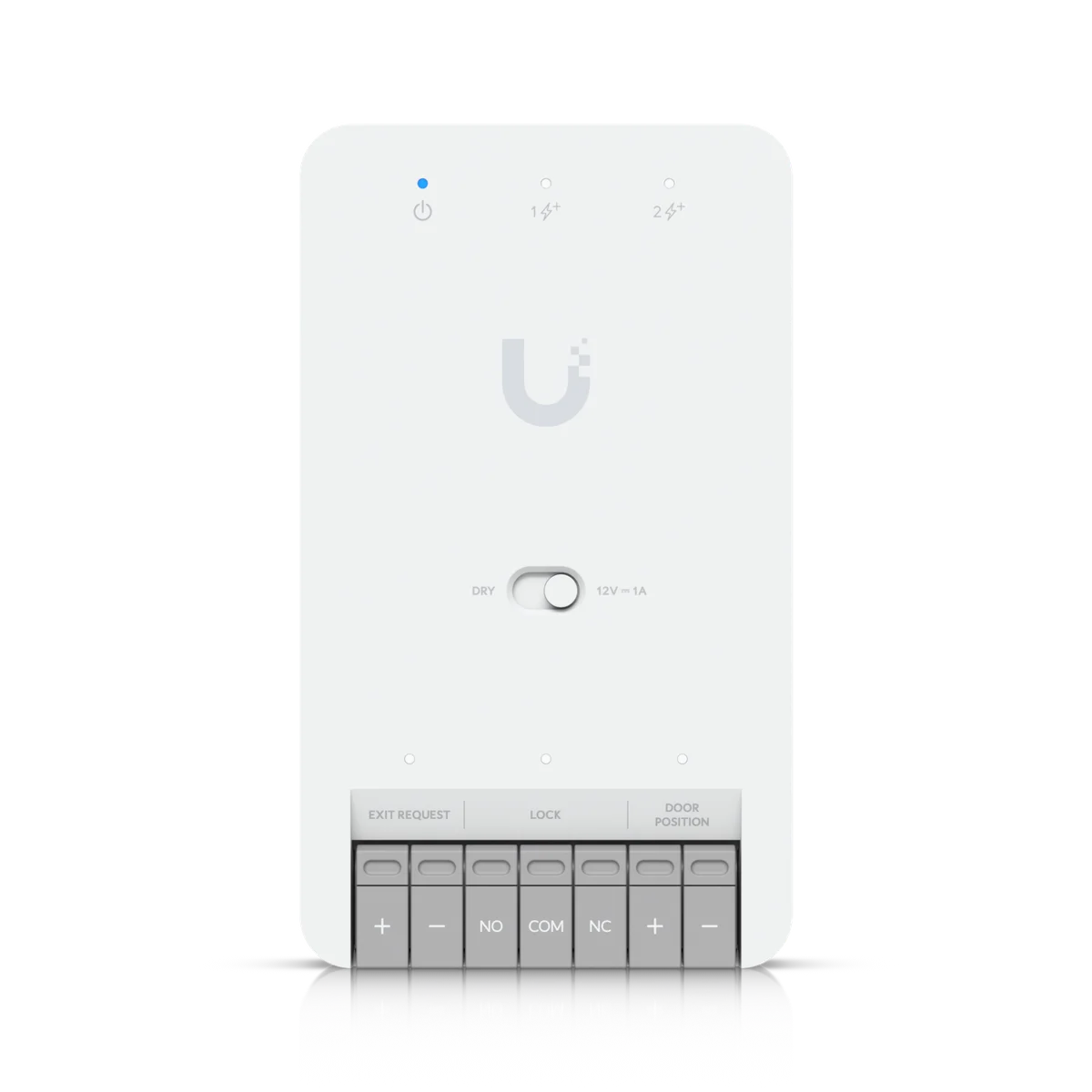

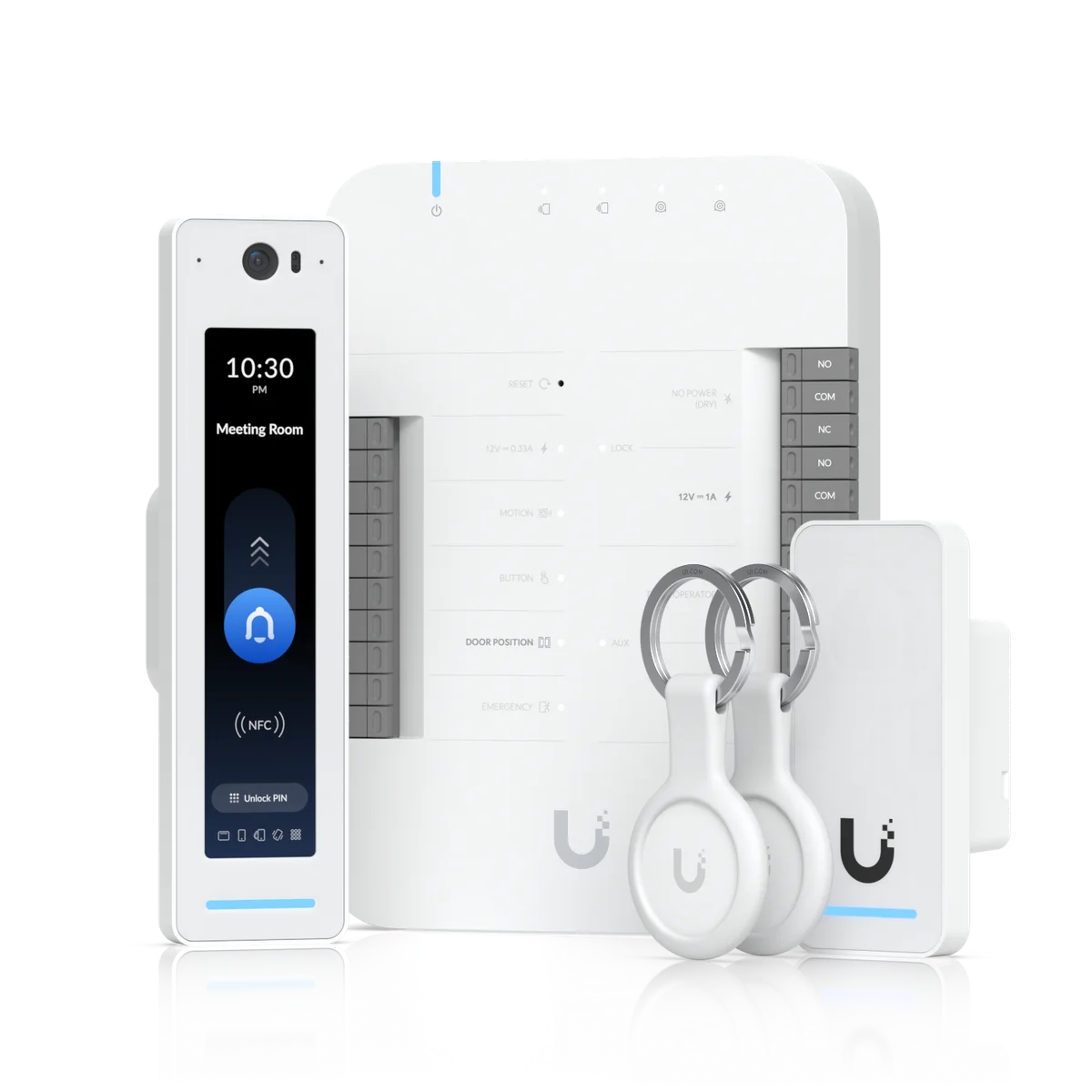

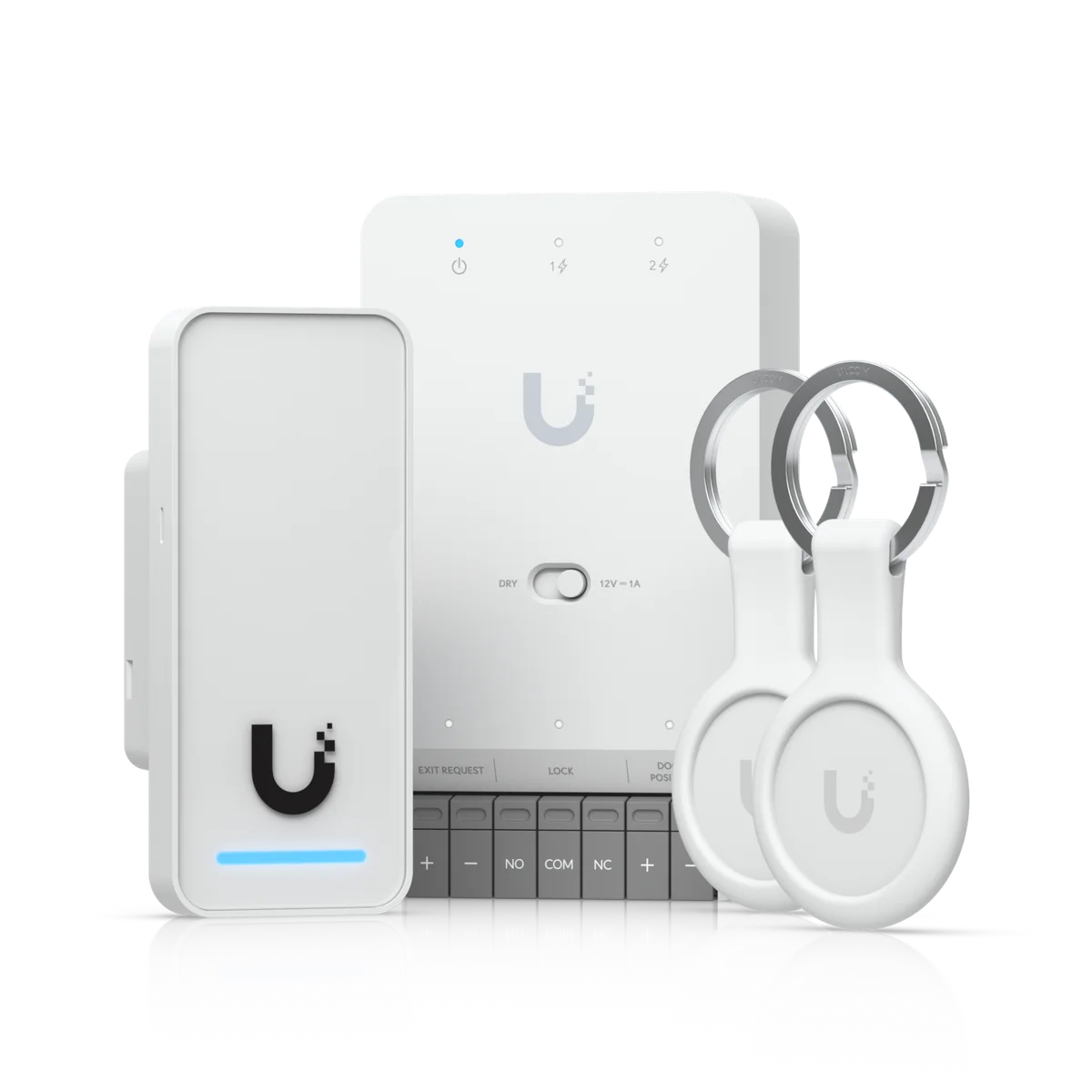

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
