Plan your UniFi 5G Max Outdoor installation in Perth with Servicewest. We assess the site and supporting equipment before specifying U5G-Max-Outdoor-US.
We review what U5G-Max-Outdoor-US needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: PoE. Max. Power Consumption: 14.5W. Networking Interface: (1) 2.5 GbE RJ45 port 5G NR and LTE radio. Mounting: Pole mount, wall mount (Included). Weatherproofing: IPX6 IP67 (With cable-gland door kit). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Carrier compatibility, signal at the proposed location, service terms and failover behaviour all need confirmation. A manufacturer radio specification does not establish service coverage at your property. We test the agreed connection and recovery behaviour after configuration.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for U5G-Max-Outdoor-US. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | Device: 220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6") With mount: 220 x 165 x 122 mm (8.7 x 6.5 x 4.8") |
|---|---|
| Networking Interface | (1) 2.5 GbE RJ45 port 5G NR and LTE radio |

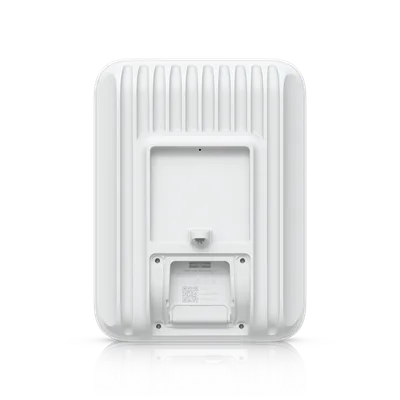

| SIM | (1) Nano SIM (1) Nano-SIM or eSIMNano-SIM 2 cannot be used when an eSIM is active. |

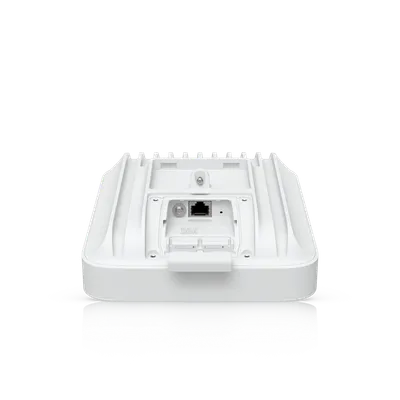

| PoE Interface | (1) PoE input |

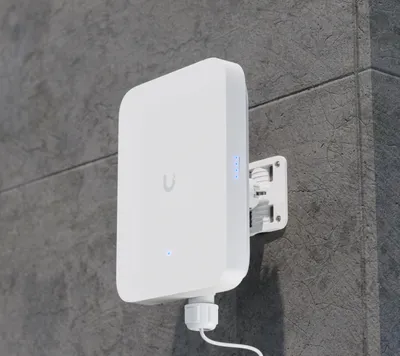

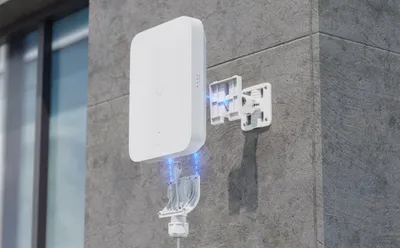

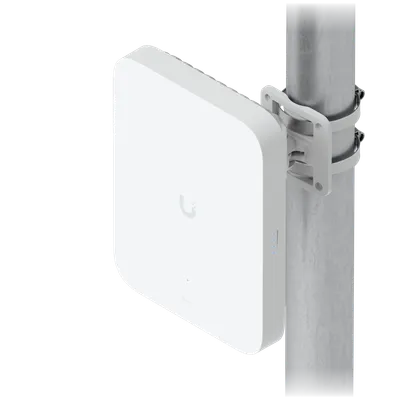

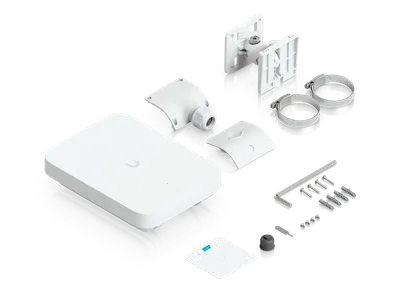

| Mounting | Pole mount, wall mount (Included) |

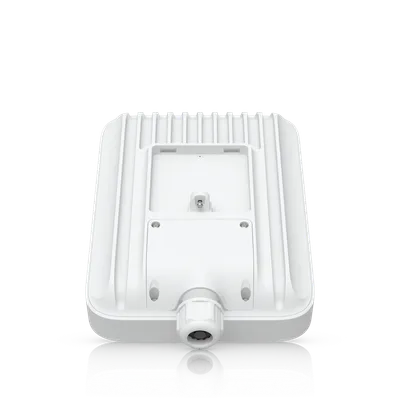

| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
| Weight | Device: 1.2 kg (2.6 lb) Mount: 130 g (4.6 oz) |
|---|---|
| Enclosure Material | Aluminum-alloy, UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |

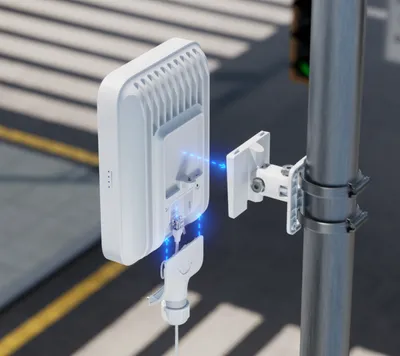

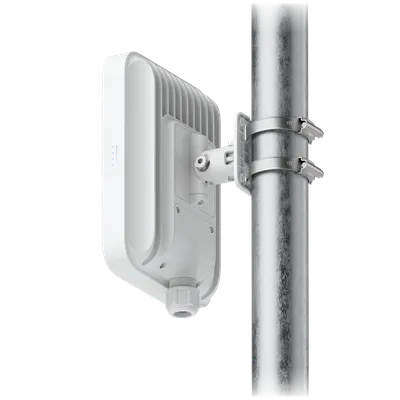

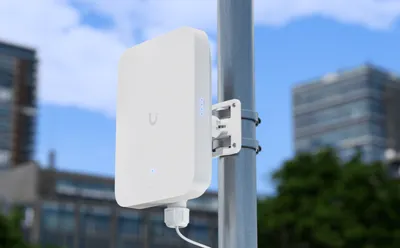

| Pole Mount Diameter | 1–2.5" (25–63.5 mm) on pipe outer diameter |
| Wind Loading | 91N at 200 km/h (20.45 lbf at 125 mph) |
| Management | Ethernet |
|---|---|
| Category | 5G NR |
| Frequency Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 |
| Max. TX Power | HPUE power class 2: 26 dBm |
| Frequency Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Max. TX Power | HPUE power class 2: 25 dBm |
| Frequency Bands | B1, B2, B4, B5, B8, B19 |
| 5G NSA | Downlink 3.4 Gbps Uplink 560 MbpsSpeed depends on network coverage and performance at the device location. |
| 5G SA | Downlink 1.8 Gbps Uplink 650 Mbps |
| 4G LTE | Downlink 1.6 Gbps Uplink 210 Mbps |
| Type | (6) Embedded cellular antennas, including (2) high-gain for downlink: peak 9 dBi, 85°x85° |
| Max. Power Consumption | 14.5W |
| Power Method | PoE |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
