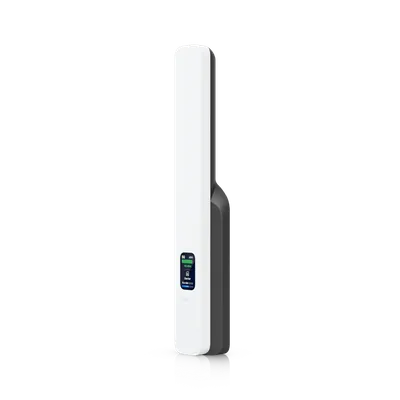

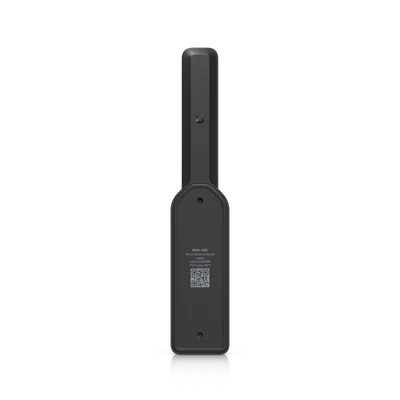

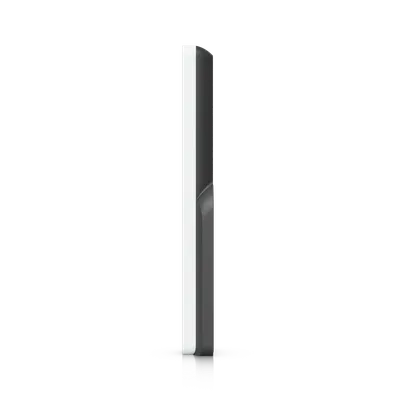

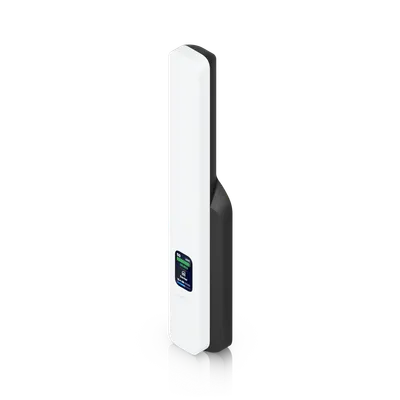

Plan your UniFi 5G Backup installation in Perth with Servicewest. We assess the site and supporting equipment before specifying U5G.

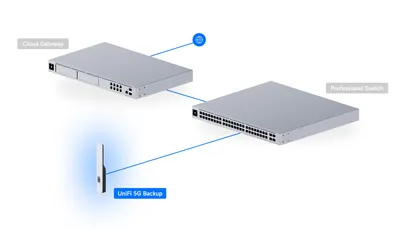

We review what U5G needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: PoE (IEEE 802.3af). Networking Interface: (1) GbE RJ45 port 5G RedCap and LTE. Mounting: Desktop stand, wall, window mount (Included). Dimensions: Device: 200 x 38 x 20.2 mm (7.9 x 1.5 x 0.8") Table stand: 48.1 x 48 x 55.2 mm (1.9 x 1.9 x 2.2"). Ambient Operating Temperature: 0 to 40 °C (32 to 104 °F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Carrier compatibility, signal at the proposed location, service terms and failover behaviour all need confirmation. A manufacturer radio specification does not establish service coverage at your property. We test the agreed connection and recovery behaviour after configuration.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for U5G. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | Device: 200 x 38 x 20.2 mm (7.9 x 1.5 x 0.8") Table stand: 48.1 x 48 x 55.2 mm (1.9 x 1.9 x 2.2") |
|---|---|

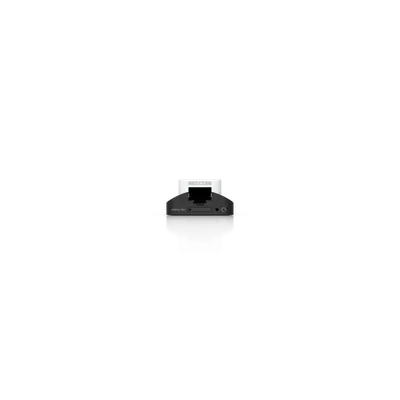

| Networking Interface | (1) GbE RJ45 port 5G RedCap and LTE |
| SIM | (1) Nano-SIM (4FF) (1) eSIM |
| PoE Interface | (1) PoE input |

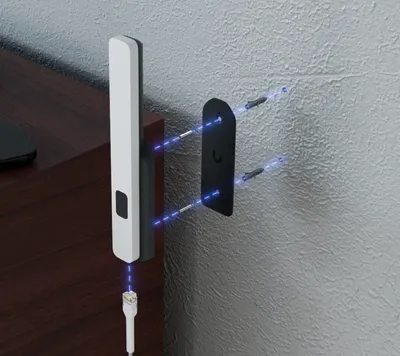

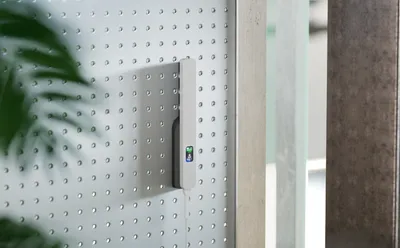

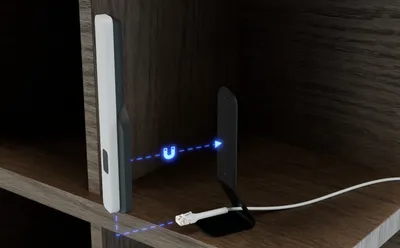

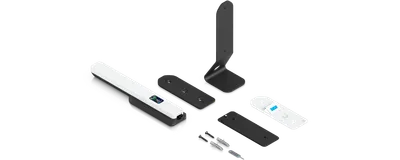

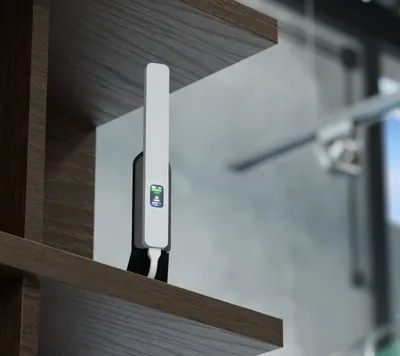

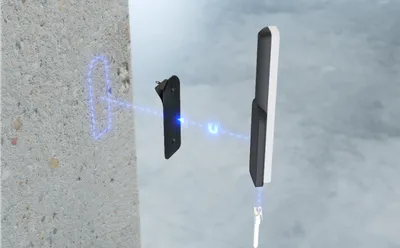

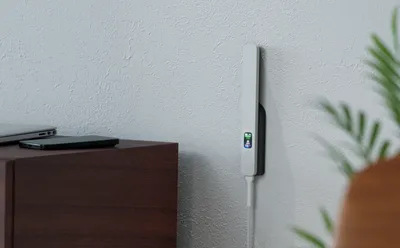

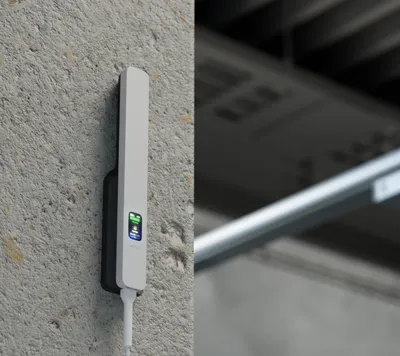

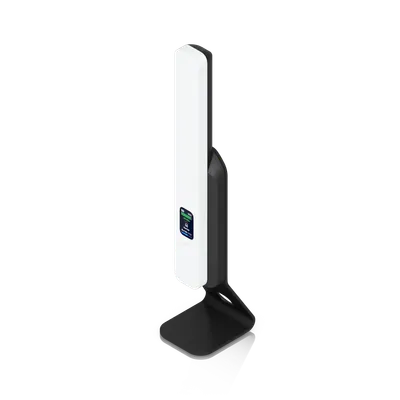

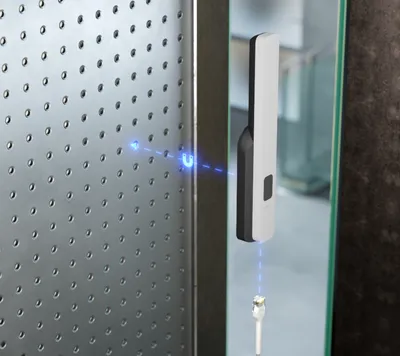

| Mounting | Desktop stand, wall, window mount (Included) |
| Weight | Device: 122 g (4.3 oz) Stand: 138 g (4.9 oz) Wall mount: 66 g ( 2.3 oz) |
|---|---|
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Galvanized steel, silicone rubber |
| Management | Ethernet |
|---|---|
| Category | 5G RedCapSupports 5G RedCap and 5G Standalone (SA) mode only. 5G Non-Standalone (NSA) is not supported. |
| Frequency Bands | n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41*, n48, n66, n71, n77, n78Band n41 is currently not supported on the T-Mobile network for 5G RedCap devices. |
| Max. TX Power | 23 dBm |
| Frequency Bands | B2, B4, B5, B7, B12, B13, B14, B25, B26, B30, B38, B41,B42, B43, B48, B66, B71Operates in LTE fallback mode when compliant 5G SA or RedCap networks are unavailable. |
| Max. TX Power | HPUE power class 2: 26 dBm |
| 5G SA | Downlink 220 Mbps / Uplink 120 Mbps |
| 4G LTE | Downlink 195 Mbps / Uplink 100 Mbps |
| Type | (2) Embedded omni-directional cellular antennas |
| Power Method | PoEIEEE 802.3af |
| Display | 1.14" status display |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile |
| UniFi Network | Version 10.4.57 and later |
|---|---|
| Mobile App | UniFi iOS™ version 10.35.0 and later UniFi Android™ version 10.38.2 and later |

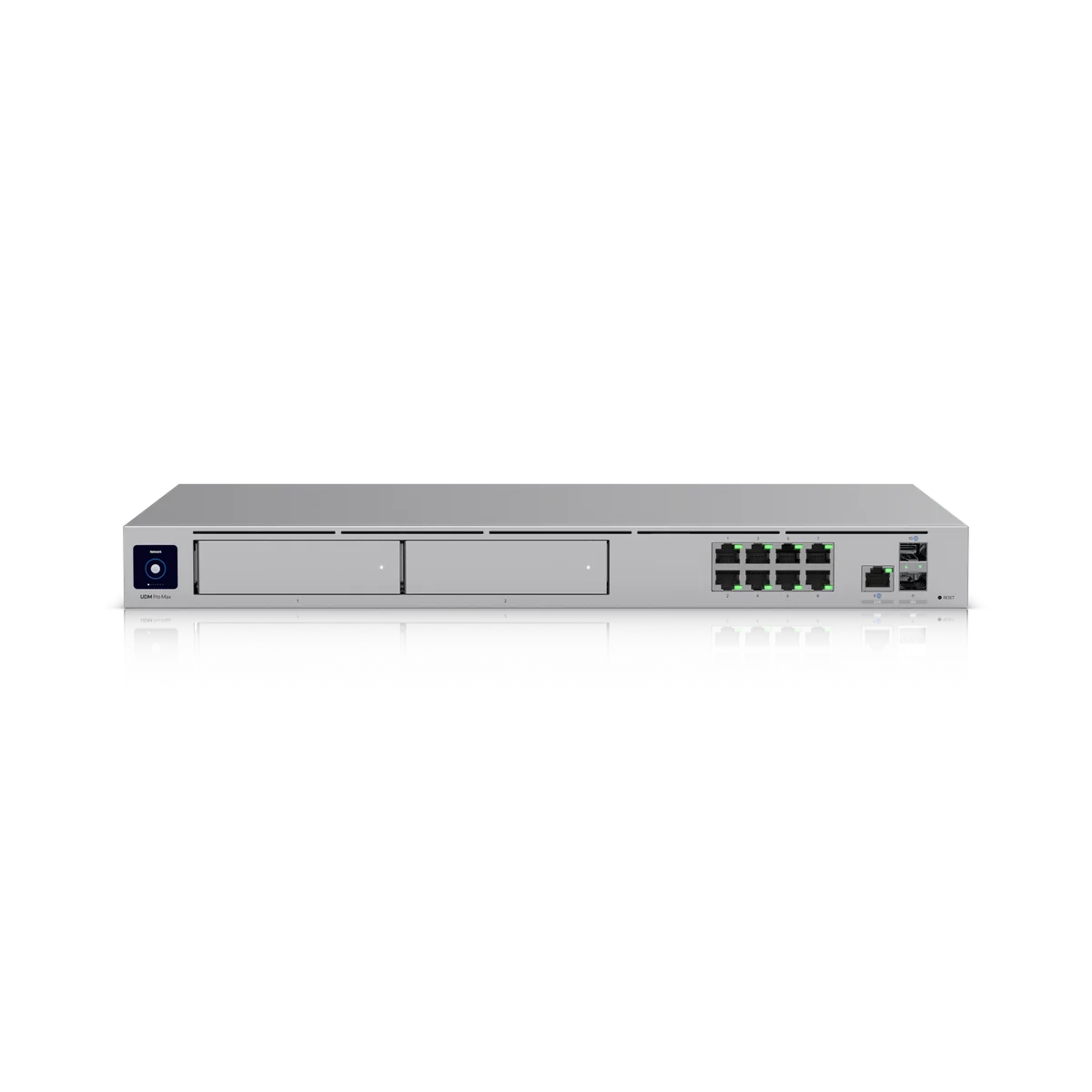

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
