UA-Hub-Door-Mini · Perth installation

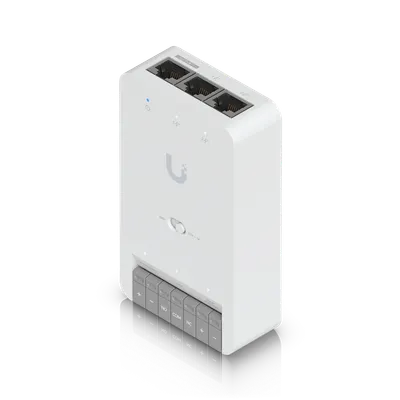

UniFi Access Door Hub Mini
Installation Perth.

Plan your UniFi Access Door Hub Mini installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UA-Hub-Door-Mini.

  • Door or gate and existing hardware
  • Compatible hub, reader and network
  • Exit arrangements and operator permissions
Request a site assessment Australian model, compatibility and procurement checked before the scope is confirmed.

Installing Access Door Hub Mini. Start with the site.

Assess the opening for Access Door Hub Mini.

Installing UA-Hub-Door-Mini starts with the door or gate, the people using it and the existing hardware. We check the intended function and the supported UniFi Access components before proposing a complete arrangement.

Installation details for UA-Hub-Door-Mini

Power Method: PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU. Max. Power Consumption: 19W (Without PoE output) 50W (With PoE output). Networking Interface: (3) GbE RJ45 ports. Mounting: DIN-rail (Included). Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

Coordinate entry and normal exit.

Reader placement, controller location, cable routes and the interface to the door hardware must be considered together. We assess normal exit, the existing release arrangements and the responsibilities of the property operator. The product page is a planning reference, not a terminal wiring guide.

Agree the permissions and handover.

The scope records the required credentials, schedules, administrator roles and visitor functions supported by the selected system. We test the agreed sequence and explain how the operator manages routine access changes.

Know the
equipment.

Manufacturer specifications for UA-Hub-Door-Mini. Check the selected model, regional version and current software requirements during assessment.

View manufacturer source
At a glance
Additional Inputs2 Additional Inputs
Lock Terminals1 Lock Terminal
PoE2 PoE Ports
Overview

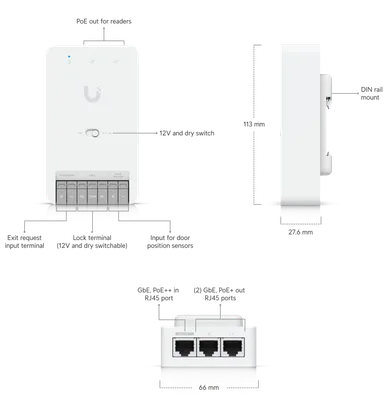

Dimensions113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Supported Doors1
Maximum User Count3,000

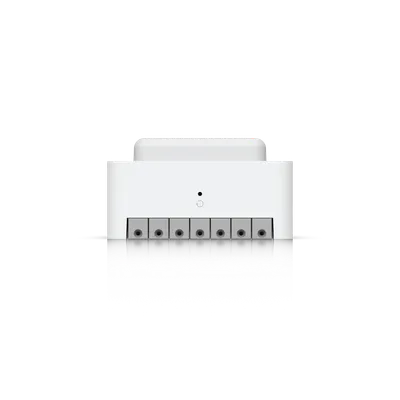

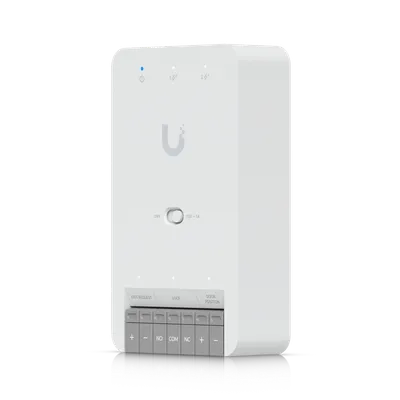

Input Terminals(1) Door exit request (1) Door position
Power MethodPoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Mechanical
Weight190 g (6.7 oz)
Enclosure MaterialPolycarbonate, metal

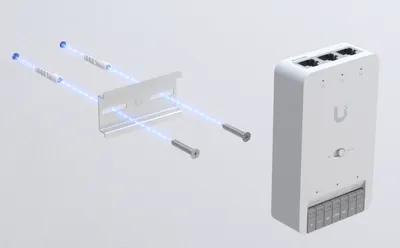

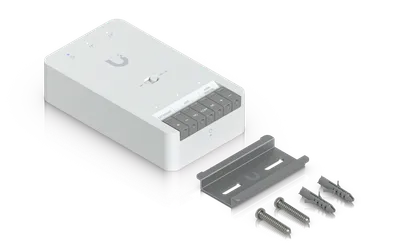

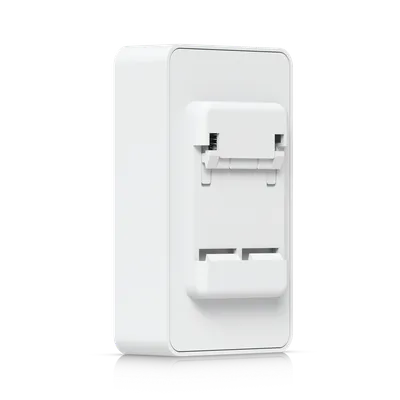

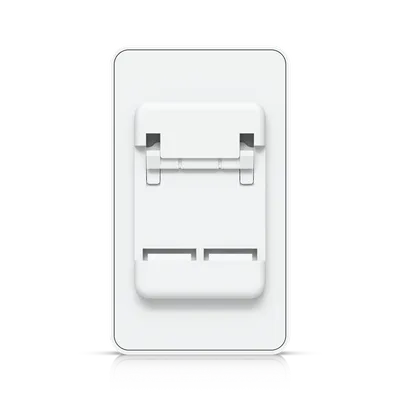

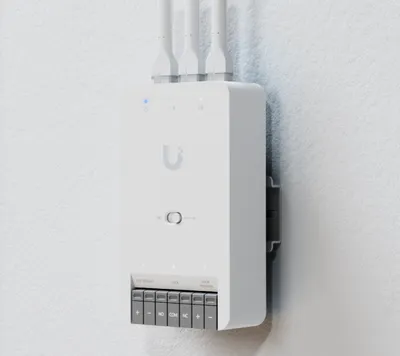

MountingDIN-rail (Included)
Hardware
Dry Output Relay30V DC, 1A
Wet Output Relay12V DC, 1A
Indoor and Outdoor UseIndoor only
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 90% noncondensing

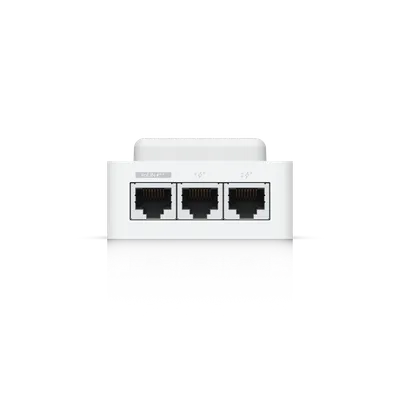

Networking Interface(3) GbE RJ45 ports
PoE Interface(1) PoE++ input, 50V DC, 1A (2) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption19W (Without PoE output) 50W (With PoE output)
LEDsW/B Learn More
Buttons(1) Factory reset (1) Dry/Wet switch
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Hub-Door-Mini, V01
Software
Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com

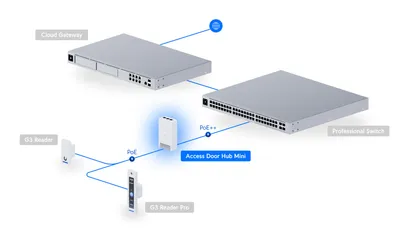

Plan the supporting equipment. Check the complete system.

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.

A few practical questions.

Can you assess Access Door Hub Mini for an existing system?
Yes. Include UA-Hub-Door-Mini, your existing console or host equipment, and a brief description of the work in your enquiry. We check compatibility, capacity and site access before confirming the installation scope.
What should I send for a Access Door Hub Mini assessment?
Send your suburb, property type, the intended location and any existing equipment model numbers. Door or gate and existing hardware and compatible hub, reader and network are useful starting points. Photographs of the proposed location can help with the initial discussion.
Does this page confirm Australian stock or a fixed installation price?
No. This catalogue uses manufacturer product references. We confirm the suitable Australian model, procurement options and a site-specific scope before quoting.
