Assess the opening for Access G2 Reader.
Installing UA-G2 starts with the door or gate, the people using it and the existing hardware. We check the intended function and the supported UniFi Access components before proposing a complete arrangement.
UA-G2 · Perth installationUniFi Access G2 Reader

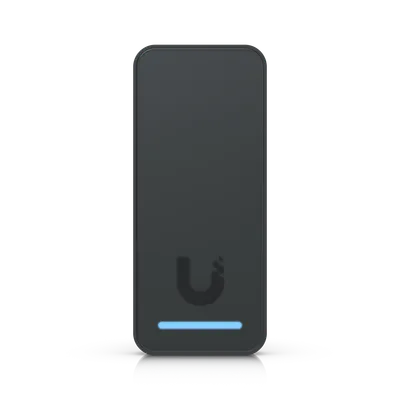

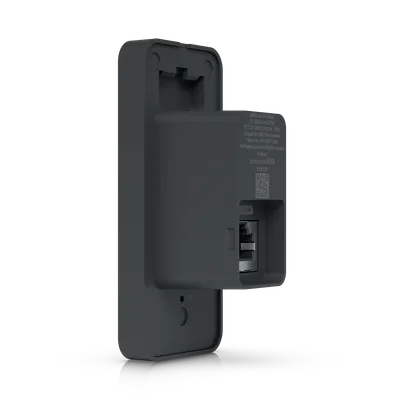

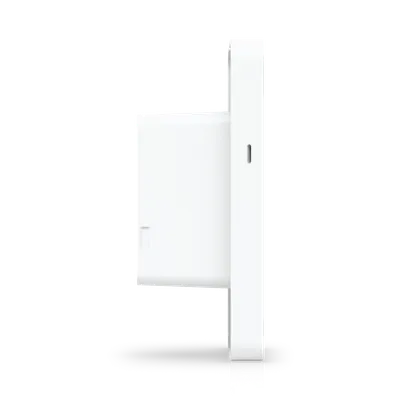

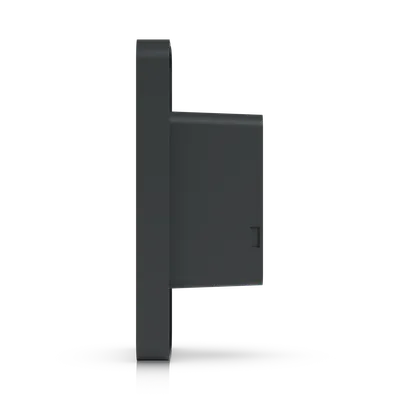

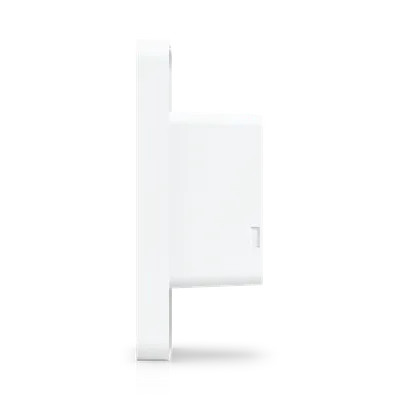

UniFi Access G2 Reader
Installation Perth.
Plan your UniFi Access G2 Reader installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UA-G2.
- Door or gate and existing hardware
- Compatible hub, reader and network
- Exit arrangements and operator permissions

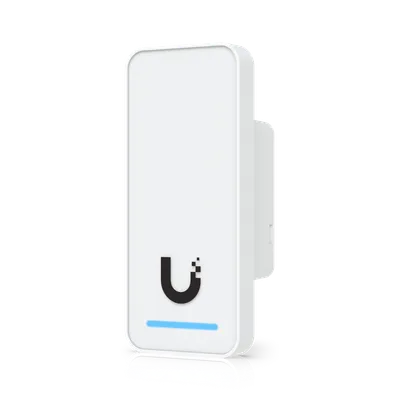

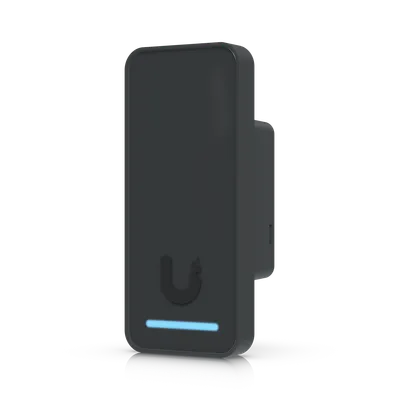

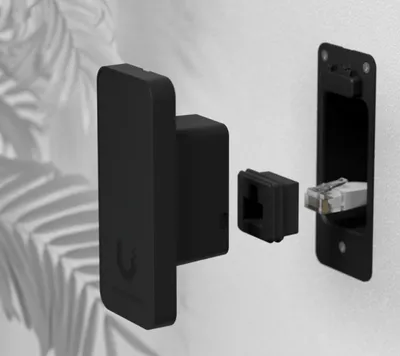

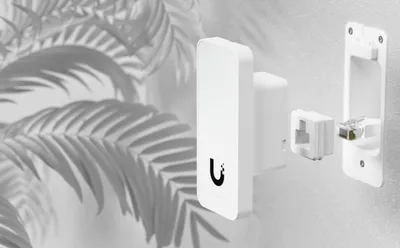

Color: Black · White
Installing Access G2 Reader. Start with the site.
Installation details for UA-G2
Power Method: PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU. Max. Power Consumption: 5W. Networking Interface: (1) 10/100 MbE RJ45 port. Mounting: In-wall, gang box (Included) Junction box (Optional). Weatherproofing: IP55. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Coordinate entry and normal exit.
Reader placement, controller location, cable routes and the interface to the door hardware must be considered together. We assess normal exit, the existing release arrangements and the responsibilities of the property operator. The product page is a planning reference, not a terminal wiring guide.
Agree the permissions and handover.
The scope records the required credentials, schedules, administrator roles and visitor functions supported by the selected system. We test the agreed sequence and explain how the operator manages routine access changes.
Know the
equipment.
Manufacturer specifications for UA-G2. Check the selected model, regional version and current software requirements during assessment.
View manufacturer sourceAt a glance
| NFC | NFC |
|---|---|
| Physical Unlock | Handwave Unlock |
| Weatherproof | Outdoor Exposed |
Overview
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
|---|---|
| UniFi Application Suite | Access |
| Weatherproofing | IP55 |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
Mechanical
| Weight | 82 g (2.9 oz) |
|---|---|
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |

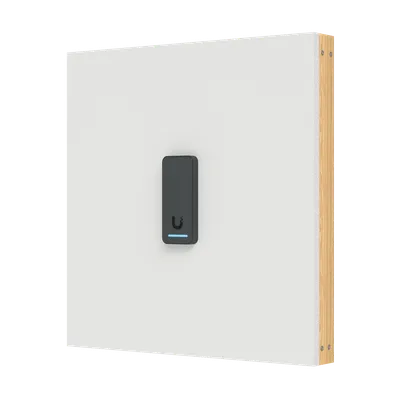

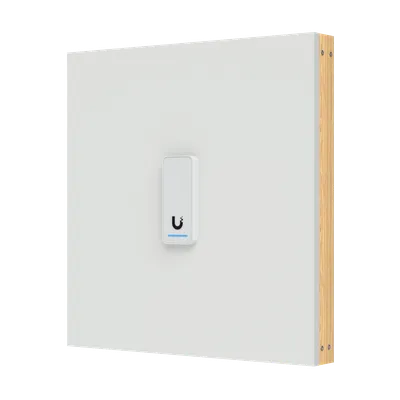

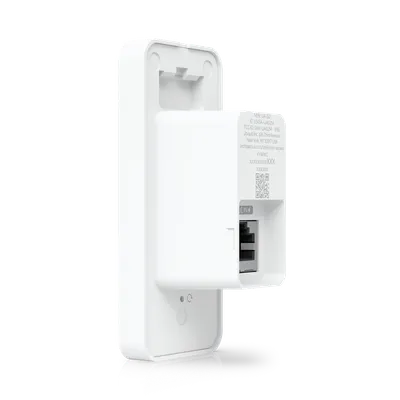

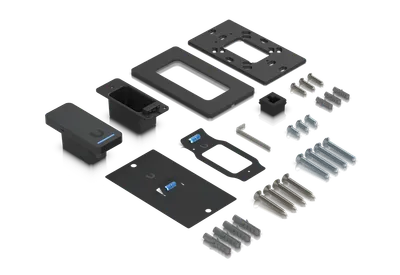

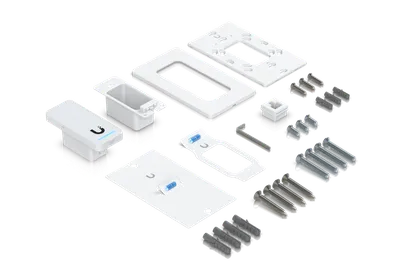

| Mounting | In-wall, gang box (Included) Junction box (Optional) |
Hardware
| Indoor and Outdoor Use | Yes |
|---|---|

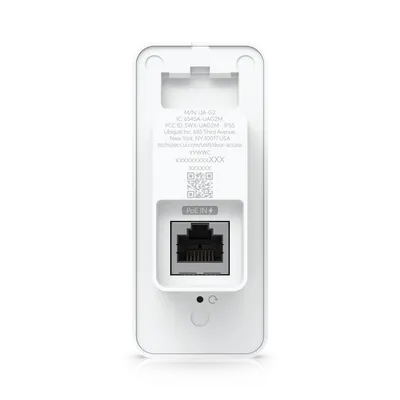

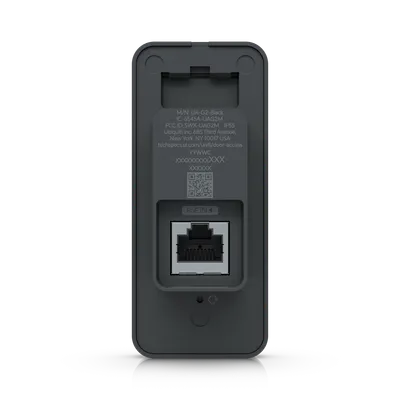

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | Proximity sensor |
| LEDs | R/G/B/W Learn More |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G2/UA-G2-Black, V02 |
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
Software
| Management Application | Access |
|---|---|
| Software Information | The software version can be checked at https://unifi.ui.com |
Plan the supporting equipment. Check the complete system.
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
UA-Hub-Door
UA-Card
UACC-Reader-JB
UACC-Lock-Bolt-Safe
UACC-Lock-Bolt-Secure
Access Door Hub
Installation, specifications and supporting equipment.
Access Card
Installation, specifications and supporting equipment.
Access Reader Junction Box
Installation, specifications and supporting equipment.
Access Fail-Safe Bolt Lock
Installation, specifications and supporting equipment.
Access Fail-Secure Bolt Lock
Installation, specifications and supporting equipment.
A few practical questions.
Can you assess Access G2 Reader for an existing system?
Yes. Include UA-G2, your existing console or host equipment, and a brief description of the work in your enquiry. We check compatibility, capacity and site access before confirming the installation scope.
What should I send for a Access G2 Reader assessment?
Send your suburb, property type, the intended location and any existing equipment model numbers. Door or gate and existing hardware and compatible hub, reader and network are useful starting points. Photographs of the proposed location can help with the initial discussion.
Does this page confirm Australian stock or a fixed installation price?
No. This catalogue uses manufacturer product references. We confirm the suitable Australian model, procurement options and a site-specific scope before quoting.
