Plan your UniFi Access Point E7 Campus Indoor installation in Perth with Servicewest. We assess the site and supporting equipment before specifying E7-Campus-Indoor.
For a Access Point E7 Campus Indoor installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The E7-Campus-Indoor specifications below help establish whether this model fits the proposed location.

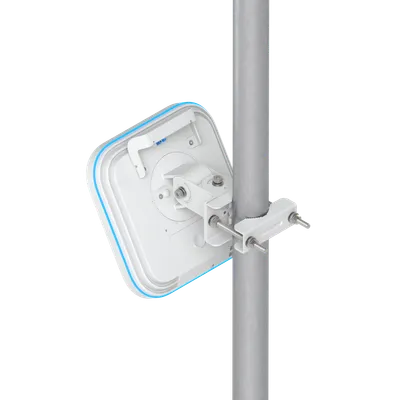

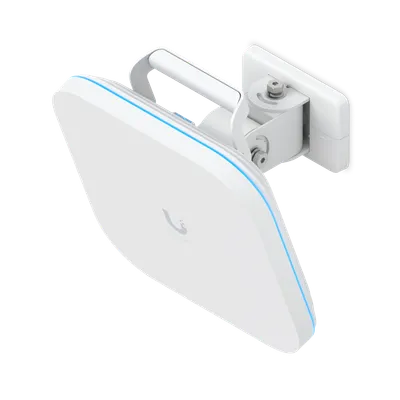

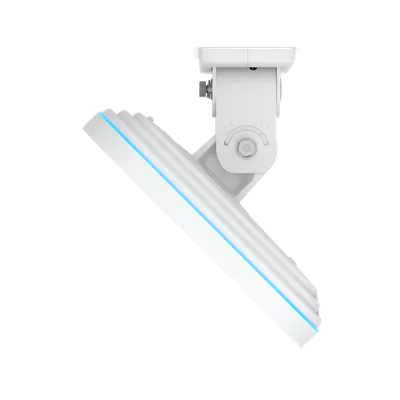

Power Method: PoE++. Max. Power Consumption: 44W. Networking Interface: (1) 10 GbE RJ45 port (1) GbE RJ45 port. Mounting: Wall, Pole (Mounts Included) VESA (Optional). Dimensions: Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8") Articulating mount: ⌀104 x 149.4 (⌀4.1 x 5.9"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cable routes, uplink speed and the supported power source are checked together. We discuss whether the ceiling or wall location can be reached neatly and whether an existing cable can be reused. Additional access points are selected only after considering the rest of the coverage plan.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for E7-Campus-Indoor. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| WiFi7 | WiFi 7 |
|---|---|
| Radio/Antenna | 6 GHz Radio |
| Dimensions | Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8") Articulating mount: ⌀104 x 149.4 (⌀4.1 x 5.9") |
|---|---|
| WiFi Standard | WiFi 7With 6 GHz support |
| Spatial Streams | 10 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 1000+ |
| Uplink | 10 GbE 1 GbE |

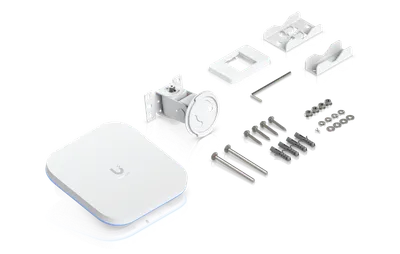

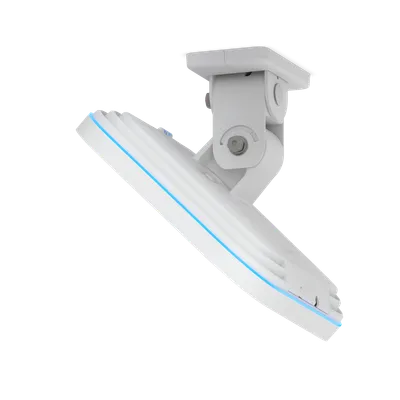

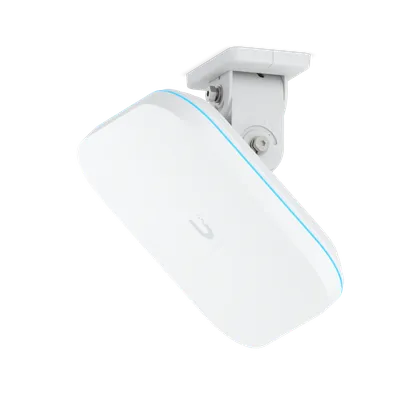

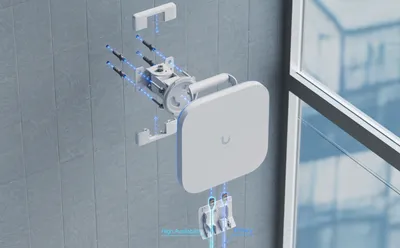

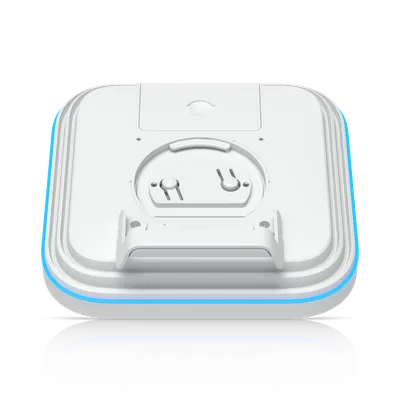

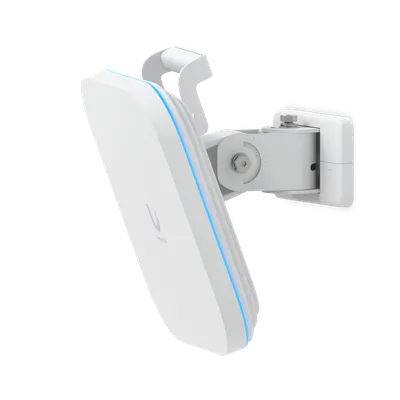

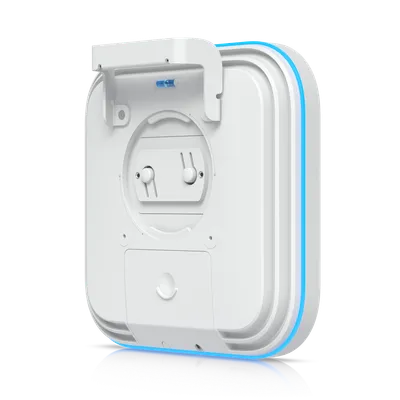

| Mounting | Wall, Pole (Mounts Included) VESA (Optional) |
| Power Method | PoE++ |
| 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
|---|---|
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 11.5 Gbps (BW320) |
| 5 GHz | 8.6 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | Directional internal: 12 dBi, 90° x 50° |
| 5 GHz | Directional internal: 12 dBi, 100° x 55° |
| 2.4 GHz | Directional internal: 9 dBi, 90° x 80° |
| 6 GHz | 30 dBm (36 dBm EIRP)With 6 GHz Extended Range mode. Available in FCC/IC region only. |
| 5 GHz | 30 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Max. Power Consumption | 44W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port (1) GbE RJ45 port |
| Weight | Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) |

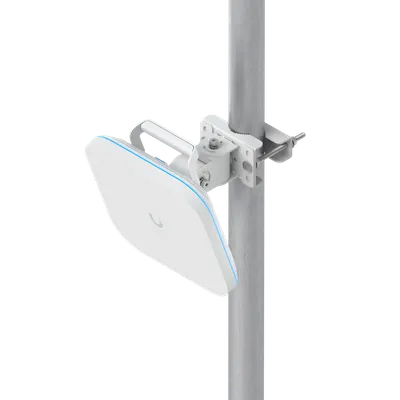

| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Antennas | (1) Internal with directional patterns |
| 6 GHz | 90° x 50° |
| 5 GHz | 100° x 55° |
| 2.4 GHz | 90° x 80° |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel, aluminum alloy |
| System | R/G/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
| UniFi Network | Version 10.0.162 and later |
|---|---|
| Mobile App | iOS™ version 10.30.2 and later Android™ version 10.31.4 and later |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
