Plan your UniFi Access Point U7 In-Wall installation in Perth with Servicewest. We assess the site and supporting equipment before specifying U7-IW.

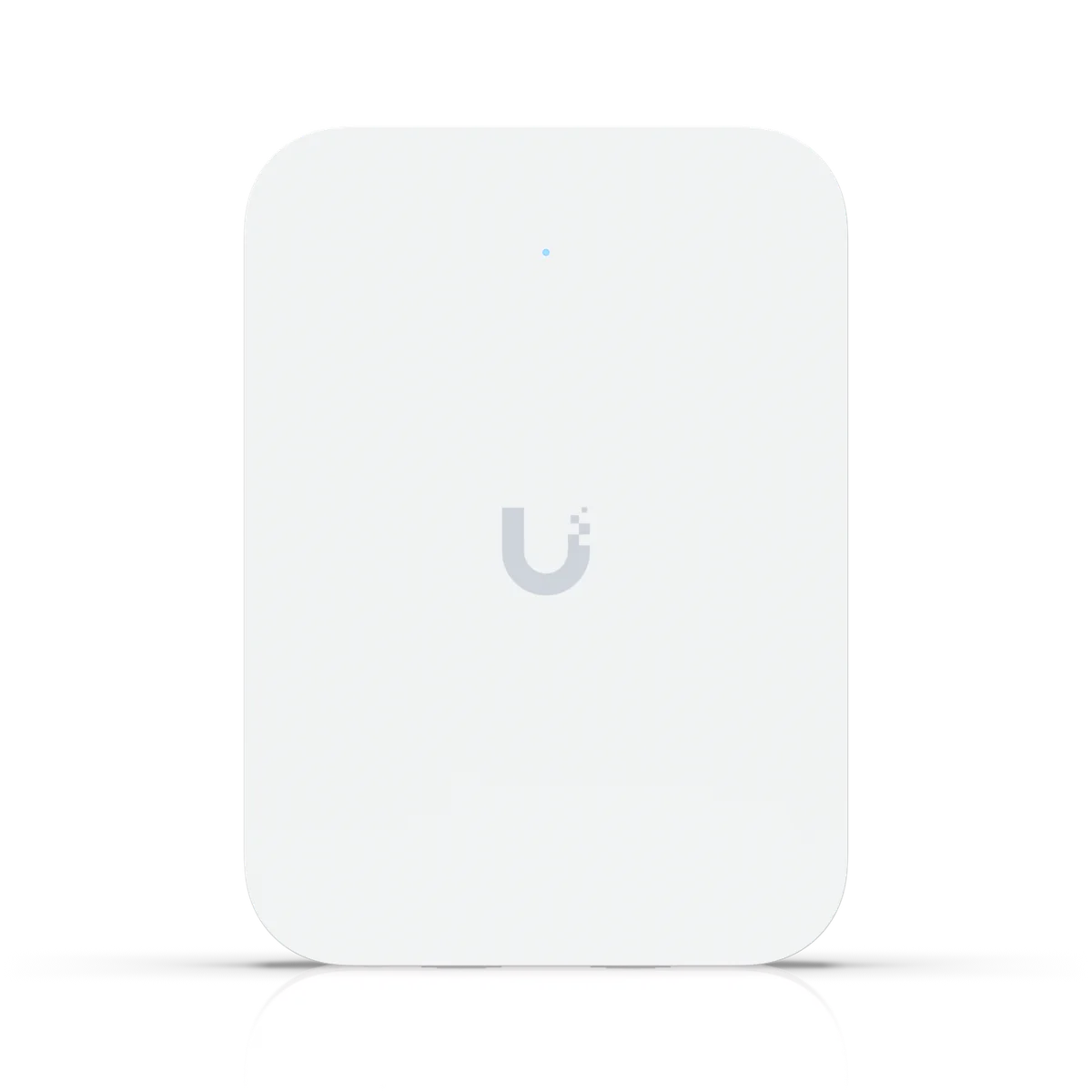

For a Access Point U7 In-Wall installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The U7-IW specifications below help establish whether this model fits the proposed location.
Power Method: PoE PoE+ (Required for PoE output). Max. Power Consumption: 13W (Excluding PoE output). Networking Interface: (3) 2.5 GbE RJ45 ports. Mounting: Wall (Metal Wall Mount Included). Dimensions: 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cable routes, uplink speed and the supported power source are checked together. We discuss whether the ceiling or wall location can be reached neatly and whether an existing cable can be reused. Additional access points are selected only after considering the rest of the coverage plan.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for U7-IW. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Max. Client Count | 200 |
|---|---|
| WiFi7 | WiFi 7 |

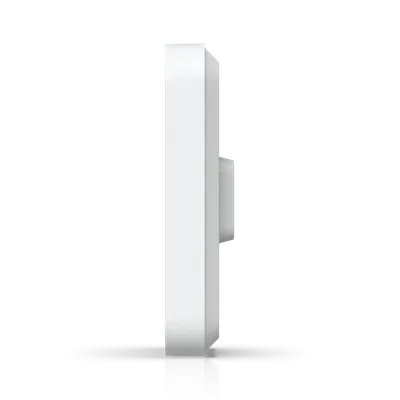

| Dimensions | 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2") |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |

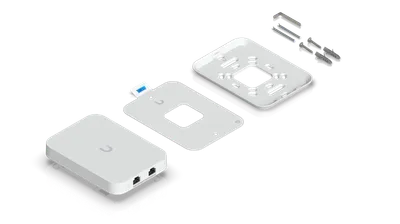

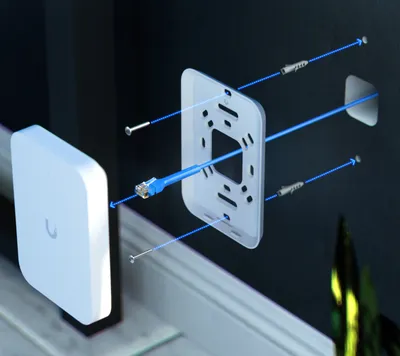

| Mounting | Wall (Metal Wall Mount Included) |
| Power Method | PoE PoE+ (Required for PoE output) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
|---|---|
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4.3 Gbps (BW240)Depends on regulatory region |
| 2.4 GHz | 688 Mbps (BW40) |
| 5 GHz | 8 dBi |
| 2.4 GHz | 4 dBi |
| 5 GHz | 24 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)Depends on regulatory region |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Max. Power Consumption | 13W (Excluding PoE output) |
|---|---|
| Supported Voltage Range | 42.5–57V DC |

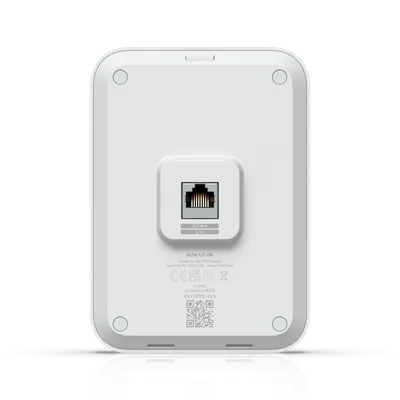

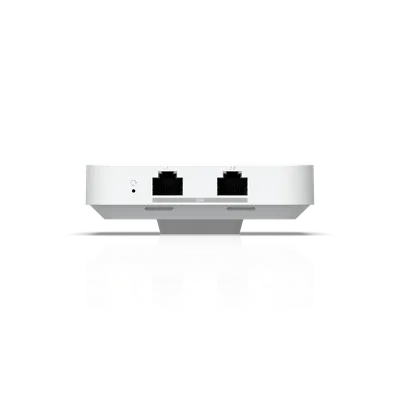

| Networking Interface | (3) 2.5 GbE RJ45 ports |
| Weight | 400 g (14.1 oz) |
| Management | Ethernet |

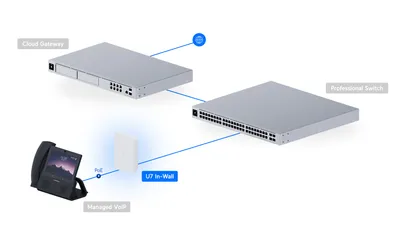

| Built-In Switch | (1) PoE+ input and (1) PoE output |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 03909-25-08356 |
| UniFi Network | Version 9.0.114 and later |
|---|---|
| Mobile App | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |

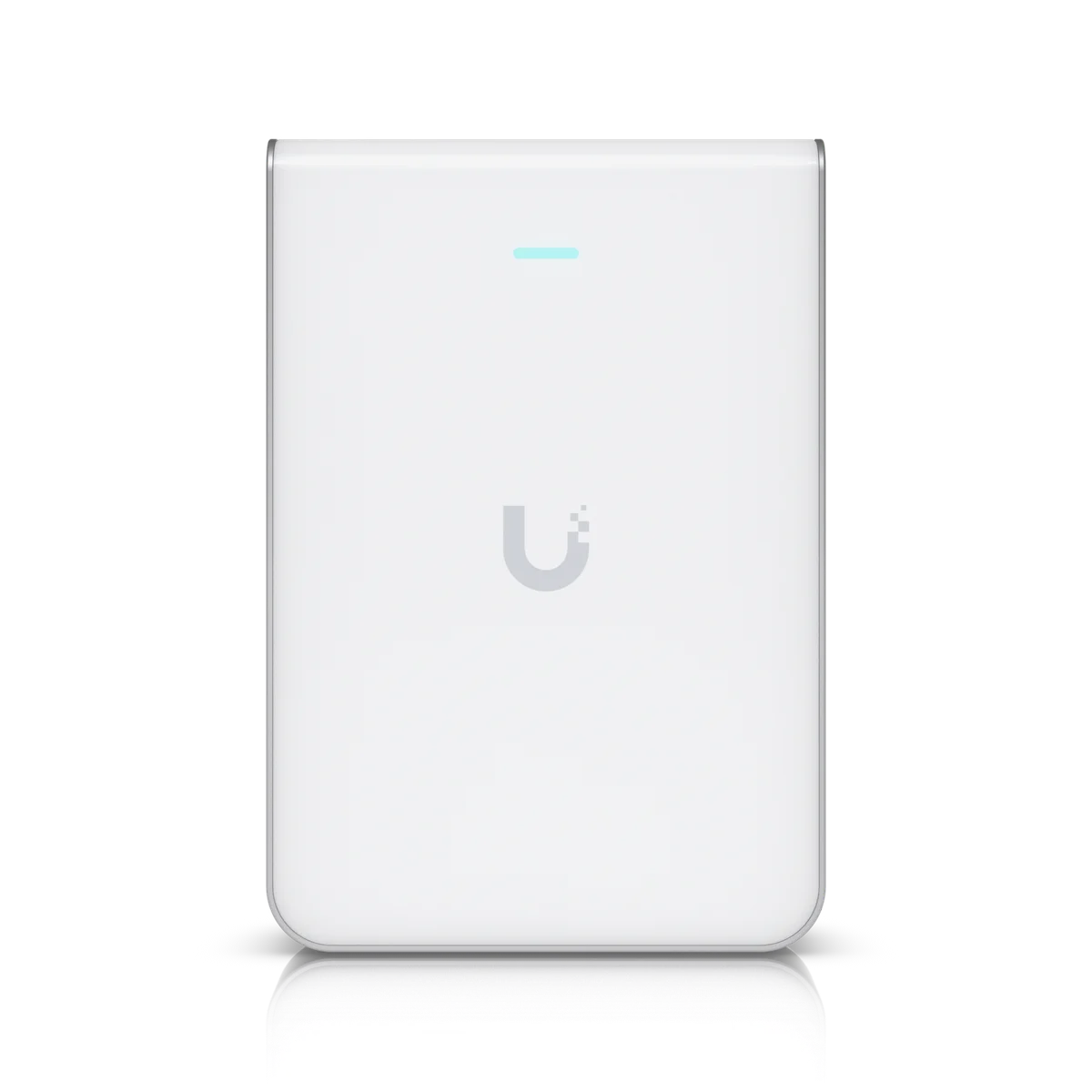

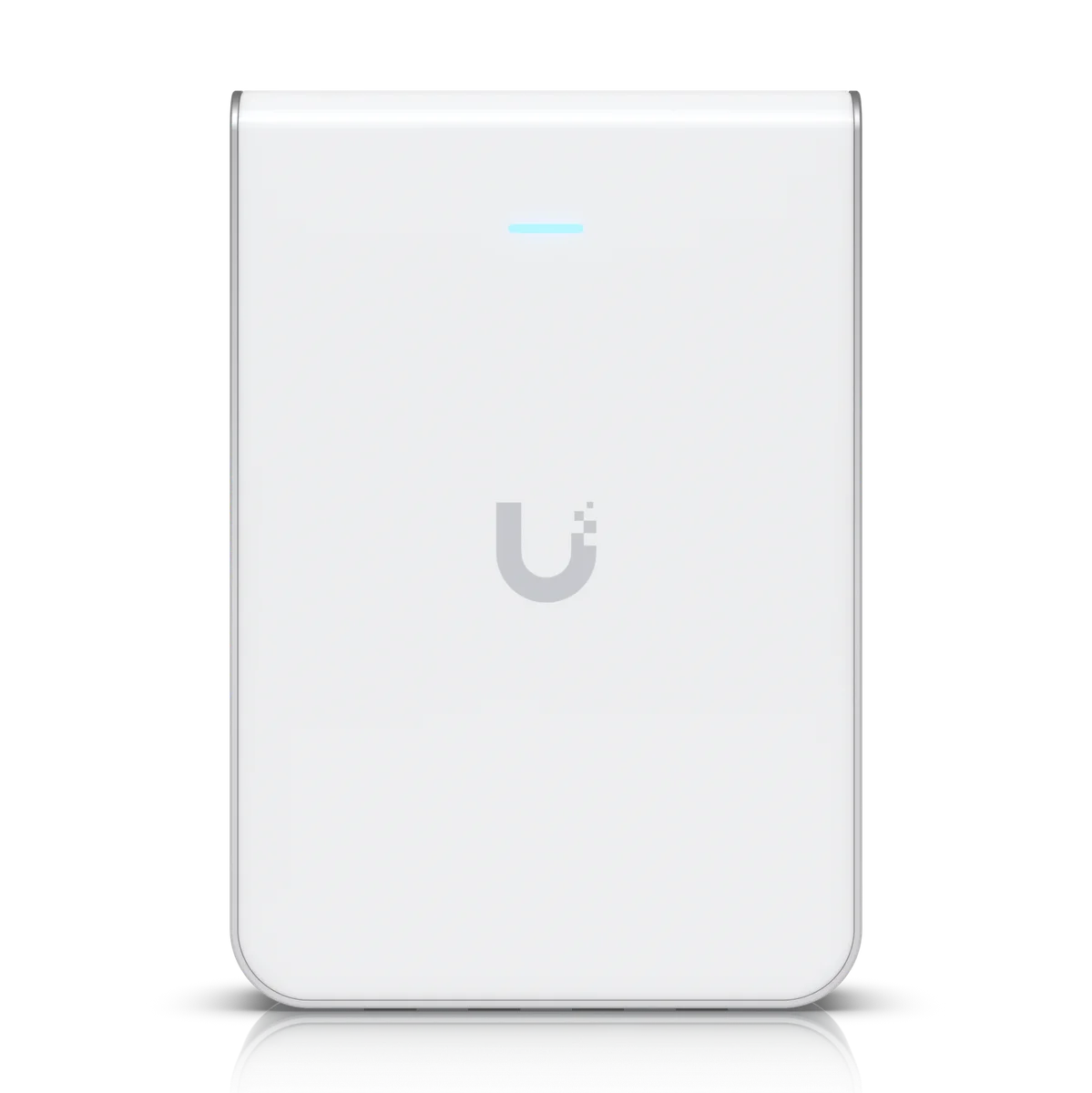

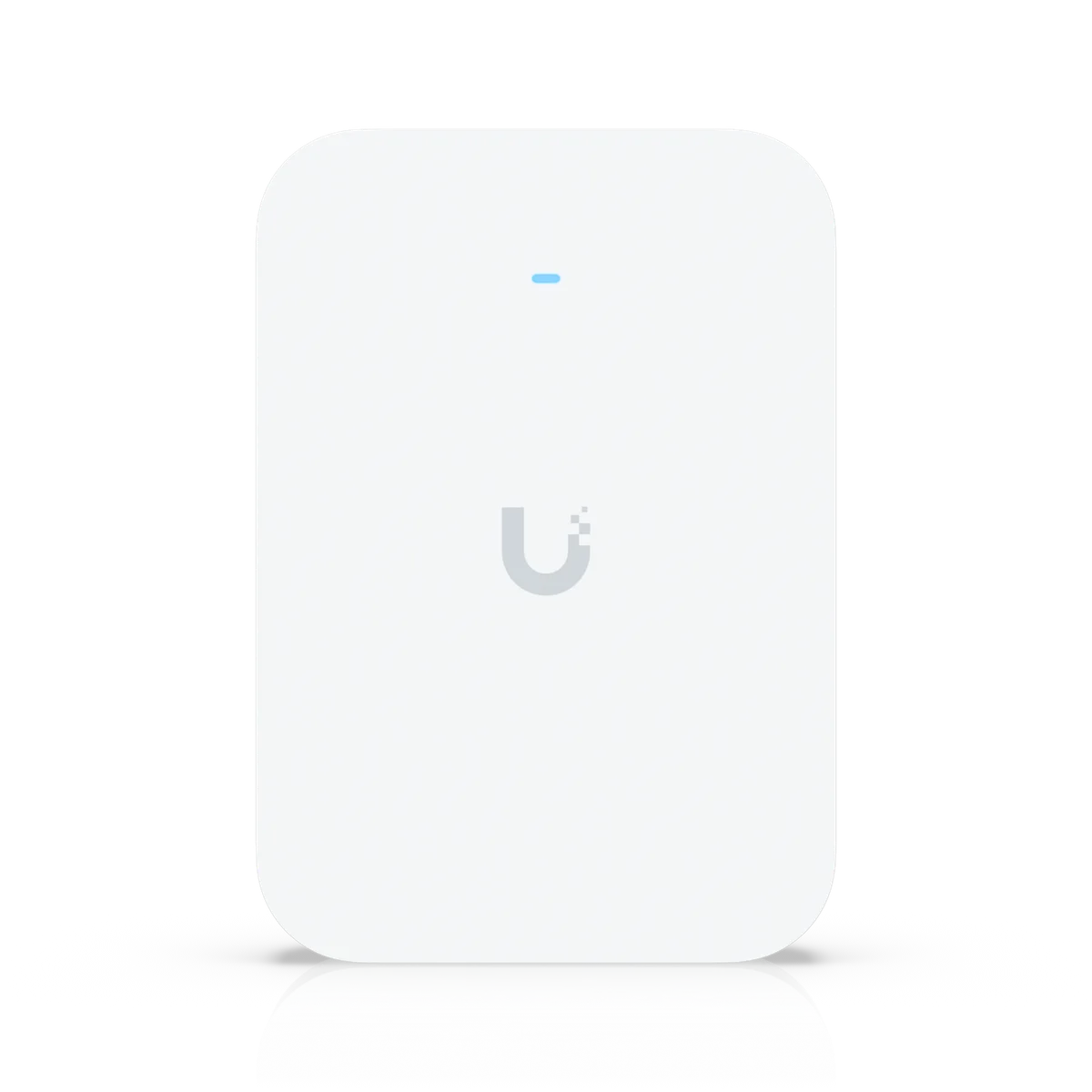

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
