Plan your UniFi Access Point U7 Pro XG installation in Perth with Servicewest. We assess the site and supporting equipment before specifying U7-Pro-XG.

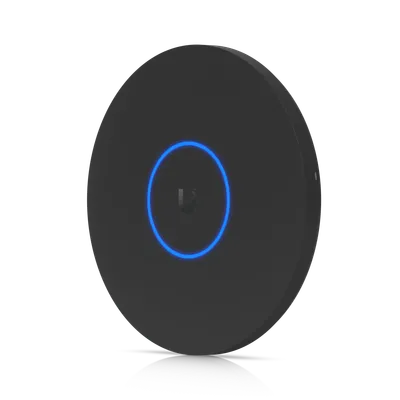

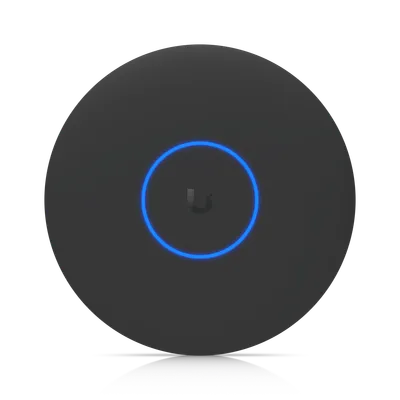

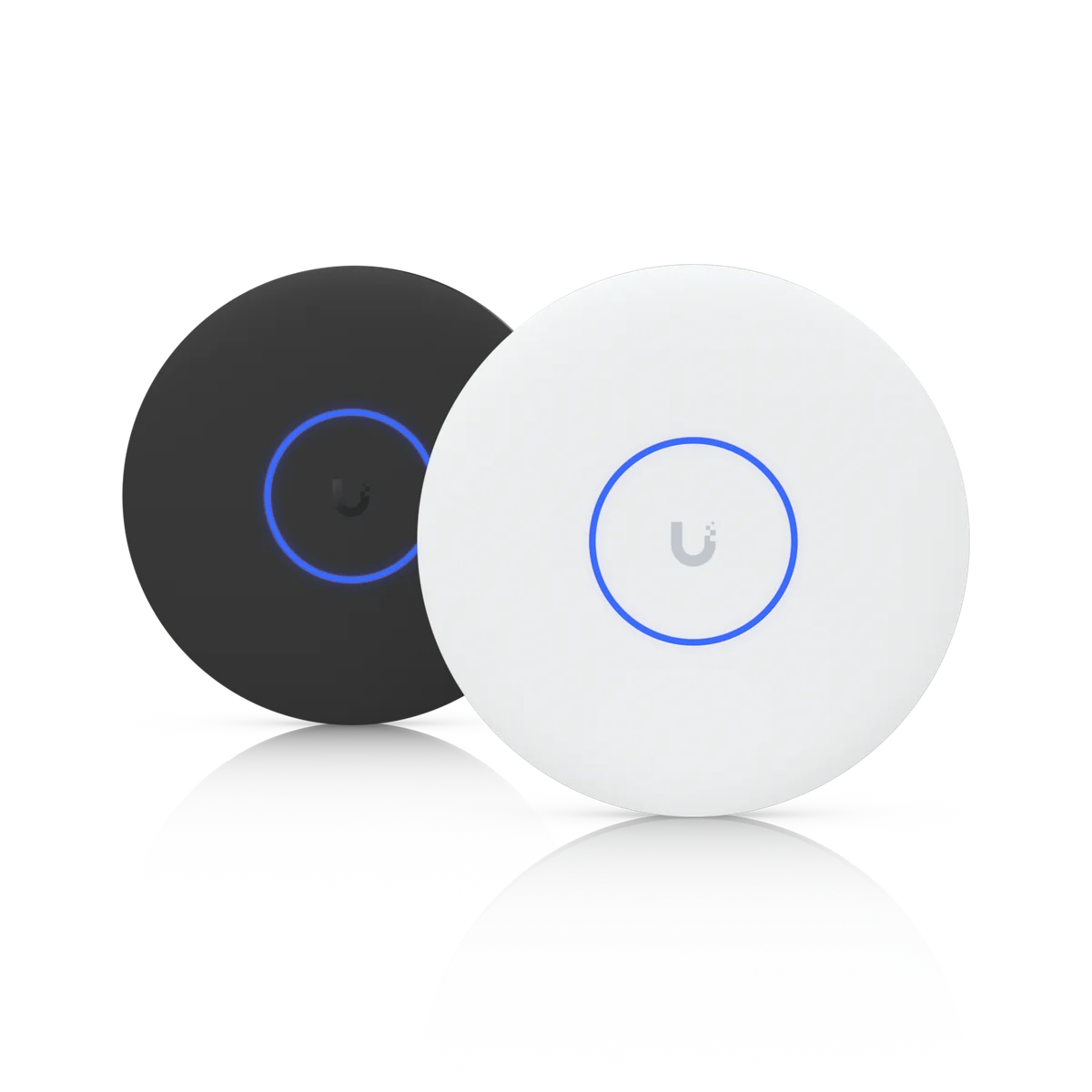

Color: Black · White
For a Access Point U7 Pro XG installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The U7-Pro-XG specifications below help establish whether this model fits the proposed location.

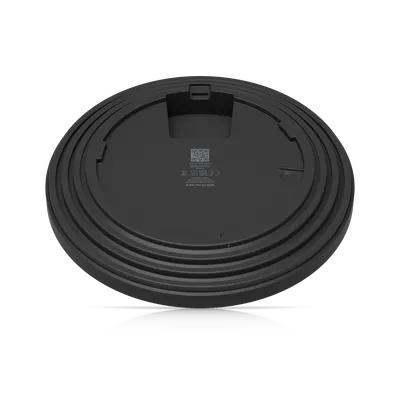

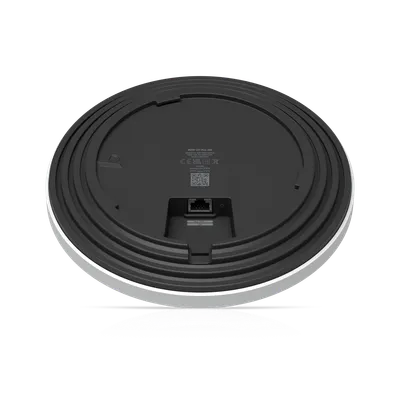

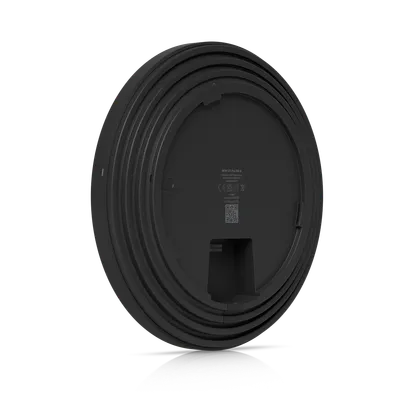

Power Method: PoE+. Max. Power Consumption: 22W. Networking Interface: (1) 10 GbE RJ45 port. Mounting: Ceiling, Wall (Lite Mount Included). Dimensions: ⌀206 x 32.5 mm (⌀8.1 x 1.3"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

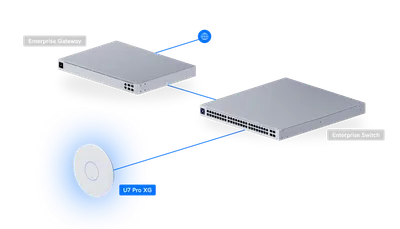

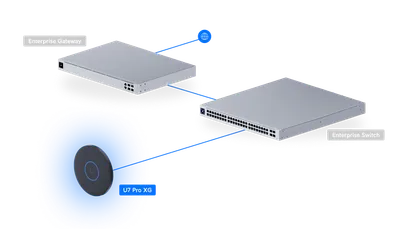

Cable routes, uplink speed and the supported power source are checked together. We discuss whether the ceiling or wall location can be reached neatly and whether an existing cable can be reused. Additional access points are selected only after considering the rest of the coverage plan.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for U7-Pro-XG. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Max. Client Count | 300 |
|---|---|
| WiFi7 | WiFi 7 |
| Radio/Antenna | 6 GHz Radio |

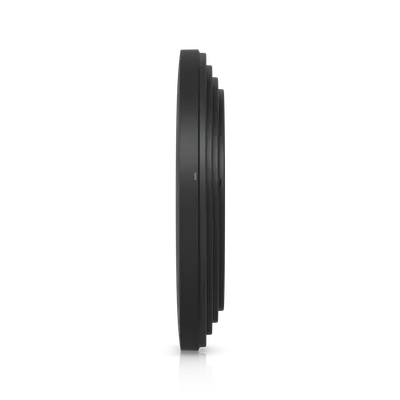

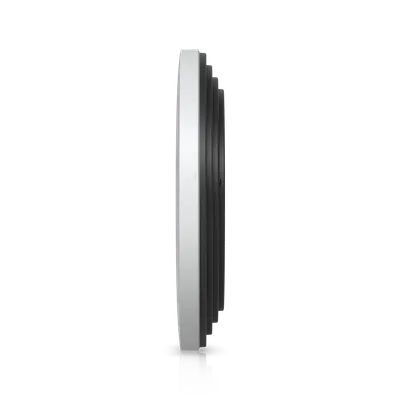

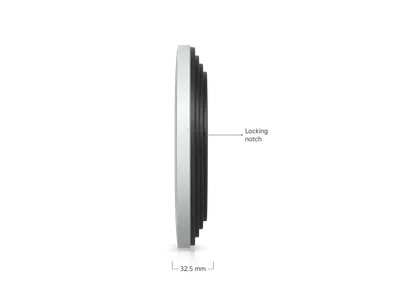

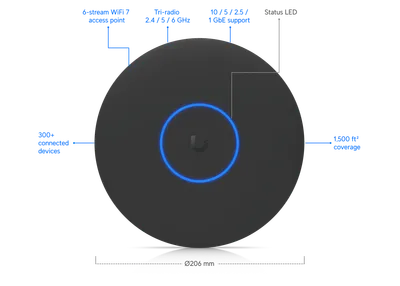

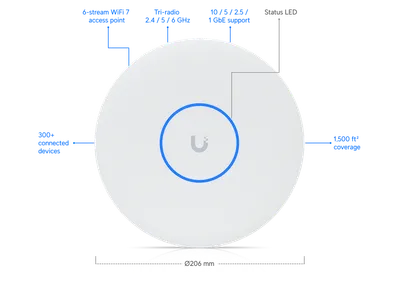

| Dimensions | ⌀206 x 32.5 mm (⌀8.1 x 1.3") |
|---|---|
| WiFi Standard | WiFi 7With 6 GHz support |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |

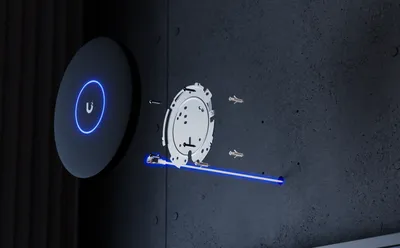

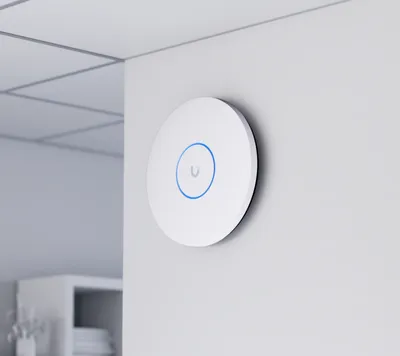

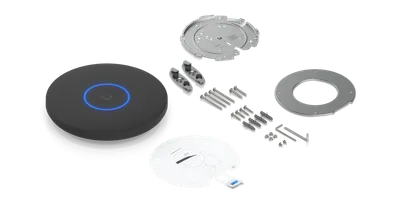

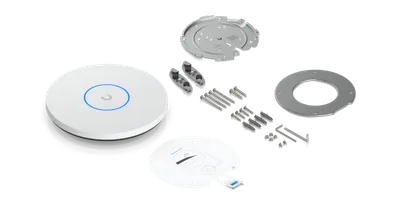

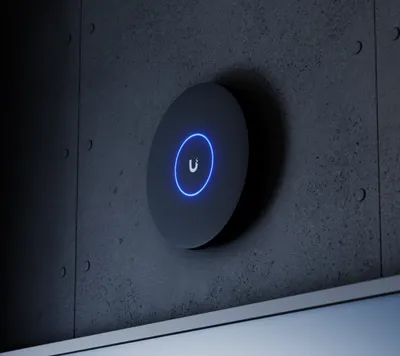

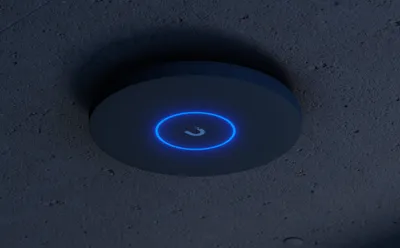

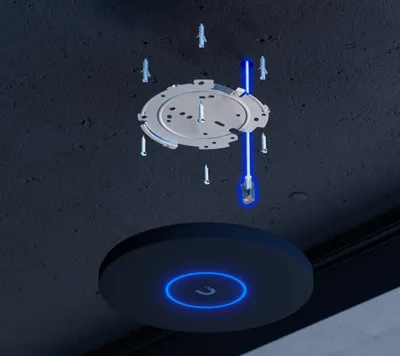

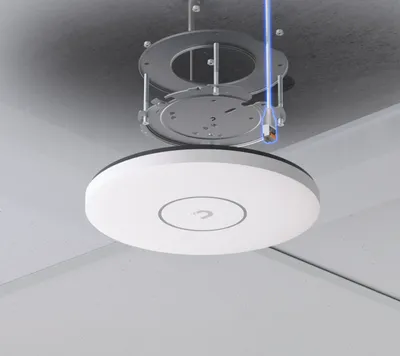

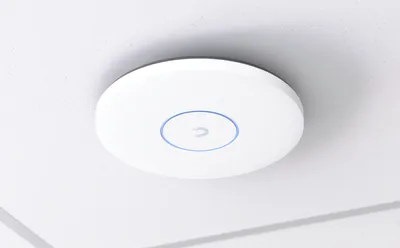

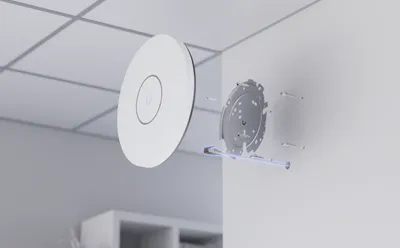

| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
|---|---|
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | 6 dBi |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Max. Power Consumption | 22W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |

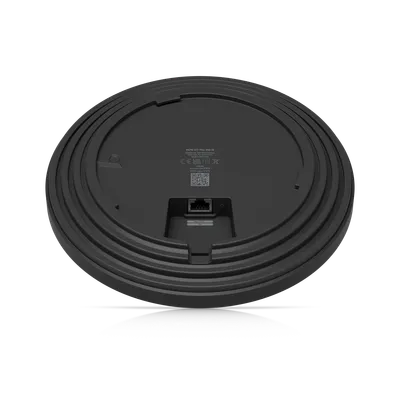

| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 750 g (1.7 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHzFor worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06630-25-08356 |
| UniFi Network | Version 9.0.114 and later (U7 Pro XG - White) Version 9.1.120 and later (U7 Pro XG - Black) |
|---|
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
