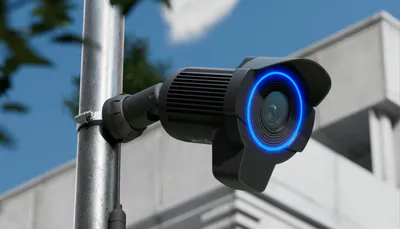

Plan your UniFi AI LPR installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UVC-AI-LPR.
Color: Black
We assess the scene before specifying UVC-AI-LPR: the area to cover, mounting height, available light and the detail you need to see. The manufacturer specifications below describe the hardware; the final position is selected for the actual property.
Power Method: PoE+. Max. Power Consumption: 25.5W. Networking Interface: GbE RJ45 port. Mounting: Wall, ceiling, pole mount (Included) Junction box, angled base (Optional). Weatherproofing: IP66. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

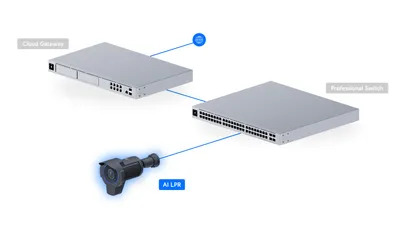

We check the compatible recording platform, network connection and power method for this model. The cable route and mounting arrangement are agreed before work starts. Where existing equipment is being retained, its capacity and software support are reviewed first.
The installation scope includes the agreed camera setup, viewing permissions and playback checks. Retention depends on the selected recorder, drives and recording settings. We show the system owner how to view and retrieve footage on the authorised devices.
Manufacturer specifications for UVC-AI-LPR. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| AI | AI Detections |
|---|---|
| IR | 15 m (50 ft) |
| Lens Resolution | 4K |
| Resistance | IK04 |
| View Angle | H: 109.9° to 35°Based on zoom |
| Weatherproof | IP66 |
| Zoom | 3x Optical ZoomOptimized for night time and high vehicle speeds |
| Dimensions | 130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
|---|---|
| IR Night Vision | 15 m (50 ft) |
| Zoom Mode | 3x Optical |
| Resolution | 4K |
| Field of View | Wide: H 109.9°, V 60°, D 127.7° Tele: H 35°, V 19.8°, D 40° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |

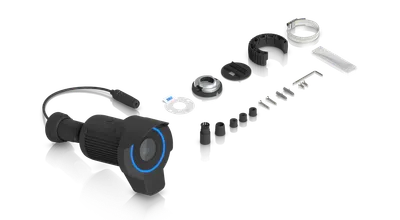

| Mounting | Wall, ceiling, pole mount (Included) Junction box, angled base (Optional) |
| UniFi Application Suite | Protect |
| Networking Interface | GbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
| IR Capture Distance | 15 m (50 ft) |

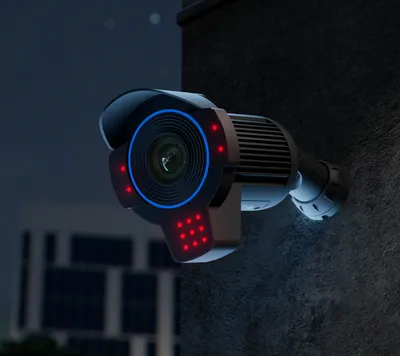

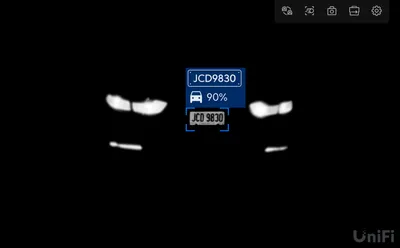

| LPR Night Mode | LPR optimization filterCapture reflective and non reflective plates at night |
| Max. Power Consumption | 25.5W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |

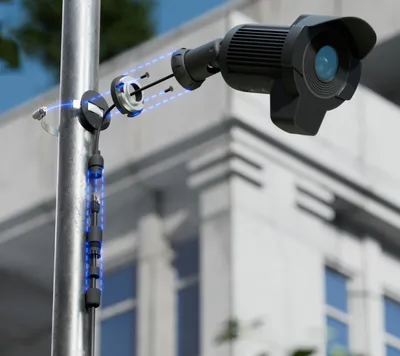

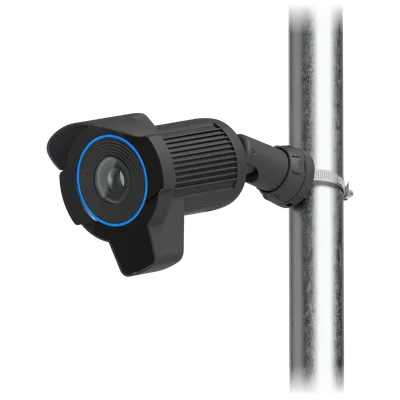

| Pole Mount Diameter | 1.5–2" (38–50 mm)Metal strap torque: 6Nm |
| Weight | 1.5 kg (3.3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Aluminum Alloy |
| Expansion Slot | Micro SD memory cardRequires a memory card with at least 64GB of storage |
| Button | (1) Factory reset |
| Cable Connector Type | RJ45 |
| Cable Diameter | 4.5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Thermoplastic elastomer |
| Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
