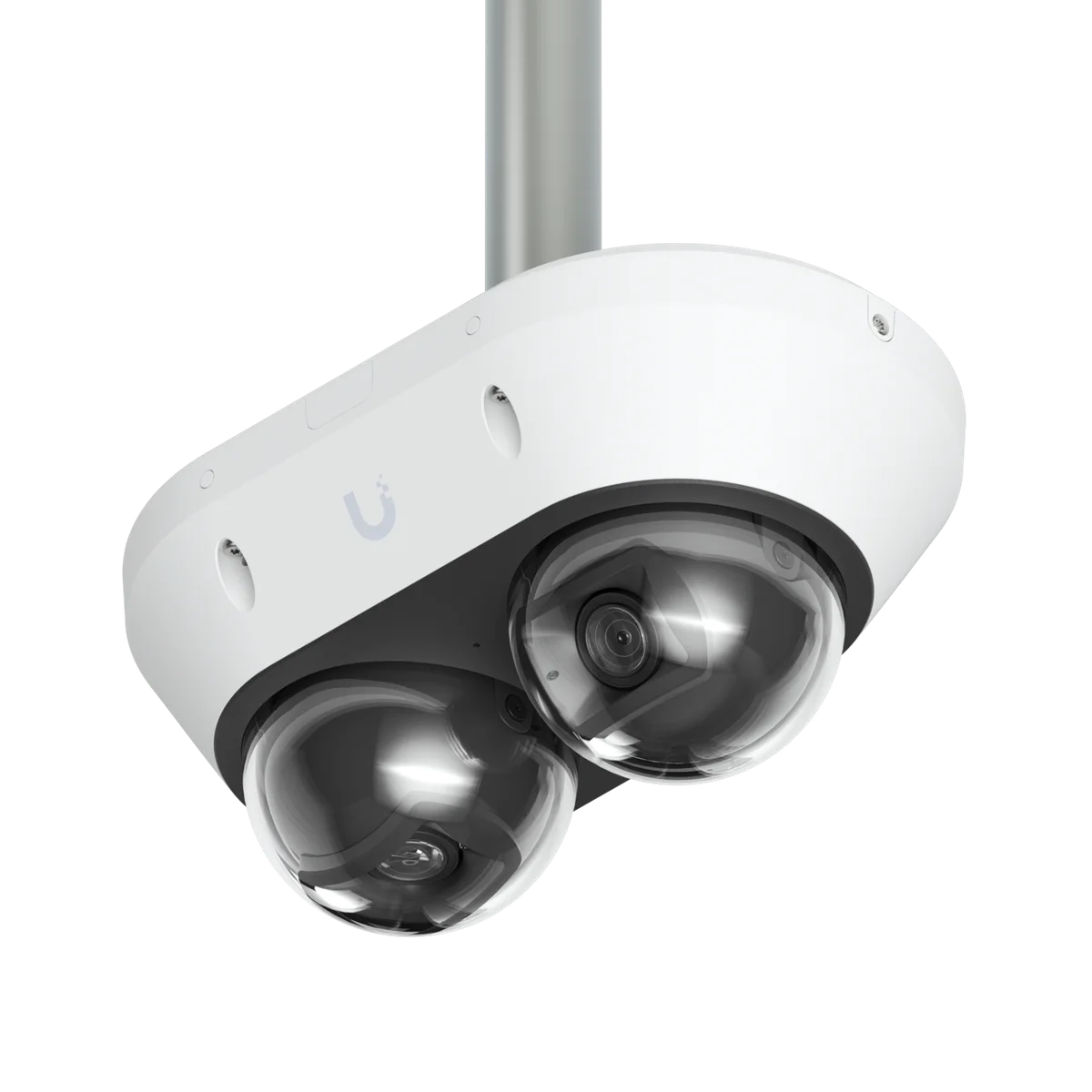

Plan your UniFi AI Multi Sensor 2 installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UVC-AI-MS-2.
Color: White

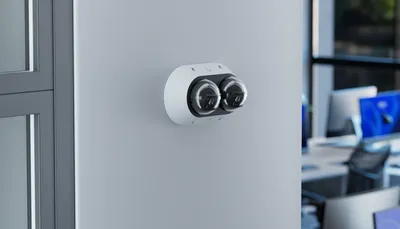

We assess the scene before specifying UVC-AI-MS-2: the area to cover, mounting height, available light and the detail you need to see. The manufacturer specifications below describe the hardware; the final position is selected for the actual property.
Power Method: PoE+. Max. Power Consumption: 25W. Networking Interface: GbE RJ45 port. Mounting: Ceiling, Wall, Pole mount, Conduit pipe adapter (Included) Weather Shield, Arm, Pendant mount (Optional). Weatherproofing: IP66. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

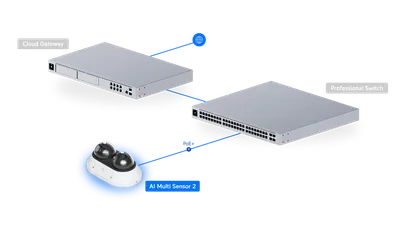

We check the compatible recording platform, network connection and power method for this model. The cable route and mounting arrangement are agreed before work starts. Where existing equipment is being retained, its capacity and software support are reviewed first.
The installation scope includes the agreed camera setup, viewing permissions and playback checks. Retention depends on the selected recorder, drives and recording settings. We show the system owner how to view and retrieve footage on the authorised devices.
Manufacturer specifications for UVC-AI-MS-2. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| AI | Enhanced AI |
|---|---|
| IR | 20 m (65 ft) |
| Lens Resolution | 4K |
| Resistance | IK10 |
| Sound | Microphone |
| Weatherproof | Outdoor Exposed |
| Zoom | 2.33x |
| Dimensions | 218 x 132 x 93.5 mm (8.6 x 5.2 x 3.7") |
|---|---|
| IR Night Vision | 20 m (65 ft) |
| Zoom Mode | 2.33x Optical |
| Resolution | 16 MP |
| Field of View | Wide: H:108.8°, V:57.6° , D:130.8° Tele: H:42.8°, V:24.1° , D:49.1° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |

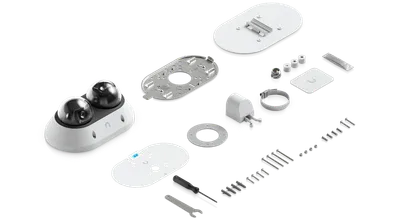

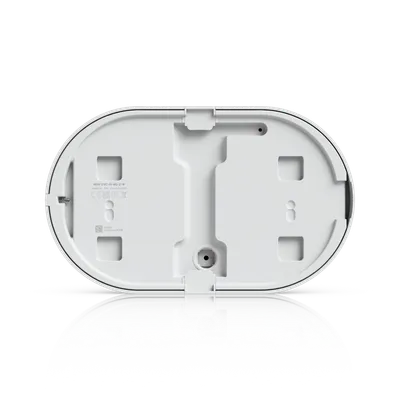

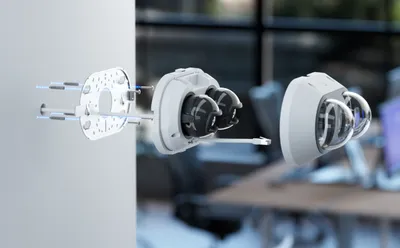

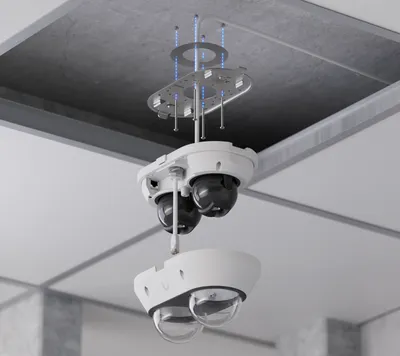

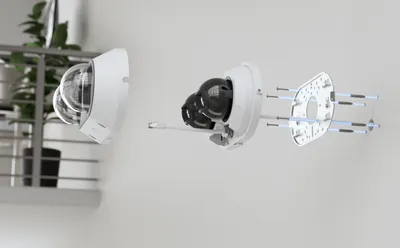

| Mounting | Ceiling, Wall, Pole mount, Conduit pipe adapter (Included) Weather Shield, Arm, Pendant mount (Optional) |
| UniFi Application Suite | Protect |

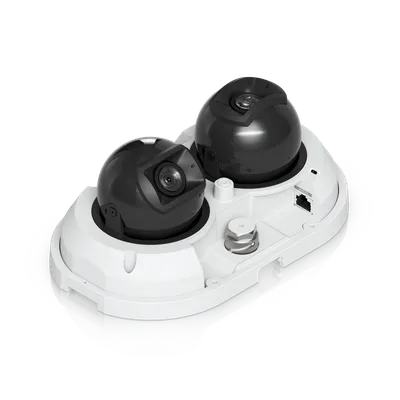

| Networking Interface | GbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | (2) 8MP 3840 x 2160 (16:9) |
| Sensor | 1/2.8" 8MP |
| Lens | (2) F 3.18-7.42 mm; ƒ/1.8-ƒ/2.8 |
| Night Mode | Built-in adaptive IR LED illumination and IR cut filter |
| Max. Power Consumption | 25W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Dual-core Arm® Cortex®-A76 based chip |
| Weight | 1.3 kg (3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate, stainless steel |
| Expansion Slot | MicroSD card |
| Button | (1) Factory-reset |
| LEDs | Status LED |
| Cable Diameter | Max. 6.5 mm (0.26") |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
