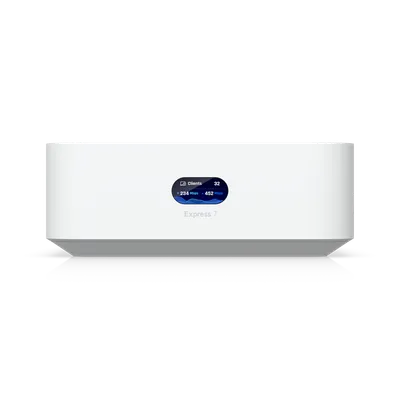

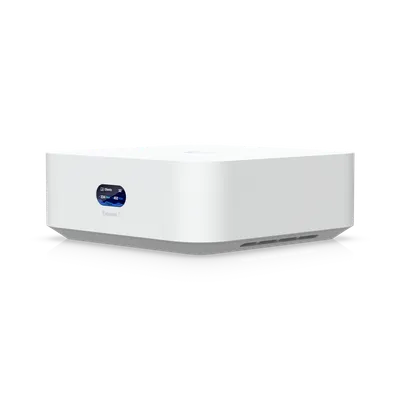

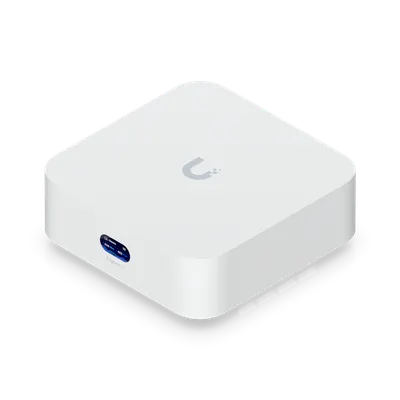

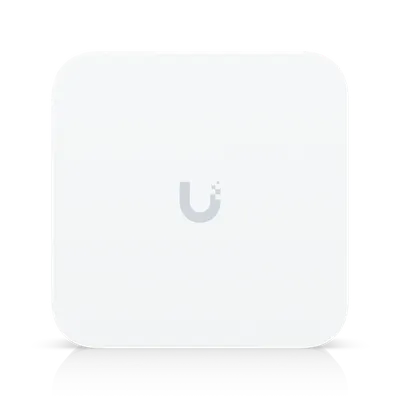

Plan your UniFi Express 7 installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UX7.
Variant: US Version

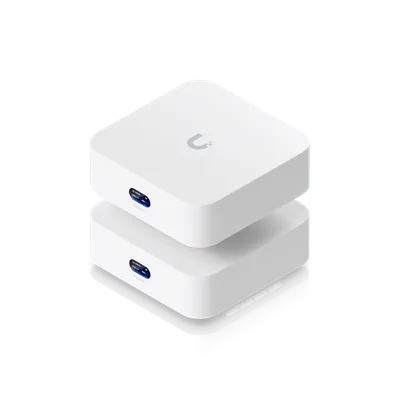

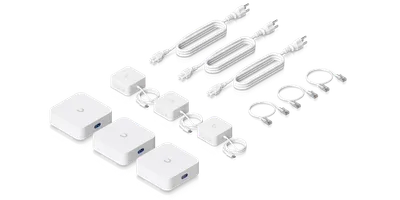

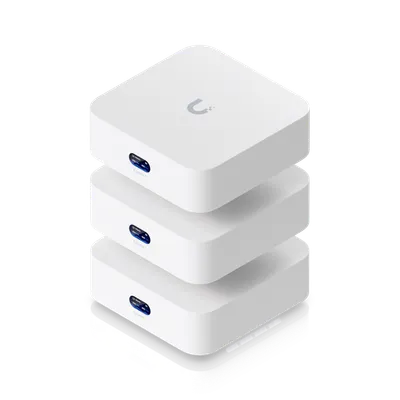

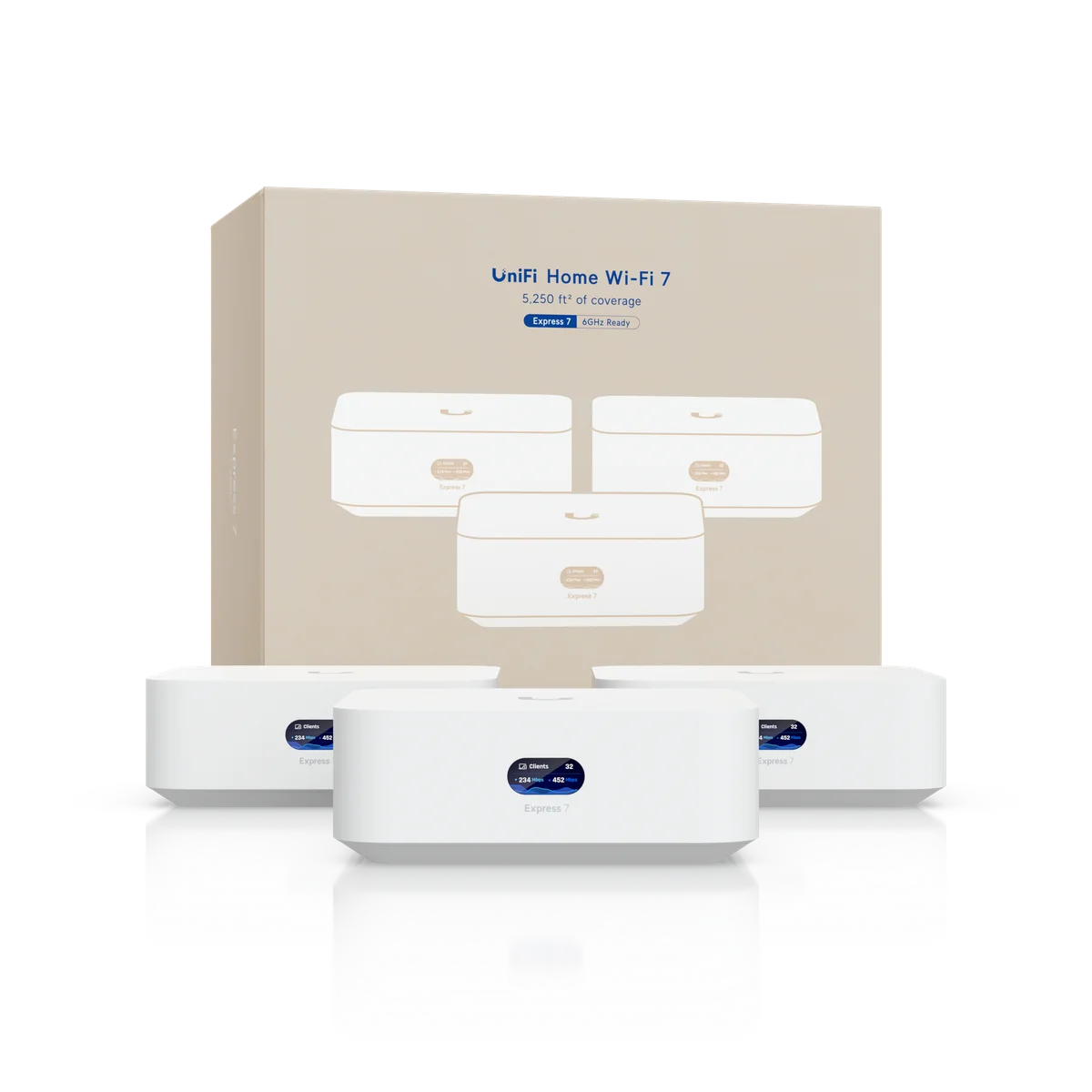

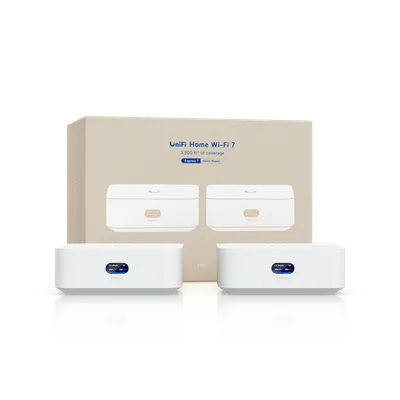

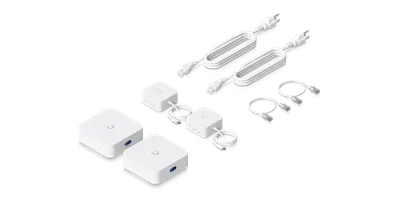

Pack Type: 3-Pack · 2-Pack · Single Unit

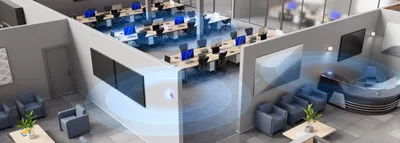

For a Express 7 installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The UX7 specifications below help establish whether this model fits the proposed location.
Power Method: USB type C (5V DC/5A). Max. Power Consumption: 22W. Dimensions: 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67''). Ambient Operating Temperature: -10 to 40° C (14 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

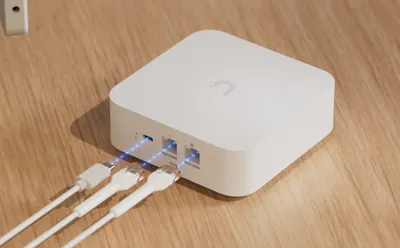

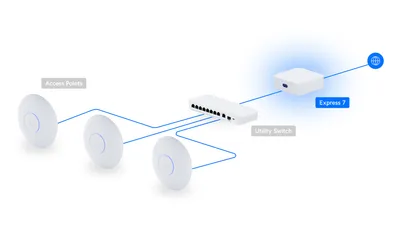

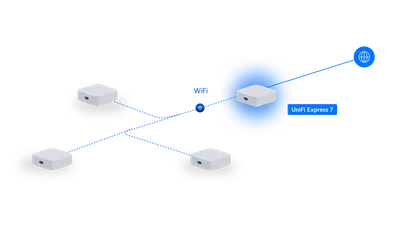

Cable routes, uplink speed and the supported power source are checked together. We discuss whether the ceiling or wall location can be reached neatly and whether an existing cable can be reused. Additional access points are selected only after considering the rest of the coverage plan.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for UX7. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| IDS/IPS | 2.3 Gbps |
|---|---|
| Max. Client Count | 300 |
| IDS/IPS Throughput | 2.3 Gbps |
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'') |
|---|---|
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 1 |

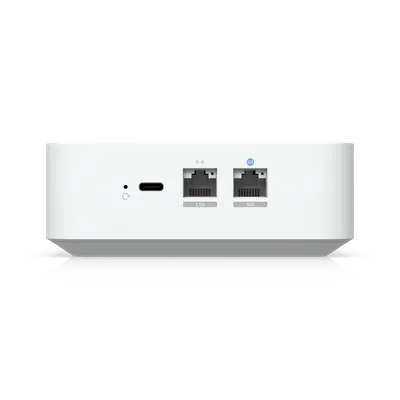

| Default WAN Ports | (1) 10 GbE RJ45 |
| 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 1 (10G/5G/2.5G/1G/100M) |

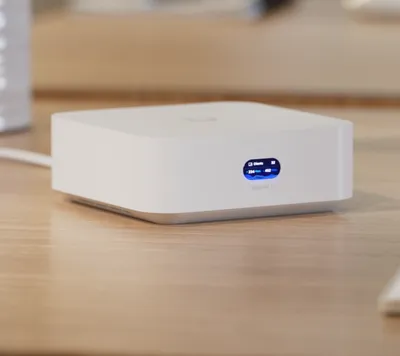

| Form Factor | Compact desktop |

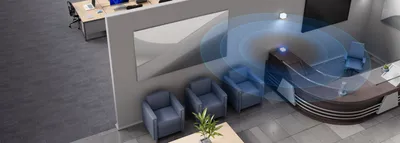

| Coverage Area | 160 m² (1,750 ft²) |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
|---|
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
|---|---|
| 6 GHz | 5.7 Gbps |
| 5 GHz | 4.3 Gbps |
| 2.4 GHz | 688 Mbps |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 6 dBi |
| 5 GHz | 7 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway Mode) 4 per Radio (AP Mode) |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Max. Power Consumption | 22W |
|---|---|
| Power Method | USB type C (5V DC/5A) |

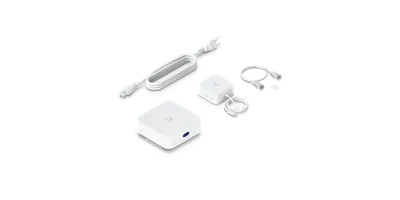

| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 75 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 443 g (1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06656-25-08356 |
| VLAN | 802.1Q |
|---|---|
| UniFi Network | Version 9.0.108 and later |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
