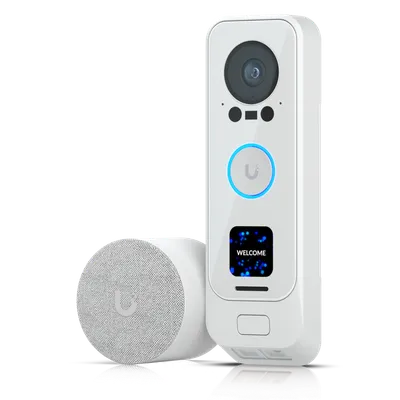

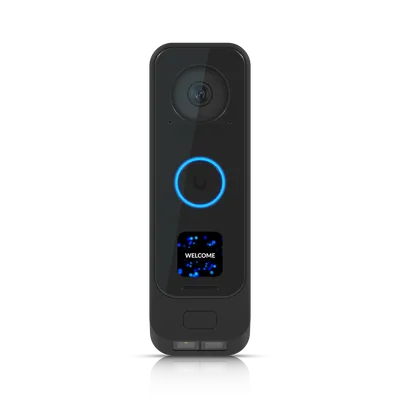

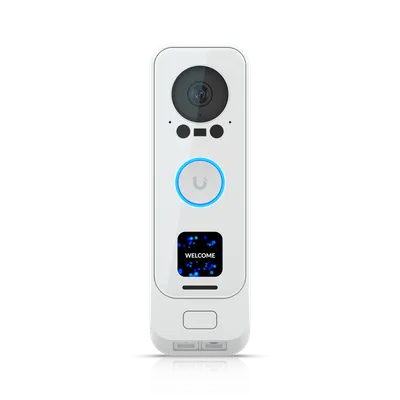

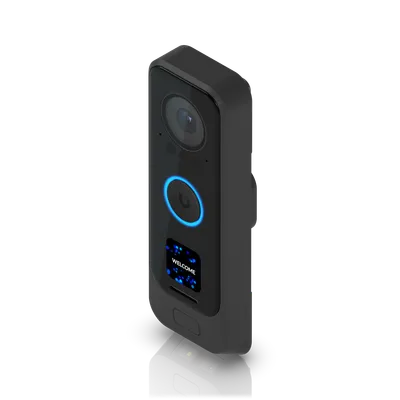

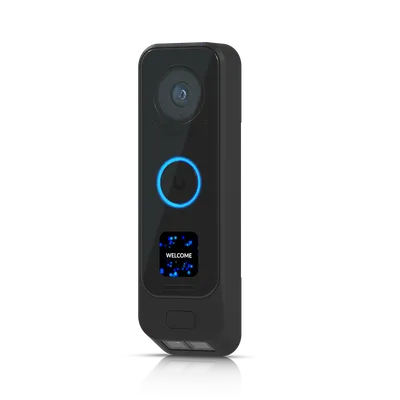

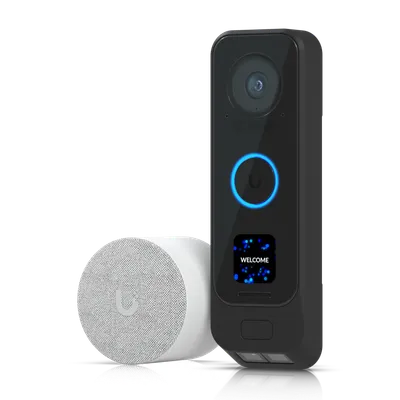

Plan your UniFi G4 Doorbell Pro PoE Kit installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UVC-G4 Doorbell Pro PoE Kit.

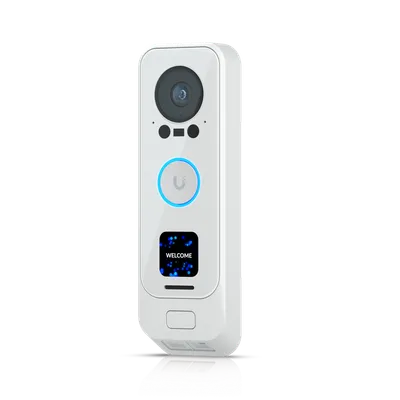

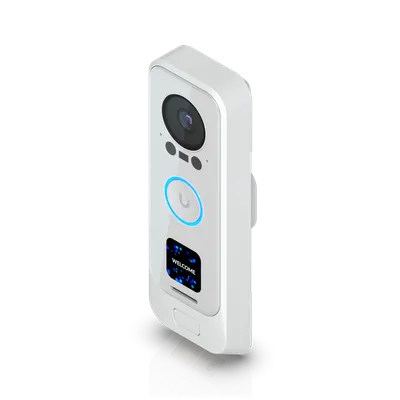

Color: Black · White
We assess the scene before specifying UVC-G4 Doorbell Pro PoE Kit: the area to cover, mounting height, available light and the detail you need to see. The manufacturer specifications below describe the hardware; the final position is selected for the actual property.
Power Method: PoE. Max. Power Consumption: 7W. Max. Power Consumption: 3W. Networking Interface: GbE RJ45 port. Networking Interface: 10/100 MbE port. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

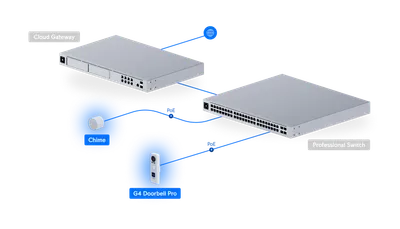

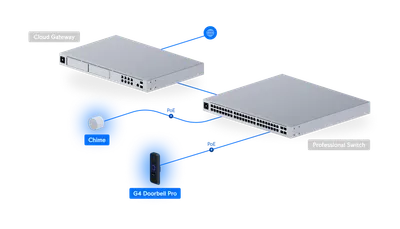

We check the compatible recording platform, network connection and power method for this model. The cable route and mounting arrangement are agreed before work starts. Where existing equipment is being retained, its capacity and software support are reviewed first.
The installation scope includes the agreed camera setup, viewing permissions and playback checks. Retention depends on the selected recorder, drives and recording settings. We show the system owner how to view and retrieve footage on the authorised devices.
Manufacturer specifications for UVC-G4 Doorbell Pro PoE Kit. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| AI | AI Detections |
|---|---|
| IR | 6 m (20 ft) |
| Lens Resolution | FHD |
| Sound | Two-Way Audio |

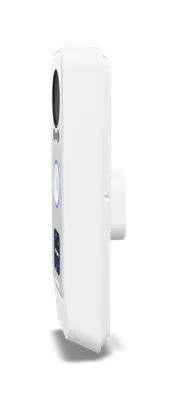

| Dimensions | Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1") On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1") |
|---|---|
| IR Night Vision | 6 m (20 ft) |
| Resolution | FHD |
| Field of View | Main camera: H: 138°, V: 114°, D: 155° (LDC On) Main camera: H: 160°, V: 117°, D: 160° (LDC Off) Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Audio | Two-way audio |
| Weatherproofing | IPX4 |

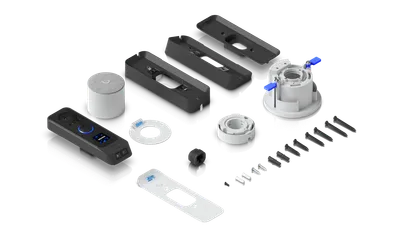

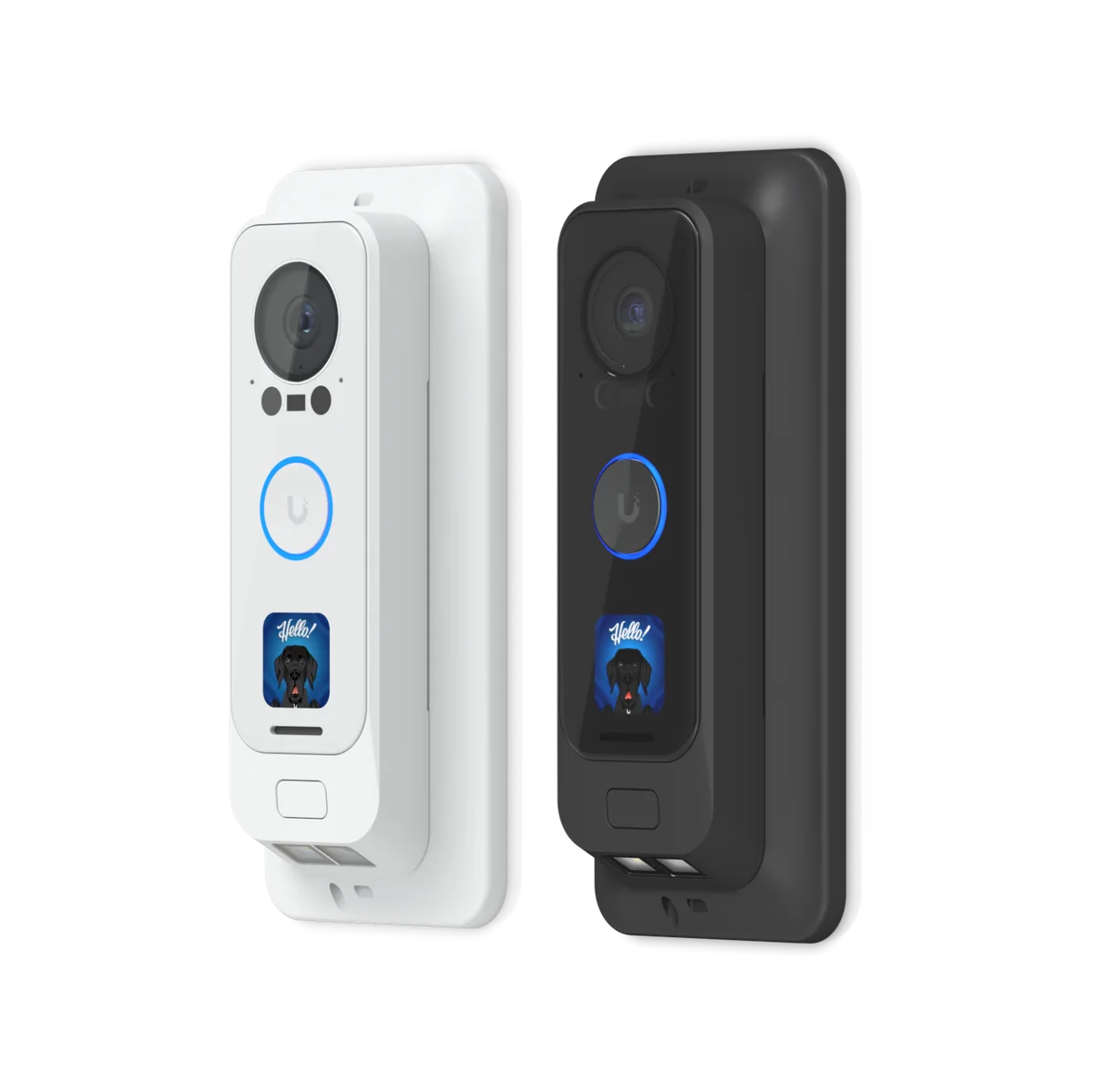

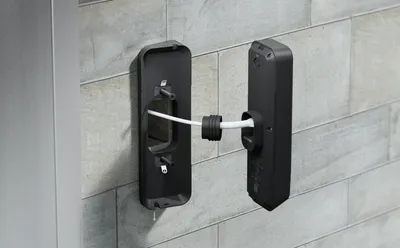

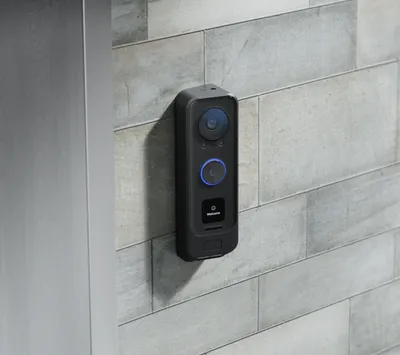

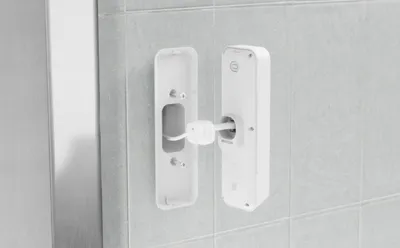

| Mounting | Wall, wedge (Included) Gang box, junction box (Optional) |
| UniFi Application Suite | Protect |

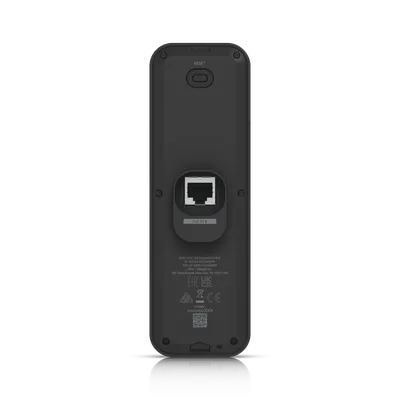

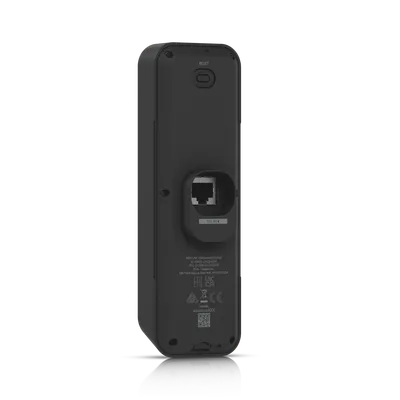

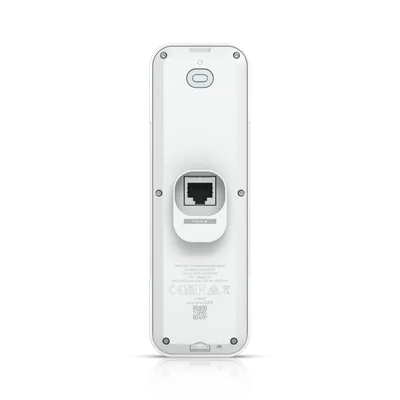

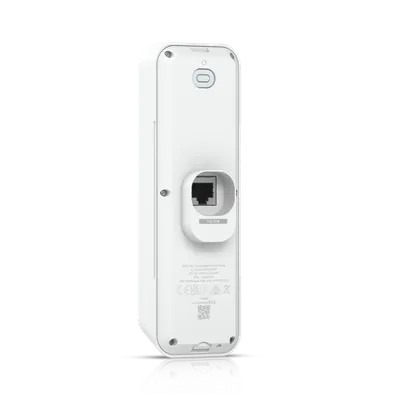

| Networking Interface | GbE RJ45 port |
|---|---|
| Max. Frame Rate | 30 FPS |
| Resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
| Sensor | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 7W |
|---|---|
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | Device: 264 g (9.3 oz) Wall mount: 56 g (2 oz) Wedge: 33 g (1.2 oz) On-wall mount: 53 g (1.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
| Button | (1) Ring button (1) Factory reset |
| Ambient Operating Temperature | -30 to 40º C (-22 to 104º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC, SRRC |
| Mobile app | UniFi Protect iOS™ and Android™ |
|---|

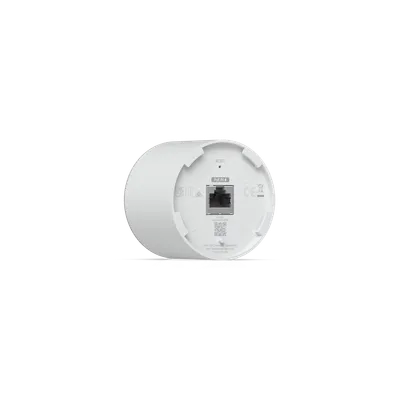

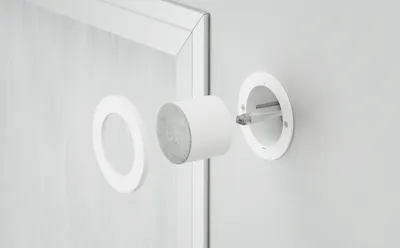

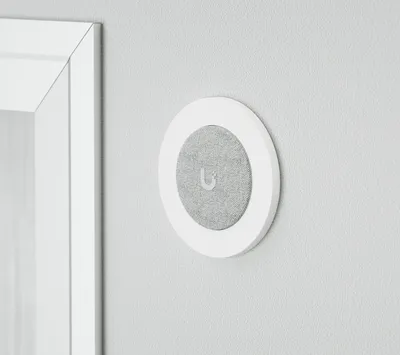

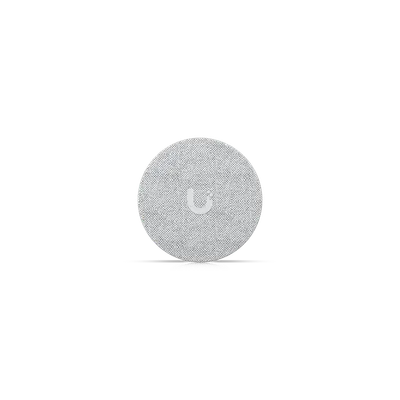

| Dimensions | Device: ⌀62 x 54 mm (⌀2.5 x 2.1") In-wall mount: ⌀89 x 63.1 mm (⌀3.5 x 2.5") On-wall Mount: ⌀62 x 20.2 mm (⌀2.5 x 0.8") |
|---|---|
| Weight | Device: 158 g (5.6 oz) In-wall mount: 91 g (3.2 oz) On-wall mount: 28 g (1 oz) |
| Mount Material | Polycarbonate, zinc alloy |
| Networking Interface | 10/100 MbE port |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 3W |
| LED | R/G/B/W |
| Buttons | (1) Factory reset |
| Speaker | Yes |
| Buzzer | Yes |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
