Plan your UniFi G5 PTZ installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UVC-G5-PTZ.
Color: Black · White
We assess the scene before specifying UVC-G5-PTZ: the area to cover, mounting height, available light and the detail you need to see. The manufacturer specifications below describe the hardware; the final position is selected for the actual property.
Power Method: PoE+. Max. Power Consumption: 14W. Networking Interface: 10/100 MbE RJ45 port. Mounting: Wall mount, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional). Weatherproofing: IP66. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

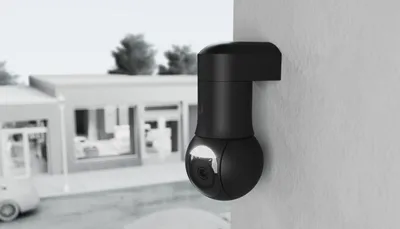

A pan-tilt-zoom camera can change its viewing direction, so it cannot show every direction at once. We discuss its home position, supported presets and how wider coverage will be provided. Mounting clearance and access for maintenance are checked before installation.
The installation scope includes the agreed camera setup, viewing permissions and playback checks. Retention depends on the selected recorder, drives and recording settings. We show the system owner how to view and retrieve footage on the authorised devices.
Manufacturer specifications for UVC-G5-PTZ. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| AI | AI Detections |
|---|---|
| IR | 20 m (65 ft) |
| Lens Resolution | 2K |
| Resistance | IK04 |
| View Angle | 16:9 Wide: H: 99.7°, V: 51.9°, D: 121° 16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4° |
| Weatherproof | Outdoor Exposed |
| Zoom | 2x Optical Zoom |
| Dimensions | Without mount: ⌀90 x 152.5 mm (⌀3.5 x 6") With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7") |
|---|---|
| IR Night Vision | 20 m (65 ft) |
| Zoom Mode | 2x Optical |
| Resolution | 2K |
| Field of View | Wide: H: 99.7°, V: 51.9°, D: 121° Tele: H: 45.5°, V: 25.4°, D: 52.4° |
| Pan-Tilt Range | Pan: 350° Tilt: 100° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |

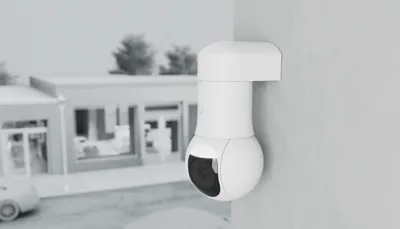

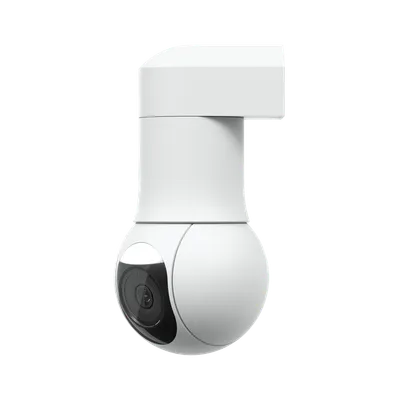

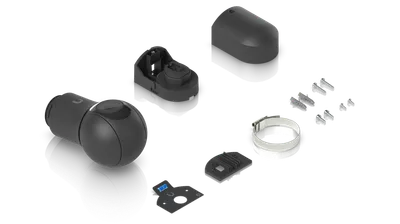

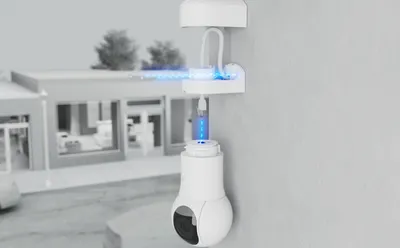

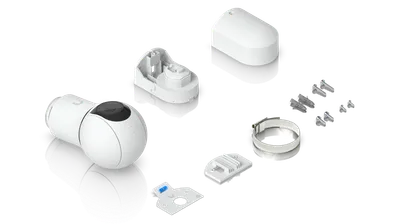

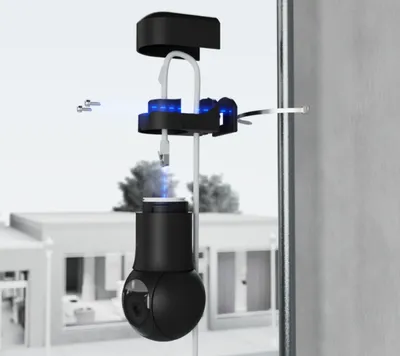

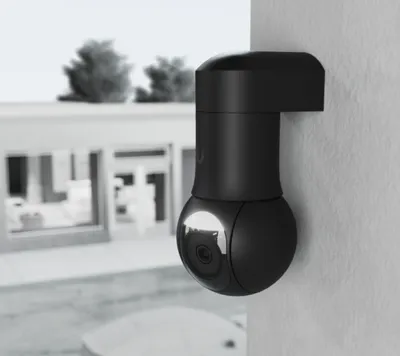

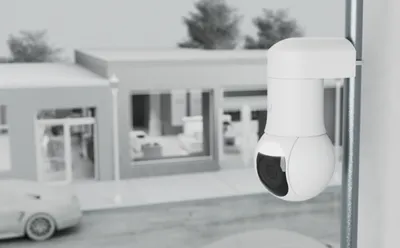

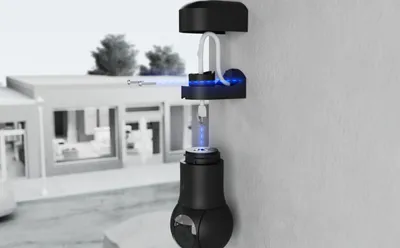

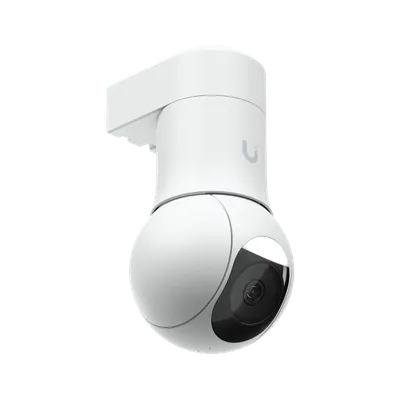

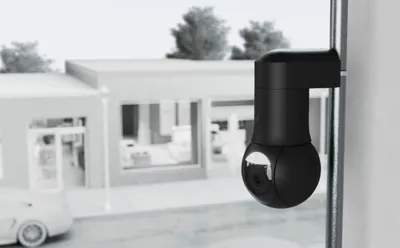

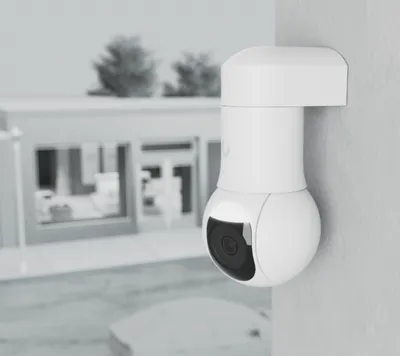

| Mounting | Wall mount, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional) |
| UniFi Application Suite | Protect |

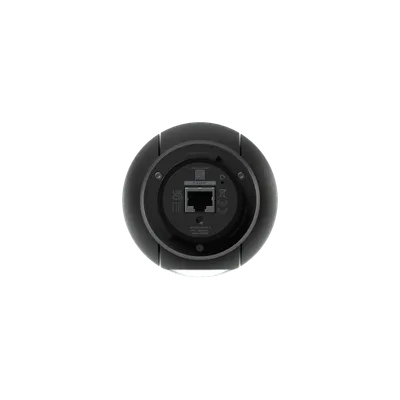

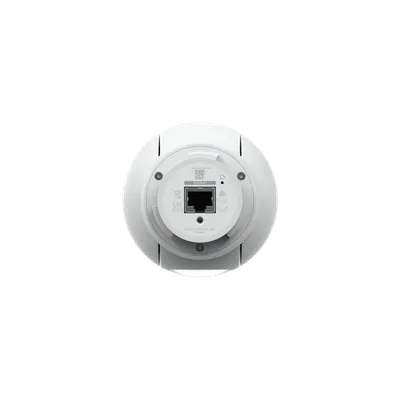

| Networking Interface | 10/100 MbE RJ45 port |
|---|---|
| Max. Frame Rate | 30 FPS |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Sensor | 5MP 1/2.7" CMOS |
| Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
| Night Mode | Built-in IR & white LED illumination with IR cut filter |
| Max. Power Consumption | 14W |
|---|---|
| Supported Voltage Range | 37—57V DC |

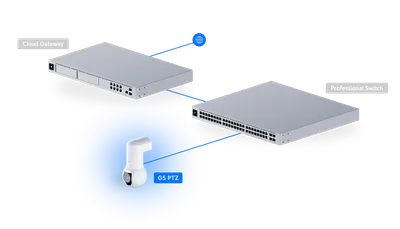

| Power Method | PoE+ |

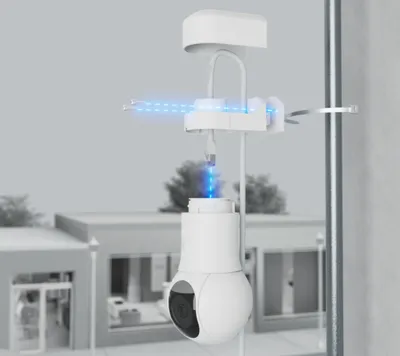

| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Wall mount: polycarbonate Pole mount: aluminum alloy |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -30 to 45º C (-22 to 113º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |

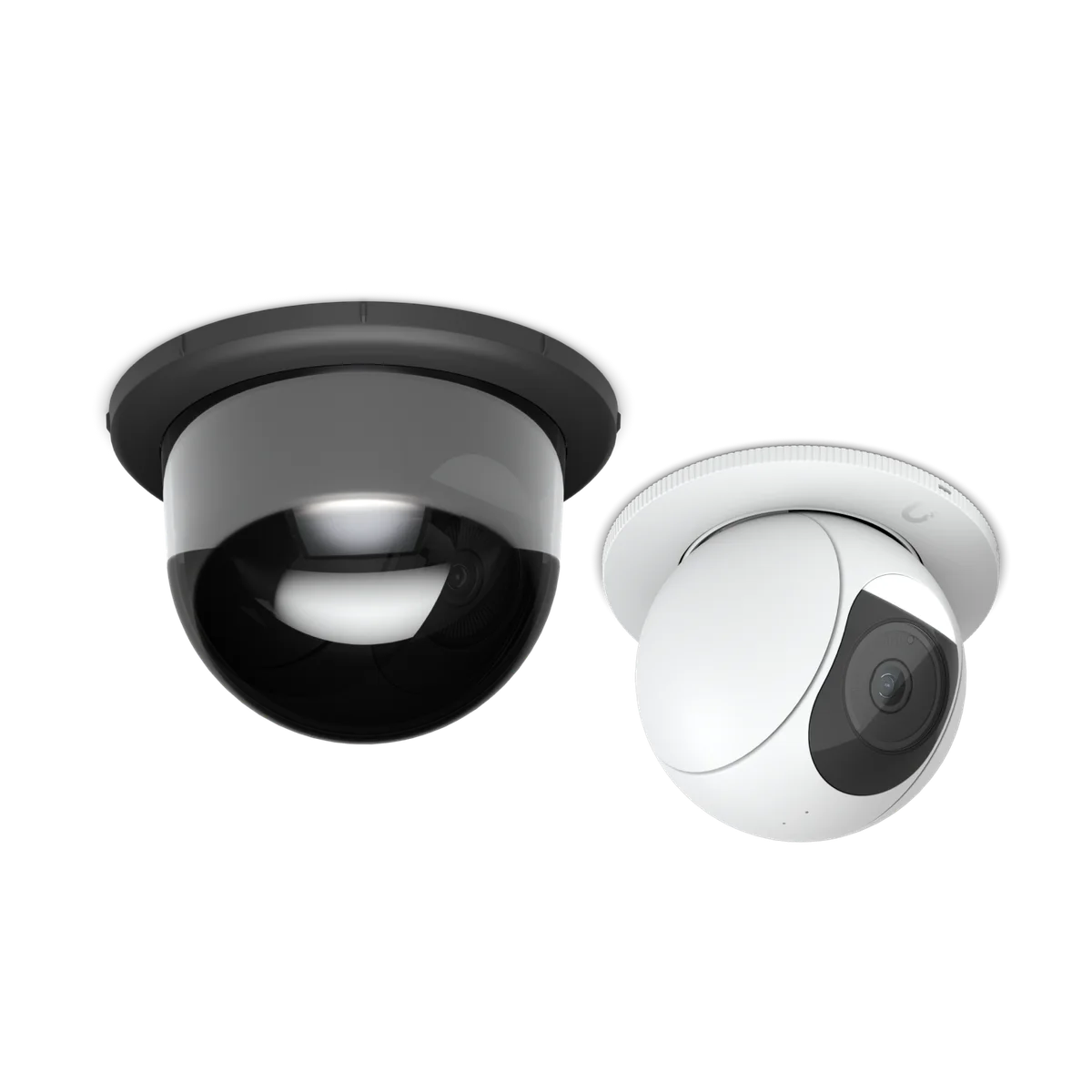

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
