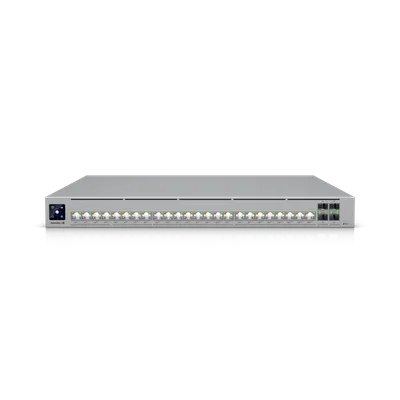

We scope ECS-24S-PoE around the number and type of devices it will connect. Port speeds and uplinks need to match the equipment at both ends. A switch selected for cameras can have different requirements from one serving high-speed access points, workstations or another cabinet.
Power Method: (2) Universal input, 100–240V AC, 50/60 Hz. Max. Power Consumption: 150W (Excluding PoE Output) 2,400W (Including PoE Output). Dimensions: 442.4 x 44 x 496 mm (17.4 x 1.7 x 19.5"). Ambient Operating Temperature: -5 to 40° C (23 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
The port power standard and total PoE budget are separate checks. We total the specified endpoint requirements, check per-port compatibility and allow for agreed future devices. The device count alone is not enough to establish whether the switch can power the installation.
The work includes the agreed mounting, patching, labels and UniFi adoption. We confirm the switch management network and any VLAN or uplink settings with the system owner, then test the connected devices. Rack airflow and access remain part of the physical layout.

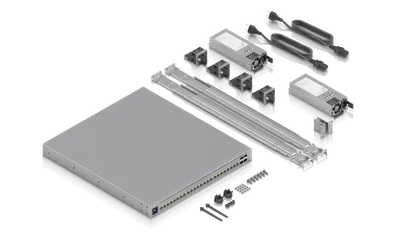

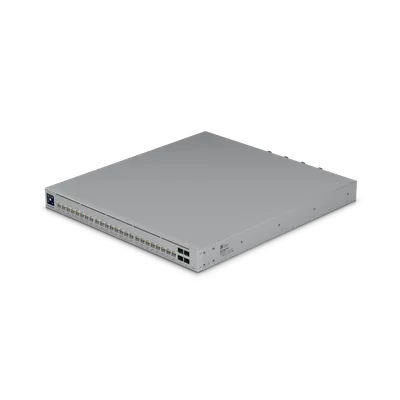

Manufacturer specifications for ECS-24S-PoE. Check the selected model, regional version and current software requirements during assessment.

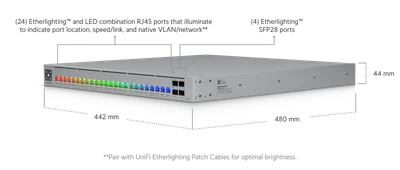

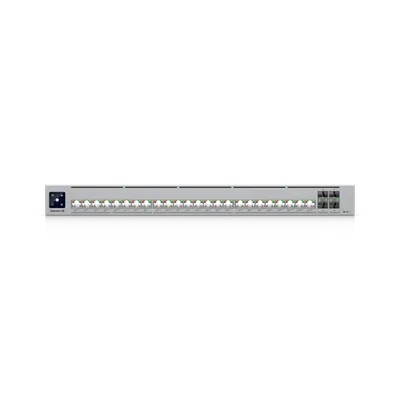

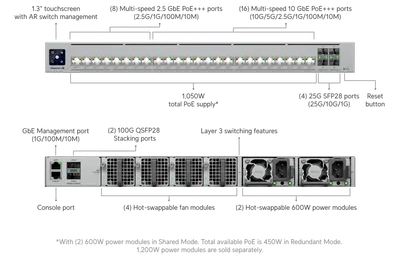

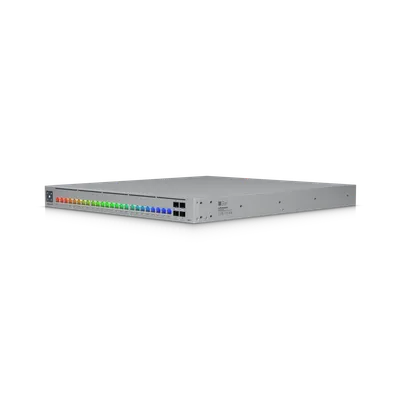

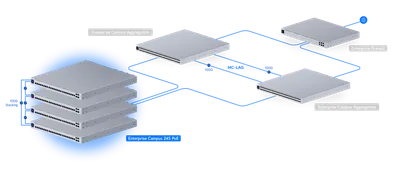

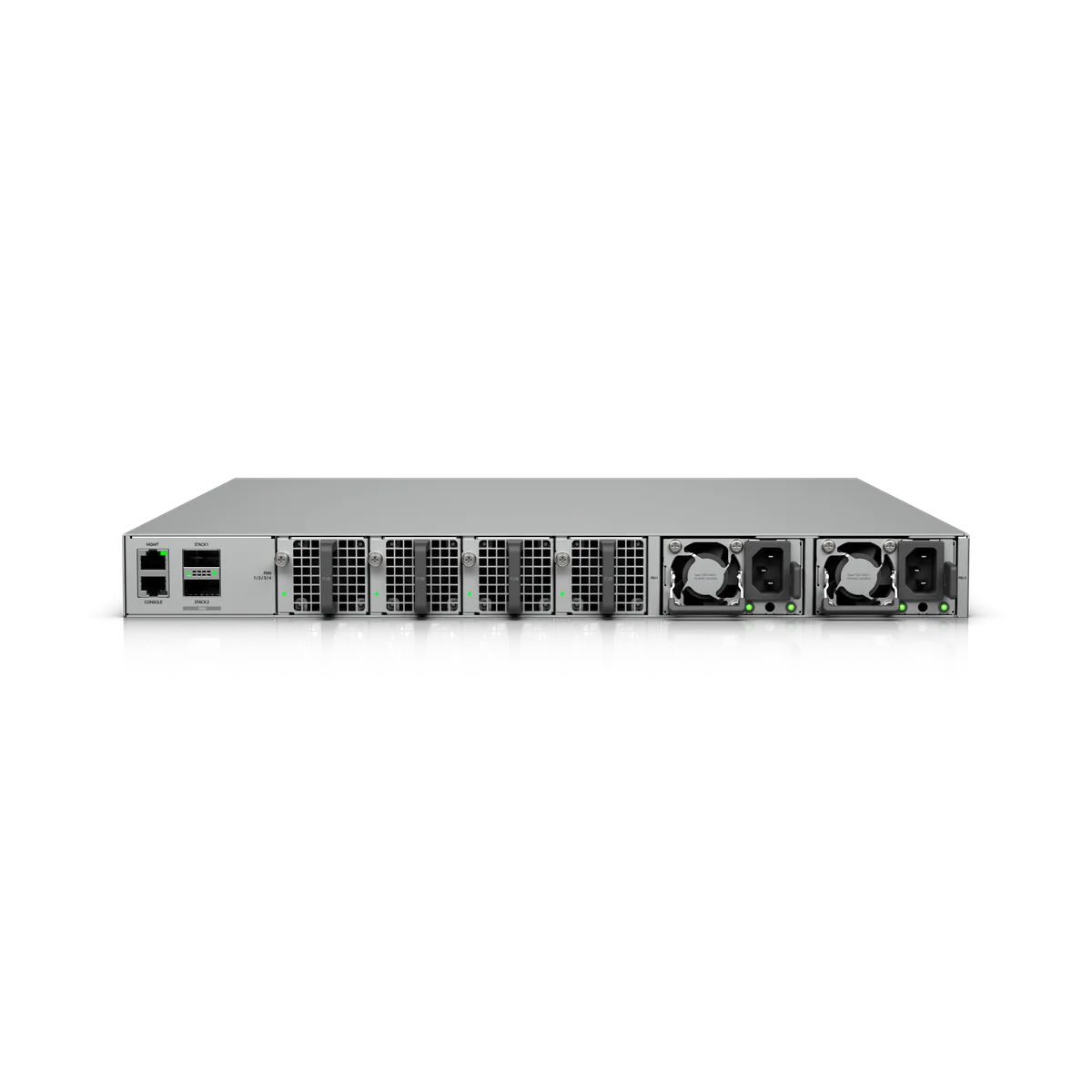

View manufacturer source| Dimensions | 442.4 x 44 x 496 mm (17.4 x 1.7 x 19.5") |
|---|---|
| 1 GbE RJ45 | 1 (1G/100M/10M)OOB Management port only |
| 2.5 GbE RJ45 | 8 (All PoE+++) (2.5G/1G/100M/10M)10/100M half-duplex not supported |
| 10 GbE RJ45 | 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)10/100M half-duplex not supported |
| 25G SFP28 | 4 (25G/10G/1G) |
| 100G QSFP28 | 2 (100G)Stacking port only, does not support uplink. Breakout cables are not supported |
| Console | 1 |
| Max. PoE Output | Up to PoE+++802.3bt Type 4, Class 8 |
| Total PoE Availability | 100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules1,200W power modules sold separately |
| Redundancy | Switch Stacking (2) Hot-Swappable PSUs (4) Hot-Swappable Fans |

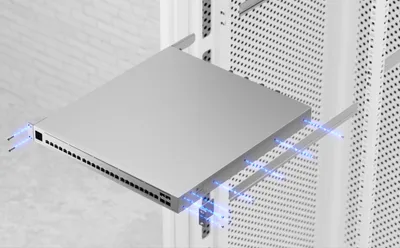

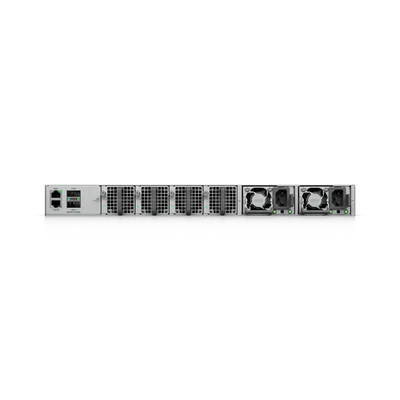

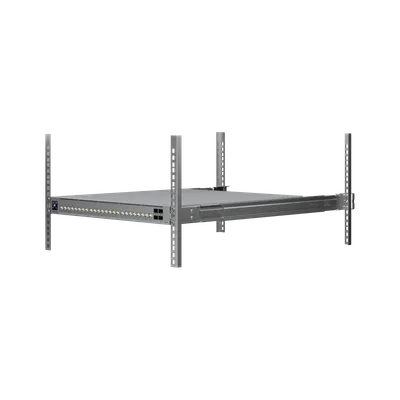

| Form Factor | Rack Mount (1U, Full-Depth)Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support |
| Switching Capacity | 460 Gbps |
|---|---|
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
| PoE+++ | 24 |
|---|---|
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output) 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 600W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet OOB Management port Serial Console AR |
| Heat Dissipation | 512 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.3 kg (20.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) Hot-swappable fan modulesFan modules operate with 3 + 1 redundancy |
| ESD Protection | Air: ± 12kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| UniFi Network | Version 10.6.101 and later |
|---|
