Plan your UniFi Switch Pro Max 16 PoE installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USW-Pro-Max-16-PoE.
Variant: US Version

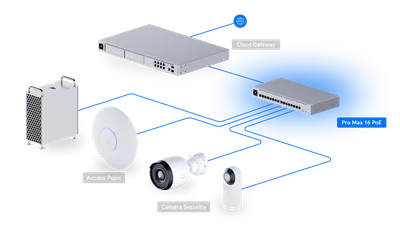

We scope USW-Pro-Max-16-PoE around the number and type of devices it will connect. Port speeds and uplinks need to match the equipment at both ends. A switch selected for cameras can have different requirements from one serving high-speed access points, workstations or another cabinet.
Power Method: AC Adapter. Max. Power Consumption: 25W (Excluding PoE Output) 210W (Including PoE Output). Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7"). Ambient Operating Temperature: -5 to 40° C (23 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
The port power standard and total PoE budget are separate checks. We total the specified endpoint requirements, check per-port compatibility and allow for agreed future devices. The device count alone is not enough to establish whether the switch can power the installation.

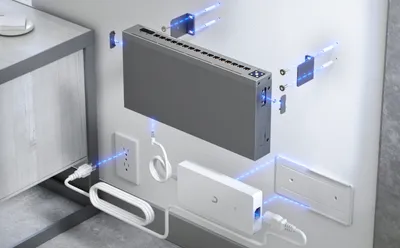

The work includes the agreed mounting, patching, labels and UniFi adoption. We confirm the switch management network and any VLAN or uplink settings with the system owner, then test the connected devices. Rack airflow and access remain part of the physical layout.
Manufacturer specifications for USW-Pro-Max-16-PoE. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
|---|---|

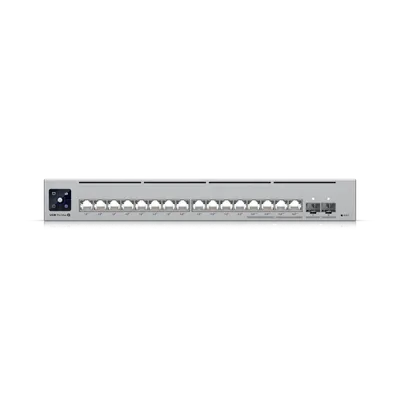

| 1 GbE RJ45 | 12 (All PoE+) (1G/100M/10M) |
| 2.5 GbE RJ45 | 4 (All PoE++) (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 180W |

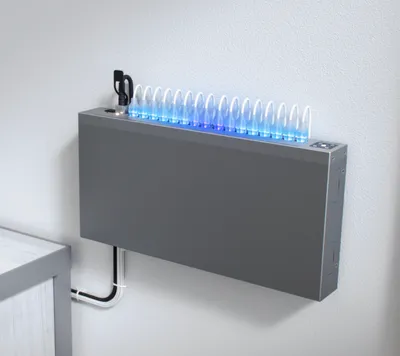

| Form Factor | Rack mount (1U), desktop, wall1U rack-mounting requires add-on Rack Mount accessory |
| Switching Capacity | 84 Gbps |
|---|---|
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| IPv4 | 128 |
| MAC | 128 |
| PoE+ | 12 |
|---|---|
| PoE++ | 4 |
| PoE | 15.4W |
| PoE+ | 32W |
| PoE++ | 60W |
| Max. Power Consumption | 25W (Excluding PoE Output) 210W (Including PoE Output) |
| Power Method | AC Adapter |
| Power Input Method | AC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50–54V DC |
| Management | Ethernet AR |
| Heat Dissipation | 68 BTU/hr (Excluding PoE Output) |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08953-24-08356 |
| UniFi Network | Version 8.1.127 and later |
|---|
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
