Plan your UniFi Travel Router Long-Range installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UTR-LR.
For a Travel Router Long-Range installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The UTR-LR specifications below help establish whether this model fits the proposed location.
Power Method: USB-C. Max. Power Consumption: 5W. Dimensions: 96 x 65 x 19.5 mm (3.8 x 2.6 x 0.8"). Ambient Operating Temperature: -10 to 40 °C (14 to 104 °F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cable routes, uplink speed and the supported power source are checked together. We discuss whether the ceiling or wall location can be reached neatly and whether an existing cable can be reused. Additional access points are selected only after considering the rest of the coverage plan.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for UTR-LR. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 96 x 65 x 19.5 mm (3.8 x 2.6 x 0.8") |
|---|---|

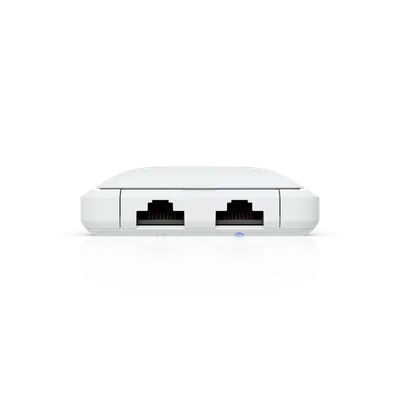

| Uplink | (2) GbE RJ45 ports WiFi USB Tethering (iOS/Android) |
| WiFi Standards | WiFi 5 |
| Weight | 126 g (4.4 oz) |
|---|---|
| Enclosure Material | Polycarbonate |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
|---|---|
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| Management | Bluetooth |
|---|---|
| Type | Embedded WiFi antennas |
| Max. TX Power | 2.4G: 20 dBm 5G: 23 dBm |
| WiFi MIMO | 2 x 2 |
| Max. Power Consumption | 5W |

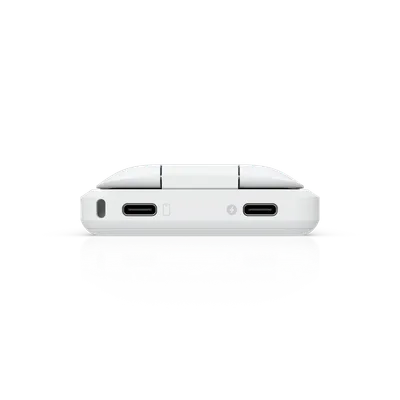

| Power Method | USB-C |
| Power Supply | USB-C, 5V/2A (Adapter not included) |

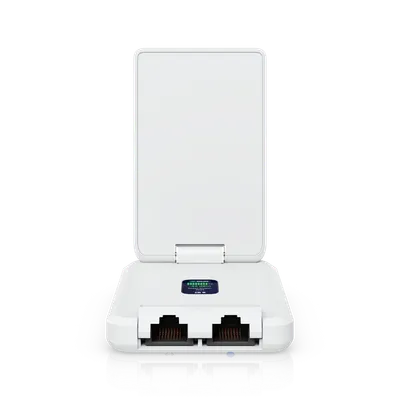

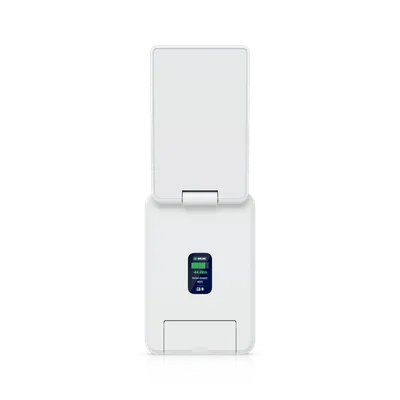

| Display | 1.14" status display |
| Buttons | (1) Factory-reset |
| Ambient Operating Temperature | -10 to 40 °C (14 to 104 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
