Plan your UniFi WiFi BaseStation XG installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UWB-XG.
For a WiFi BaseStation XG installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The UWB-XG specifications below help establish whether this model fits the proposed location.
Power Method: PoE++. Max. Power Consumption: 31W. Networking Interface: (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port. Mounting: Wall, Pole (Mounts Included), VESA (Optional). Weatherproofing: IP67. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cable routes, uplink speed and the supported power source are checked together. We discuss whether the ceiling or wall location can be reached neatly and whether an existing cable can be reused. Additional access points are selected only after considering the rest of the coverage plan.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for UWB-XG. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Max. Client Count | 1,500 |
|---|---|
| WiFi5 | WiFi 5 |
| Uplink | 10 GbE |
| Dimensions | 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7") |
|---|---|
| WiFi Standard | WiFi 5 |
| Spatial Streams | 12 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 1500+ |

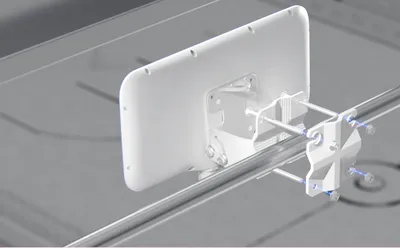

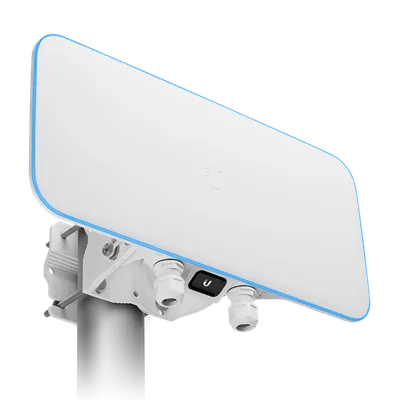

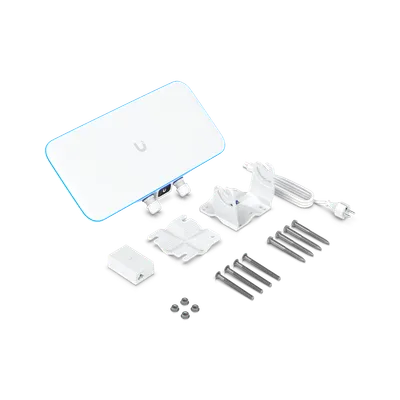

| Mounting | Wall, Pole (Mounts Included), VESA (Optional) |
| Weatherproofing | IP67 |
| Power Method | PoE++ |
| 5 GHz | Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) |
|---|---|
| 5 GHz | Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) |
| 5 GHz | Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° |
| 5 GHz | 25 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS23, HT 20/40) |
| Max. Power Consumption | 31W |
|---|---|
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port |
| Weight | 3.2 kg (7.1 lb) |

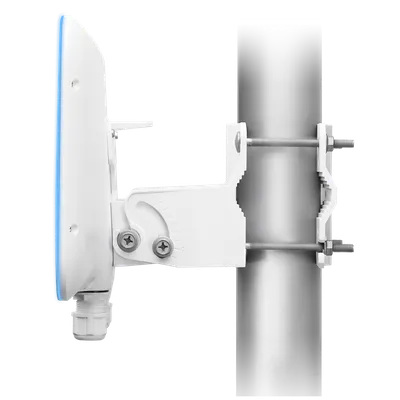

| Pole Mount Diameter | 1~3" (25~76 mm) |
| Antennas | (1) Integrated dual-mode antenna array |
| Management | Ethernet Bluetooth |
| Enclosure Material | Polycarbonate, aluminum alloy |
| System | R/G/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) |
| Operating Frequency | US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5670 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5670 MHzFor worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08960-24-08356 |
| UniFi Network | Version 6.0.45 and later |
|---|
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
