Plan your UniFi Door Lock Relay Cable fitting and compatibility in Perth with Servicewest. We assess the site and supporting equipment before specifying UACC-Cable-DoorLockRelay.

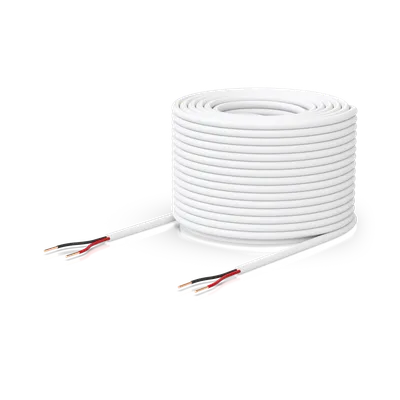

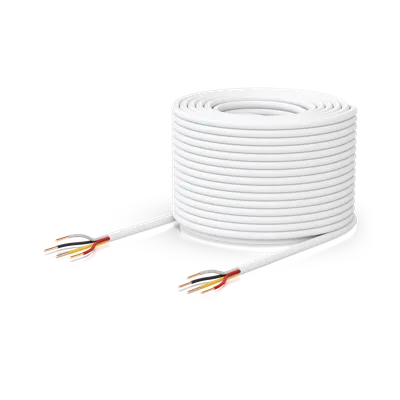

Variant: 1-Pair Relay Cable · 2-Pair Relay Cable
The Door Lock Relay Cable (UACC-Cable-DoorLockRelay) needs to be matched to the host device and the intended installation. Similar-looking mounts, adapters and accessories can have different attachment points or electrical requirements. Send us the model number of the equipment you already own so we can check the pairing before quoting.
Ambient Operating Temperature: -45 to 65° C (-49 to 149° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Connector type, link standard, cable length and the equipment at both ends determine compatibility. We check the existing route and the supported interface before selecting this accessory. Cabling is labelled and the agreed connection is tested after fitting.
Accessory work is scoped alongside the equipment it supports. Tell us whether this is part of a new installation, a repair or an expansion. We can then plan access to the equipment and any interruption needed to fit and test the part.
Manufacturer specifications for UACC-Cable-DoorLockRelay. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Length | 152.4 m (500 ft) |
|---|---|
| Material | Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC) |

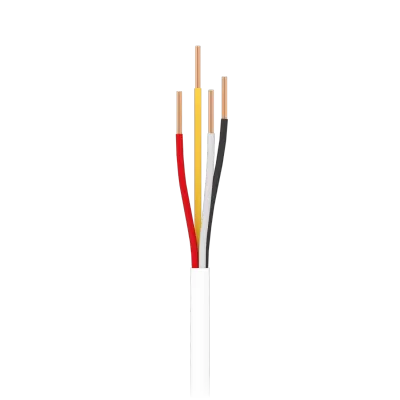

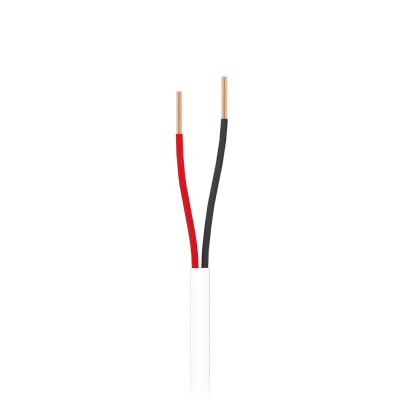

| Insulation | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Current Rating | 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length |
| Flame Rating | VW-1 |
| Conductor Wire Gauge | UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Jacket Outer Diameter | UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17") |
| Jacket Color | White |
| Bend Radius | UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")Min. bend radius |
| Pulling Tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgfMax. pull tension |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) |
| Supported Voltage Range | 36V DC |
| Number of Conductors | UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2 |
| Ambient Storage Temperature | -45 to 65° C (-49 to 149° F) |
| Ambient Operating Temperature | -45 to 65° C (-49 to 149° F) |
