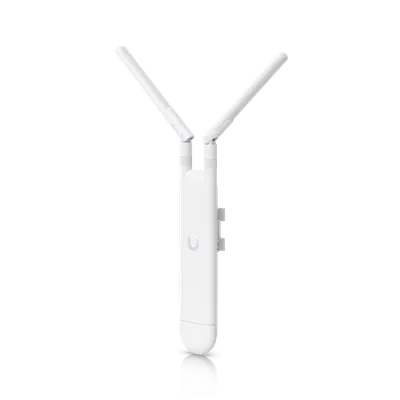

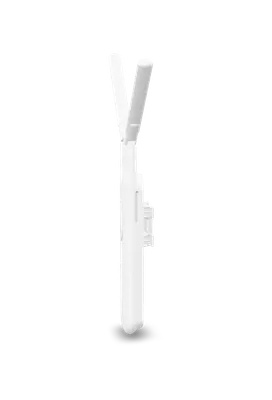

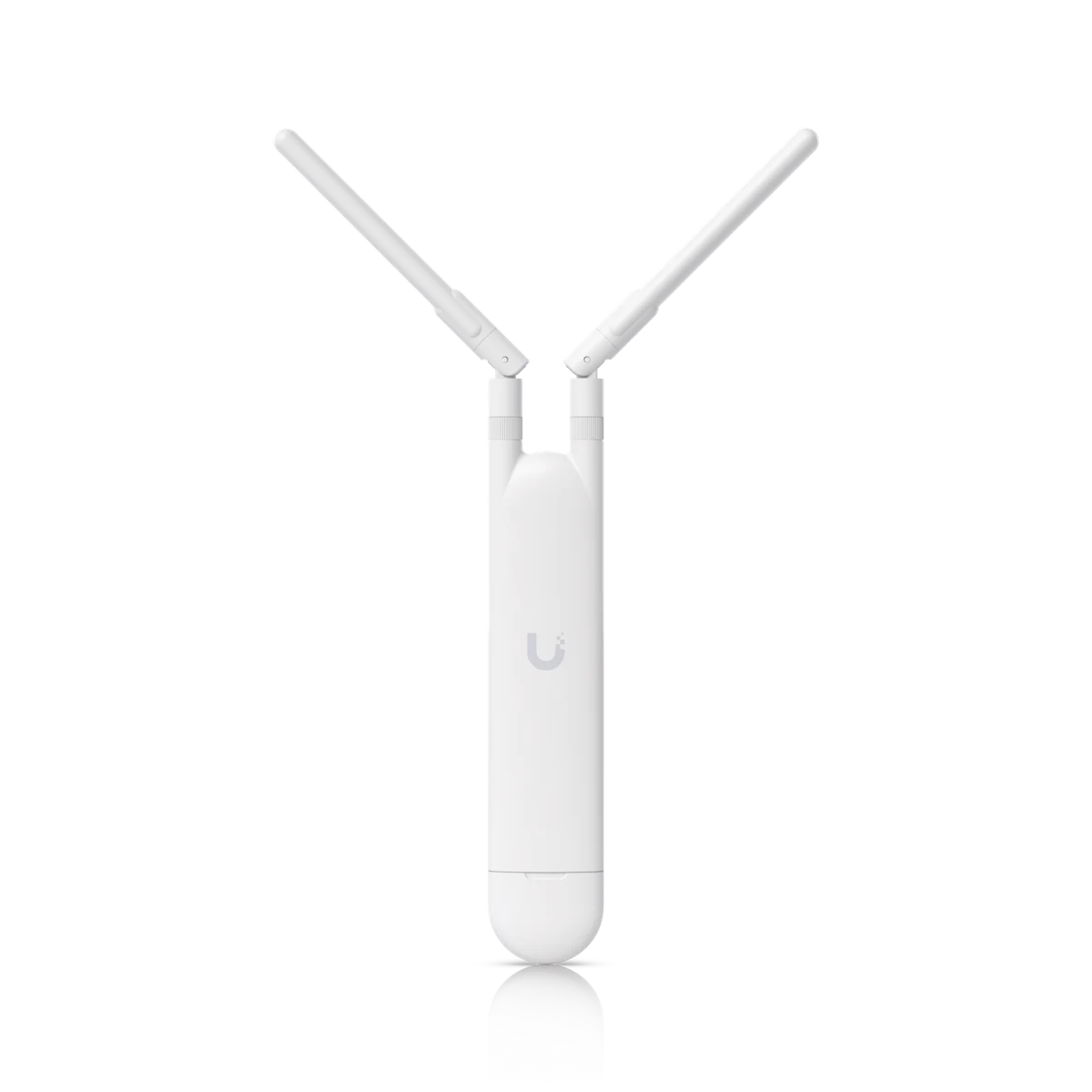

Plan your UniFi Access Point AC Mesh installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UAP-AC-M.

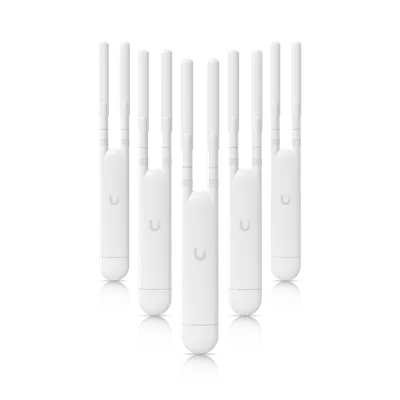

Pack: Single Unit · 5-Pack
For a Access Point AC Mesh installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The UAP-AC-M specifications below help establish whether this model fits the proposed location.

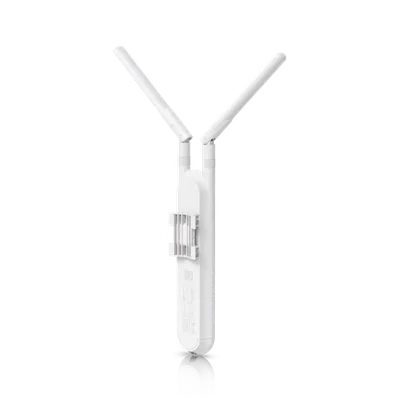

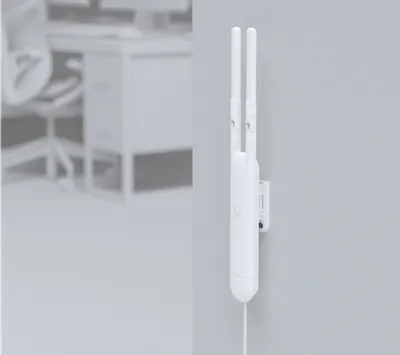

Power Method: PoE (Supports passive 24V (Pairs 4, 5+; 7, 8 return)). Max. Power Consumption: 8.5W. Networking Interface: (1) GbE RJ45 port. Mounting: Wall, Pole (Mounts Included). Weatherproofing: IPX4. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Outdoor access and building links need a site-specific review of mounting, exposure, cable entry and the radio path. We confirm whether the intended use is local WiFi coverage or a link between buildings, and check the equipment needed at each end.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for UAP-AC-M. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Max. Client Count | 200 |
|---|---|
| WiFi5 | WiFi 5 |
| Radio/Antenna | Omnidirectional |
| Uplink | GbE |
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4") |
|---|---|
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 200+ |

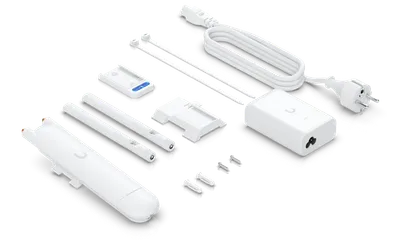

| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoESupports passive 24V (Pairs 4, 5+; 7, 8 return) |
| 5 GHz | 2 x 2 (DL MU-MIMO) |
|---|---|
| 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| 5 GHz | 867 Mbps (BW80) |
| 2.4 GHz | 300 Mbps (BW40) |
| 5 GHz | 4 dBi |
| 2.4 GHz | 3 dBi |
| 5 GHz | 20 dBm |
| 2.4 GHz | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Max. Power Consumption | 8.5W |
|---|---|
| Supported Voltage Range | 22–26V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 152 g (5.4 oz) |
| Pole Mount Diameter | 1–3" (25–76 mm) |
| Management | Ethernet Bluetooth |
| Enclosure Material | Polycarbonate |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHzFor worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UKCA, Anatel: 01769-18-08356 |
| UniFi Network | Version 6.0.45 and later |
|---|

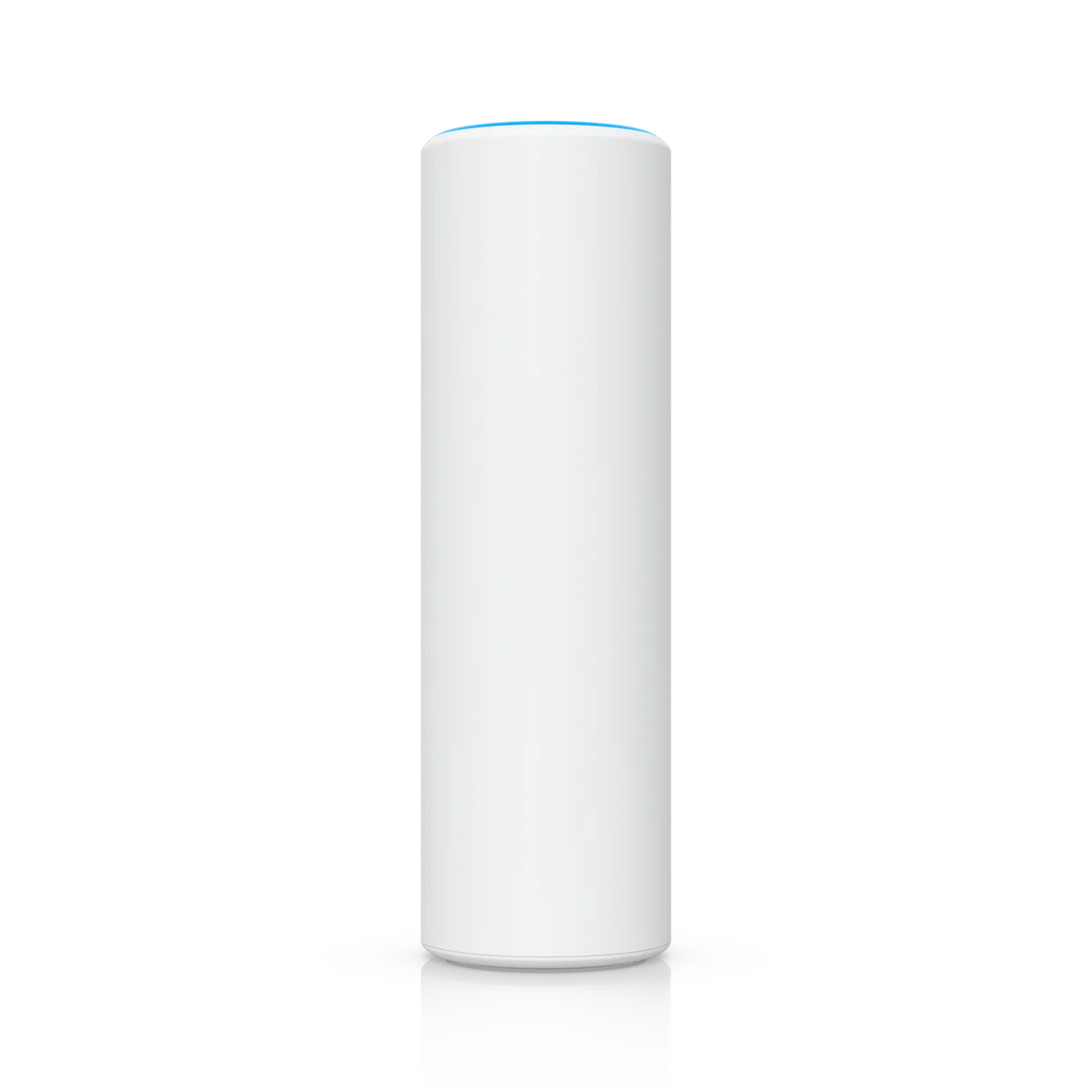

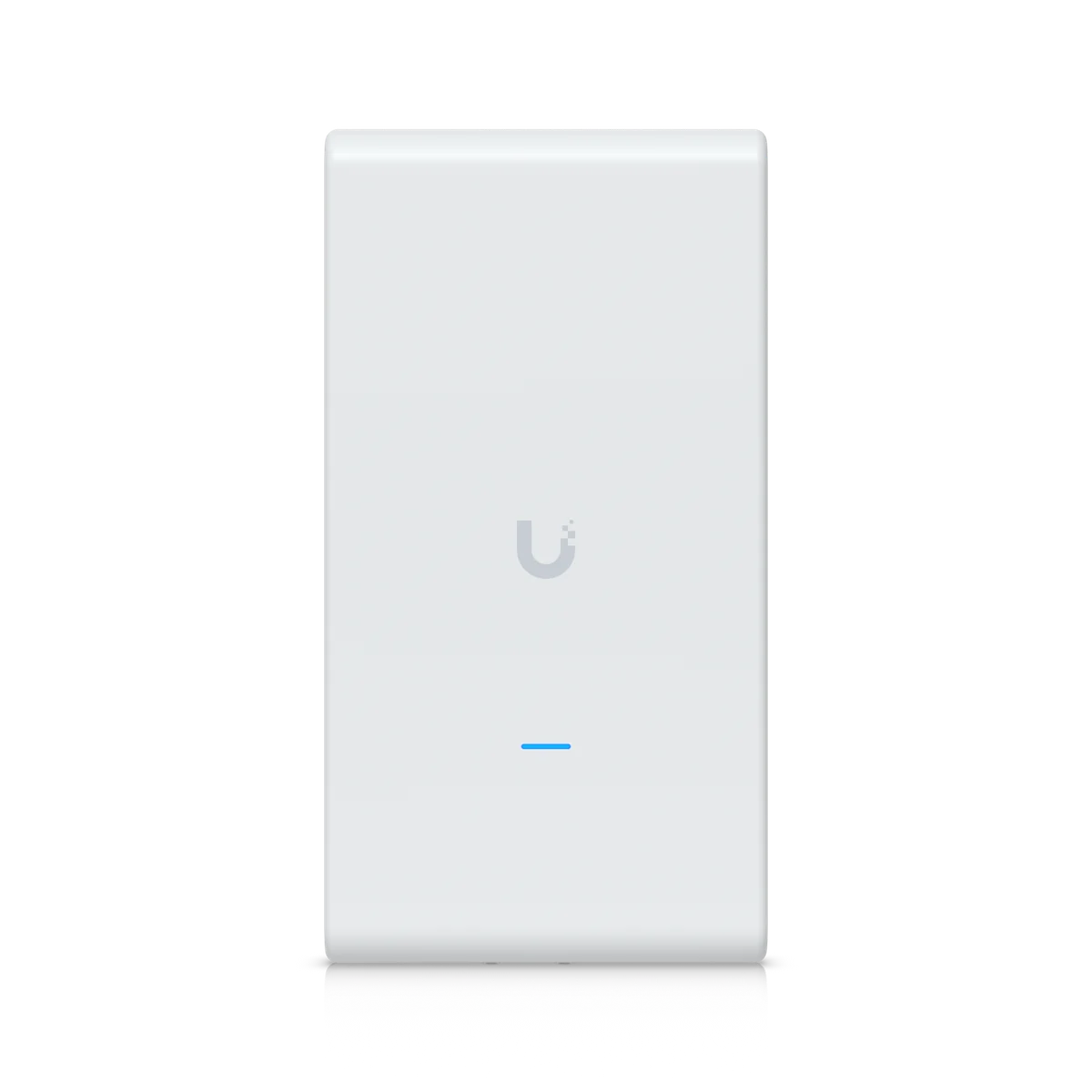

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
