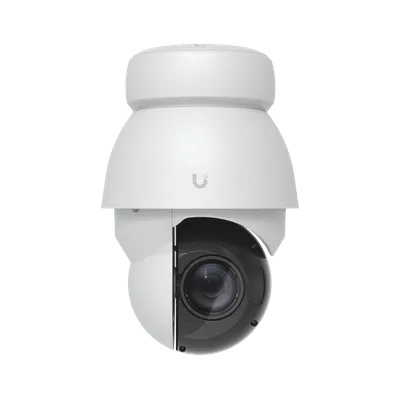

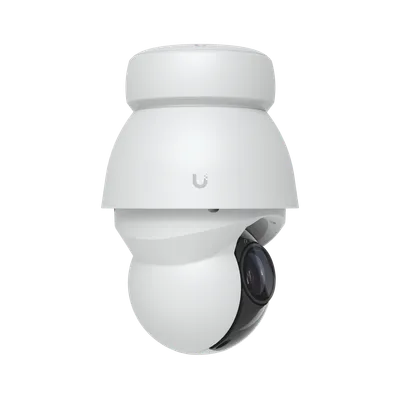

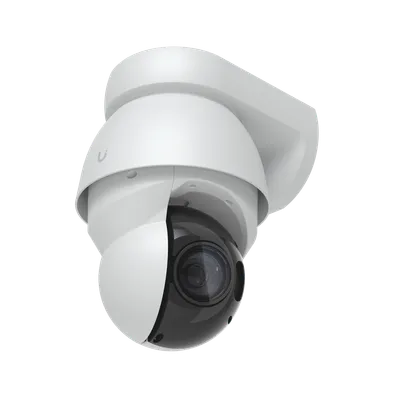

Plan your UniFi AI PTZ Precision installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UVC-AI-PTZ-Precision.

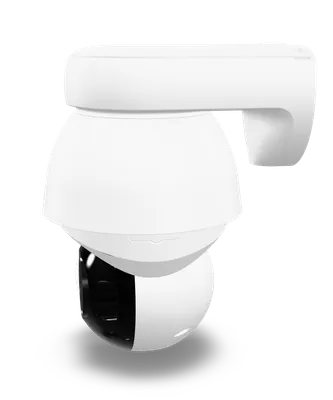

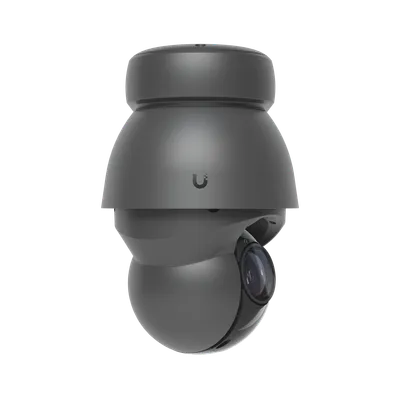

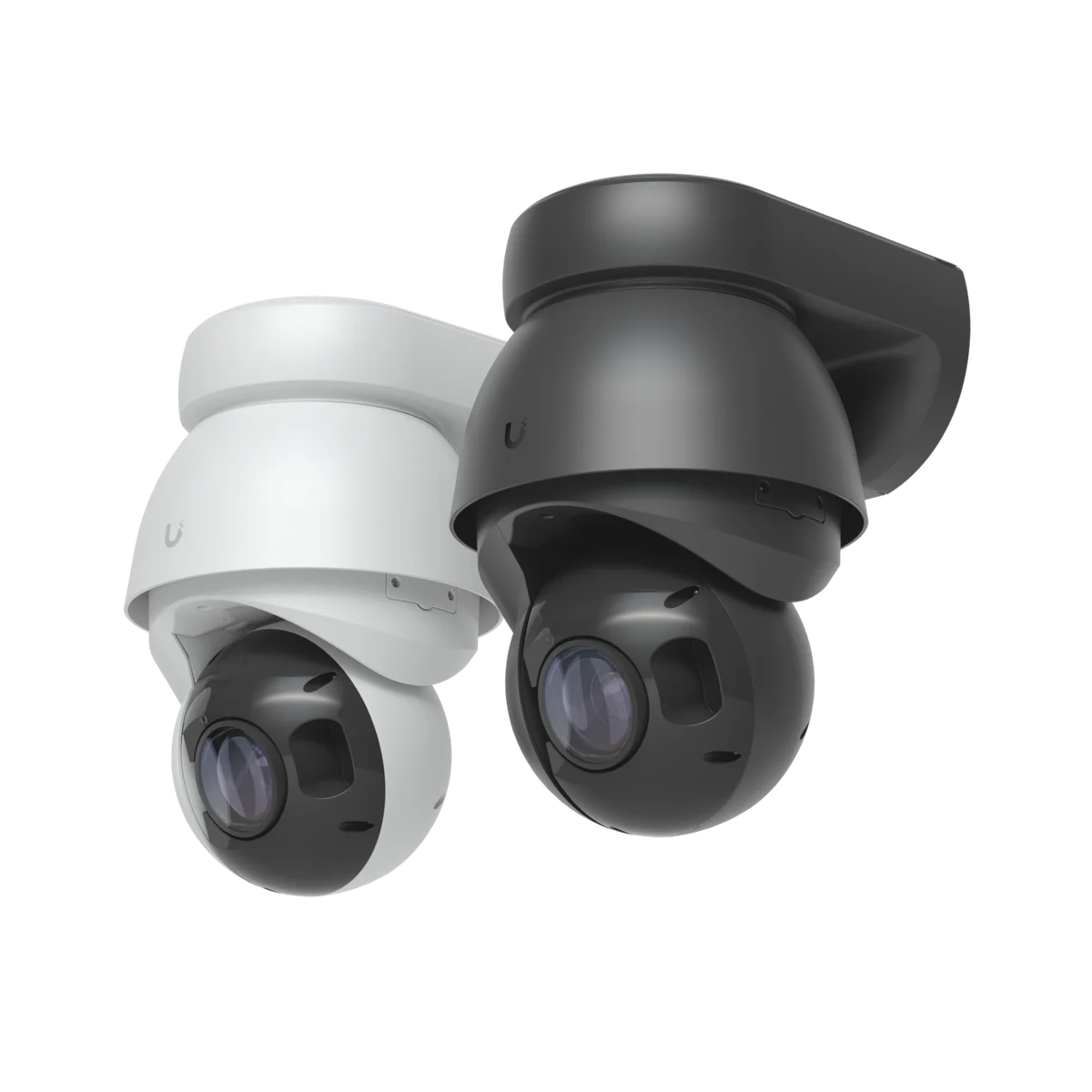

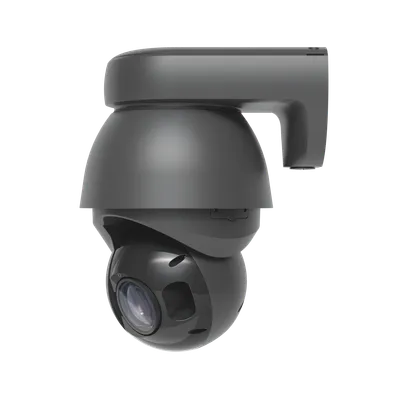

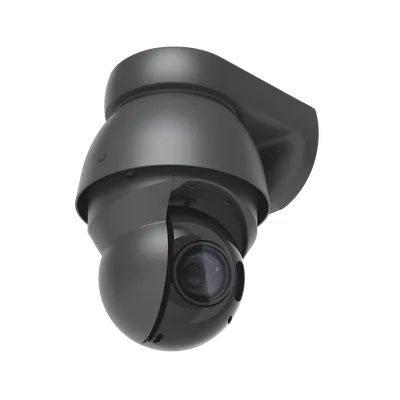

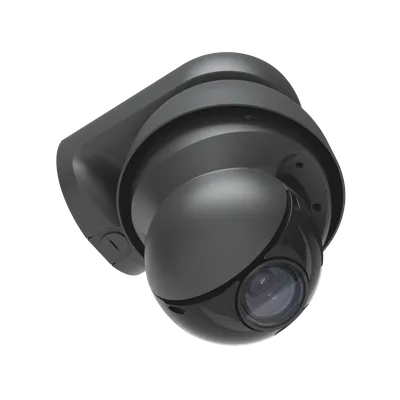

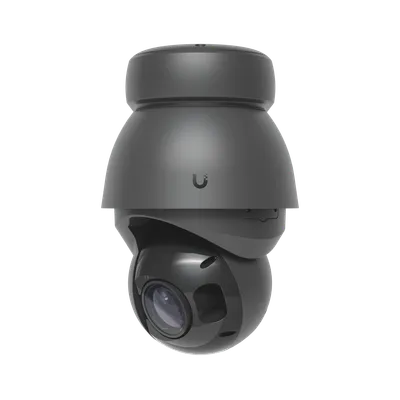

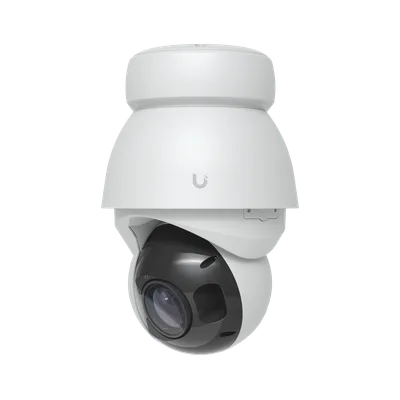

Color: Black · White
We assess the scene before specifying UVC-AI-PTZ-Precision: the area to cover, mounting height, available light and the detail you need to see. The manufacturer specifications below describe the hardware; the final position is selected for the actual property.

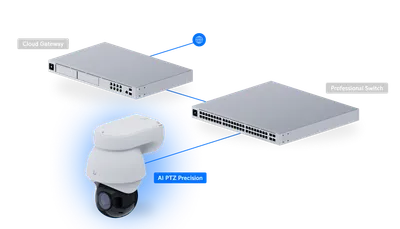

Power Method: PoE++. Max. Power Consumption: 51W. Networking Interface: GbE RJ45 port. Mounting: Wall, Pole mount, Desk stand (Included). Weatherproofing: IP66. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
A pan-tilt-zoom camera can change its viewing direction, so it cannot show every direction at once. We discuss its home position, supported presets and how wider coverage will be provided. Mounting clearance and access for maintenance are checked before installation.
The installation scope includes the agreed camera setup, viewing permissions and playback checks. Retention depends on the selected recorder, drives and recording settings. We show the system owner how to view and retrieve footage on the authorised devices.
Manufacturer specifications for UVC-AI-PTZ-Precision. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| AI | Enhanced AI |
|---|---|
| IR | 100 m (328 ft) |
| Lens Resolution | 4K |
| Weatherproof | Outdoor Exposed |
| Zoom | 31x Optical Zoom |
| Dimensions | Without mount: ⌀241 x 349 mm (⌀9.5 x 13.7") With mount: 372 x 241 x 299 mm (14.7 x 9.5 x 11.8") |
|---|---|
| IR Night Vision | 100 m (328 ft) |
| Zoom Mode | 31x Optical |
| Lightning Zoom | Coming Soon |
| Resolution | 4K |
| Field of View | Wide: H: 59°, V: 34.1° , D: 67.1° Tele: H: 1.98°, V: 1.12° , D: 2.27° |
| Pan-Tilt Range | Pan: 360° (Endless) Tilt: 120° |
| Weatherproofing | IP66 |

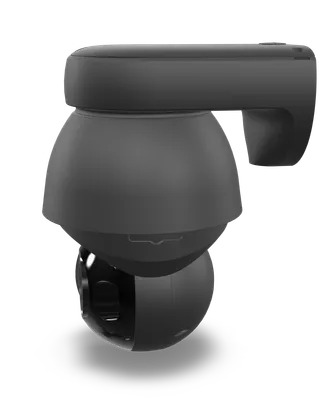

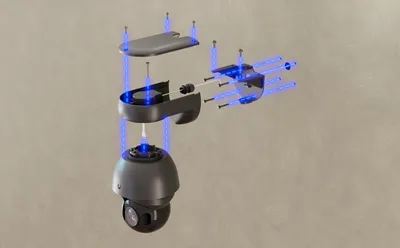

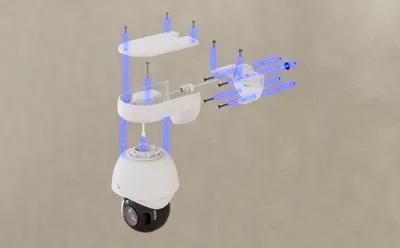

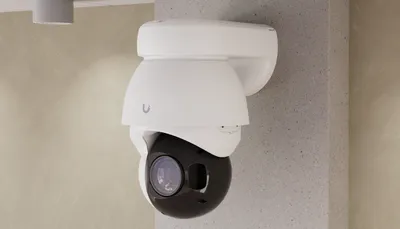

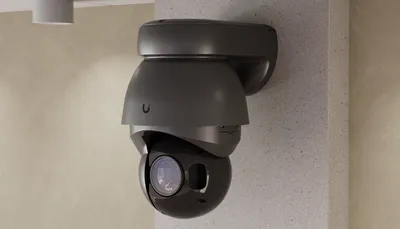

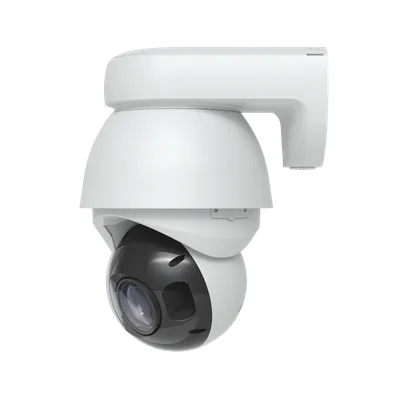

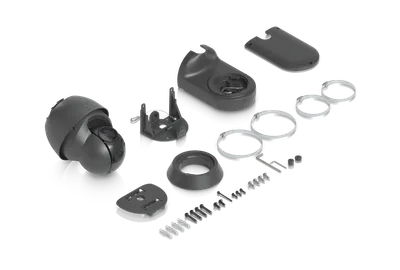

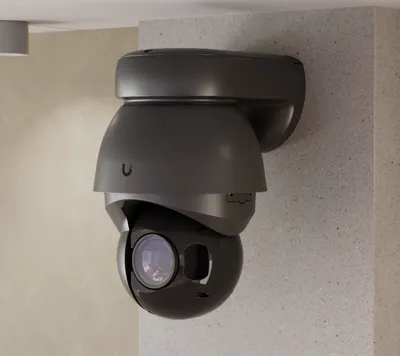

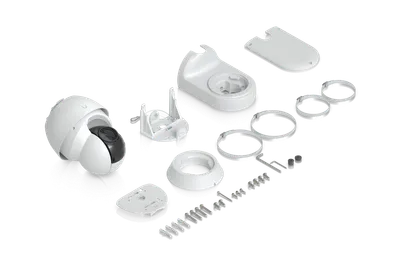

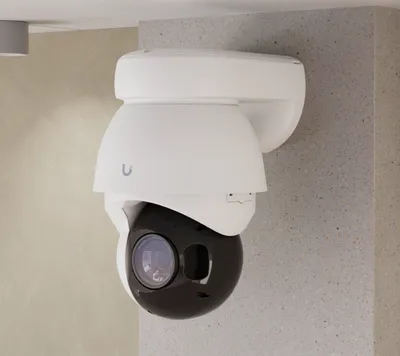

| Mounting | Wall, Pole mount, Desk stand (Included) |
| UniFi Application Suite | Protect |

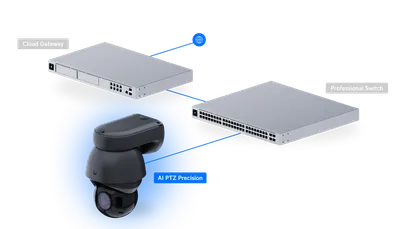

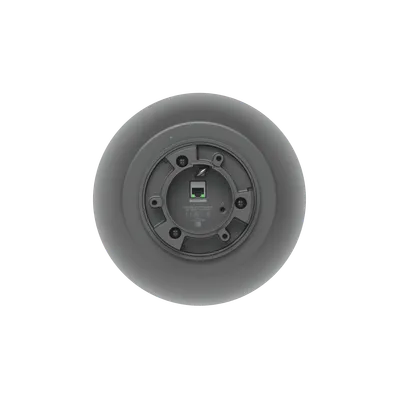

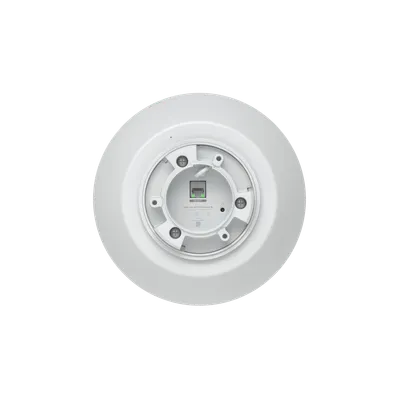

| Networking Interface | GbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast white balance, exposure control 2DNR, 3DNR, NR by motion masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | F 6.91-214.64 mm; ƒ/1.36-ƒ/4.6 |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 51W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE++ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Pole Mount Diameter | 2–4" (50–100 mm) 4.5–6" (115–150 mm)Metal strap torque: 6Nm |
| Weight | Without mount: 5.5 kg (12.1 lb) Wall mount (Pendant): 2.6 kg (5.7 lb) Table stand: 200 g (7.1 oz) Pole mount: 300 g (10.6 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Expansion Slot | MicroSD card |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -40 to 50º C (-40 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |

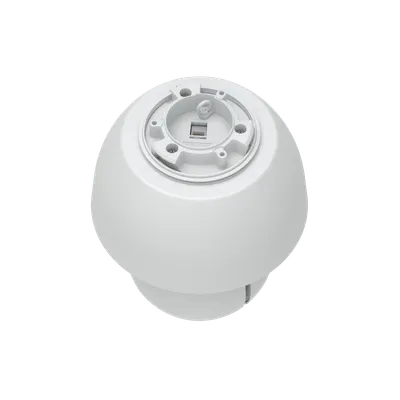

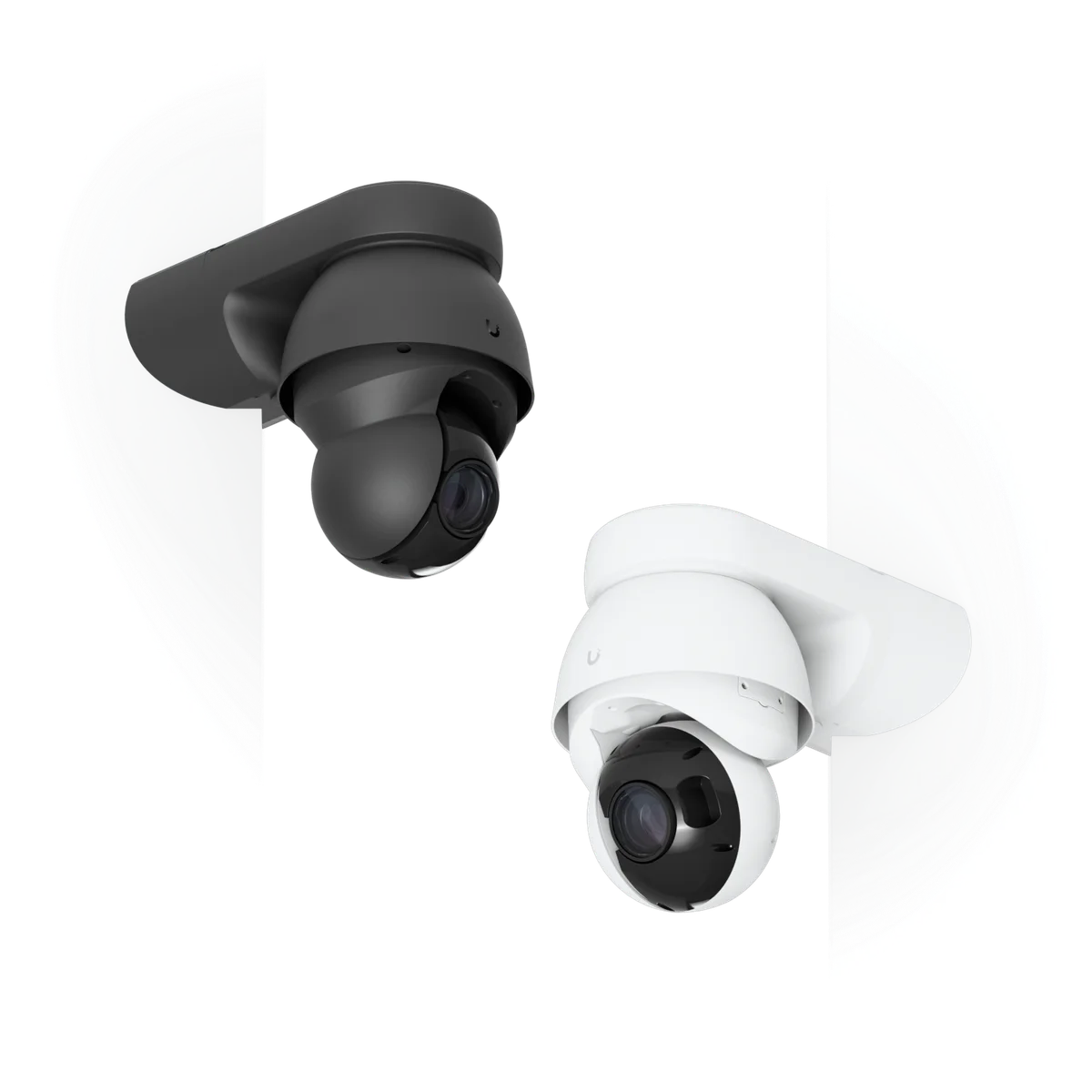

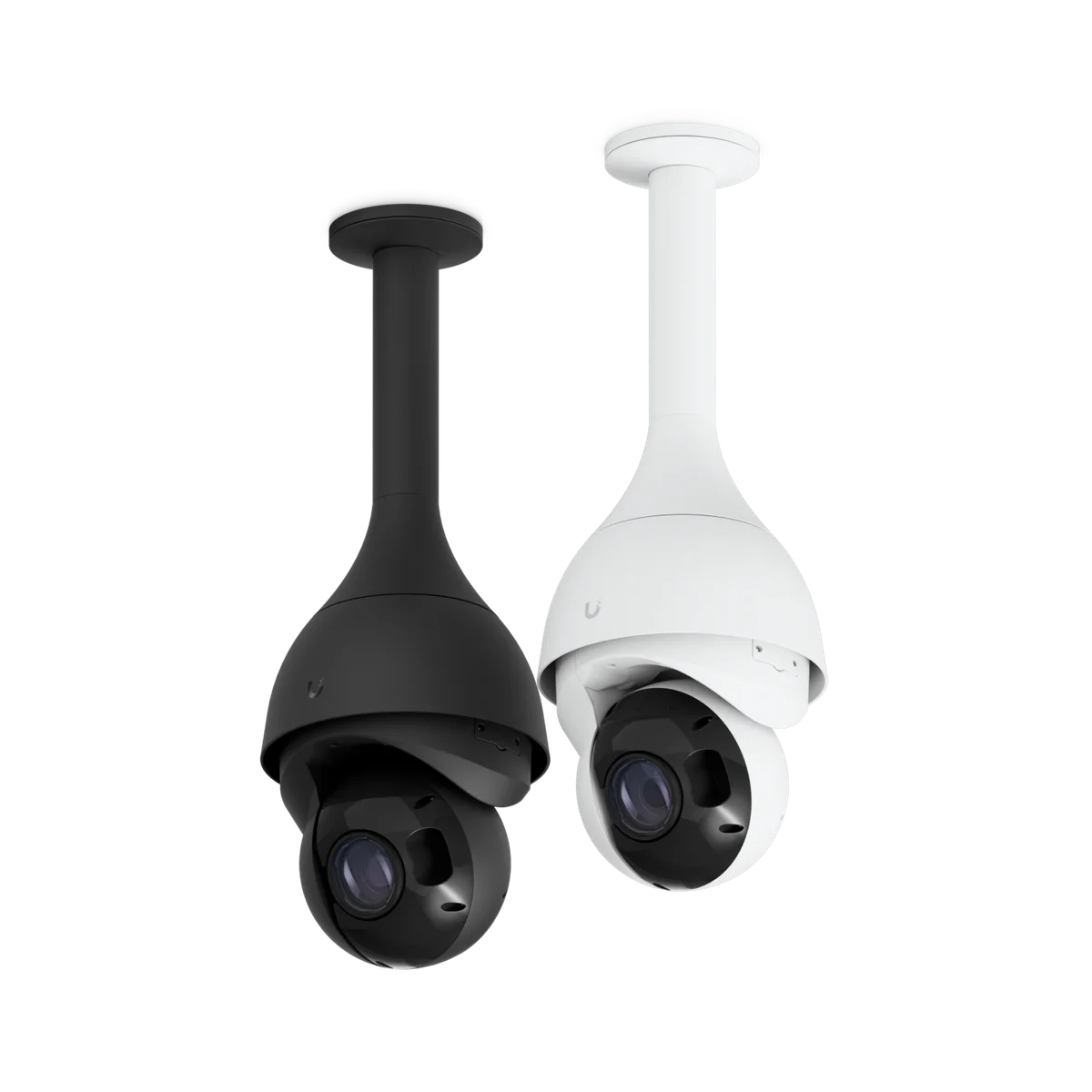

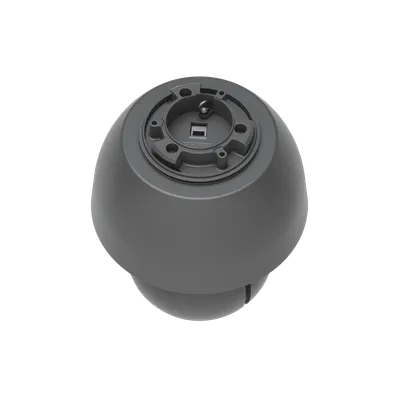

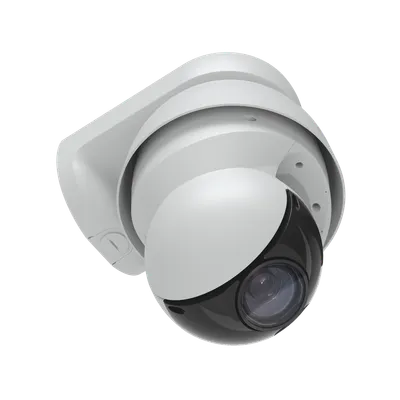

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
