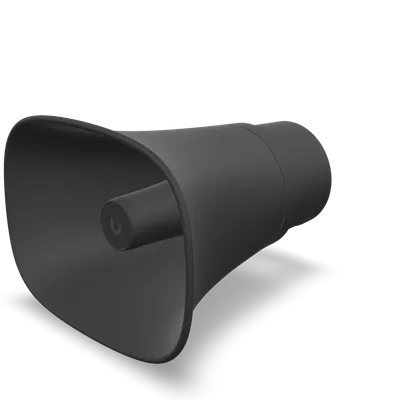

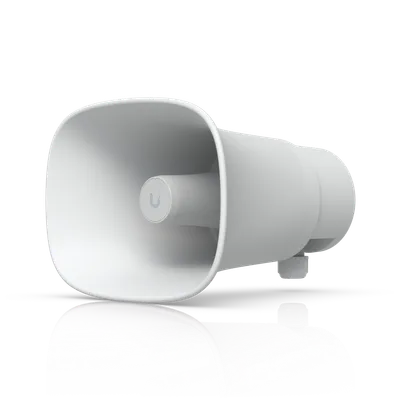

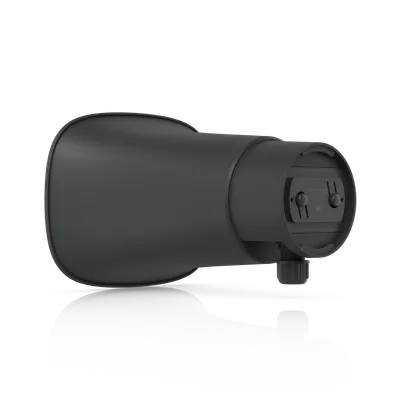

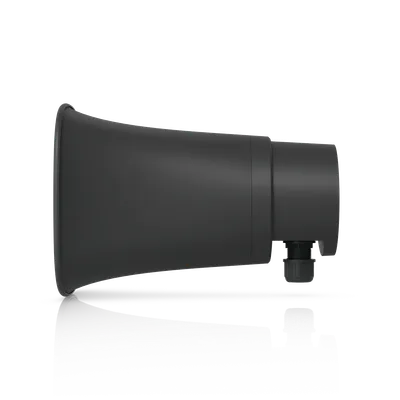

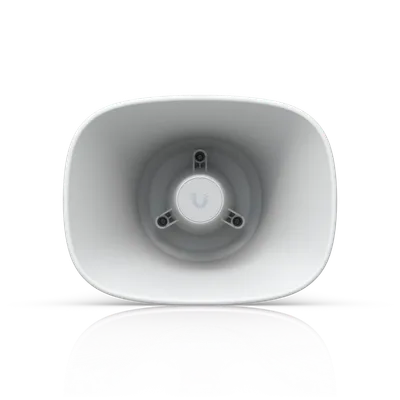

Plan your UniFi AI Horn Speaker installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UP-AI-Horn-Speaker.
Color: Black · White

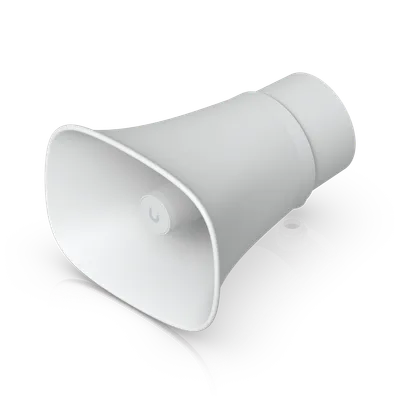

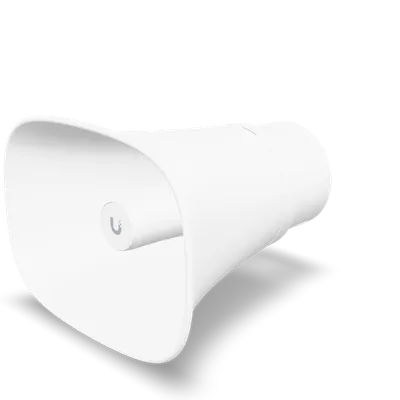

The AI Horn Speaker (UP-AI-Horn-Speaker) needs to be assessed against its supported application, radio or network connection and intended use. A US catalogue listing does not establish Australian approval or suitability. These points need confirmation before installation is proposed.
Power Method: PoE+. Max. Power Consumption: 14.3W. Networking Interface: (1) 100/10 MbE RJ45 port. Mounting: Articulating mount for wall, pole mount (Included). Mounting Material: Stainless steel, aluminum alloy. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Detection devices need a location that suits the condition being monitored. We review the manufacturer placement requirements, environmental limits, connection path and maintenance access. The exact model determines what can be detected and how alerts reach an authorised user.
Notification recipients, routine testing and battery or power maintenance need an owner. The agreed functions and limitations belong in the handover. A connected sensor must not be assumed to replace a required certified safety system or a monitored alarm service.
Manufacturer specifications for UP-AI-Horn-Speaker. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | Device: 267 x 189 x 247 mm (10.5 x 7.4 x 9.7") Articulating mount: ⌀104 x 149.4 mm (⌀4.1 x 5.9") |
|---|---|

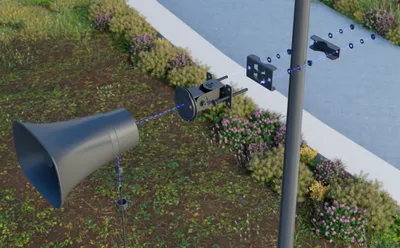

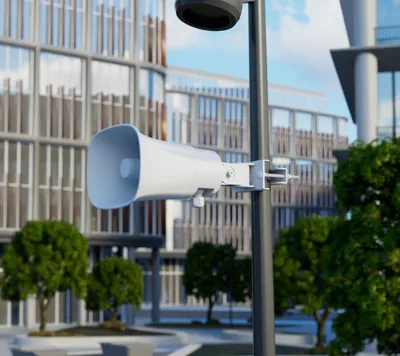

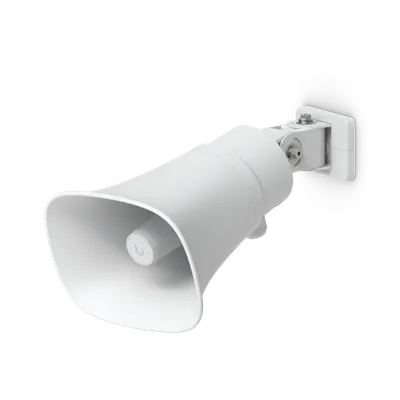

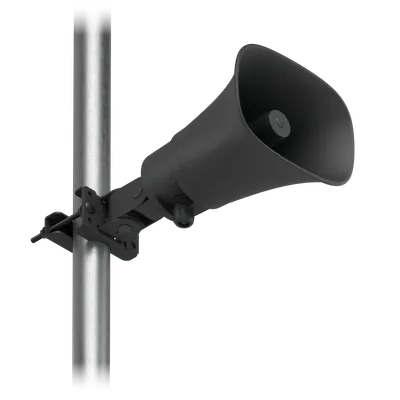

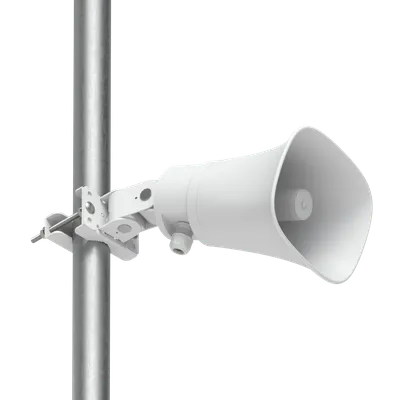

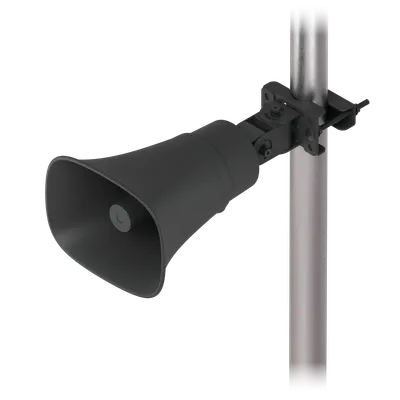

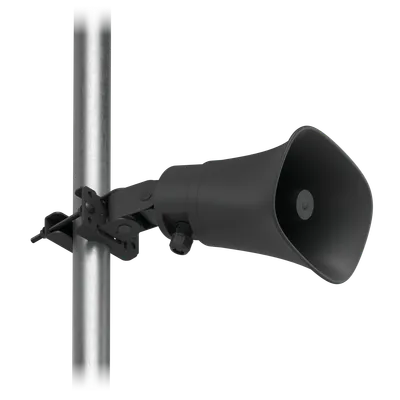

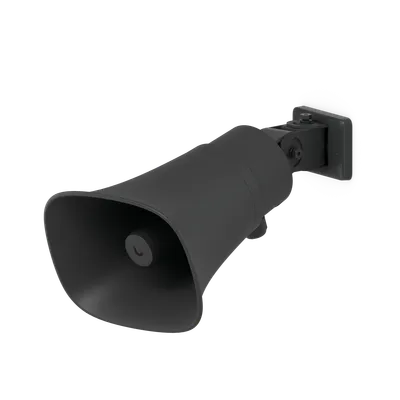

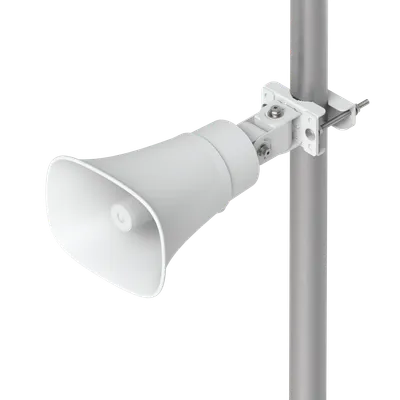

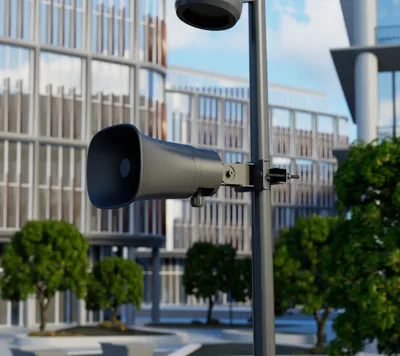

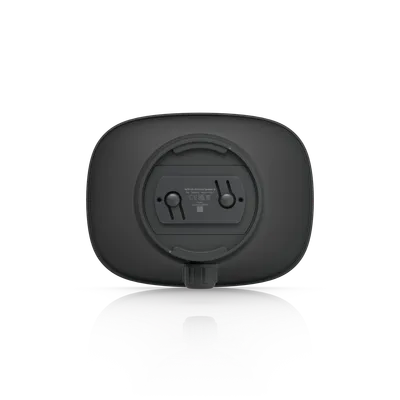

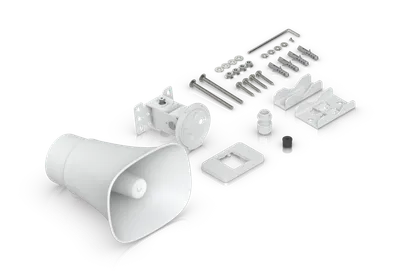

| Mounting | Articulating mount for wall, pole mount (Included) |
| Weight | Device: 1.55 kg (3.4 lb) Articulating mount: 1.3 kg (2.9 lb) |
|---|---|
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mounting Material | Stainless steel, aluminum alloy |

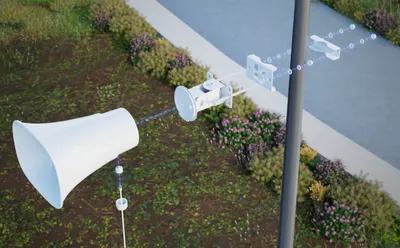

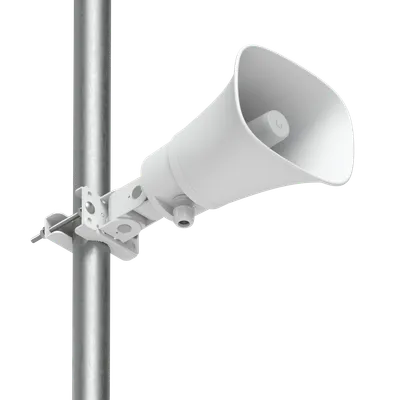

| Pole Mount Diameter | 1—2.5" (25—63.5 mm) |
| Weatherproofing | IP66 |
| Power Method | PoE+ |
|---|---|
| Max. Power Consumption | 14.3W |

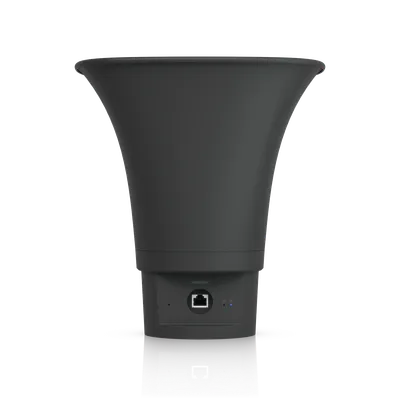

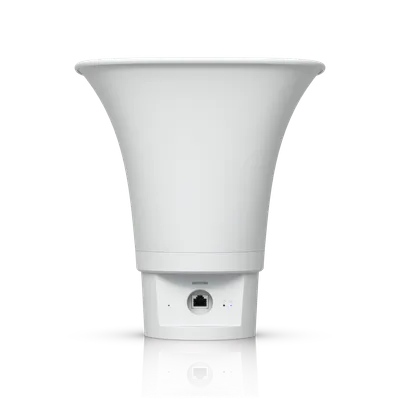

| Networking Interface | (1) 100/10 MbE RJ45 port |
| System | R/G/B/W |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
