Plan your UniFi AI Theta 360 Lens installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UVC-AI-Theta-Lens-360.
We assess the scene before specifying UVC-AI-Theta-Lens-360: the area to cover, mounting height, available light and the detail you need to see. The manufacturer specifications below describe the hardware; the final position is selected for the actual property.
Power Method: Theta proprietary. Max. Power Consumption: 2.5W. Mounting: Wall, ceiling mount (Included) Angle mount (Optional). Mounting Material: Polycarbonate. Dimensions: ⌀22.8. x 43.5 mm (⌀0.9 x 1.7”). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check the compatible recording platform, network connection and power method for this model. The cable route and mounting arrangement are agreed before work starts. Where existing equipment is being retained, its capacity and software support are reviewed first.
The installation scope includes the agreed camera setup, viewing permissions and playback checks. Retention depends on the selected recorder, drives and recording settings. We show the system owner how to view and retrieve footage on the authorised devices.
Manufacturer specifications for UVC-AI-Theta-Lens-360. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | ⌀22.8. x 43.5 mm (⌀0.9 x 1.7”) |
|---|---|
| Field of View | H: 180°, V: 180°, D: 180° |
| Resolution | 4K |

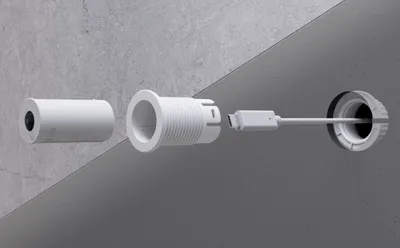

| Mounting | Wall, ceiling mount (Included) Angle mount (Optional) |
| Operating Environment | Indoor only |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
|---|---|
| Max. Frame Rate | 20 FPS |
| Resolution | 4MP 2560 x 2560 (1:1) |
| Sensor | 12MP CMOS |
| Lens | Fixed focal length |
| Enclosure Material | Aluminum alloy, polycarbonate |
|---|---|
| Mounting Material | Polycarbonate |
| Weight | 15 g (0.5 oz) |
| Power Method | Theta proprietary |
| Power Supply | 5V DC, 0.5A |
| Max. Power Consumption | 2.5W |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
