Plan your UniFi Analog Telephone Adapter installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UT-ATA.
We review what UT-ATA needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: USB-C 5V DC, 1A PoE 48V DC, 0.35A. Mounting: Flat/Angle Mount. Dimensions: 131.5 x 110.7 x 28.2 mm (5.2 x 4.4 x 1.1"). Ambient Operating Temperature: 0 to 40° C (32 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for UT-ATA. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 131.5 x 110.7 x 28.2 mm (5.2 x 4.4 x 1.1") |
|---|---|

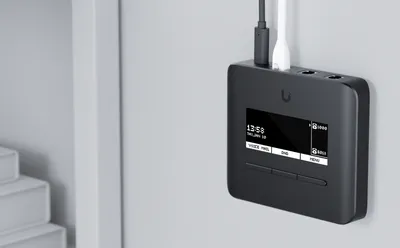

| Mounting | Flat/Angle Mount |
| Telephone Features | Voicemail, DND, caller ID, Call Transfer, Call Waiting, 3-Way Conference |
| Weight | 300 g (10.6 oz) |
|---|---|
| Enclosure Material | Polycarbonate |

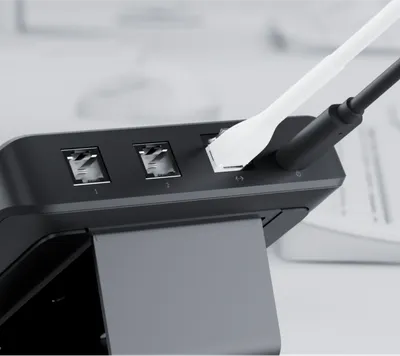

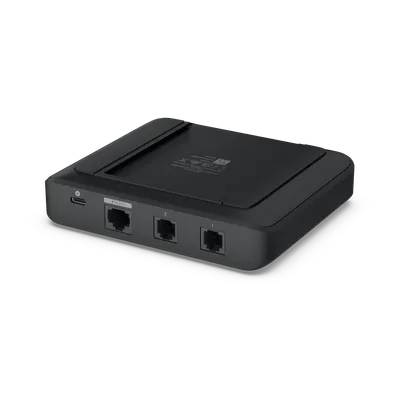

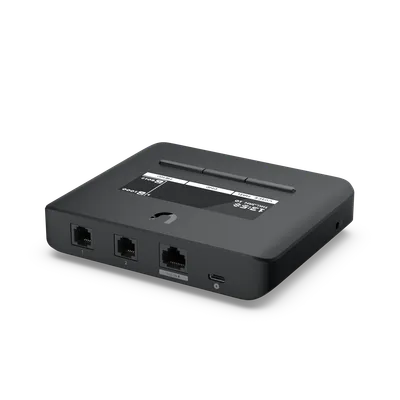

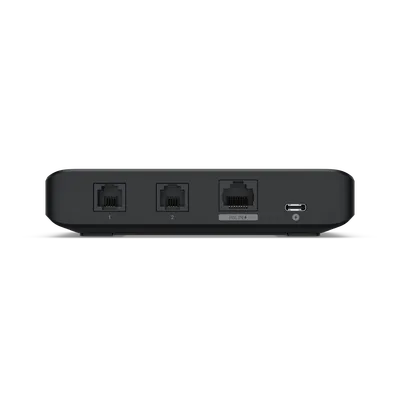

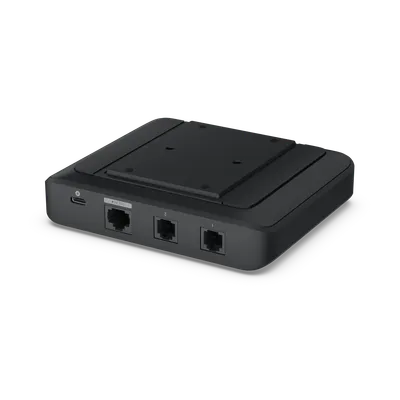

| Connectivity | (1) 100 MbE RJ45 port/PoE (1) 3.5 mm (0.14") headset port (2) RJ11 FXS ports (1) USB-C (power input) 802.11a/b/g/n/ac WiFi 2.4G b/g/n, BW 20 WiFi 5G a/n/ac, BW 20/40/80 |
|---|---|
| Power Method | USB-C 5V DC, 1A PoE 48V DC, 0.35A |
| Power Supply | 5V DC, 1A power adapter, 1.5 m cord (Included) PoE (pair B 4, 5+; 7, 8-) |
| Memory | RAM: 128 Mb Storage: 256 Mb |

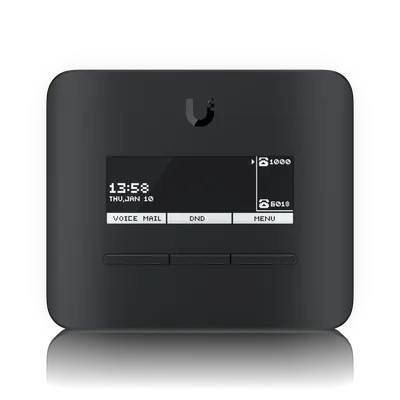

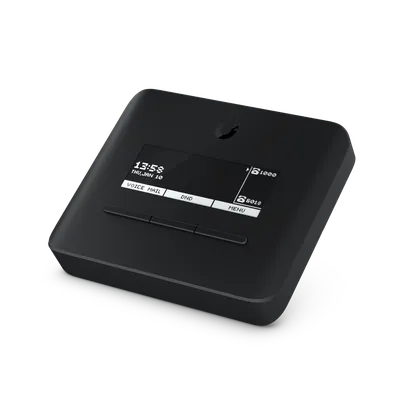

| Size | 86 mm (3.4") diagonal |
| Resolution | 192 x 64 dots |
| Buttons | (3) Device Control Keys |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Supported phone lines | 2 |
|---|---|
| Voice Codec | G.711 u/a |
| Fax Over IP | Fax Pass-Through using G.711 |
| UniFi Talk | Version 1.12.0 and later |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
