Plan your UniFi Access Fail-Safe Strike Lock (8 mm) fitting and compatibility in Perth with Servicewest. We assess the site and supporting equipment before specifying UACC-Lock-Strike-Safe-8mm.

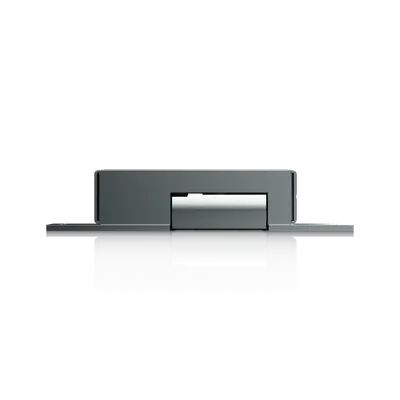

The Access Fail-Safe Strike Lock (8 mm) (UACC-Lock-Strike-Safe-8mm) needs to be matched to the host device and the intended installation. Similar-looking mounts, adapters and accessories can have different attachment points or electrical requirements. Send us the model number of the equipment you already own so we can check the pairing before quoting.

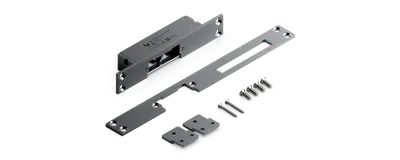

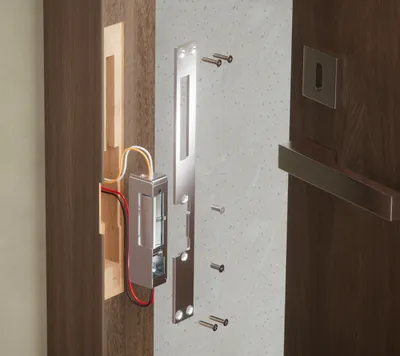

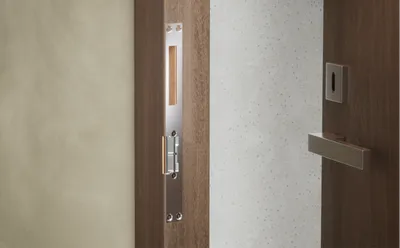

Mounting: Door frame recess mount. Dimensions: Lock body:112 x 21 x 28 mm (4.4 x 0.8 x 1.1") Short front plate:152 x 24.5 x 3 mm (6 x 0.9 x 0.1") Long front plate:250 x 25 x 3 mm (9.8 x 0.9 x 0.1"). Ambient Operating Temperature: -10 to 60° C (14 to 140° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check the manufacturer compatibility information, the location where the accessory will be used and any supporting parts required. The installation scope identifies what is included, what is already on site and any items that need replacement.
Accessory work is scoped alongside the equipment it supports. Tell us whether this is part of a new installation, a repair or an expansion. We can then plan access to the equipment and any interruption needed to fit and test the part.
Manufacturer specifications for UACC-Lock-Strike-Safe-8mm. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | Lock body:112 x 21 x 28 mm (4.4 x 0.8 x 1.1") Short front plate:152 x 24.5 x 3 mm (6 x 0.9 x 0.1") Long front plate:250 x 25 x 3 mm (9.8 x 0.9 x 0.1") |
|---|---|
| Weight | Lock body: 200 g (7.0 oz) Short front plate: 62 g (2.2 oz) Long front plate: 97 g (3.4 oz) |
| Enclosure Material | Lock body: zinc alloy Front plate/latches: stainless steel |
| Lock Type | Fail safe |

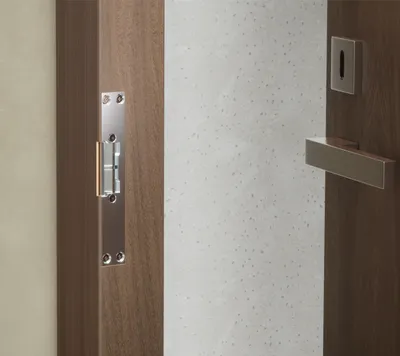

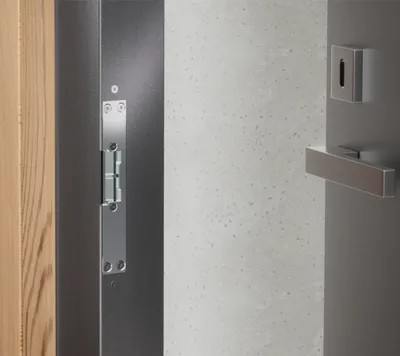

| Support Door Type | Single door (Wooden/metal) |
| Holding Force | 227 kg (500 lb) |
| Current Power | 200mA ± 10% |
| Support Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/- (white) (1) DPS/+ (orange) |

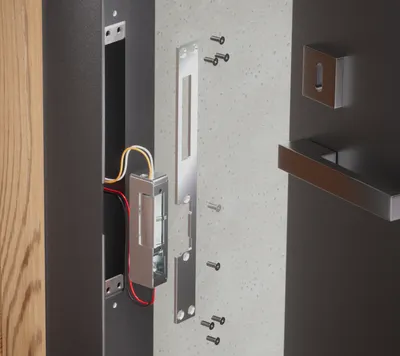

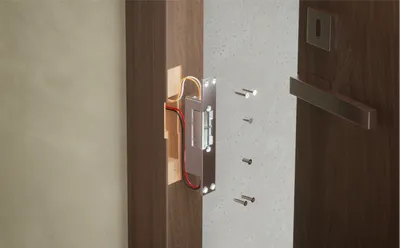

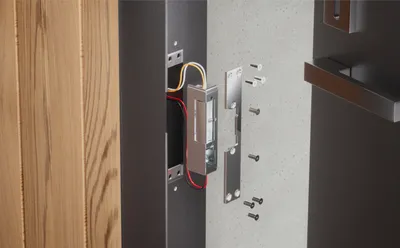

| Mounting | Door frame recess mount |
| Type | Dry contact |
| Logic | Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short |
| Rating | Max. 30V DC, 0.1A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
