Plan your UniFi Enterprise Audio/Video Bridge installation in Perth with Servicewest. We assess the site and supporting equipment before specifying EAV-Bridge.
We review what EAV-Bridge needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: PoE+. Max. Power Consumption: 14W. Networking Interface: (1) GbE RJ45 PoE+ In Etherlighting™ port. Mounting: DIN rail, Wall, Pole (Included). Dimensions: 109 x 134.4 x 40.4 mm (4.3 x 5.3 x 1.6"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for EAV-Bridge. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 109 x 134.4 x 40.4 mm (4.3 x 5.3 x 1.6") |
|---|---|
| Weight | 560 g (1.2 lb) |
| Enclosure Material | Aluminum |

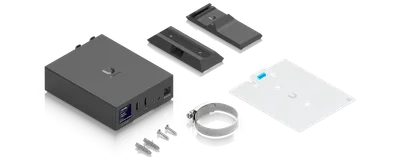

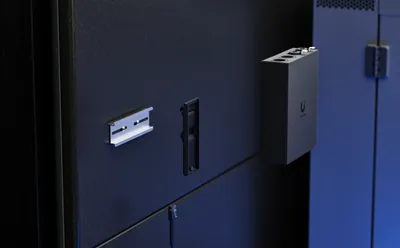

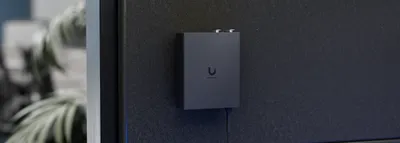

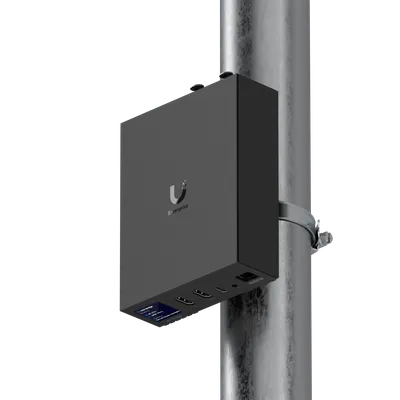

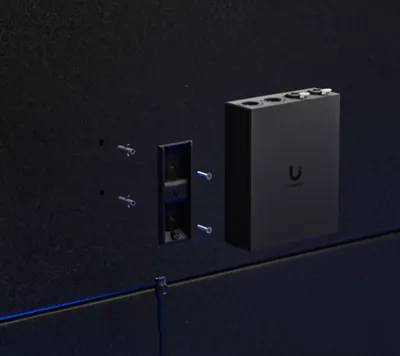

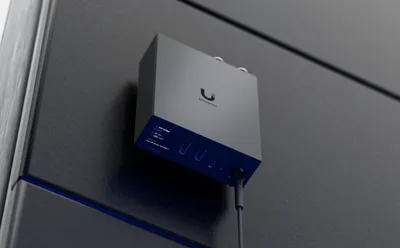

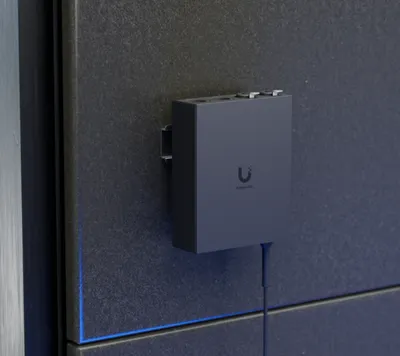

| Mounting | DIN rail, Wall, Pole (Included) |

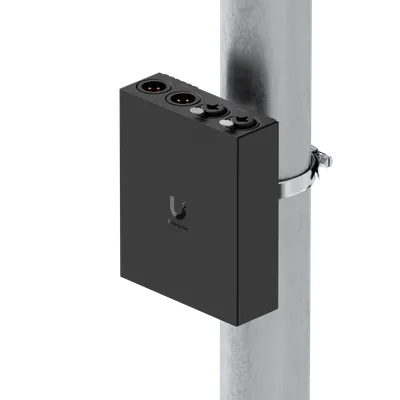

| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Output | Mono / Stereo sound |
|---|---|
| Surround Format | PCM |

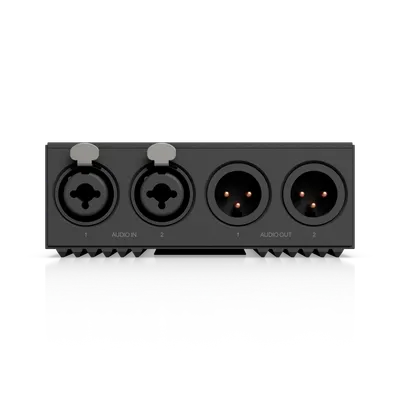

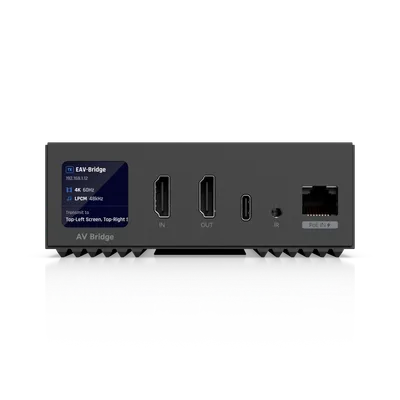

| Audio Input | (1) HDMI in (2) XLR female analog with 6.35 mm analog combo input, phantom power: 48V DC supported |
| Audio Output | (1) HDMI out (2) XLR male analog output |
| Frequency | 20 Hz – 20k Hz ±0.5dB |
| Video Input | (1) HDMI 2.0, 4K at 60 Hz (60 FPS) |
|---|---|
| Video Output | (1) HDMI 2.0, 4K at 60 Hz (60 FPS) |
| Video Content Support | 480p / 720p / 1080p / 4K |

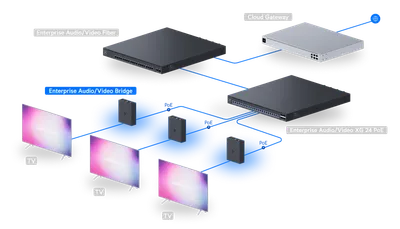

| Signal Distribution | 1-to-1, 1-to-N streaming 1 to 8x8 TV wall configuration |
| Networking Interface | (1) GbE RJ45 PoE+ In Etherlighting™ port |
|---|---|
| Versatile Port | (1) USB Type-C 5V, 1A |
| IR Connection | (1) 3.5 mm Input or Output |
| Power Method | PoE+ |
| Max. Power Consumption | 14W |
| LCM Display | (1) 1.3” touchscreen |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
