UC-Cast-Lite · Perth installation

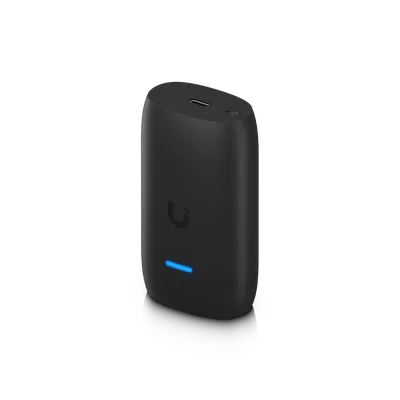

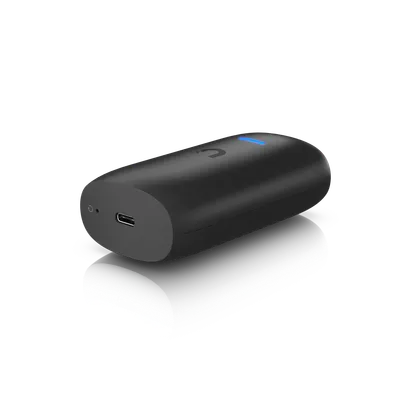

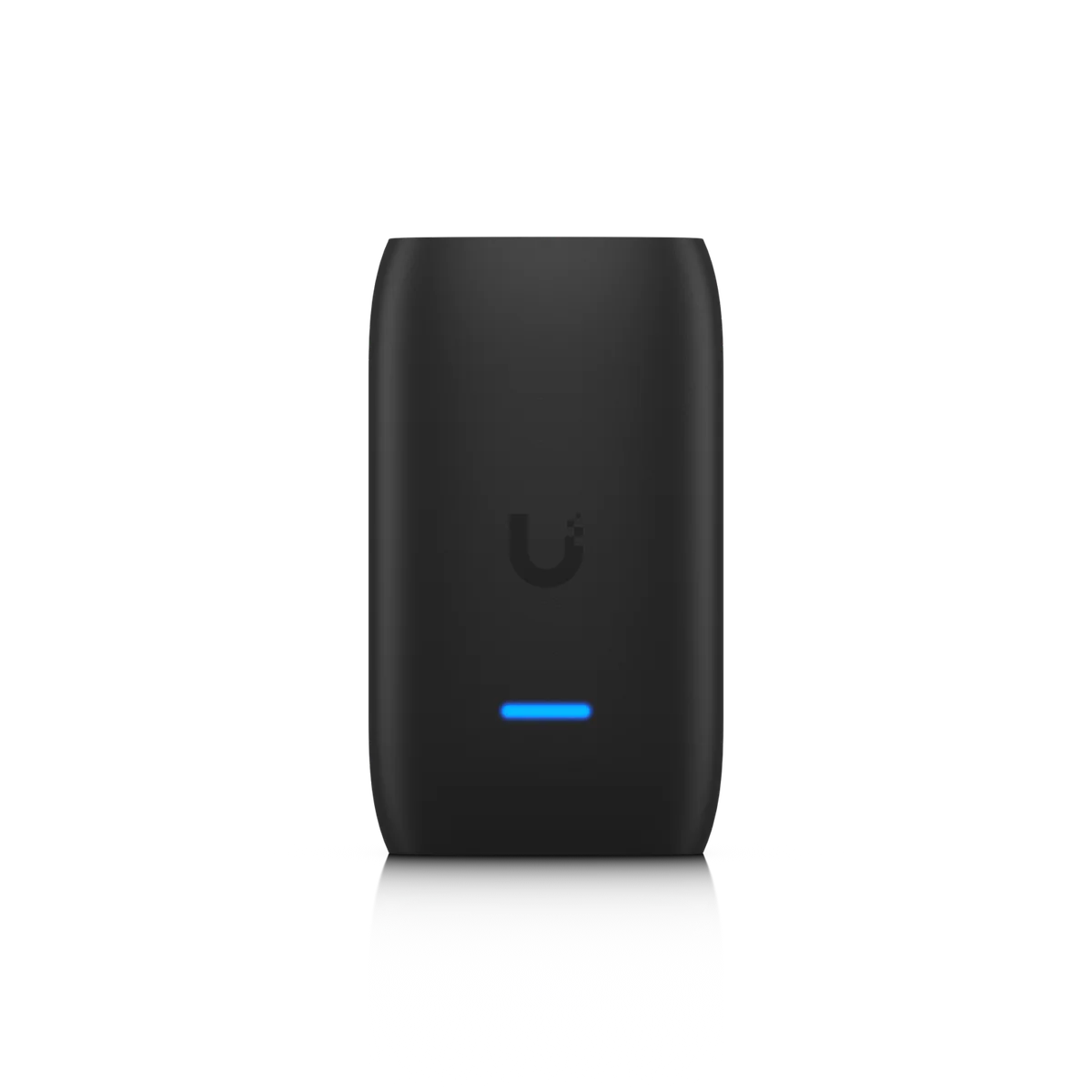

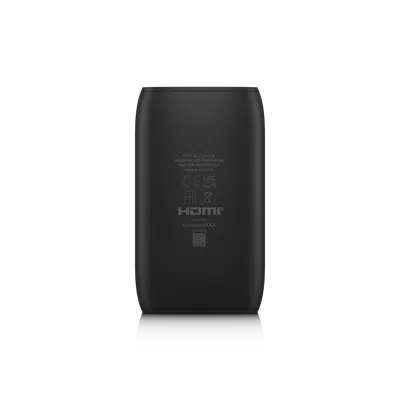

UniFi Display Cast Lite
Installation Perth.

Plan your UniFi Display Cast Lite installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UC-Cast-Lite.

  • Australian model and supported services

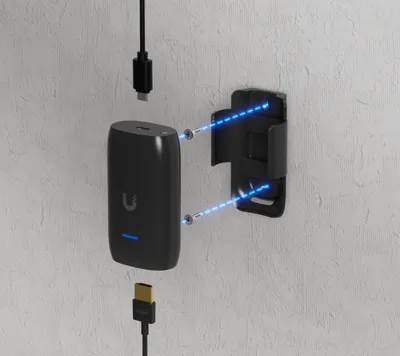

  • Network, mounting and power
  • Account ownership and maintenance
Request a site assessment Australian model, compatibility and procurement checked before the scope is confirmed.

Installing Display Cast Lite. Start with the site.

Define the job for Display Cast Lite.

We review what UC-Cast-Lite needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.

Installation details for UC-Cast-Lite

Power Method: (1) USB Type-C 5V DC, 1A (UACC-Adapter-PoE-USBC can convert GbE RJ45 to USB-C). Max. Power Consumption: 5W. Dimensions: Without mount: 90 x 52 x 31 mm (3.5 x 2.1 x 1.2") With mount: 92.1 x 56.3 x 40.8 mm (3.6 x 2.2 x 1.6"). Ambient Operating Temperature: 0 to 40° C (32 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

Check the supporting connections.

Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.

Document how the addition is used.

Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.

Know the
equipment.

Manufacturer specifications for UC-Cast-Lite. Check the selected model, regional version and current software requirements during assessment.

View manufacturer source
Overview
DimensionsWithout mount: 90 x 52 x 31 mm (3.5 x 2.1 x 1.2") With mount: 92.1 x 56.3 x 40.8 mm (3.6 x 2.2 x 1.6")

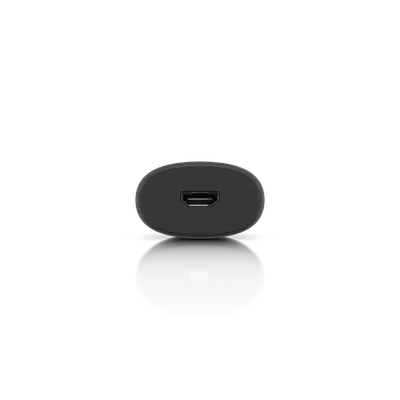

Display Output(1) HDMI port
Video Content Support480p / 720p / 1080p
Mechanical
WeightWithout mount: 160 g (5.6 oz) With mount: 180 g (6.3 oz)
Pole Mount Diameter1~2" (25–50 mm)
Hardware
ProcessorQuad-Core Arm® Cortex®-A55, 1.9 GHz
MemoryStorage: 16 GB RAM: 2 GB

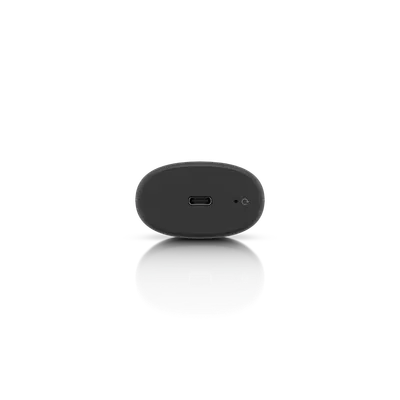

Power Method(1) USB Type-C 5V DC, 1AUACC-Adapter-PoE-USBC can convert GbE RJ45 to USB-C
Max. Power Consumption5W
ConnectivityWiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz
WiFi Standards802.11 a/b/g/n/ac/ax
SystemWhite/blue (Learn More )
Buttons(1) Factory reset
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity20 to 90% noncondensing
CertificationsCE, FCC, IC, Wi-Fi CERTIFIED UL 62368-1, CSA C22.2 No. 62368-1
Software
UniFi Connect WebVersion 3.17.0 and later
UniFi Connect iOS™ and Android™Version 2.26.0 and later

Plan the supporting equipment. Check the complete system.

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.

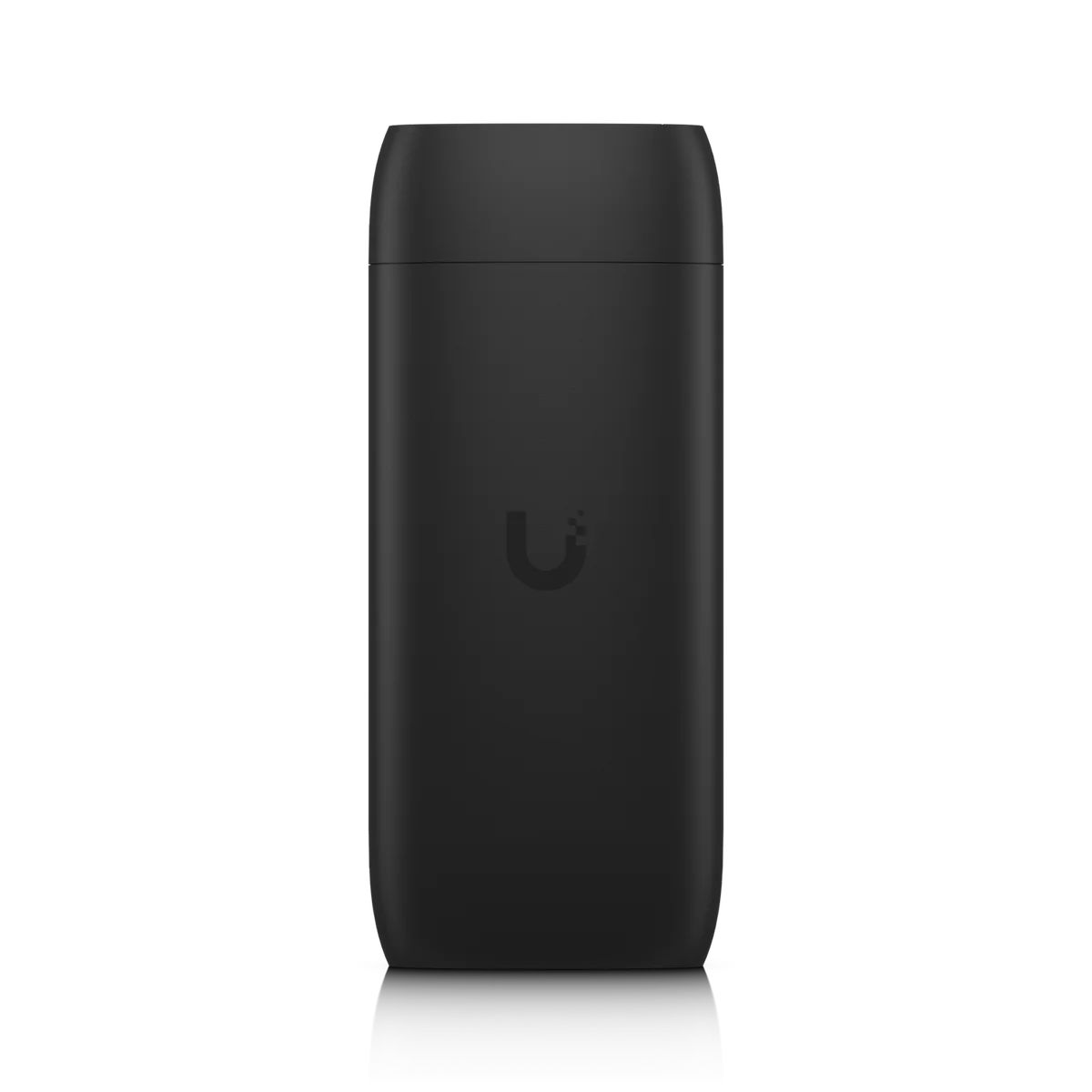

UC-Cast-Pro

Display Cast Pro

Installation, specifications and supporting equipment.

UniFi Display Cast Pro

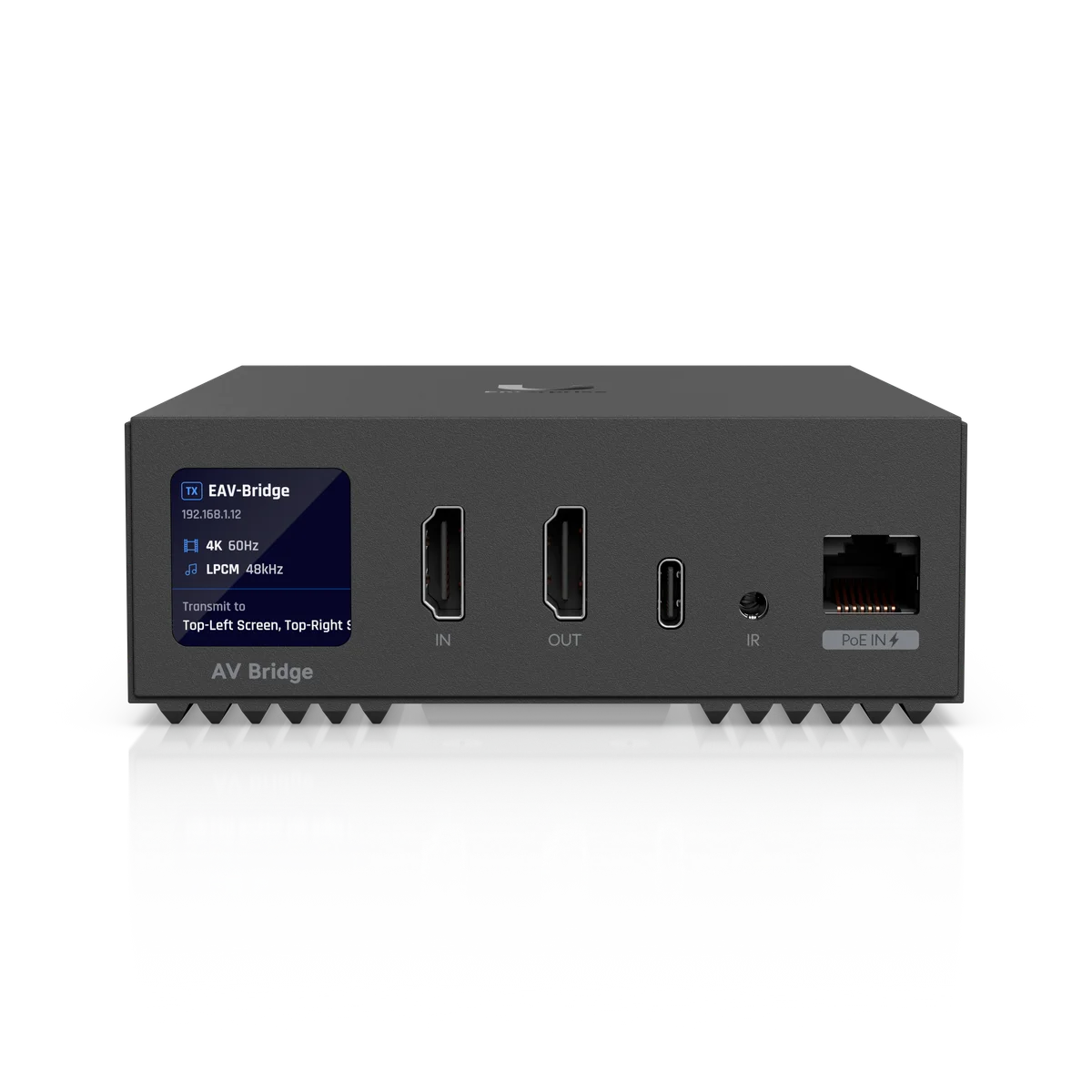

EAV-Bridge

Enterprise Audio/Video Bridge

Installation, specifications and supporting equipment.

UniFi Enterprise Audio/Video Bridge

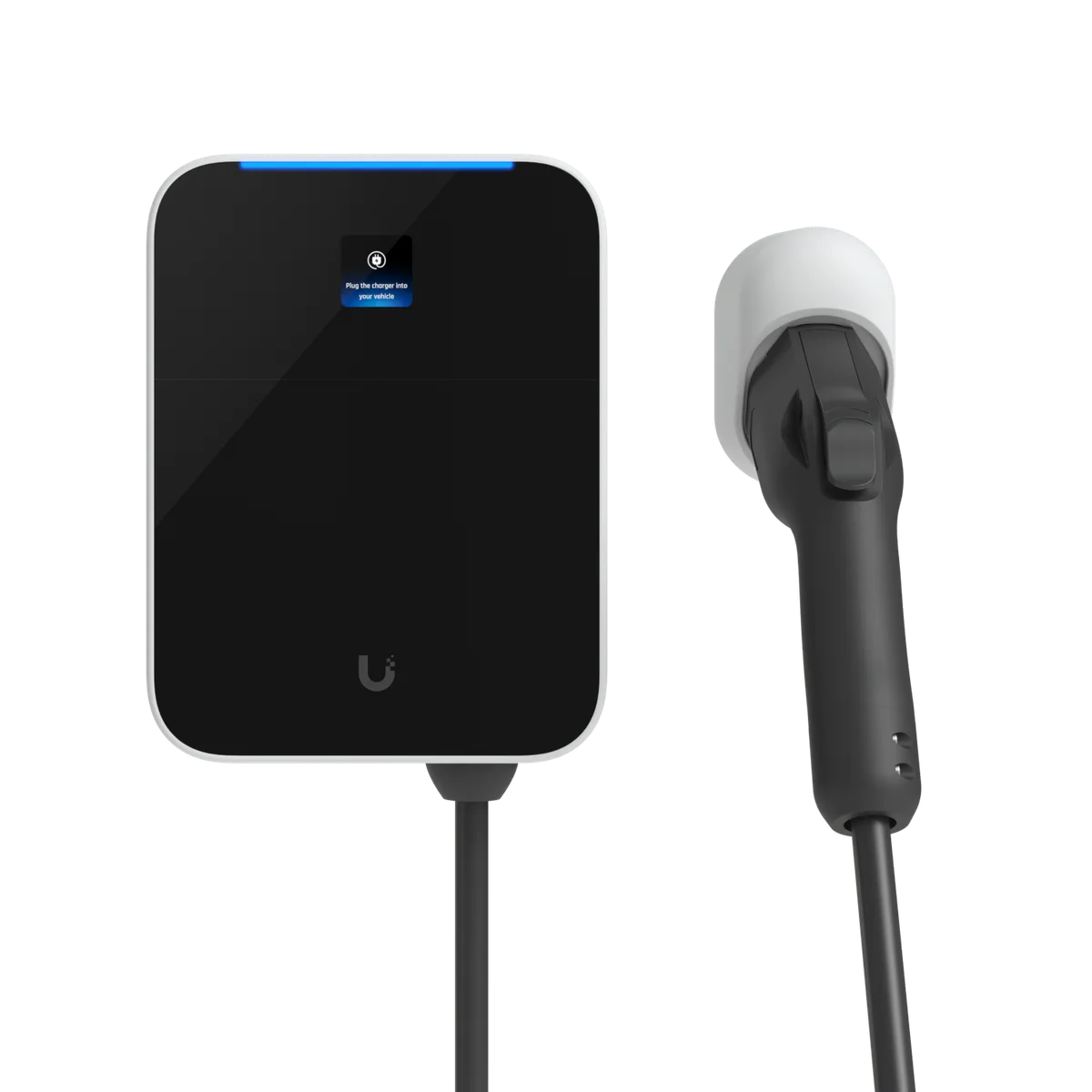

UC-EV-Station-Lite

EV Station Lite

Installation, specifications and supporting equipment.

UniFi EV Station Lite
UC-EV-Station-Pro

EV Station Pro

Installation, specifications and supporting equipment.

UniFi EV Station Pro

A few practical questions.

Can you assess Display Cast Lite for an existing system?
Yes. Include UC-Cast-Lite, your existing console or host equipment, and a brief description of the work in your enquiry. We check compatibility, capacity and site access before confirming the installation scope.
What should I send for a Display Cast Lite assessment?
Send your suburb, property type, the intended location and any existing equipment model numbers. Australian model and supported services and network, mounting and power are useful starting points. Photographs of the proposed location can help with the initial discussion.
Does this page confirm Australian stock or a fixed installation price?
No. This catalogue uses manufacturer product references. We confirm the suitable Australian model, procurement options and a site-specific scope before quoting.
