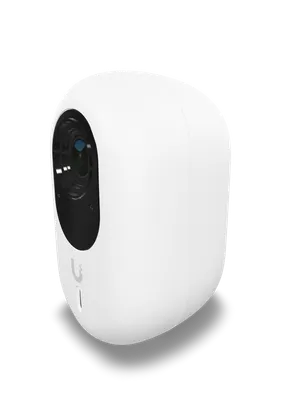

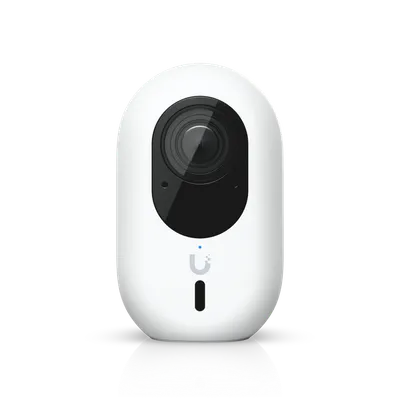

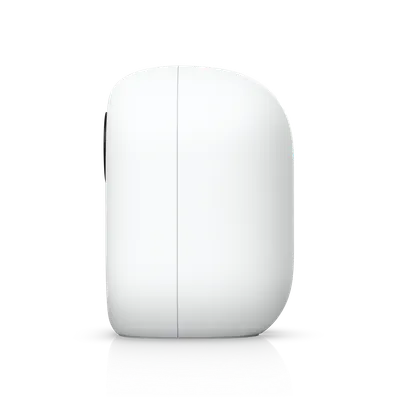

Plan your UniFi G6 Instant installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UVC-G6-INS.
Variant: US Version
Color: White
We assess the scene before specifying UVC-G6-INS: the area to cover, mounting height, available light and the detail you need to see. The manufacturer specifications below describe the hardware; the final position is selected for the actual property.
Power Method: 5V, 2A USB power adapter (Included) PoE to USB-C adapter (Not included). Max. Power Consumption: 7W. Networking Interface: 802.11 a/b/g/n/ac WiFi Bluetooth. Mounting: Wall mount accessory (Included). Weatherproofing: IPX5. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check the compatible recording platform, network connection and power method for this model. The cable route and mounting arrangement are agreed before work starts. Where existing equipment is being retained, its capacity and software support are reviewed first.
The installation scope includes the agreed camera setup, viewing permissions and playback checks. Retention depends on the selected recorder, drives and recording settings. We show the system owner how to view and retrieve footage on the authorised devices.

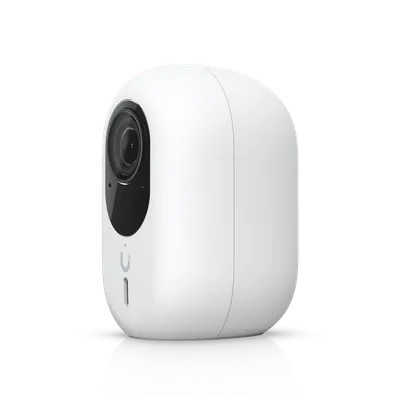

Manufacturer specifications for UVC-G6-INS. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| AI | Enhanced AI |
|---|---|
| IR | 6 m (20 ft) |
| Lens Resolution | 4K |
| Resistance | IK04 |
| Sound | Two-Way Audio |
| Weatherproof | Outdoor Exposed |

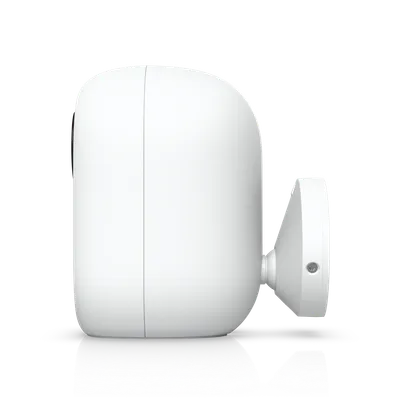

| Dimensions | 81.7 x 50.1 x 57.2 mm (3.2 x 2 x 2.3") |
|---|---|
| IR Night Vision | 6 m (20 ft) |
| Resolution | 4K |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Audio | Two-way audio |
| Weatherproofing | IPX5 |
| Tamper Resistance | IK04 |

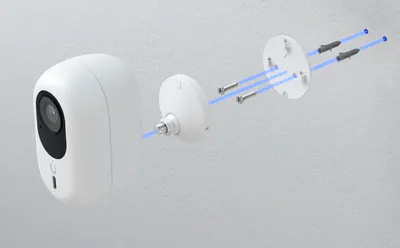

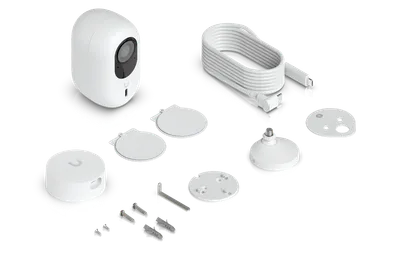

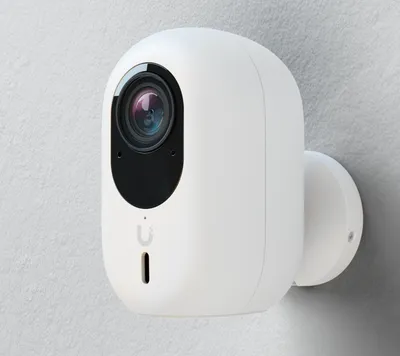

| Mounting | Wall mount accessory (Included) |
| UniFi Application Suite | Protect |
| Networking Interface | 802.11 a/b/g/n/ac WiFi Bluetooth |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8” 8MP |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 7W |
|---|---|
| Supported Voltage Range | 5V DC, 2A |
| Power Method | 5V, 2A USB power adapter (Included) PoE to USB-C adapter (Not included) |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 180 g (6.3 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |

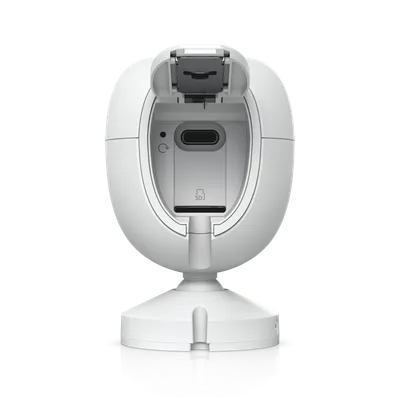

| Expansion Slot | MicroSD card |
| Button | (1) Factory reset |
| Cable Connector Type | USB Type-C to USB Type-C |
| Cable Diameter | 3 mm (0.12") |
| Cable Length | 2 m (6.6 ft) |
| Jacket Material | Thermoplastic elastomer |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |

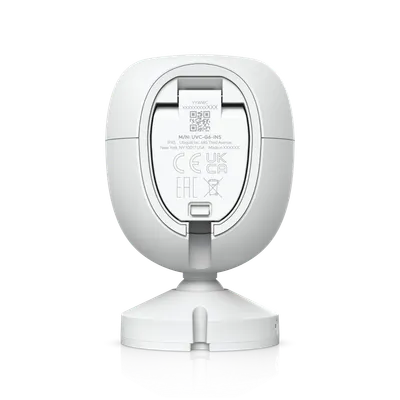

| Certifications | CE, FCC, IC, SRRC |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
