Plan your UniFi Mobile Router Ultra installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UMR-Ultra-US.
We review what UMR-Ultra-US needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: USB Type-C (5V DC/2A) 4-pin ATX DC (9—30V DC). Max. Power Consumption: 5.7W. Networking Interface: (2) FE RJ45 ports, LTE Cat 4 radio, WiFi 4. Mounting: DIN rail, Wall (Mounts Included). Dimensions: Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1") With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for UMR-Ultra-US. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1") With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1") |
|---|---|

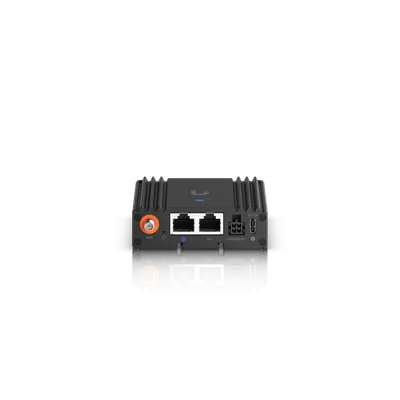

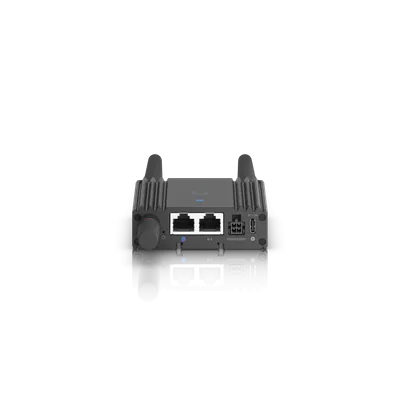

| Networking Interface | (2) FE RJ45 ports, LTE Cat 4 radio, WiFi 4 |
| SIM | Nano SIM |
| LTE Bands | B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 |

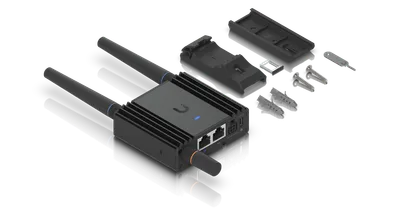

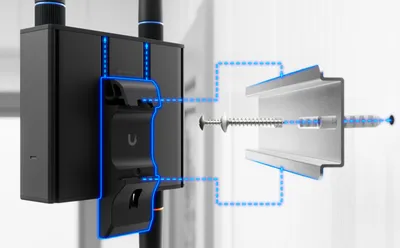

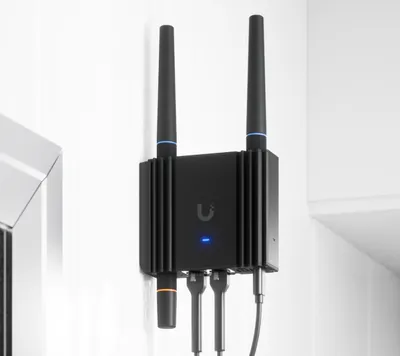

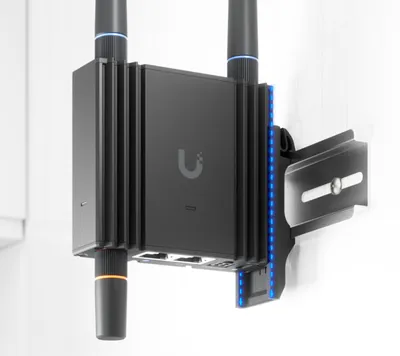

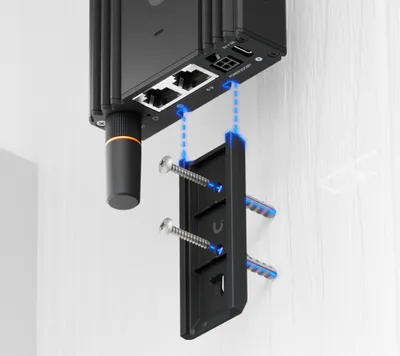

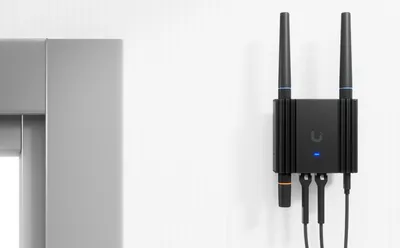

| Mounting | DIN rail, Wall (Mounts Included) |
| Weight | Device: 200 g (7.1 oz) DIN rail/wall mounts: 20 g (0.7 oz) |
|---|---|
| Enclosure Material | Polycarbonate |
| Mount Material | Wall Mount: Polycarbonate DIN Rail Mount: Steel |
| WiFi Standard | WiFi 42.4 GHz, 20/40 MHz |
|---|
| 802.11n | 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40) |
|---|---|
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| Management | Ethernet WiFi |
|---|---|
| LTE Throughput Speed | Download 150 Mbps / Upload 50 Mbps |

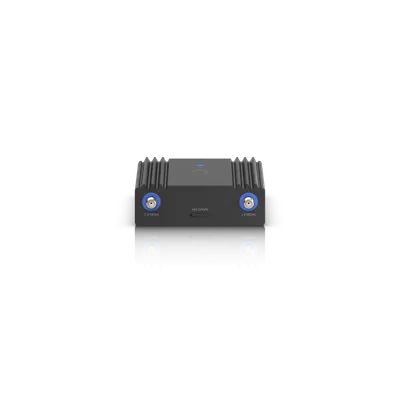

| Ports | (1) Mobile 1: SMA female (1Rx) (1) Mobile 2: SMA female (1Tx/1Rx) (1) WiFi: RP-SMA female |
| Type | (2) External LTE antenna (1) External WiFi |
| Max. TX Power | 17 dBm |
| WiFi MIMO | 1 x 1 |
| Max. Power Consumption | 5.7W |

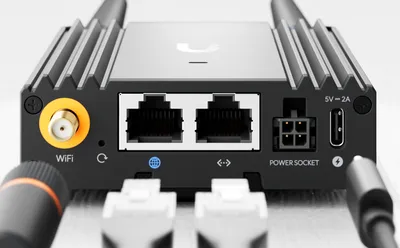

| Power Method | USB Type-C (5V DC/2A) 4-pin ATX DC (9—30V DC) |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance® |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
