Plan your UniFi Mobile Router installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UMR-US.
We review what UMR-US needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: PoE+ (48-54V DC) USB Type-C (5V DC, 3A) 4-pin ATX DC (9V DC, 1A). Max. Power Consumption: 9W. Networking Interface: (2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4. Mounting: DIN rail, Wall (Mounts Included). Dimensions: 190 x 89.8 x 28.8 mm (7.4 x 3.5 x 1.1"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for UMR-US. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 190 x 89.8 x 28.8 mm (7.4 x 3.5 x 1.1") |
|---|---|

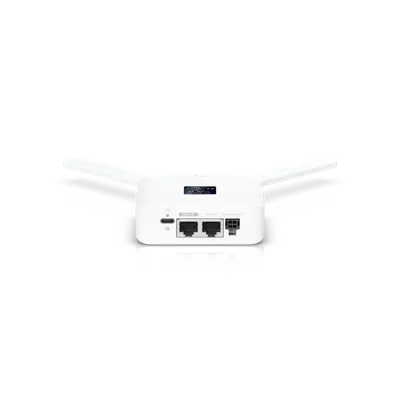

| Networking Interface | (2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4 |
| SIM | Pre-installed AT&T nano SIM |
| LTE Bands | B2, B4, B5, B12, B14, B66 |
| PoE Interface | (1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch) |

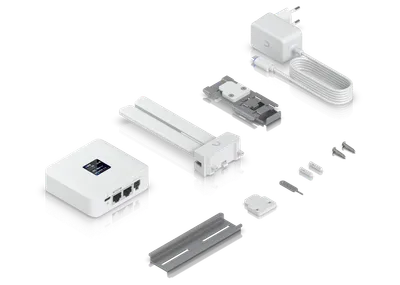

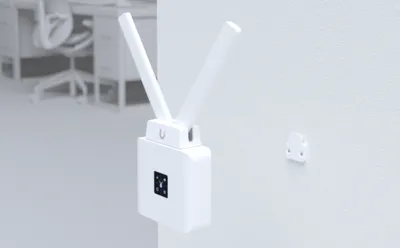

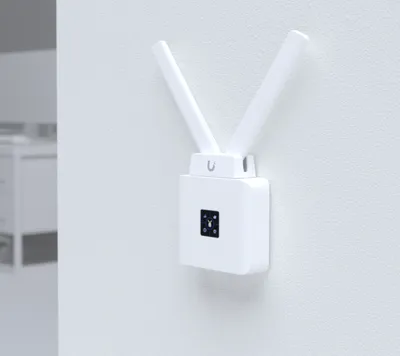

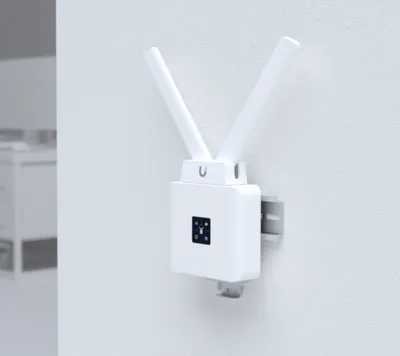

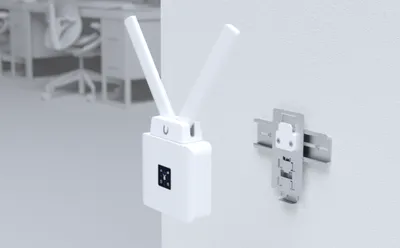

| Mounting | DIN rail, Wall (Mounts Included) |
| Weight | Without mount: 257 g (9.1 oz) With mount: 303 g (10.7 oz) |
|---|---|
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| WiFi Standard | WiFi 4802.11 b/g/n, WiFi 2.4G, 20/40 MHz |
|---|
| 802.11n | 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40) |
|---|---|
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| Management | Ethernet WiFi |
|---|---|
| LTE Throughput Speed | Download 150 Mbps / Upload 50 Mbps |
| Ports | (1) External LTE antenna (TS9 male) |
| Type | (1) External LTE antenna (TS9 male) (1) Internal WiFi (1) Internal GPS |
| Max. TX Power | 19 dBm |
| WiFi MIMO | 1 x 1 |
| Max. Power Consumption | 9W |
| Power Method | PoE+ (48-54V DC) USB Type-C (5V DC, 3A) 4-pin ATX DC (9V DC, 1A) |
| Power Supply | USB Type-C, 5V DC, 3A (Adapter included) |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, AT&T |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
