Plan your UniFi PoE Over 2-Wire Retrofit Extender fitting and compatibility in Perth with Servicewest. We assess the site and supporting equipment before specifying UACC-Retrofit-PoE-2Wire.
The PoE Over 2-Wire Retrofit Extender (UACC-Retrofit-PoE-2Wire) needs to be matched to the host device and the intended installation. Similar-looking mounts, adapters and accessories can have different attachment points or electrical requirements. Send us the model number of the equipment you already own so we can check the pairing before quoting.
Power method: PoE++ (Manufacturer legacy datasheet). Max. power consumption: 3W (Without PoE output) (Manufacturer legacy datasheet). Networking interface: (1) 10/100 MbE (1) Homeplug AV (Manufacturer legacy datasheet). Mounting material: Polycarbonate (Manufacturer legacy datasheet). Dimensions: PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2") (Manufacturer legacy datasheet). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check the manufacturer compatibility information, the location where the accessory will be used and any supporting parts required. The installation scope identifies what is included, what is already on site and any items that need replacement.
Accessory work is scoped alongside the equipment it supports. Tell us whether this is part of a new installation, a repair or an expansion. We can then plan access to the equipment and any interruption needed to fit and test the part.
Manufacturer specifications for UACC-Retrofit-PoE-2Wire. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")Manufacturer legacy datasheet |
|---|---|
| Weight | PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) Adapter: 140 g (4.9 oz)Manufacturer legacy datasheet |
| Enclosure material | PolycarbonateManufacturer legacy datasheet |
| Mounting material | PolycarbonateManufacturer legacy datasheet |

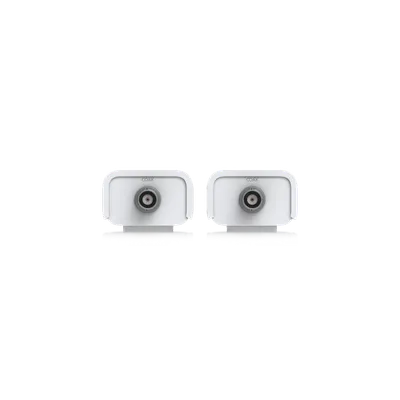

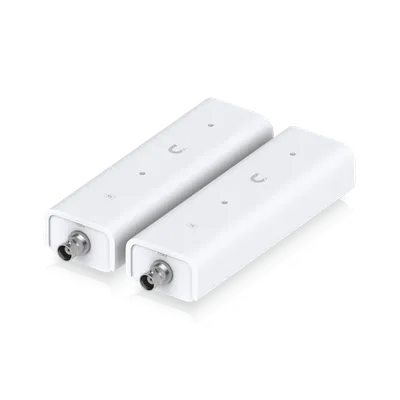

| Coaxial connector | BNC femaleManufacturer legacy datasheet |

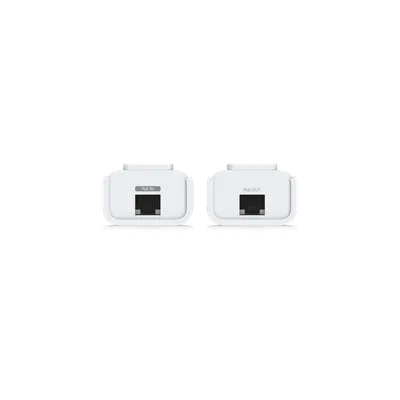

| Networking interface | (1) 10/100 MbE (1) Homeplug AVManufacturer legacy datasheet |
|---|---|
| Power method | PoE++Manufacturer legacy datasheet |
| PoE input | (1) PoE++, 50V DC, 1.2AManufacturer legacy datasheet |
| PoE output | (1) PoE+, 48V DC, 0.6AManufacturer legacy datasheet |
| Max. power consumption | 3W (Without PoE output)Manufacturer legacy datasheet |
| ESD/EMP protection | Air: ±8kV, contact: ±4kVManufacturer legacy datasheet |
| Recommend max. cable length | | UTP 24AWG 0.18ohm/meter | RG-6, 0.14ohm/meter | Cable length | Bandwidth (Mbps) | Max output (W) | Bandwidth (Mbps) | Max output (W) | 50 m | 85 | 25 | 85 | 25 | 100 m | 85 | 13 | 85 | 20 | 150 m | 85 | 9 | 85 | 13 | 200 m | 85 | 6 | 85 | 9 | 250 m | 80 | 4 | 85 | 7 | 300 m | 75 | 3 | 85 | 6 | 350 m | 70 | 0 | 85 | 4 | 400 m | 65 | 0 | 82 | 3 | 450 m | 60 | 0 | 80 | 0 | 500 m | 55 | 0 | 75 | 0 | 550 m | 50 | 0 | 70 | 0 | 600 m | — | — | 65 | 0 | 650 m | — | — | 60 | 0 | 700 m | — | — | 55 | 0 | 750 m | — | — | 50 | 0Manufacturer legacy datasheet |
| LED | WhiteManufacturer legacy datasheet |
| Ambient operating temperature | -10 to 40° C (14 to 104° F)Manufacturer legacy datasheet |
| Ambient operating humidity | 5 to 90% noncondensingManufacturer legacy datasheet |
| Certifications | CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1Manufacturer legacy datasheet |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
