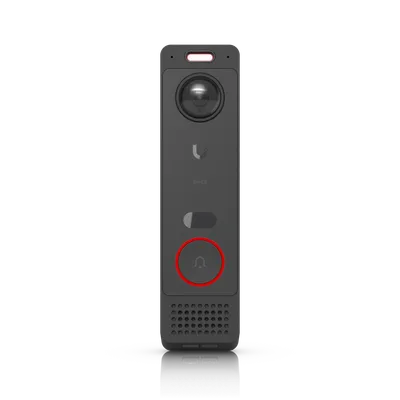

Plan your UniFi Reader G6 Entry installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UVC-G6-Entry.
Installing UVC-G6-Entry starts with the door or gate, the people using it and the existing hardware. We check the intended function and the supported UniFi Access components before proposing a complete arrangement.
Power Method: PoE+ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU (CAUTION: Only use with certified PSUs listed.). Max. Power Consumption: 16W. Networking Interface: GbE RJ45 port. Mounting: Wall mount, Gangbox mount plate, 20° wedge mount (Included) Junction box (Optional). Weatherproofing: IP55. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Reader placement, controller location, cable routes and the interface to the door hardware must be considered together. We assess normal exit, the existing release arrangements and the responsibilities of the property operator. The product page is a planning reference, not a terminal wiring guide.
The scope records the required credentials, schedules, administrator roles and visitor functions supported by the selected system. We test the agreed sequence and explain how the operator manages routine access changes.
Manufacturer specifications for UVC-G6-Entry. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Apple | Touch Pass |
|---|---|
| Sound | Two-Way Audio |
| Weatherproof | Outdoor Covered |
| AI | AI Detections |
| IR | 5 m (16 ft) |
| Lens Resolution | 8 MP Camera |
| Dimensions | 176 x 45 x 29.6 mm (6.9 x 1.8 x 1.2") |
|---|---|
| IR Night Vision | 5 m (16 ft) |
| Resolution | Main camera: 5MP Package camera: 8MP |
| UniFi Application Suite | Protect AccessTo enable Access Hub door access features, both UniFi Protect and UniFi Access must be installed on the Cloud Console. |
| Weatherproofing | IP55 |
| Tamper Resistance | IK07 |
| Audio | Two-way audioWith noise cancellation/ Beam forming |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weight | 275 g (9.7 oz) |
|---|---|
| Enclosure Material | Aluminum |

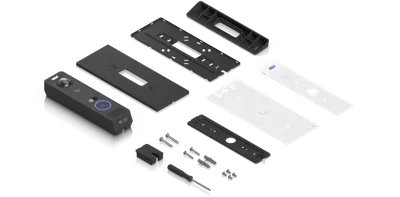

| Mount Material | Wall mount: Stainless steel Gangbox mount plate: SGCC steel Gangbox mount cover: Polycarbonate Wedge mount: Aluminum |

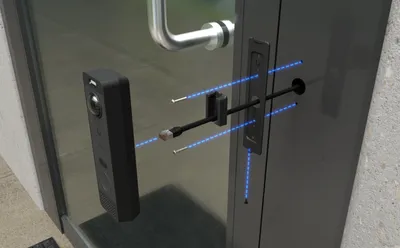

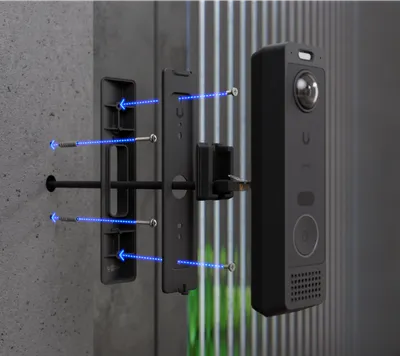

| Mounting | Wall mount, Gangbox mount plate, 20° wedge mount (Included) Junction box (Optional) |
| Indoor and Outdoor Use | Yes |
|---|---|

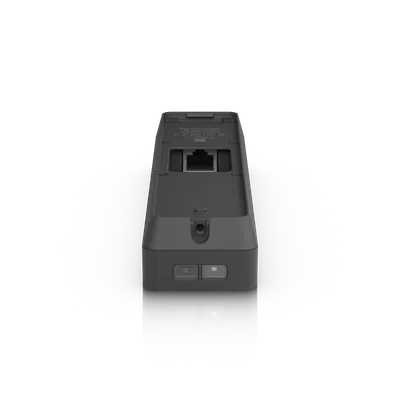

| Networking Interface | GbE RJ45 port |
| Connectivity | BLE 4.1 NFC |
| Power Method | PoE+ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSUCAUTION: Only use with certified PSUs listed. |
| Max. Power Consumption | 16W |
| Supported Voltage Range | 42—57V DC |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | Main camera: 30 FPS Package camera: 3 FPS |
| Resolution | Main camera: 5MP, 1920 x 2560 (3:4) Package camera: 8MP 3264 x 2448 (4:3) |
| Resolution | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Field of View | Main camera: H: 100°, V: 135°, D: 180° Package camera: H: 66°, V: 51.7°, D: 78° |
| Sensor | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| LEDs | R/G/B/W Learn More |
| Button | (1) Ring button (1) Factory reset (1) Tamper switch |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UVC-G6-Entry, V01 |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
