USP-RPS · Perth installation

UniFi Redundant Power
Installation Perth.

Plan your UniFi Redundant Power installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USP-RPS.

Australian model and supported services
Network, mounting and power
Account ownership and maintenance

Request a site assessment Australian model, compatibility and procurement checked before the scope is confirmed.

Installing Redundant Power. Start with the site.

Define the job for Redundant Power.

We review what USP-RPS needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.

Installation details for USP-RPS

Power Method: (1) Universal AC input, 100–240V AC. Max. Power Consumption: 995W. Networking Interface: (1) GbE RJ45 port. Dimensions: 442.4 x 325.6 x 43.7 mm (17.4 x 12.8 x 1.7"). Ambient Operating Temperature: -5 to 45° C (23 to 113° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

Review the load and the power arrangement.

Power connections, the intended load and the required backup function determine suitability. Runtime varies with the connected equipment and battery condition. We confirm the Australian configuration and installation responsibilities before specifying the unit.

Document how the addition is used.

Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.

Know the
equipment.

Manufacturer specifications for USP-RPS. Check the selected model, regional version and current software requirements during assessment.

View manufacturer source

Mechanical

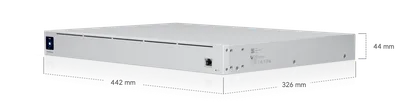

Dimensions	442.4 x 325.6 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight	Without mount brackets : 5.5 kg (12.1 lb) With mount brackets: 5.6 kg (12.3 lb)
Enclosure Material	SGCC steel

Hardware

Management	Ethernet
Networking Interface	(1) GbE RJ45 port
Power Method	(1) Universal AC input, 100–240V AC
Power Supply	54V DC output: AC/DC, internal, 645W 12V DC output: AC/DC, internal, 350W
Supported Voltage Range	100–240V AC
Max. Power Consumption	995W
Power Output	(6) RPS DC ports
Max. Power Output	52V DC: 11.54A (600W) 11.5V DC: 30.44A (350W)
Max. Output Power per RPS Port	52V DC: 11.54A (600W) 11.5V DC: 30.44A (350W)
ESD/EMP Protection	Air: ± 16kV, contact: ± 12kV
Display	1.3" touchscreen
Buttons	(1) Factory reset
System	Status
USP RPS	Activity
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC

Plan the supporting equipment. Check the complete system.

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
