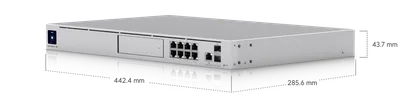

Plan your UniFi Dream Machine Special Edition installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UDM-SE.
Variant: US Version
A Dream Machine Special Edition installation starts with your internet handoff and the network you want to run. We review the provider equipment, addressing, switches and connected systems before replacing or adding UDM-SE. Its manufacturer throughput figures need to be read alongside the features enabled on your site.

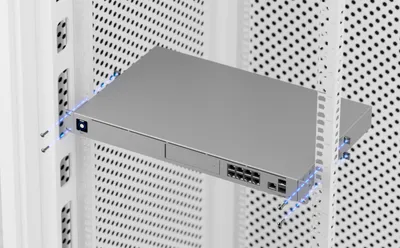

Power Method: (1) Universal AC input, 100–240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A. Max. Power Consumption: 50W (Excluding PoE Output). Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2"). Ambient Operating Temperature: -10 to 40° C (14 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

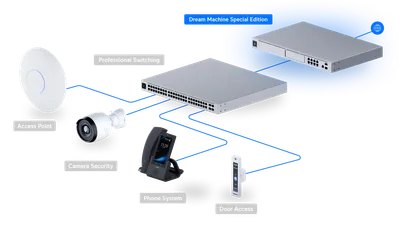

Existing settings, remote access and dependencies are recorded before work begins. We agree the outage window and any coordination needed with your IT provider. Networks for staff, guests and equipment are configured to the agreed design.
UniFi console ownership, administrator accounts, recovery and configuration backups belong in the handover. We test the agreed internet and local network functions, then explain how to access the system and manage routine changes.
Manufacturer specifications for UDM-SE. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| IDS/IPS | 3.5 Gbps |
|---|---|
| Max. Client Count | 1,000 |
| IDS/IPS Throughput | 3.5 Gbps |
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
|---|---|
| Managed UniFi Devices | 100+ |
| Managed Cameras | (24) HD (14) 2K (8) 4K |
| Managed Access Hubs | 150Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits. |
| Simultaneous Users Connected | 1,000+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
| 1 GbE RJ45 | 8 (1G/100M/10M) |
| 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |

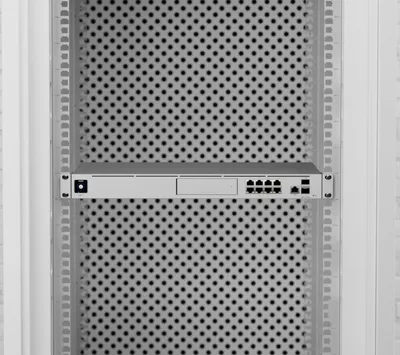

| Form Factor | Rack mount (1U) |

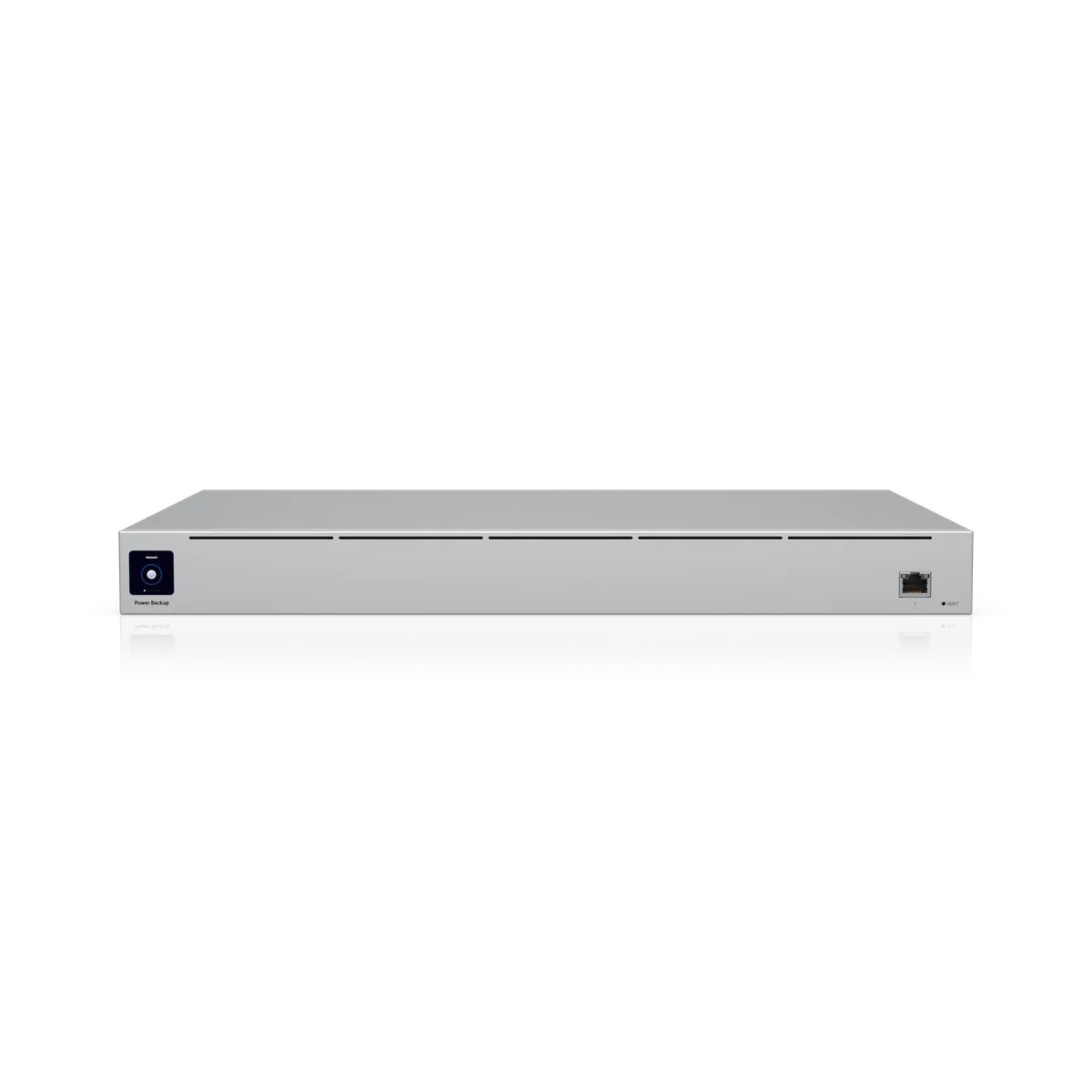

| Redundancy | Shadow Mode (VRRP) Gateway Failover DC Power BackupEnable DC power backup using UniFi RPS |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
|---|
| MAC Address Table Size | 4,000 |
|---|
| NVR Storage | (1) 3.5" NVR HDD bay Built-in 128 GB SSD for Faster Experience |
|---|---|
| PoE Budget | 180W |
| PoE | 15.4W |
| PoE+ | 30W |
| Voltage Range PoE Mode | PoE: 44-57V PoE+: 50-57V |
| Max. Power Consumption | 50W (Excluding PoE Output) |

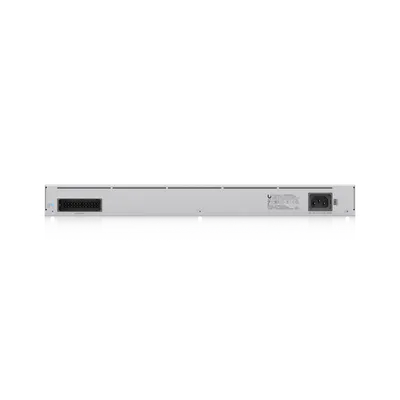

| Power Method | (1) Universal AC input, 100–240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 170 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB eMMC 128 GB SSD (Integrated) |
| Weight | 5 kg (10.9 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 07309-22-08356, SRRC |

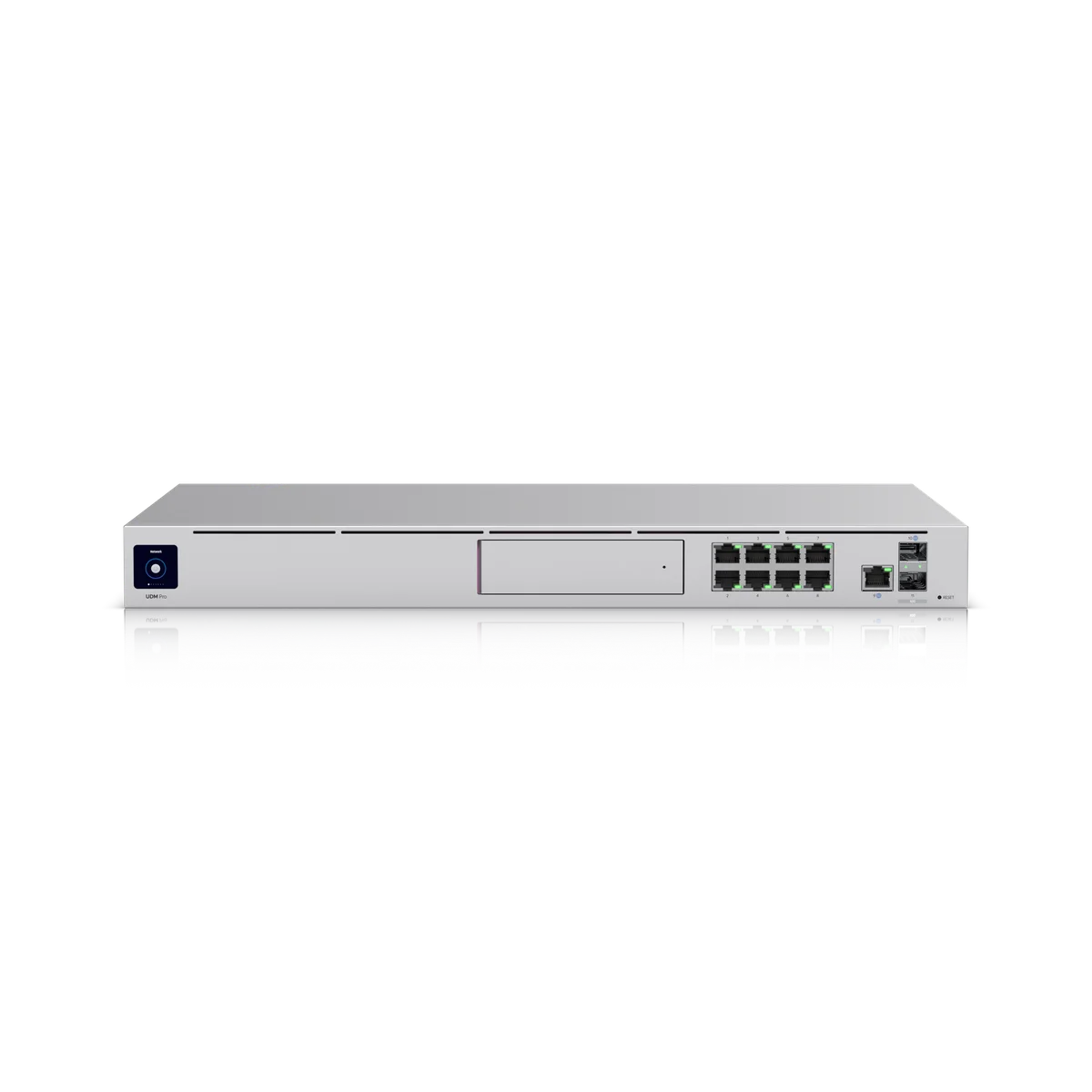

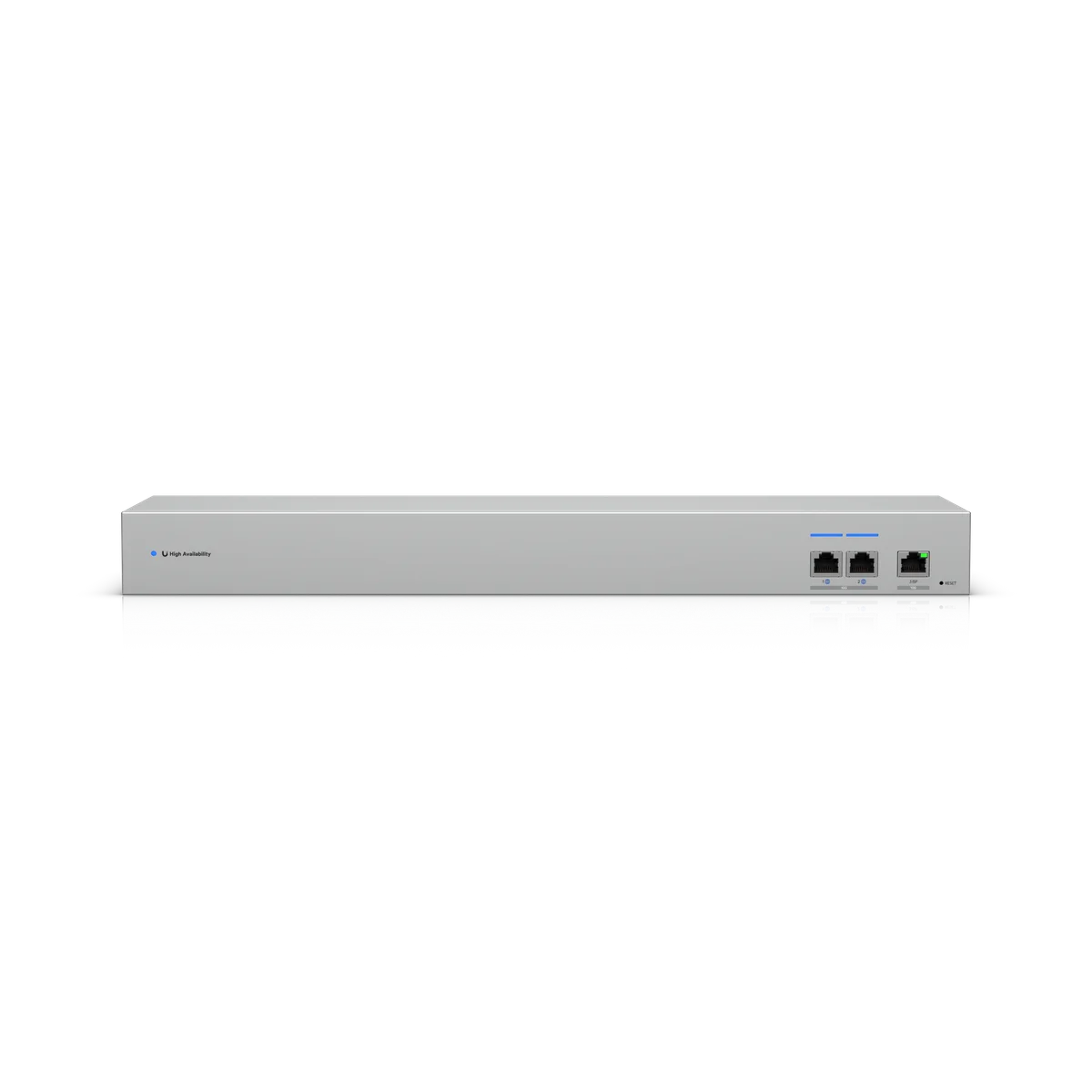

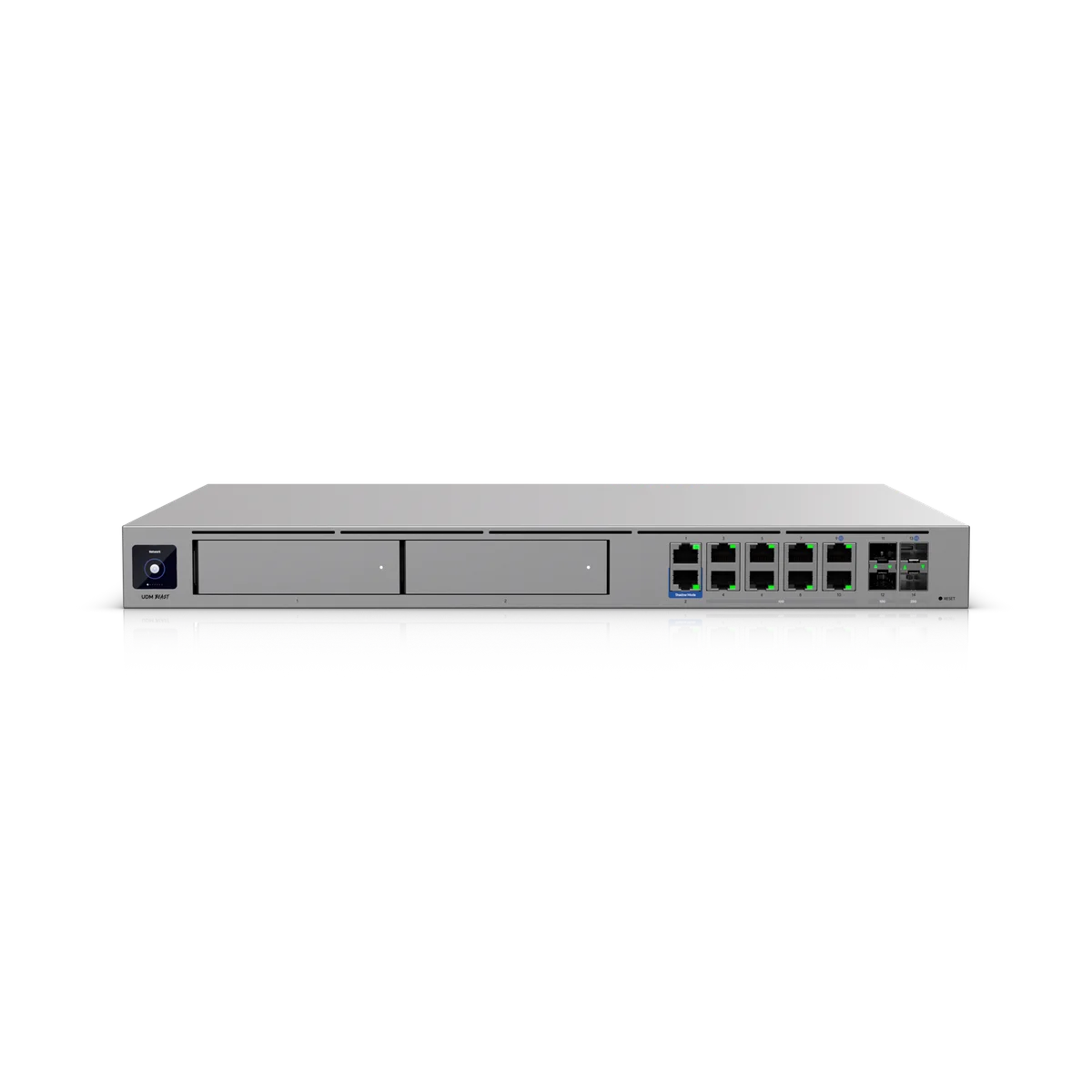

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
