Plan your UniFi Retrofit PSU 12V fitting and compatibility in Perth with Servicewest. We assess the site and supporting equipment before specifying UACC-Retrofit-PSU-12V.
The Retrofit PSU 12V (UACC-Retrofit-PSU-12V) needs to be matched to the host device and the intended installation. Similar-looking mounts, adapters and accessories can have different attachment points or electrical requirements. Send us the model number of the equipment you already own so we can check the pairing before quoting.
Power Method: 100–240V AC, 50/60 Hz 12V SLA battery. Max. Power Consumption: 80W. Dimensions: 127 x 76 x 35 mm (5 x 3 x 1.4"). Ambient Operating Temperature: -10 to 40° C (14 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check the manufacturer compatibility information, the location where the accessory will be used and any supporting parts required. The installation scope identifies what is included, what is already on site and any items that need replacement.
Accessory work is scoped alongside the equipment it supports. Tell us whether this is part of a new installation, a repair or an expansion. We can then plan access to the equipment and any interruption needed to fit and test the part.
Manufacturer specifications for UACC-Retrofit-PSU-12V. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 127 x 76 x 35 mm (5 x 3 x 1.4") |
|---|---|
| Weight | 350 g (12.3 oz) |
| Power Method | 100–240V AC, 50/60 Hz 12V SLA battery |
|---|---|
| SLA Backup Battery | Voltage: 12V Charging current 0.5A |

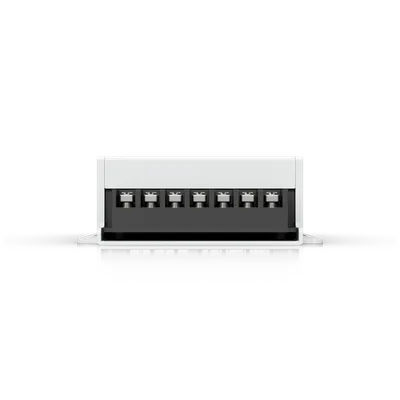

| Wiring Connection | (1) AC input (1) DC output (For Retrofit Hub) (1) DC input/output (For Battery) |
| Max. Power Consumption | 80W |
| Efficiency | 85% |
| Output Rating | 12V DC, 5A |

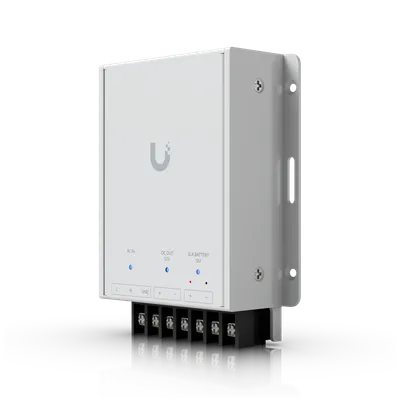

| LEDs | (3) Status |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Storage Temperature | -40 to 70 C (-40 to 158 F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
