Plan your UniFi Access Retrofit Hub installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UA-Retrofit-Hub-2.
Installing UA-Retrofit-Hub-2 starts with the door or gate, the people using it and the existing hardware. We check the intended function and the supported UniFi Access components before proposing a complete arrangement.
Power Method: 12/24V DC. Max. Power Consumption: 50W (4W without connected readers or locks). Networking Interface: (2) 10/100 MbE RJ45 ports. Mounting: Din-rail (Included). Dimensions: 140 x 120 x 45 mm (5.5 x 4.7 x 1.8"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

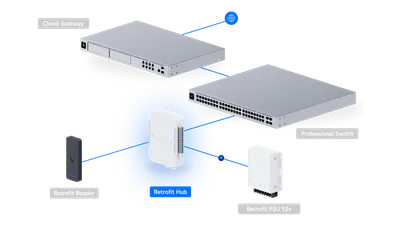

Reader placement, controller location, cable routes and the interface to the door hardware must be considered together. We assess normal exit, the existing release arrangements and the responsibilities of the property operator. The product page is a planning reference, not a terminal wiring guide.
The scope records the required credentials, schedules, administrator roles and visitor functions supported by the selected system. We test the agreed sequence and explain how the operator manages routine access changes.
Manufacturer specifications for UA-Retrofit-Hub-2. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Additional Inputs | 2 Additional Inputs |
|---|---|
| Lock Terminals | 2 Lock Terminals |
| AUX Terminals | 2 AUX Terminals |
| Dimensions | 140 x 120 x 45 mm (5.5 x 4.7 x 1.8") |
|---|---|
| Supported Doors | 2 |
| Maximum User Count | 10,000 |

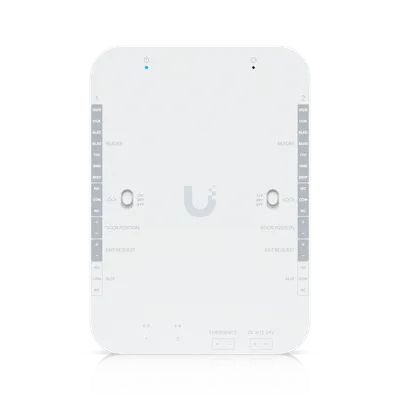

| Input Terminals | (2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency |
| Power Method | 12/24V DC |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weight | 420 g (14.8 oz) |
|---|---|
| Enclosure Material | Polycarbonate |
| Mount Material | SGCC steel |

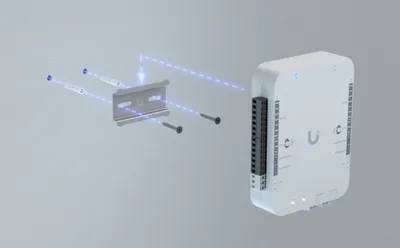

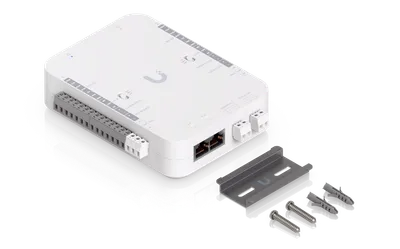

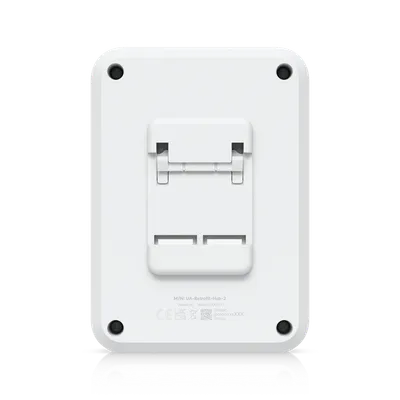

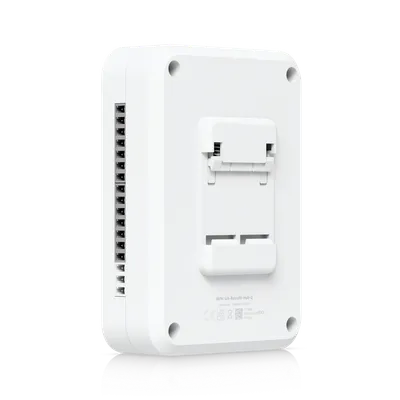

| Mounting | Din-rail (Included) |
| Digital Input | (2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency |
|---|---|
| Dry Output Relay | Lock: rated 30V DC, up to 1A Aux: rated 30V DC, up to 1A |
| Powered Output Relay | 12V Lock: 12V DC, up to 1A 24V Lock: 24V DC, up to 0.5A |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |

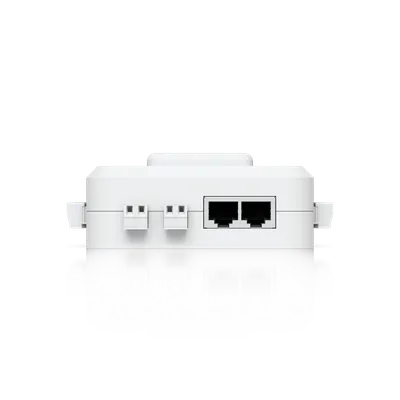

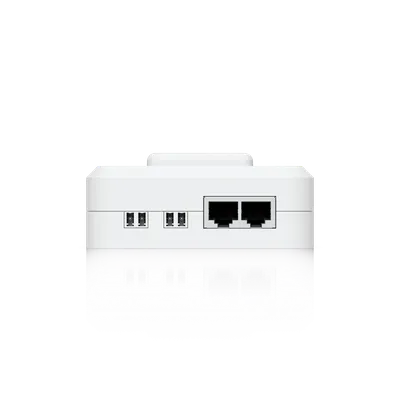

| Networking Interface | (2) 10/100 MbE RJ45 ports |
| Power Supply | DC 12/24V |
| Max. Power Consumption | 50W4W without connected readers or locks |
| Reader Power Output | 12V DC, up to 0.5A |
| LEDs | W/B Learn More |
| Buttons | (1) Factory reset (2) 12V/Dry/24V switch |
| UA-Retrofit-Reader (250mA) | 18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft) |
| UA-Lock-Electric (400mA) | 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
| UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
| UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Other locks (1A) | 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Retrofit-Hub-2, V01 |
| Management Application | Access |
|---|---|
| Software Information | The software version can be checked at https://unifi.ui.com |

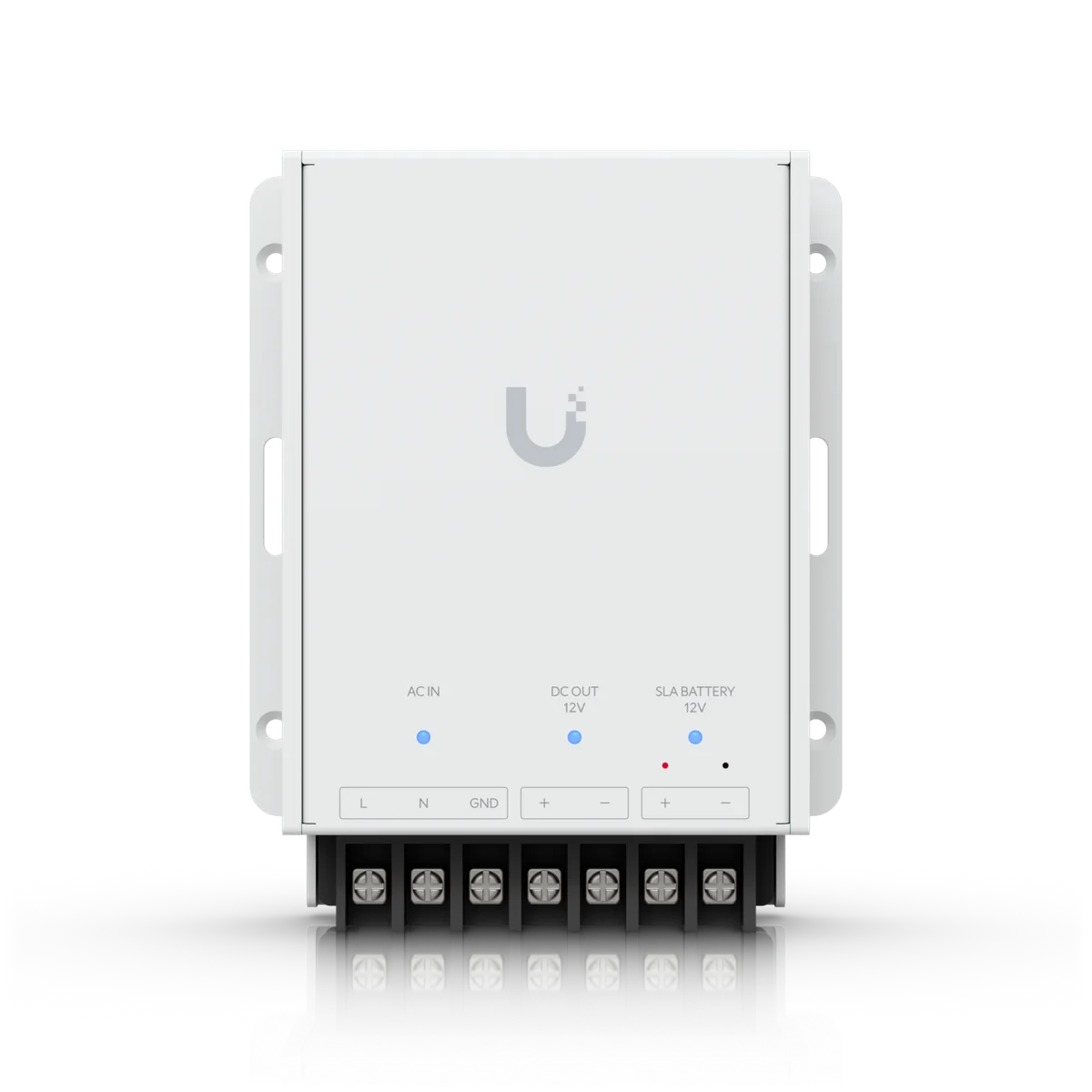

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
