Plan your UniFi Switch Flex 2.5G PoE installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USW-Flex-2.5G-8-PoE.

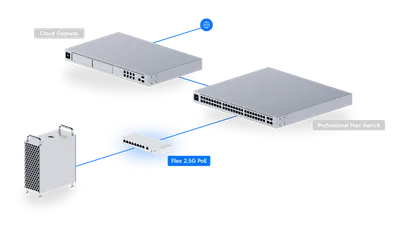

We scope USW-Flex-2.5G-8-PoE around the number and type of devices it will connect. Port speeds and uplinks need to match the equipment at both ends. A switch selected for cameras can have different requirements from one serving high-speed access points, workstations or another cabinet.
Power Method: (1) AC/DC adapter (Excluded) (1) PoE+++ (AC power adapter sold separately.). Max. Power Consumption: 14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output). Dimensions: 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3"). Ambient Operating Temperature: -20 to 45° C (-4 to 113° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
The port power standard and total PoE budget are separate checks. We total the specified endpoint requirements, check per-port compatibility and allow for agreed future devices. The device count alone is not enough to establish whether the switch can power the installation.

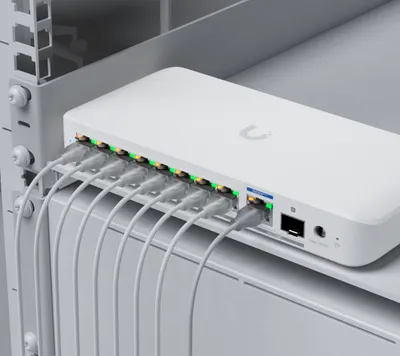

The work includes the agreed mounting, patching, labels and UniFi adoption. We confirm the switch management network and any VLAN or uplink settings with the system owner, then test the connected devices. Rack airflow and access remain part of the physical layout.
Manufacturer specifications for USW-Flex-2.5G-8-PoE. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3") |
|---|---|

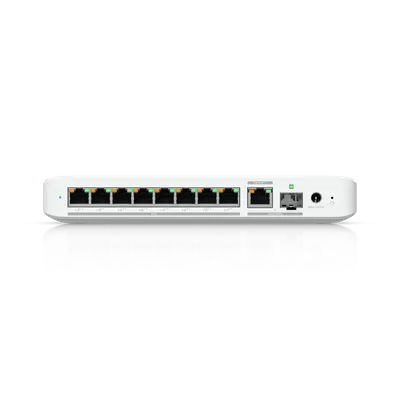

| 2.5 GbE RJ45 | 8 (All PoE++) (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 1 (PoE+++) (10G/5G/2.5G/1G/100M)Combo port |
| 10G SFP+ | 1 (10G/1G)Combo port |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W |

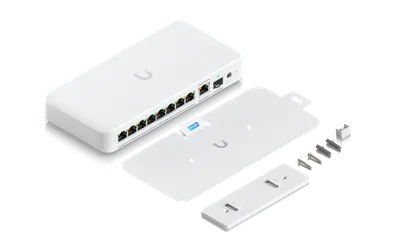

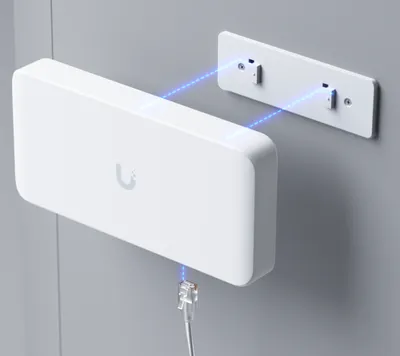

| Form Factor | Compact DesktopWall, DIN, magnetic mounting (DIN and Magnetic are sold separately) |
| Switching Capacity | 60 Gbps |
|---|---|
| Total Non-Blocking Throughput | 30 Gbps |
| Forwarding Rate | 45 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| PoE++ | 8 |
|---|---|
| PoE | 15.4W |
| PoE+ | 32W |
| PoE++ | 64W |
| Max. Power Consumption | 14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output) |
| Power Method | (1) AC/DC adapter (Excluded) (1) PoE+++AC power adapter sold separately. |
| Power Input Method | DC Input PoE |
| Supported Voltage Range | 50–57V DC/PoE |
| Management | Ethernet |
| Weight | 567 g (20 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| UniFi Network | Version 9.0.114 and later |
|---|
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
