USW-Flex · Perth installation

UniFi Switch Flex
Installation Perth.

Plan your UniFi Switch Flex installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USW-Flex.

Port count and link speed
Uplink and transceiver compatibility
Endpoint power arrangements

Request a site assessment Australian model, compatibility and procurement checked before the scope is confirmed.

Pack Type: Single Unit · 3-Pack

Installing Switch Flex. Start with the site.

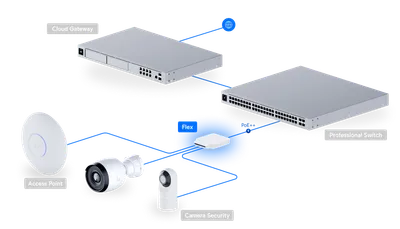

Put Switch Flex in the right part of the network.

We scope USW-Flex around the number and type of devices it will connect. Port speeds and uplinks need to match the equipment at both ends. A switch selected for cameras can have different requirements from one serving high-speed access points, workstations or another cabinet.

Installation details for USW-Flex

Power Method: PoE++. Max. Power Consumption: 5W (Excluding PoE Output) 51W (Including PoE Output). Dimensions: 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1"). Ambient Operating Temperature: 46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

Check the links and supporting equipment.

We check port media, uplink capacity and any transceivers or adapters required. Devices that need PoE may require a separate compatible source. We confirm this in the equipment list rather than assuming every Ethernet port supplies power.

Install for future servicing.

The work includes the agreed mounting, patching, labels and UniFi adoption. We confirm the switch management network and any VLAN or uplink settings with the system owner, then test the connected devices. Rack airflow and access remain part of the physical layout.

Know the
equipment.

Manufacturer specifications for USW-Flex. Check the selected model, regional version and current software requirements during assessment.

View manufacturer source

Overview

Dimensions	122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")

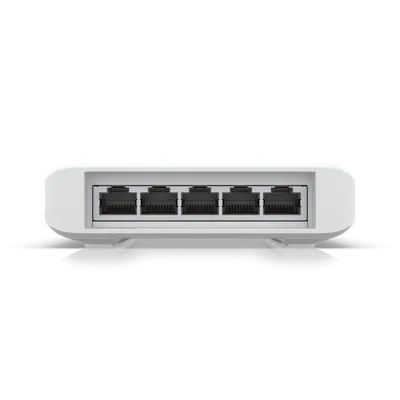

1 GbE RJ45	5 (4 PoE+; 1 PoE++) (1G/100M/10M)
Max. PoE Output	Up to PoE+
Total PoE Availability	PoE++/60W PoE adapter input: 46W PoE+ input: 20W PoE input: 8W60W PoE adapter sold separately

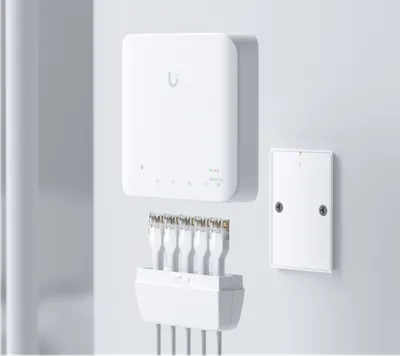

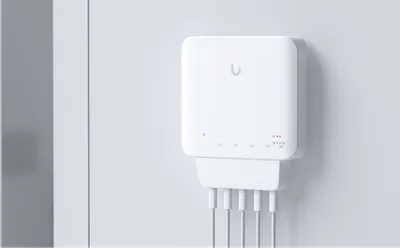

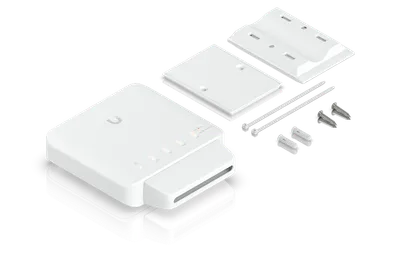

Form Factor	Compact desktop, wall, polePole mounting requires USW-Flex-Utility accessory

Performance

Switching Capacity	10 Gbps
Total Non-Blocking Throughput	5 Gbps
Forwarding Rate	7 Mpps
Supported VLANs	1,000
MAC Address Table Size	2,000

Hardware

PoE+	4
PoE++	1
PoE+	25W
Max. Power Consumption	5W (Excluding PoE Output) 51W (Including PoE Output)
Power Method	PoE++
Power Input Method	PoE
Supported Voltage Range	50–57V PoE
Management	Ethernet
Heat Dissipation	17.1 BTU/hr (Excluding PoE Output)
Weight	230 g (8.1 oz)
ESD Protection	Air/contact: ± 16kV
Ambient Operating Temperature	46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, Anatel: 14502-20-08356

Software

UniFi Network	Version 5.10.3 and later

Plan the supporting equipment. Check the complete system.

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.

USW-Flex-Utility
