Plan your UniFi Switch Hi-Capacity Aggregation installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USW-Pro-Aggregation.
We scope USW-Pro-Aggregation around the number and type of devices it will connect. Port speeds and uplinks need to match the equipment at both ends. A switch selected for cameras can have different requirements from one serving high-speed access points, workstations or another cabinet.
Power Method: (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input. Max. Power Consumption: 100W. Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7"). Ambient Operating Temperature: -5 to 40° C (23 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check port media, uplink capacity and any transceivers or adapters required. Devices that need PoE may require a separate compatible source. We confirm this in the equipment list rather than assuming every Ethernet port supplies power.

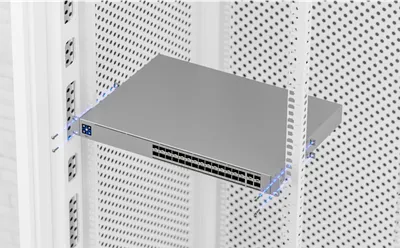

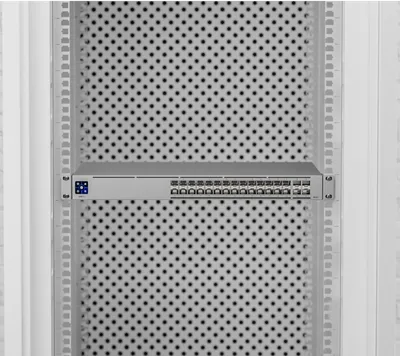

The work includes the agreed mounting, patching, labels and UniFi adoption. We confirm the switch management network and any VLAN or uplink settings with the system owner, then test the connected devices. Rack airflow and access remain part of the physical layout.
Manufacturer specifications for USW-Pro-Aggregation. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
|---|---|
| 10G SFP+ | 28 (10G/1G) |
| 25G SFP28 | 4 (25G/10G/1G) |
| Redundancy | DC Power BackupWith UniFi RPS |
| Form Factor | Rack mount (1U) |
| Switching Capacity | 760 Gbps |
|---|---|
| Total Non-Blocking Throughput | 380 Gbps |
| Forwarding Rate | 565 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 4 MB |
| IPv4 | 128 |
| MAC | 128 |
| Max. Power Consumption | 100W |
|---|---|
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 341 BTU/hr |
| Weight | Without mounting brackets: 4.6 kg (10.1 lb) With mounting brackets: 4.7 kg (10.4 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 20756-22-08356 |
| UniFi Network | Version 6.1.25 and later |
|---|
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
