Plan your UniFi Switch Pro XG 10 PoE installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USW-Pro-XG-10-PoE.
Variant: US Version
We scope USW-Pro-XG-10-PoE around the number and type of devices it will connect. Port speeds and uplinks need to match the equipment at both ends. A switch selected for cameras can have different requirements from one serving high-speed access points, workstations or another cabinet.
Power Method: (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input. Max. Power Consumption: 65W (Excluding PoE output) 520W (Including PoE output). Dimensions: 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7"). Ambient Operating Temperature: -5 to 40° C (23 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
The port power standard and total PoE budget are separate checks. We total the specified endpoint requirements, check per-port compatibility and allow for agreed future devices. The device count alone is not enough to establish whether the switch can power the installation.

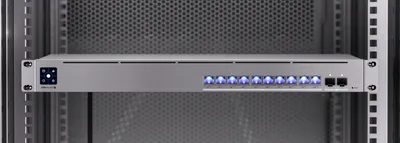

The work includes the agreed mounting, patching, labels and UniFi adoption. We confirm the switch management network and any VLAN or uplink settings with the system owner, then test the connected devices. Rack airflow and access remain part of the physical layout.
Manufacturer specifications for USW-Pro-XG-10-PoE. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
|---|---|

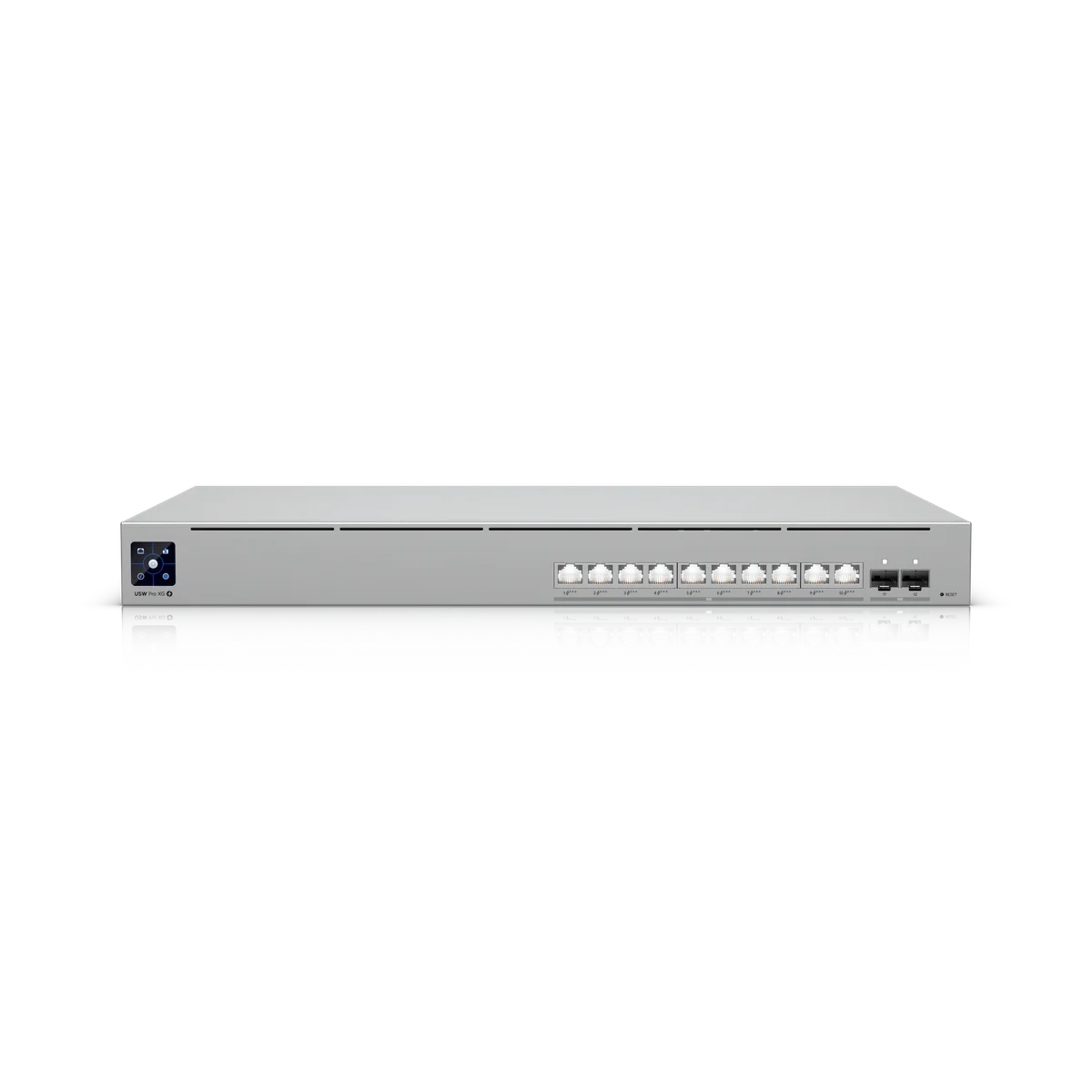

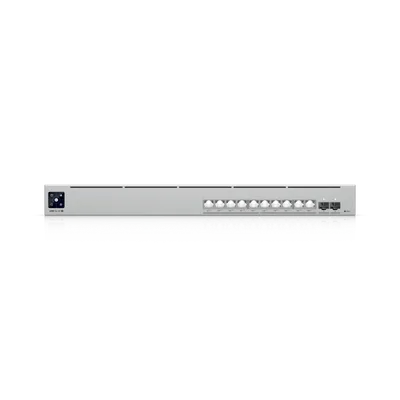

| 10 GbE RJ45 | 10 (All PoE+++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE+++802.3bt Type 4, Class 8 |
| Total PoE Availability | 400W |
| Redundancy | DC Power BackupWith UniFi RPS |

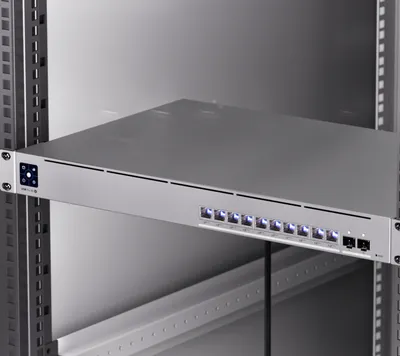

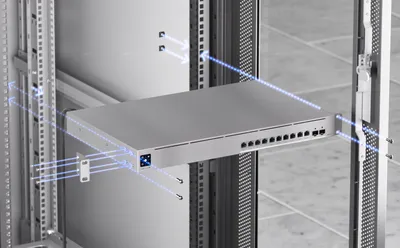

| Form Factor | Rack mount (1U) |
| Switching Capacity | 240 Gbps |
|---|---|
| Total Non-Blocking Throughput | 120 Gbps |
| Forwarding Rate | 179 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
| PoE+++ | 10 |
|---|---|
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 65W (Excluding PoE output) 520W (Including PoE output) |

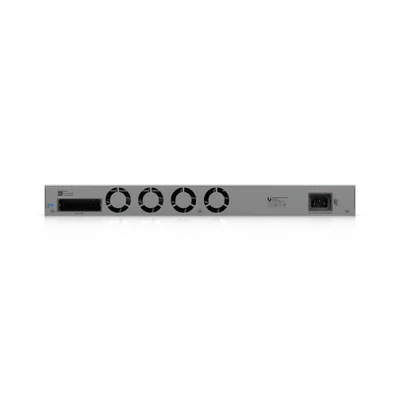

| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 550W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Weight | Without mounting brackets: 4.6 kg (10.14 lb) With mounting brackets: 4.7 kg (10.36 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2"") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05660-25-08356 |
| UniFi Network | Version 9.1.120 and later |
|---|
