Plan your UniFi Access Point U7 Pro Outdoor installation in Perth with Servicewest. We assess the site and supporting equipment before specifying U7-Pro-Outdoor-US.
For a Access Point U7 Pro Outdoor installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The U7-Pro-Outdoor-US specifications below help establish whether this model fits the proposed location.
Power Method: PoE+. Max. Power Consumption: 21W. Networking Interface: (1) 1/2.5 GbE RJ45 port. Mounting: Wall, Pole (Mounts Included). Weatherproofing: IPX6 IP67 (With cable-gland door kit). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

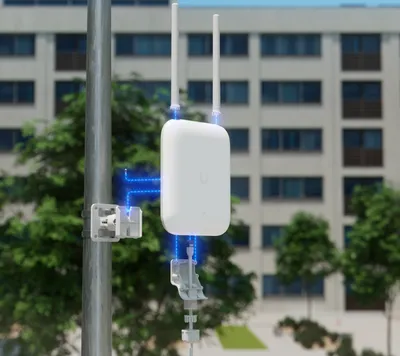

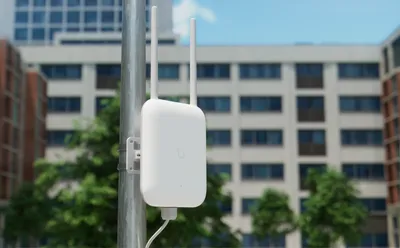

Outdoor access and building links need a site-specific review of mounting, exposure, cable entry and the radio path. We confirm whether the intended use is local WiFi coverage or a link between buildings, and check the equipment needed at each end.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for U7-Pro-Outdoor-US. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Max. Client Count | 300 |
|---|---|
| WiFi7 | WiFi 7 |
| Radio/Antenna | 6 GHz Radio |
| Uplink | 2.5 GbE |
| Dimensions | Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
|---|---|
| WiFi Standard | WiFi 7With 6 GHz support |
| Spatial Streams | 6 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 300+ |

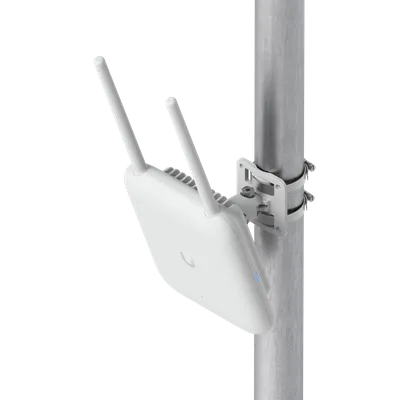

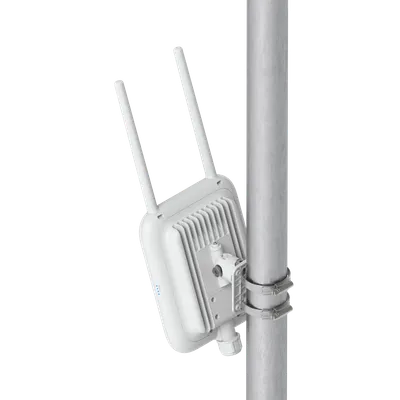

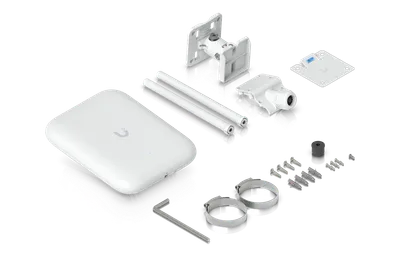

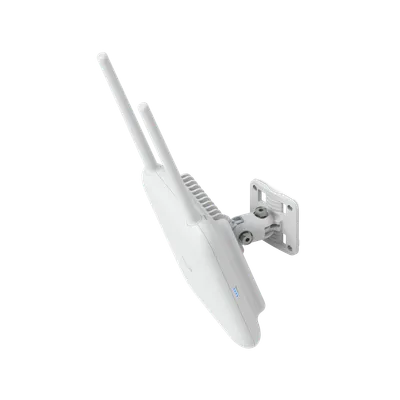

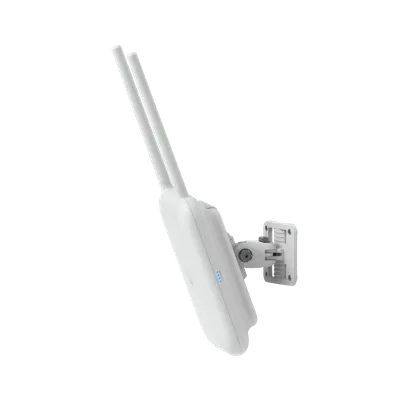

| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
| Power Method | PoE+ |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
|---|---|
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | Directional internal: 10 dBi, 90° x 45° |
| 5 GHz | Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15° |
| 2.4 GHz | Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15° |
| 6 GHz | 26 dBmWith 6 GHz Extended Range mode. Available in FCC/IC region only |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Max. Power Consumption | 21W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |

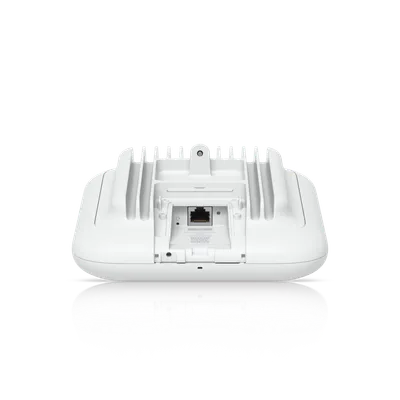

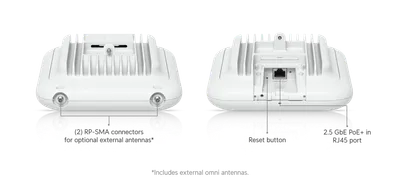

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | UV-stabilized polycarbonate |
| System | (1) Power: White/Blue (4) Mesh signal: Blue |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
| UniFi Network | Version 9.0.114 and later |
|---|---|
| Mobile App | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
