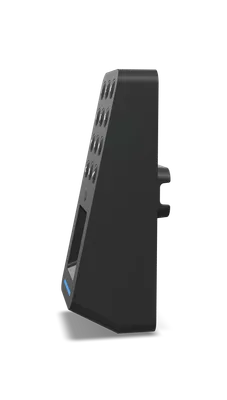

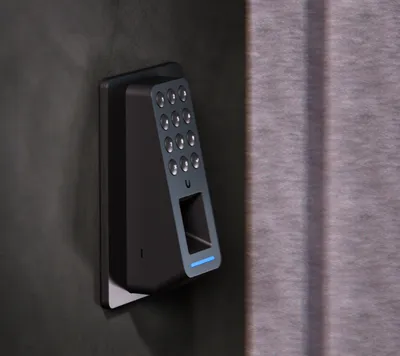

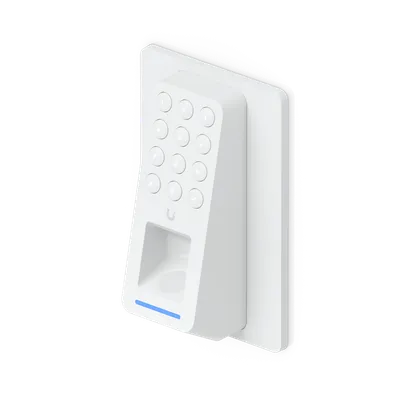

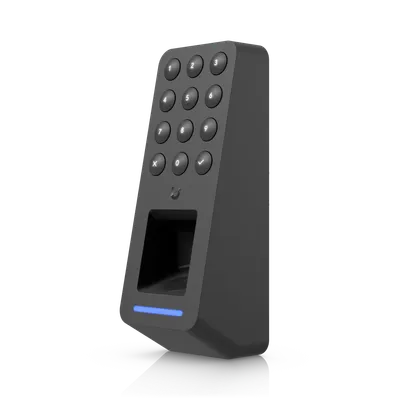

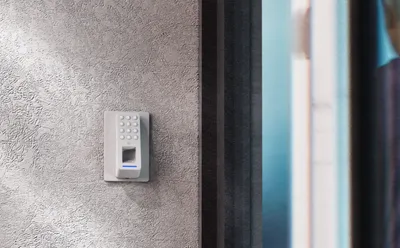

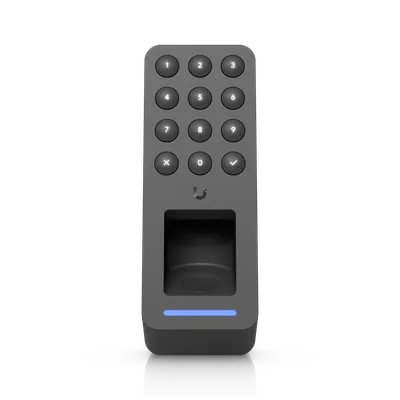

Plan your UniFi Access Retrofit Reader Fingerprint installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UA-Retrofit-Reader-Fingerprint.

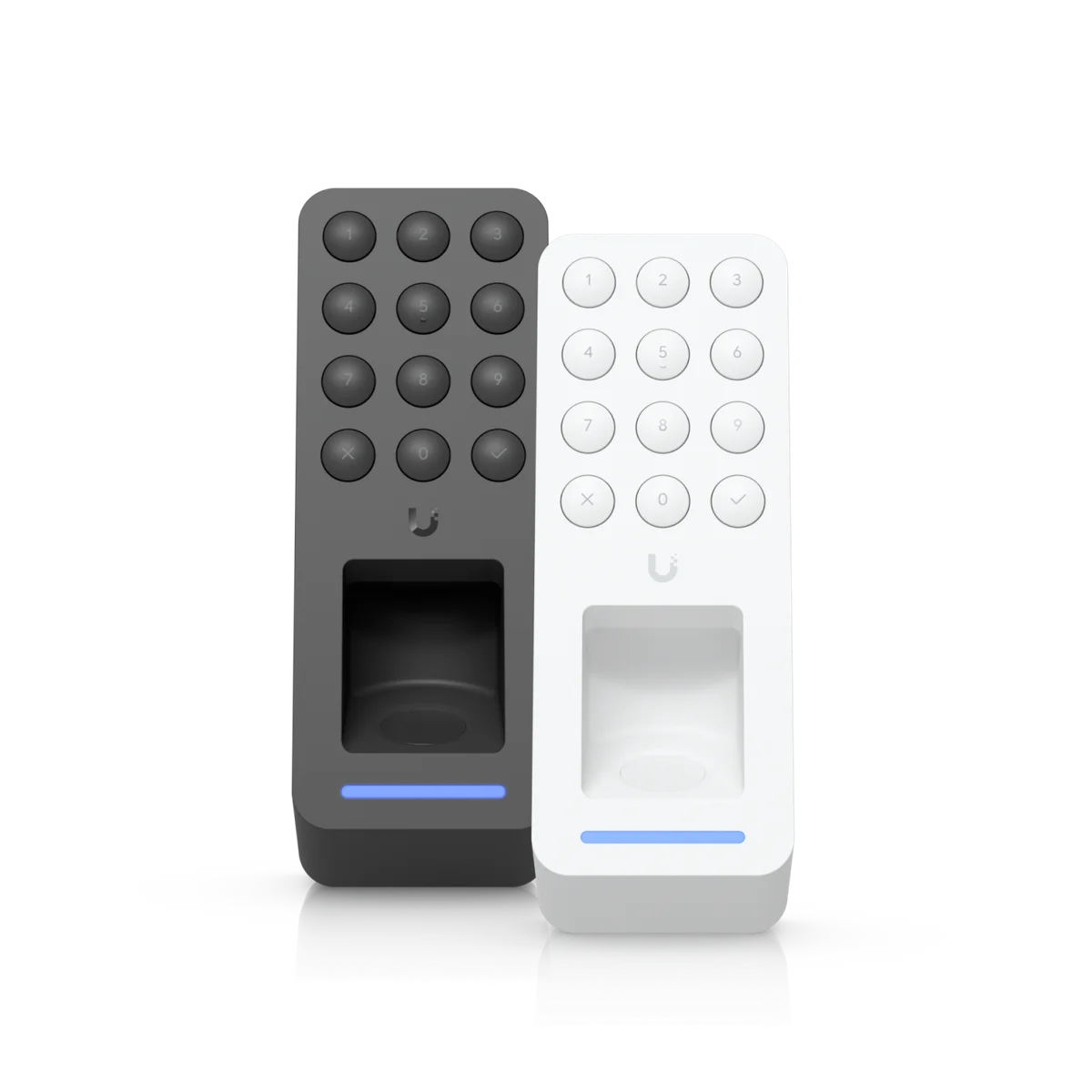

Color: Black · White
Installing UA-Retrofit-Reader-Fingerprint starts with the door or gate, the people using it and the existing hardware. We check the intended function and the supported UniFi Access components before proposing a complete arrangement.
Power Method: 12V DC. Max. Power Consumption: 3.5W. Mounting: Wall, gang-box mount (Included) Junction box (Optional). Weatherproofing: IP55. Weatherproof: Outdoor Exposed. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

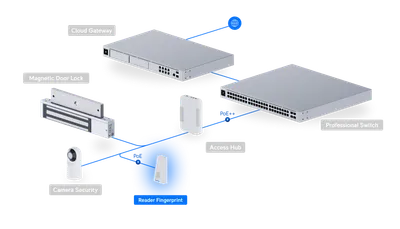

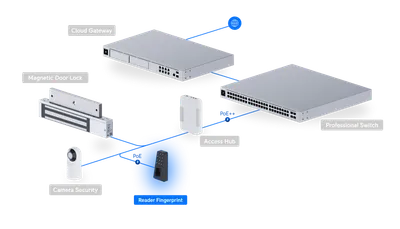

Reader placement, controller location, cable routes and the interface to the door hardware must be considered together. We assess normal exit, the existing release arrangements and the responsibilities of the property operator. The product page is a planning reference, not a terminal wiring guide.
The scope records the required credentials, schedules, administrator roles and visitor functions supported by the selected system. We test the agreed sequence and explain how the operator manages routine access changes.
Manufacturer specifications for UA-Retrofit-Reader-Fingerprint. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Apple | Touch Pass |
|---|---|
| NFC | NFC |
| Physical Unlock | Keypad Unlock |
| Weatherproof | Outdoor Exposed |
| Dimensions | 126.2 x 45 x 49 mm (5 x 1.8 x 1.9") |
|---|---|
| UniFi Application Suite | Access |
| Fingerprint Capacity | 300 |
| Weatherproofing | IP55 |
| Weight | 142 g (5 oz) |
|---|---|
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Steel |

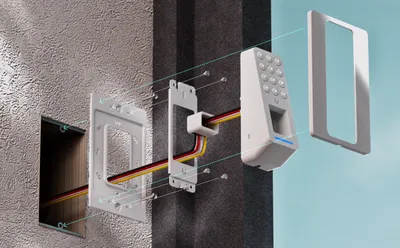

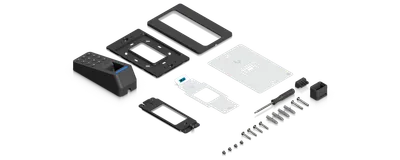

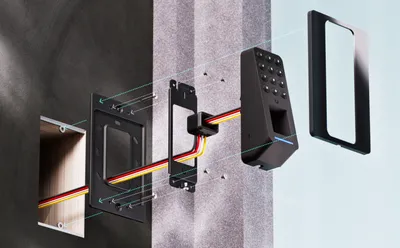

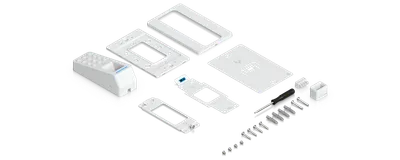

| Mounting | Wall, gang-box mount (Included) Junction box (Optional) |
| Indoor and Outdoor Use | Yes |
|---|---|
| Connectivity | RS-485 BLE 4.2 NFC |
| Security | OSDP v2 |
| Power Method | 12V DC |
| Max. Power Consumption | 3.5W |
| Supported Voltage Range | 12V DC |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |

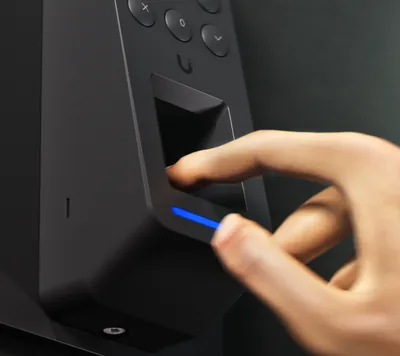

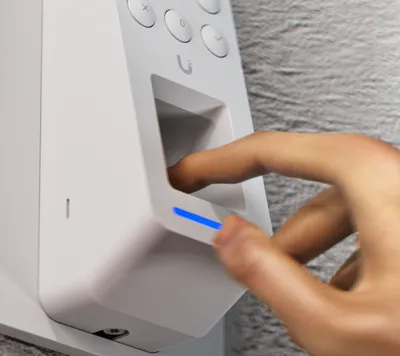

| Sensors | Capacitive Fingerprint |
| LEDs | R/G/B/W Learn More |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Management Application | Access |
|---|---|
| Software Information | The software version can be checked at https://unifi.ui.com |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
