UP-AI-Speaker · Perth installation

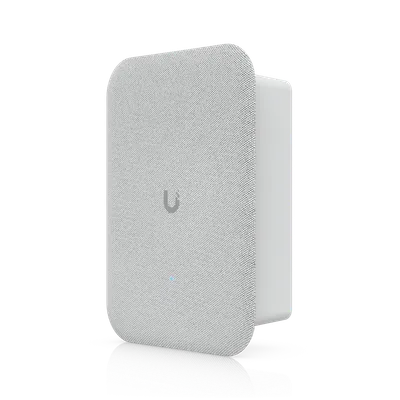

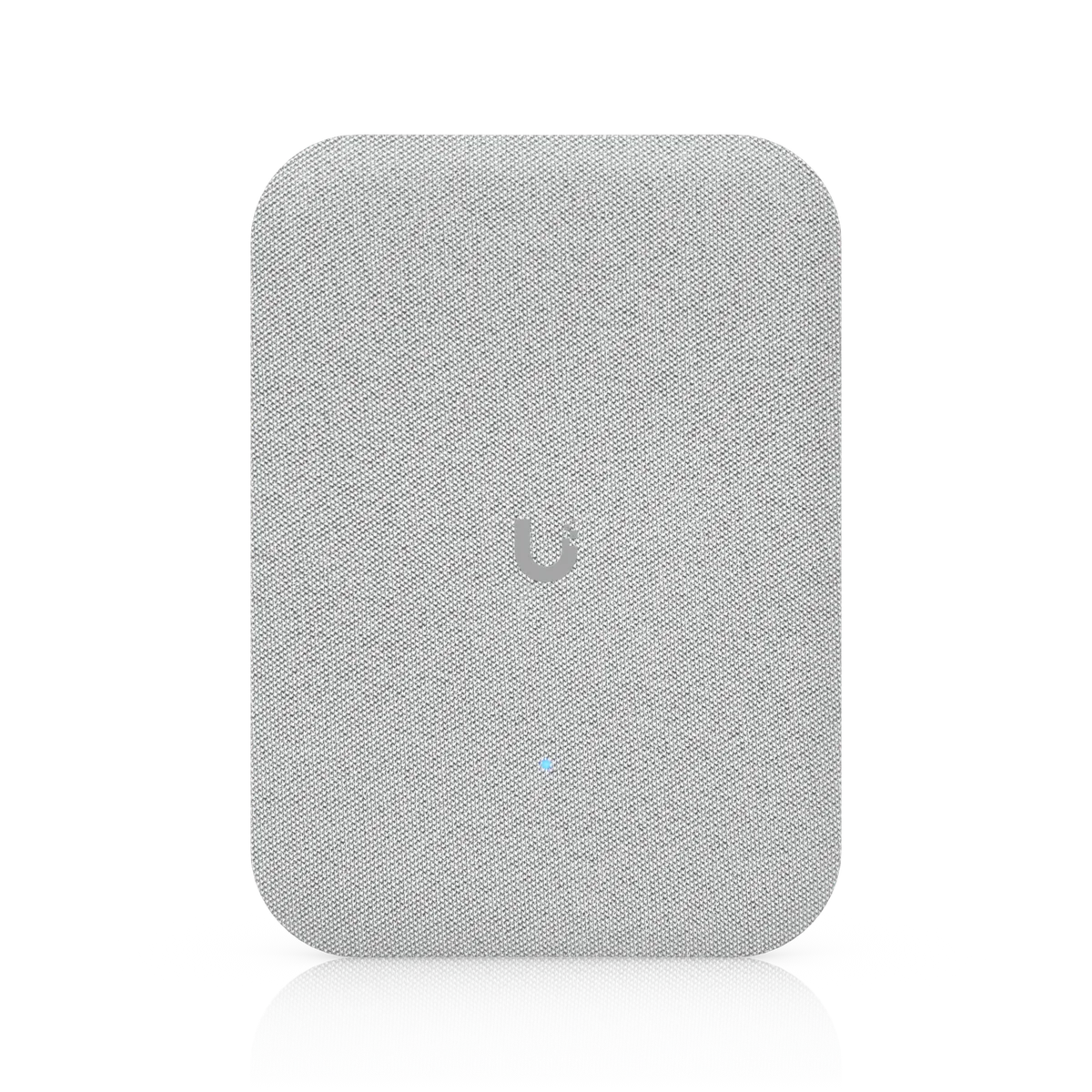

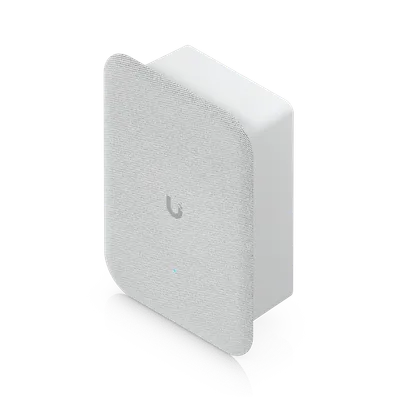

UniFi AI Speaker
Installation Perth.

Plan your UniFi AI Speaker installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UP-AI-Speaker.

  • Australian suitability and supported platform
  • Placement and communication path
  • Power, alerts and routine testing
Request a site assessment Australian model, compatibility and procurement checked before the scope is confirmed.

Installing AI Speaker. Start with the site.

Confirm the supported system and region.

The AI Speaker (UP-AI-Speaker) needs to be assessed against its supported application, radio or network connection and intended use. A US catalogue listing does not establish Australian approval or suitability. These points need confirmation before installation is proposed.

Installation details for UP-AI-Speaker

Power Method: PoE++. Max. Power Consumption: 33W. Networking Interface: (1) 10/100 MbE RJ45 port. Mounting Material: Polycarbonate, metal plate. Mounting: Surface mount (Default) Flush mount (Optional). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

Place it for its intended measurement.

Detection devices need a location that suits the condition being monitored. We review the manufacturer placement requirements, environmental limits, connection path and maintenance access. The exact model determines what can be detected and how alerts reach an authorised user.

Agree what an alert means.

Notification recipients, routine testing and battery or power maintenance need an owner. The agreed functions and limitations belong in the handover. A connected sensor must not be assumed to replace a required certified safety system or a monitored alarm service.

Know the
equipment.

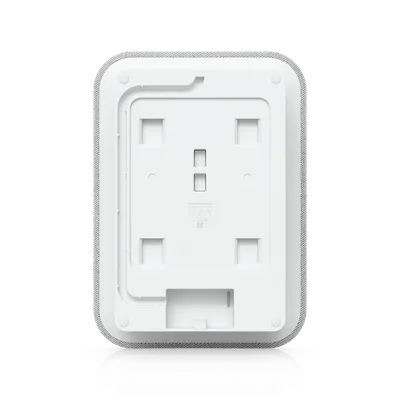

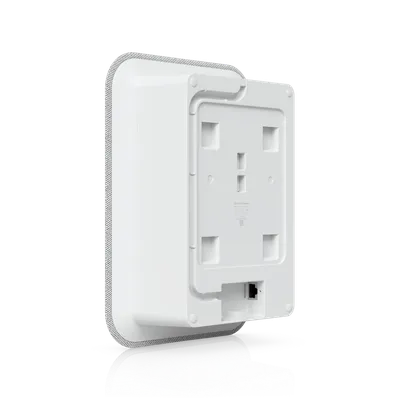

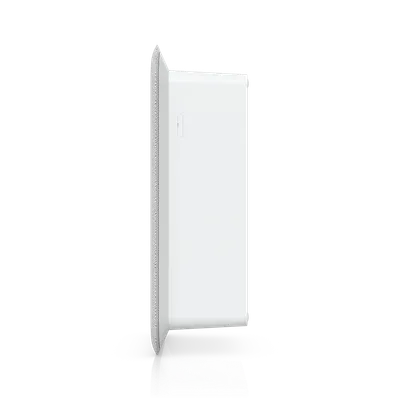

Manufacturer specifications for UP-AI-Speaker. Check the selected model, regional version and current software requirements during assessment.

View manufacturer source
Mechanical

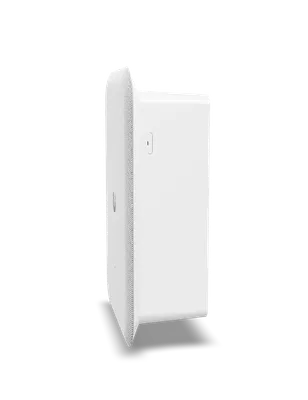

Dimensions268.5 x 192 x 83.5 mm (10.6 x 7.7 x 3.3")
Installation Size84.7 mm (3.3")
Weight1.6 kg (3.5 lb)
Enclosure MaterialPolycarbonate
Mounting MaterialPolycarbonate, metal plate

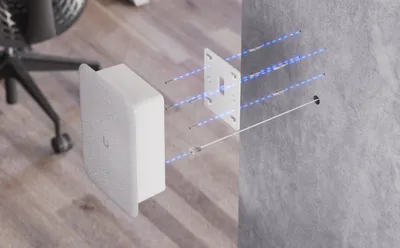

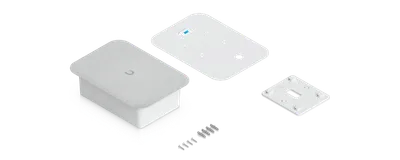

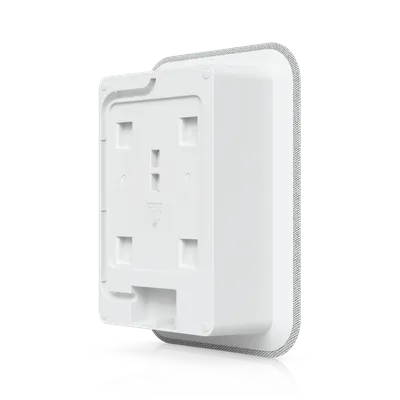

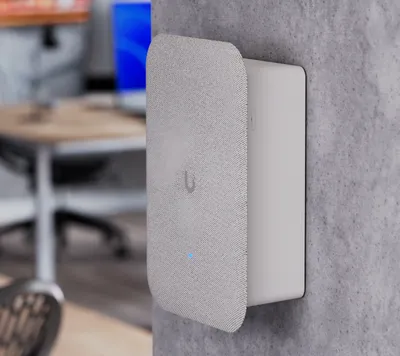

MountingSurface mount (Default) Flush mount (Optional)
Audio
OutputMono sound
Drivers3" Full-range
Frequency150 Hz – 20k Hz, ±5dB
Nominal Impedance4 Ohms
Sensitivity (1W@1m)87dB
Max. SPL100dB @ 1m (Max. level)
Nominal Coverage90° axisymmetric
Hardware
Networking Interface(1) 10/100 MbE RJ45 port
Power MethodPoE++
Max. Power Consumption33W
Button(1) Factory reset
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsFCC, IC, CE

Plan the supporting equipment. Check the complete system.

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.

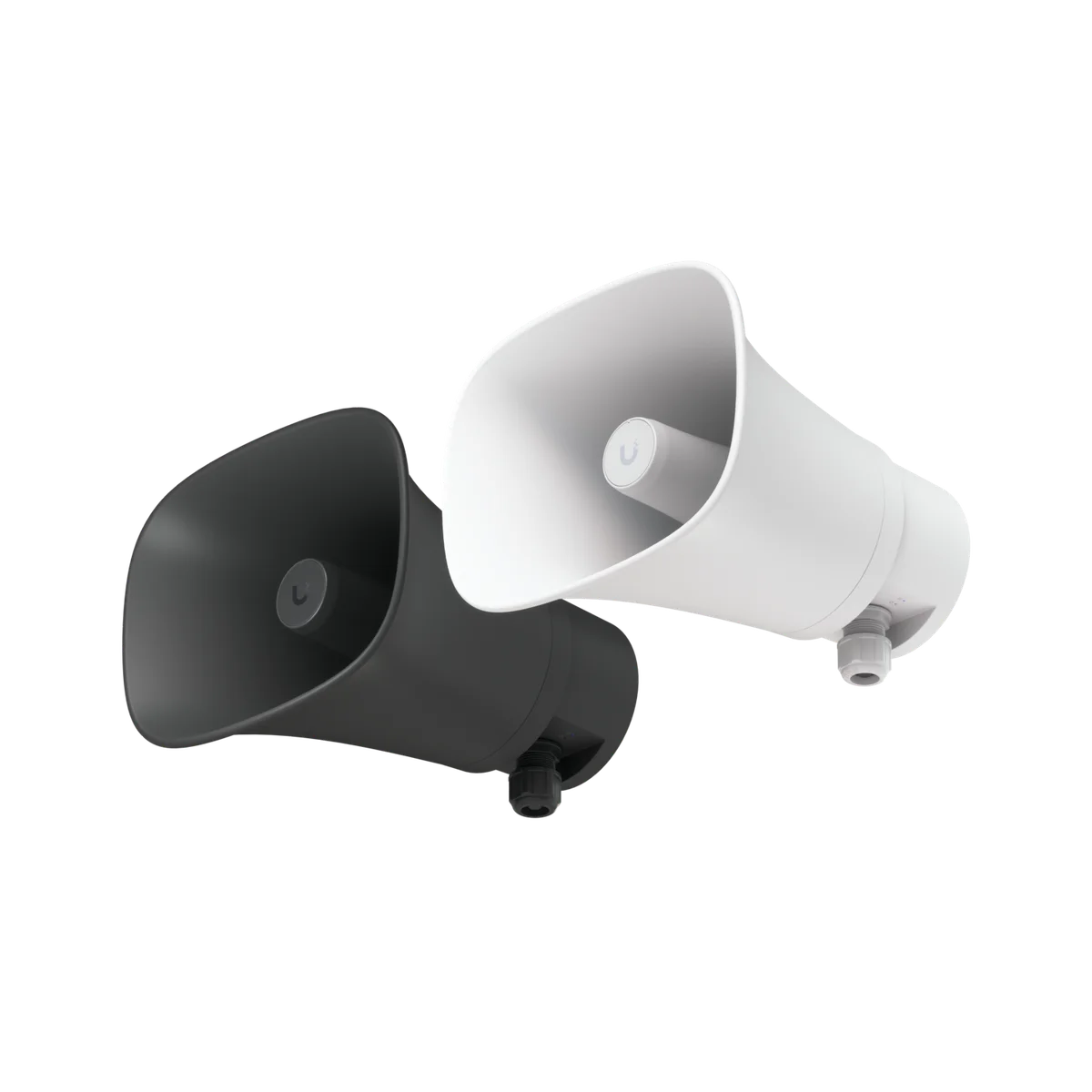

UP-AI-Horn-Speaker

AI Horn Speaker

Installation, specifications and supporting equipment.

UniFi AI Horn Speaker
USL-Entry

Entry Sensor

Installation, specifications and supporting equipment.

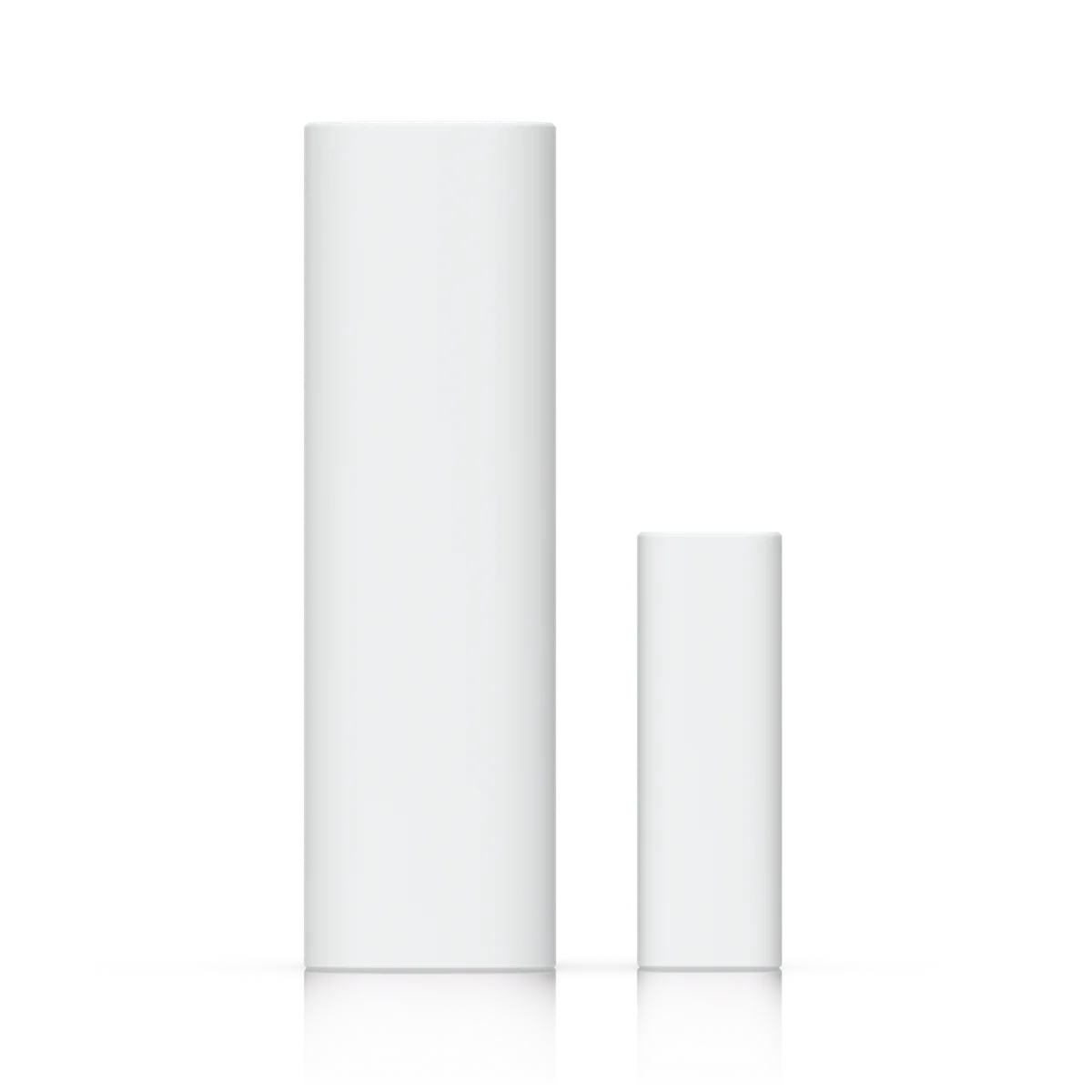

UniFi Entry Sensor

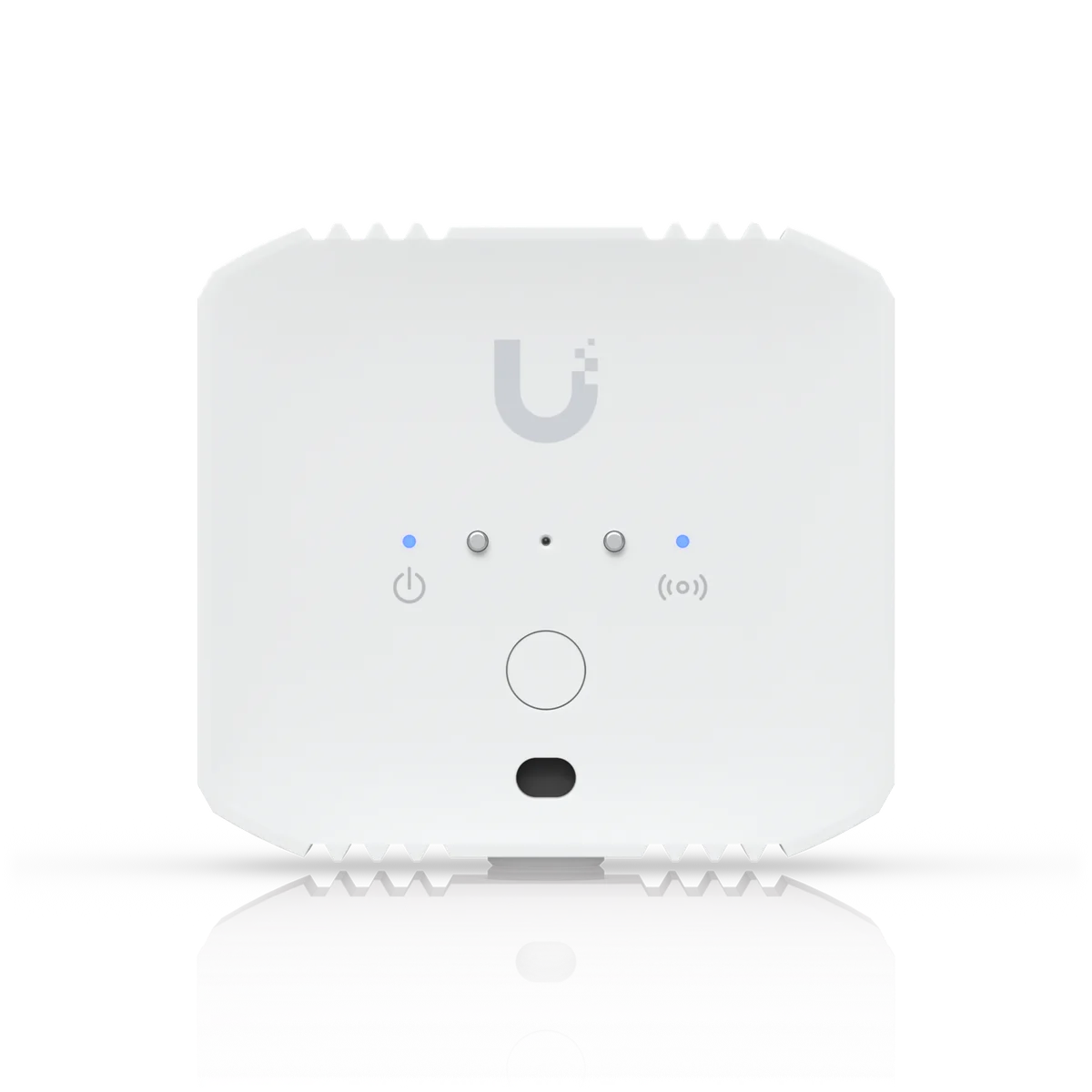

USL-Environmental

Environmental Sensor

Installation, specifications and supporting equipment.

UniFi Environmental Sensor
USL-GlassBreak

Glass Break Sensor

Installation, specifications and supporting equipment.

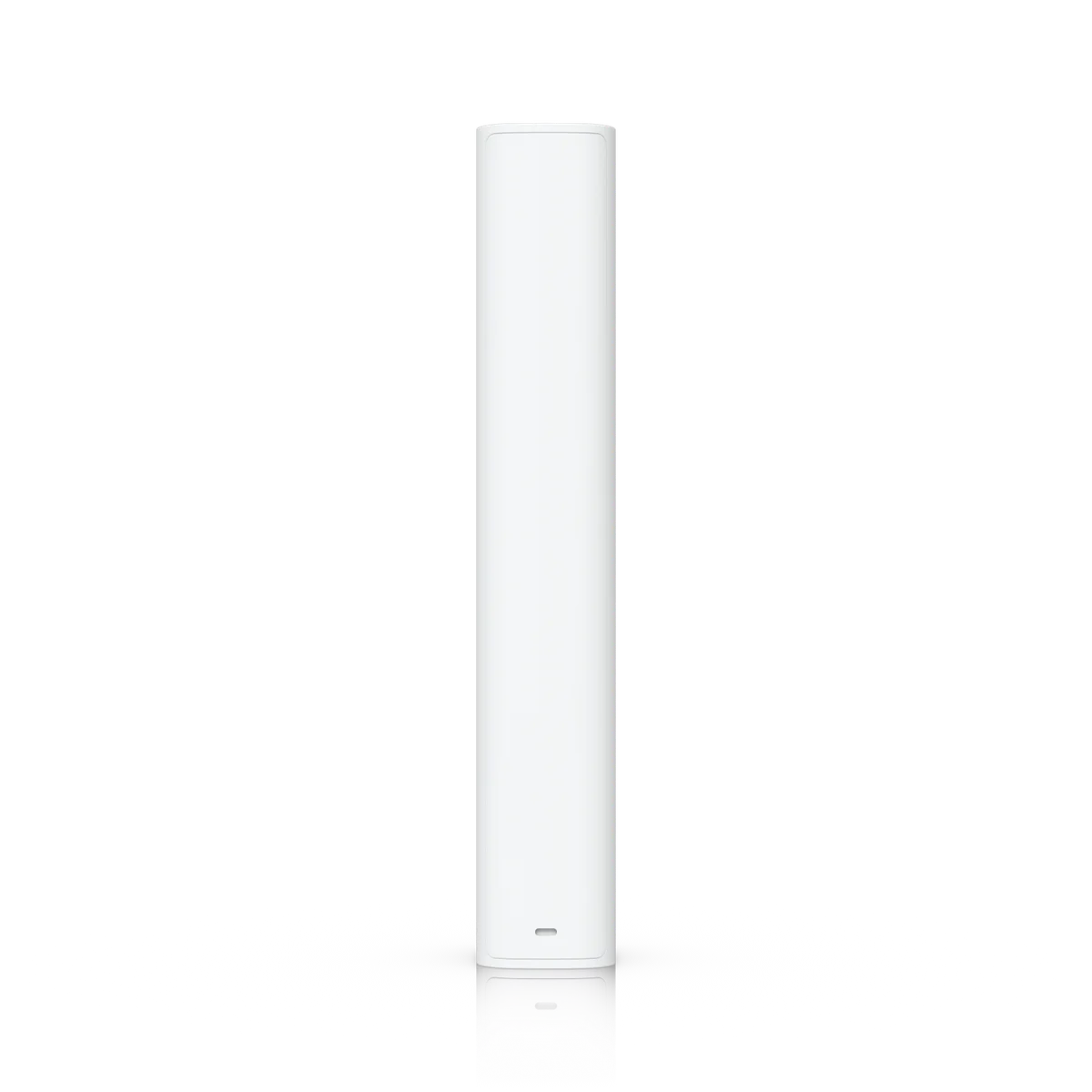

UniFi Glass Break Sensor

A few practical questions.

Can you assess AI Speaker for an existing system?
Yes. Include UP-AI-Speaker, your existing console or host equipment, and a brief description of the work in your enquiry. We check compatibility, capacity and site access before confirming the installation scope.
What should I send for a AI Speaker assessment?
Send your suburb, property type, the intended location and any existing equipment model numbers. Australian suitability and supported platform and placement and communication path are useful starting points. Photographs of the proposed location can help with the initial discussion.
Does this page confirm Australian stock or a fixed installation price?
No. This catalogue uses manufacturer product references. We confirm the suitable Australian model, procurement options and a site-specific scope before quoting.
