Plan your UniFi Environmental Sensor installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USL-Environmental.
The Environmental Sensor (USL-Environmental) needs to be assessed against its supported application, radio or network connection and intended use. A US catalogue listing does not establish Australian approval or suitability. These points need confirmation before installation is proposed.
Power Method: Lithium battery CR123A. Max. Power Consumption: 34.9mW. Mounting: Adhesive, magnet and screw mount. Weatherproofing: IPX5. Dimensions: Device: 53 x 49 x 23.5 mm (2.1 x 1.9 x 0.9") Mount: 41.3 x 36.6 x 3.1 mm (1.6 x 1.4 x 0.1"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

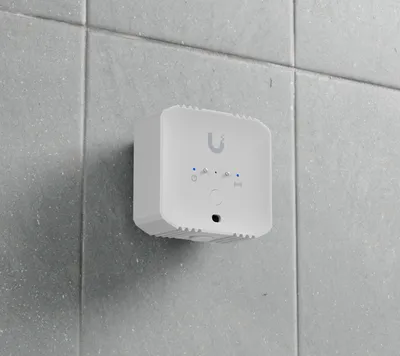

Detection devices need a location that suits the condition being monitored. We review the manufacturer placement requirements, environmental limits, connection path and maintenance access. The exact model determines what can be detected and how alerts reach an authorised user.
Notification recipients, routine testing and battery or power maintenance need an owner. The agreed functions and limitations belong in the handover. A connected sensor must not be assumed to replace a required certified safety system or a monitored alarm service.
Manufacturer specifications for USL-Environmental. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | Device: 53 x 49 x 23.5 mm (2.1 x 1.9 x 0.9") Mount: 41.3 x 36.6 x 3.1 mm (1.6 x 1.4 x 0.1") |
|---|---|
| Weatherproofing | IPX5 |

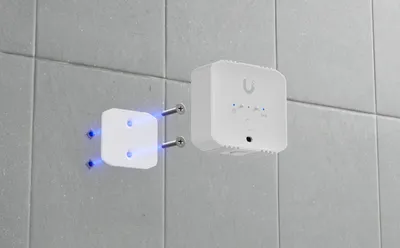

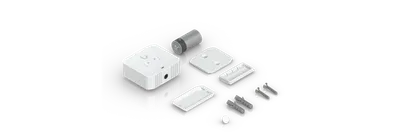

| Mounting | Adhesive, magnet and screw mount |
| UniFi Application Suite | Protect |

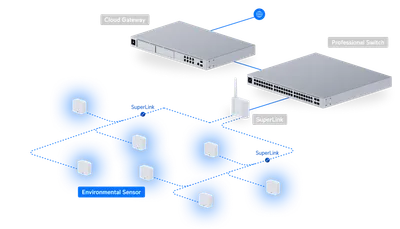

| Connectivity | SuperLink (Proprietary) |
|---|---|
| SuperLink | US: 915.6–927.6 MHz EU: 865.1–869.5 MHz JP: 920.5–922.3 MHz |
| SuperLink | 0 dBi |
| SuperLink | 14 dBm |
| SuperLink | 2 km (1.2 mi)Line of Sight (LOS) |
| Other | 3.5 mm AUX jack (TRS or TS) for water leak probe |
| Max. Power Consumption | 34.9mW |
|---|---|
| Supported Voltage Range | 3V |

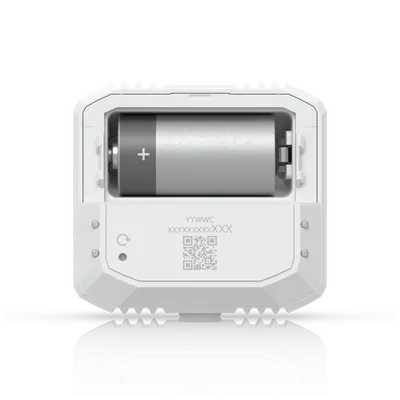

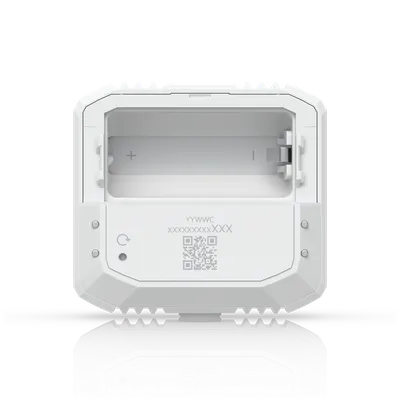

| Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years |
| Weight | Device: 47.8 g (1.7 oz) With mount: 70 g (2.5 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Galvanized steel |
| Buttons | (1) Factory reset (1) Function button |

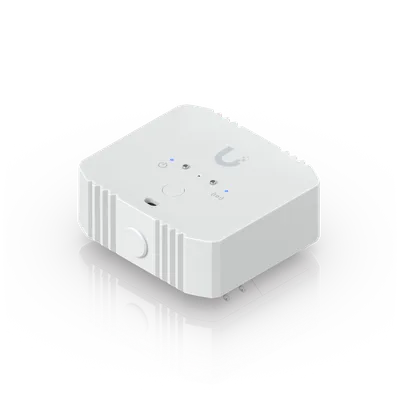

| LEDs | (1) Status: R/B/W (1) Signal: B/R |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
