Plan your UniFi Device Bridge Pro installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UDB-Pro.
Variant: US Version

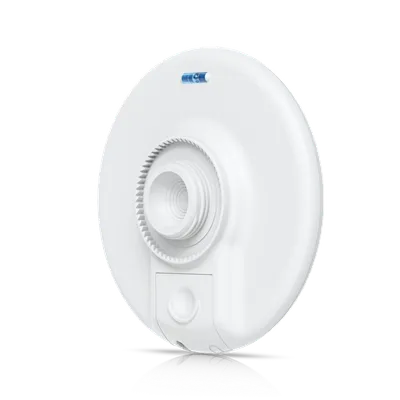

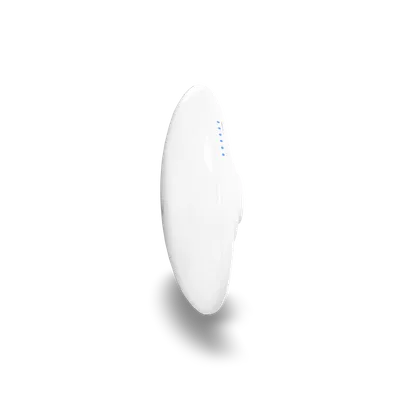

For a Device Bridge Pro installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The UDB-Pro specifications below help establish whether this model fits the proposed location.
Power Method: PoE PoE+ (Required for PoE output). Max. Power Consumption: 9W. Networking Interface: (2) GbE RJ45 ports. Mounting Locations: Wall, pole. Mounting: Pole (Included). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

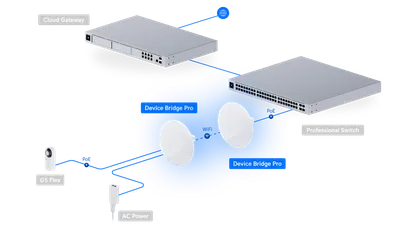

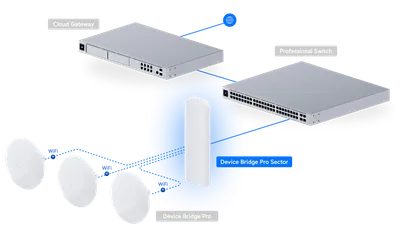

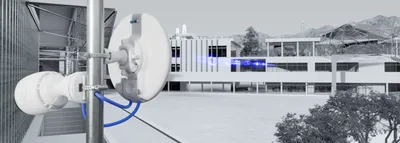

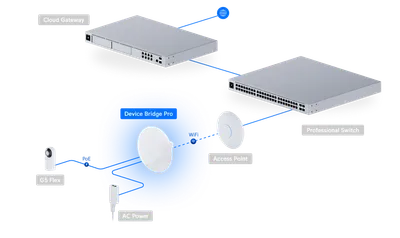

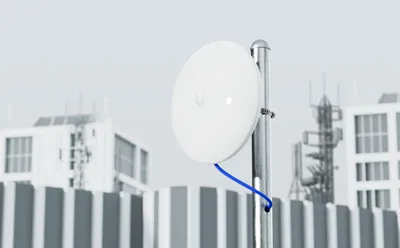

Outdoor access and building links need a site-specific review of mounting, exposure, cable entry and the radio path. We confirm whether the intended use is local WiFi coverage or a link between buildings, and check the equipment needed at each end.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for UDB-Pro. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | ⌀189.5 x 64.3 mm (⌀7.4 x 2.5") |
|---|---|
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Wall, pole |

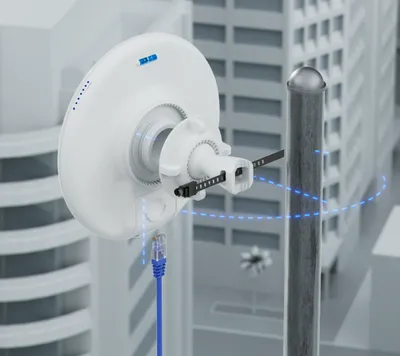

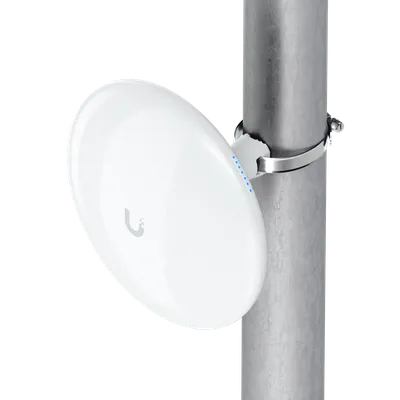

| Mounting | Pole (Included) |
| Weatherproofing | IPX6 |
| Power Method | PoE PoE+ (Required for PoE output) |

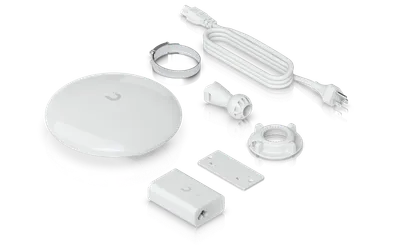

| Power Supply | 48V, 0.32A PoE adapter (Included) |
| 5 GHz | 2 x 2 |
|---|---|
| 5 GHz | 867 Mbps (BW80) |
| 5 GHz | 19 dBi |
| 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Max. Power Consumption | 9W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |

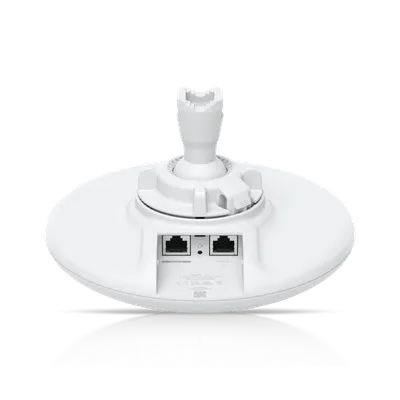

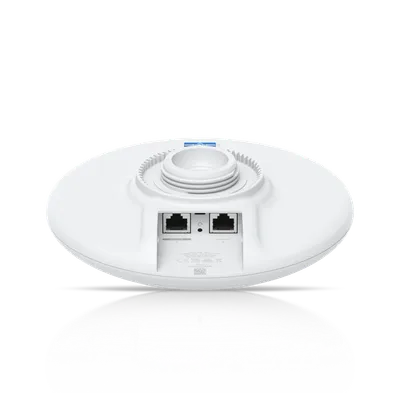

| Networking Interface | (2) GbE RJ45 ports |
| Antennas | Internal |
| Management | (1) PoE in (PoE output not used) (1) Passive PoE output |
| Channel Bandwidth | 20/40/80 (MHz) |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weight | Device: 431 g (0.95 lb) With mount: 515 g (1.1 lb) |
| Enclosure Material | UV-resistant polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |

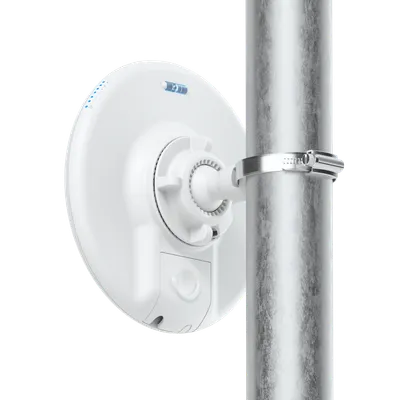

| Pole Mount Diameter | 0.8–2.1" (20–53.1 mm) |
| Button | (1) Factory reset |

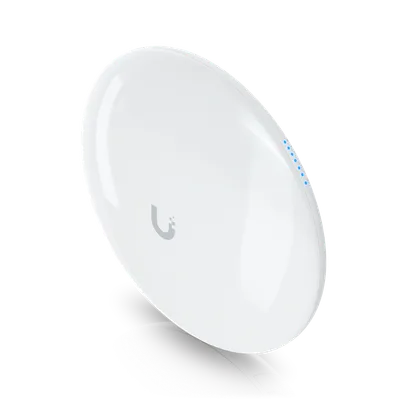

| System | Power, (2) Ethernet status - main port/PoE out port, (4) signal strength |
| Certifications | CE, FCC, IC |
| Operating Frequency | US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHzFor worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |

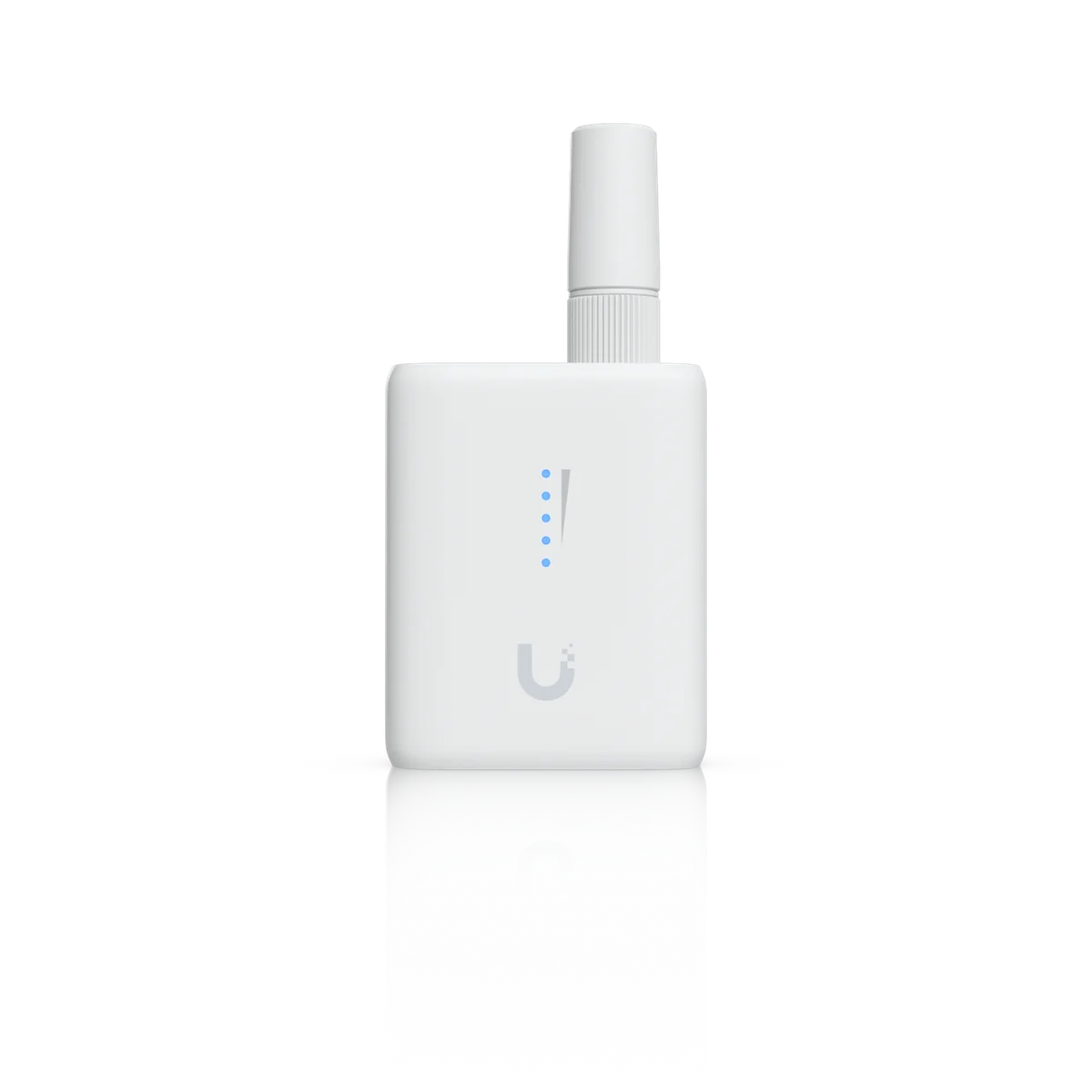

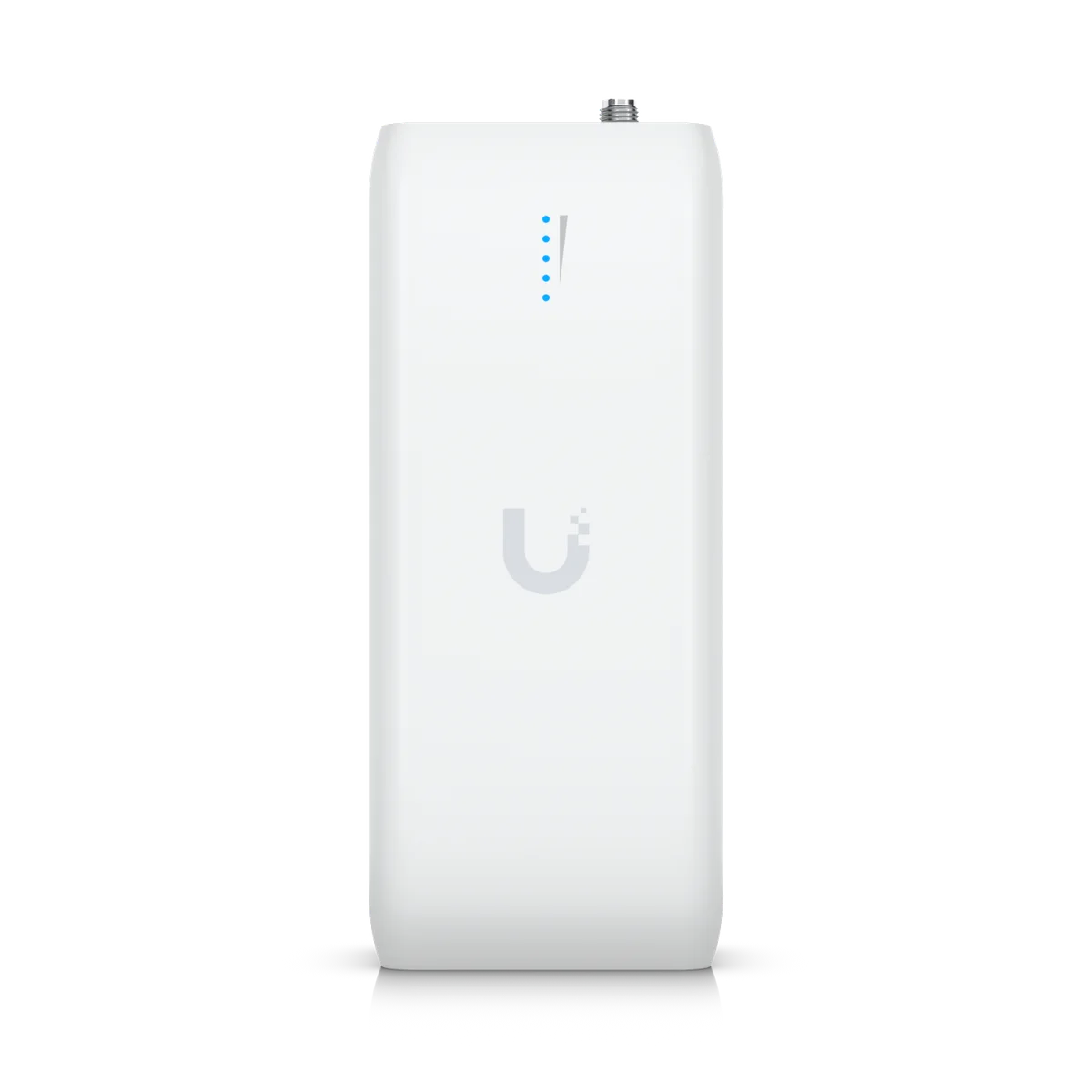

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
