Plan your UniFi Device Bridge installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UDB.
For a Device Bridge installation, the floor plan and the intended mounting location come before a coverage promise. We assess walls, ceiling height, client devices and neighbouring wireless networks. The UDB specifications below help establish whether this model fits the proposed location.
Power Method: 100–240V AC, 0.45A Max., 50/60 Hz. Max. Power Consumption: 25W (AC input) 10W (Excluding PoE output). Networking Interface: (1) GbE RJ45 port. Mounting Locations: Wall, table. Mounting: Wall (Included). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

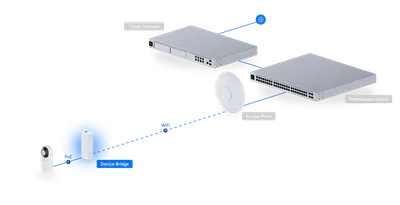

Outdoor access and building links need a site-specific review of mounting, exposure, cable entry and the radio path. We confirm whether the intended use is local WiFi coverage or a link between buildings, and check the equipment needed at each end.
Network names, guest access, security settings and roaming are configured for the devices using the property. We test in the agreed locations and explain any remaining limitations. Internet speed and client capability still affect the experience at the endpoint.
Manufacturer specifications for UDB. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 130 x 55 x 34 mm (5.1 x 2.2 x 1.3") |
|---|---|
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |

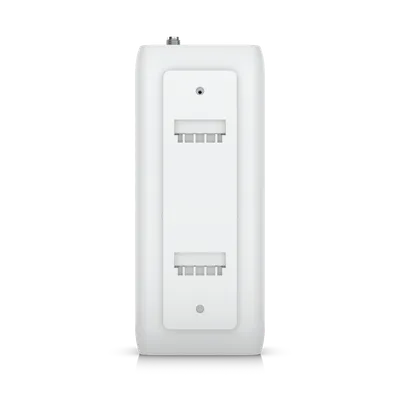

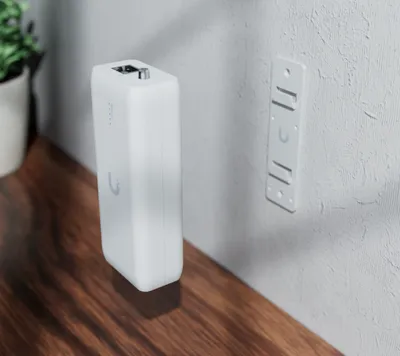

| Mounting Locations | Wall, table |
| Mounting | Wall (Included) |

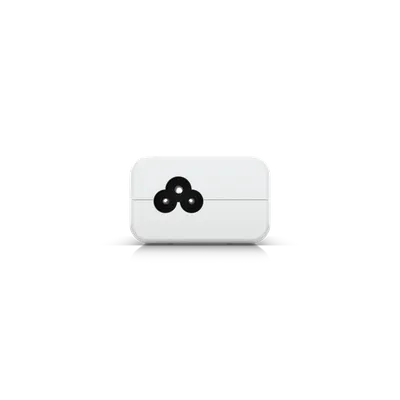

| Power Method | 100–240V AC, 0.45A Max., 50/60 Hz |
| 5 GHz | 2 x 2 |
|---|---|
| 5 GHz | 866.7 Mbps (BW80) |
| 5 GHz | Internal: 5 dBi External omni: 4 dBi, 360° x 30° |
| 5 GHz | 21 dBm |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Max. Power Consumption | 25W (AC input) 10W (Excluding PoE output) |
|---|---|
| Supported Voltage Range | 100–240V AC |

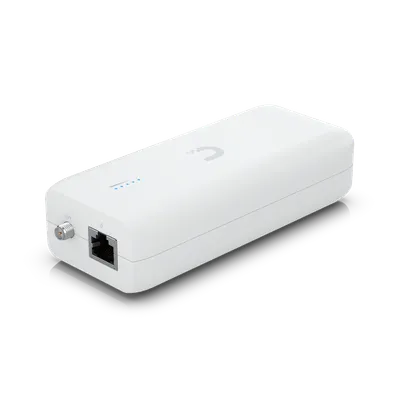

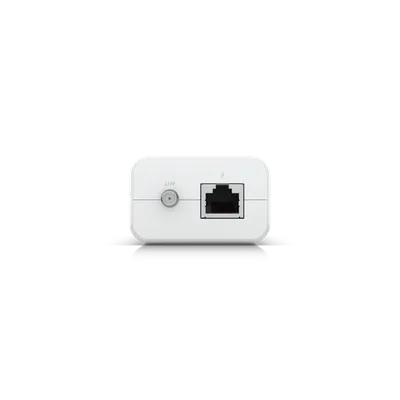

| Networking Interface | (1) GbE RJ45 port |

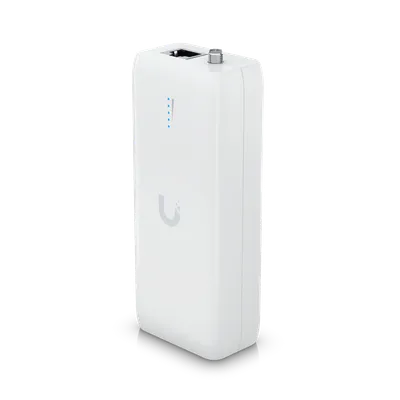

| Antennas | (1) Internal antenna (1) RP-SMA connector for external omni-antenna |
| Management | WiFi |
| Channel Bandwidth | 20/40/80 (MHz) |
| Weight | 200 g (7.1 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory reset |
| System | (4) Blue: signal (1) White/blue: indicator |
| Certifications | CE, FCC, IC, Anatel: 03885-25-08356 |
| Operating Frequency | US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHzFor worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
