Plan your UniFi EV Station Pro installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UC-EV-Station-Pro.

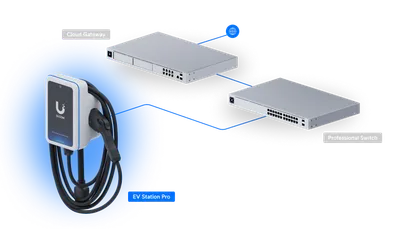

We review what UC-EV-Station-Pro needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.

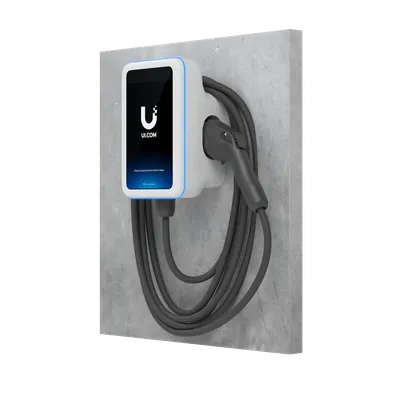

Mounting: Wall Mount or Stand. Weatherproofing: Type 3R. Dimensions: 280 x 178 x 143 mm (11 x 7 x 5.6”). Ambient Operating Temperature: -40 to 50° C (-40 to 122° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for UC-EV-Station-Pro. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 280 x 178 x 143 mm (11 x 7 x 5.6”) |
|---|---|
| Mounting | Wall Mount or Stand |
| Power Input | 200–240V ~ 50A, 50/60Hz, 1φ |
| Power Output | 200–240V ~ 50A, 50/60Hz, 1φ |
| Weatherproofing | Type 3R |
| Weight | With wall mount/charging gun/power cord: 8.1 kg (17.9 lb) |
|---|---|
| Enclosure Material | Front modules: Polycarbonate Middle module: Aluminum, Polycarbonate |
| Mount Material | Polycarbonate |
| Charging Cable Length | 7 m (23 ft) |
| Size | 257 mm (10.1") diagonal |
|---|---|
| Resolution | 800 x 1280 (10:16) |
| Luminance | 800 nits (typical) |
| Processor | Octa-core Arm® Cortex®-A53, 2.2 GHz |

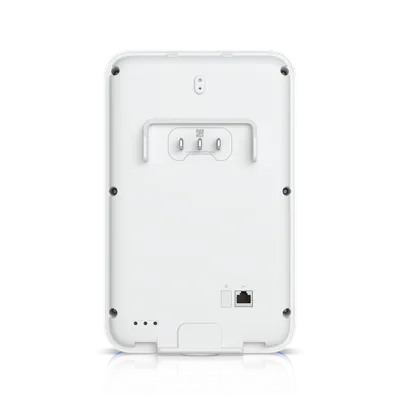

| Connectivity | (1) GbE RJ45 port (1) USB-C port for payment terminal accessory Bluetooth® 4.2 |

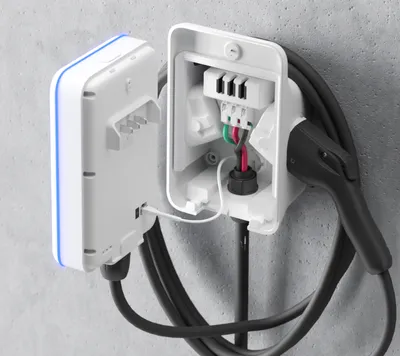

| Max. load | 70A: 50A 60A: 48A 50A: 40A 40A: 32A 30A: 24A 20A: 16AThe circuit must be rated for 125% of the maximum load.EV Station Pro can be wired to support higher amperages. Please consult your electrical code for breaker and wire sizing requirements. The field-wiring terminal is rated up to 105° C and is compatible with wiring up to 16 mm² (6 AWG). |
| Plug-in | 70A: No 60A: No 50A: Yes 40A: Yes 30A: Yes 20A: Yes |
| Hardwired | 70A: Yes 60A: Yes 50A: Yes 40A: Yes 30A: Yes 20A: Yes |
| WiFi Standards | 802.11 a/b/g/n/ac |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Ambient Operating Temperature | -40 to 50° C (-40 to 122° F) |
| Certifications | FCC, IC, UL |
| Management Application | UniFi Connect: Version 3.2.4 and later UniFi Connect iOS™ and Android™: Version 2.2.1 and later |
|---|
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
