Plan your UniFi Enterprise NAS installation in Perth with Servicewest. We assess the site and supporting equipment before specifying ENAS.
We review what ENAS needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: (2) AC input, Hot-swappable power modules. Max. Power Consumption: 550W. Networking Interface: (2) 25G SFP28 (25G/10G/1G) (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M). Dimensions: 481.4 x 480 x 132 mm (19 x 18.9 x 5.2"). Ambient Operating Temperature: -5 to 40° C (23 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for ENAS. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
|---|---|

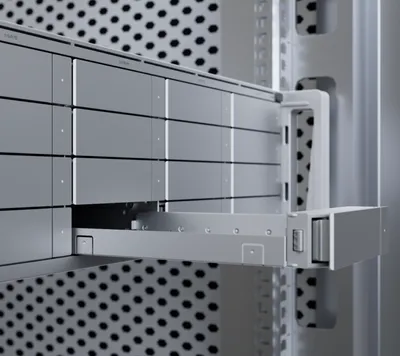

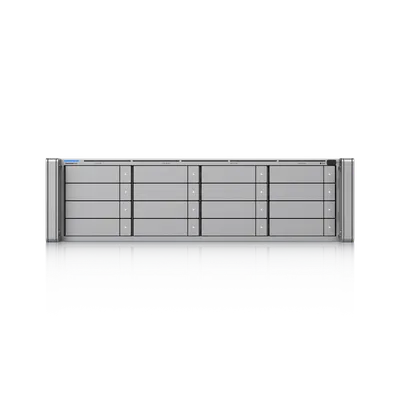

| Storage Capacity | (16) 2.5''/ 3.5" drive bays (2) M.2 NVMe bays |

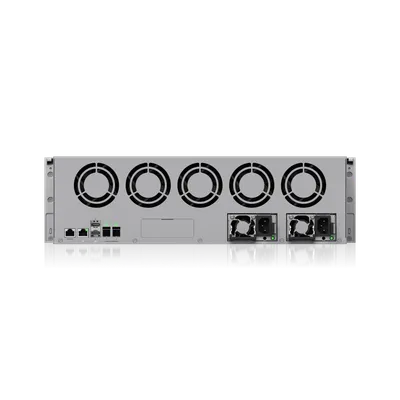

| Networking Interface | (2) 25G SFP28 (25G/10G/1G) (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |
| Expansion Port | (2) SFF-8644 (24G) |
| Form Factor | Rack mount (3U) |

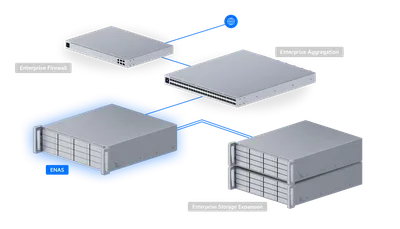

| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support (2) M.2 NVMe SSD support (2) Expansion ports supportExpansion with UACC-ESE-16 |
|---|---|
| Max. Power Budget for Drives | 450W |
| Max. Power Consumption | 550W |
| Power Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Processor | Eight-Core ARM N2 at 2.4 GHz |
| Memory | 64 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Weight | 16.1 kg (35.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

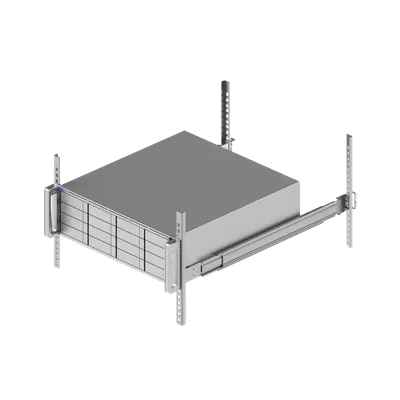

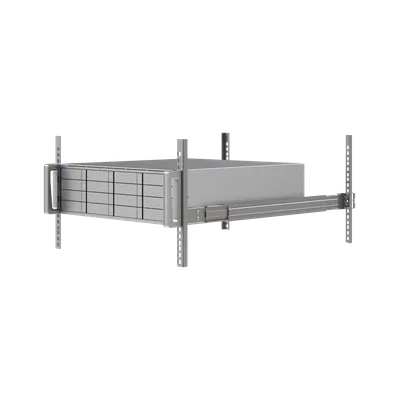

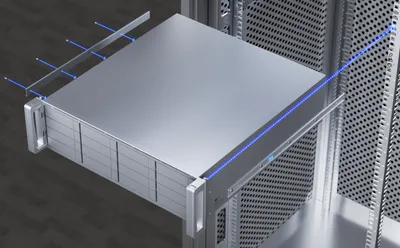

| Supported Rack Depth | The rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm) Posts depths ranging from 600–1066 mm (23.6–42") |
| Faceplate | 3U Bezel, 3U Bezel Lite (Optional) |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC |
| RAID Type | Mirror RAID-Z1 RAID-Z2 RAID-Z3 |
|---|---|
| RAID Group | Multiple |
| Max. NVMe SSD Capacity Supported | 8 TiB |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
