Plan your UniFi UNAS Pro installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UNAS-Pro.
Variant: US Version
Before installing UNAS-Pro, we review the intended workload, available drives and the network connection. Camera recording and shared file storage are different jobs; the application supported by this exact model determines how it can be used.
Power Method: (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A. Max. Power Consumption: 160W. Networking Interface: (1) 10G SFP+ (10G/1G) (1) GbE RJ45 (1G/100M/10M). Dimensions: 442.4 x 325 x 87.4 mm (17.4 x 12.8 x 3.4"). Ambient Operating Temperature: -5 to 40° C (23 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Disk capacity is not the same as usable protected storage. Drive compatibility, redundancy, retention and the number of simultaneous users or cameras affect the design. We establish who is responsible for backups and recovery, and document the agreed arrangement.
The scope covers agreed mounting, cabling, setup and permissions. We test the relevant recording or file-access functions with the authorised users. Ventilation, power and access to replace a drive are included in the physical assessment.
Manufacturer specifications for UNAS-Pro. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 442.4 x 325 x 87.4 mm (17.4 x 12.8 x 3.4") |
|---|---|
| Storage Capacity | (7) 2.5/3.5" drive bays |
| Networking Interface | (1) 10G SFP+ (10G/1G) (1) GbE RJ45 (1G/100M/10M) |

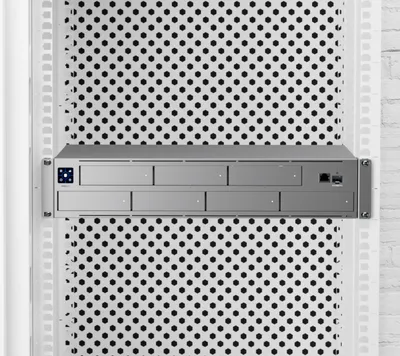

| Form Factor | Rack mount (2U) |
| Hard Drive Capacity | (7) 2.5/3.5" HDD / SSD support |
|---|---|
| Max. Power Budget for Drives | 135W |
| Max. Power Consumption | 160W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | AC/DC, internal, 200W |
| Processor | Quad-Core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 8 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Display | 1.3" touchscreen |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

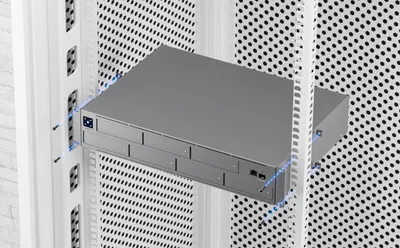

| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC, Anatel: 01886-25-08356 |
| UniFi Drive | Version 1.16.0 and later |
|---|---|
| RAID Type | RAID 5 RAID 6 RAID 10 |
| RAID Group | Multiple |

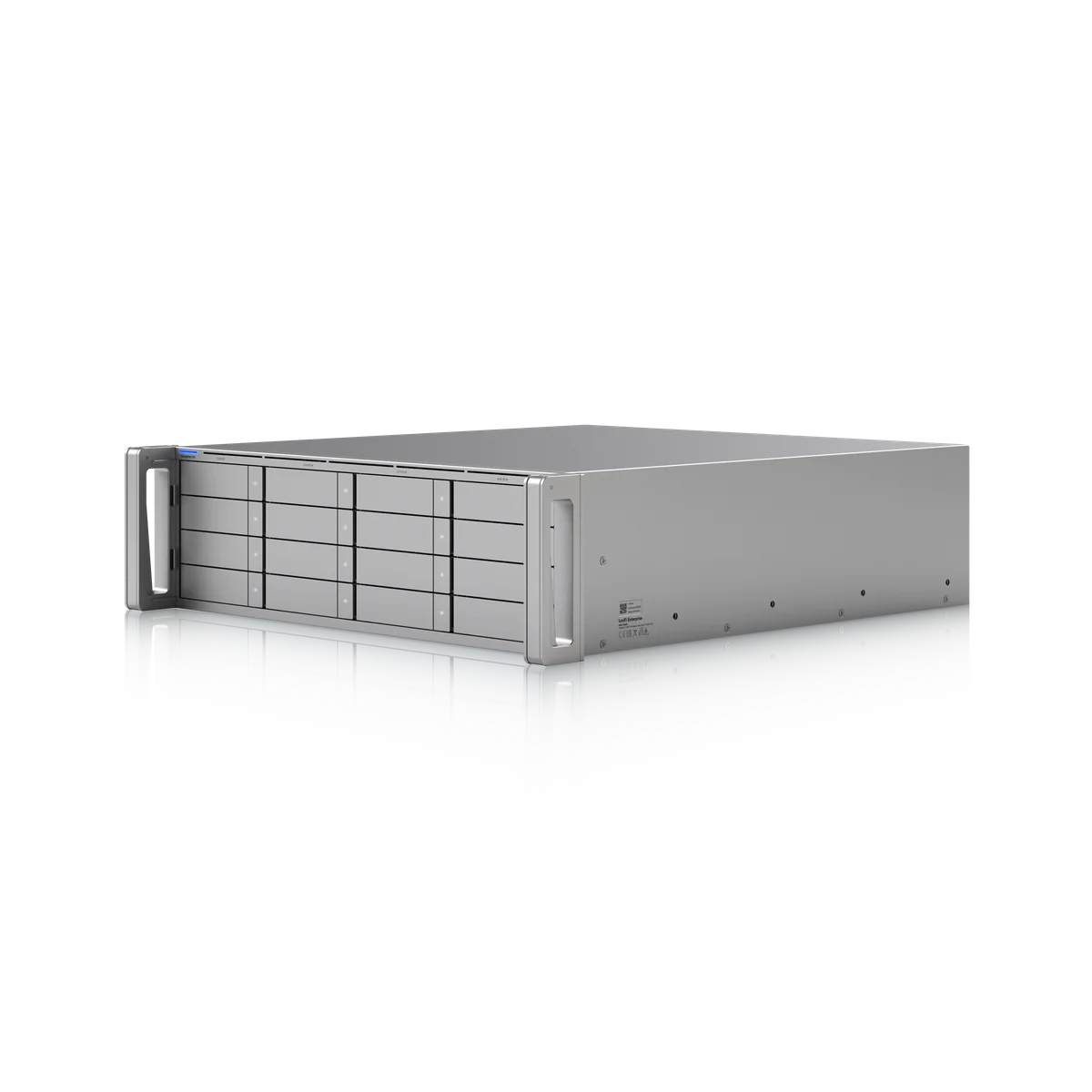

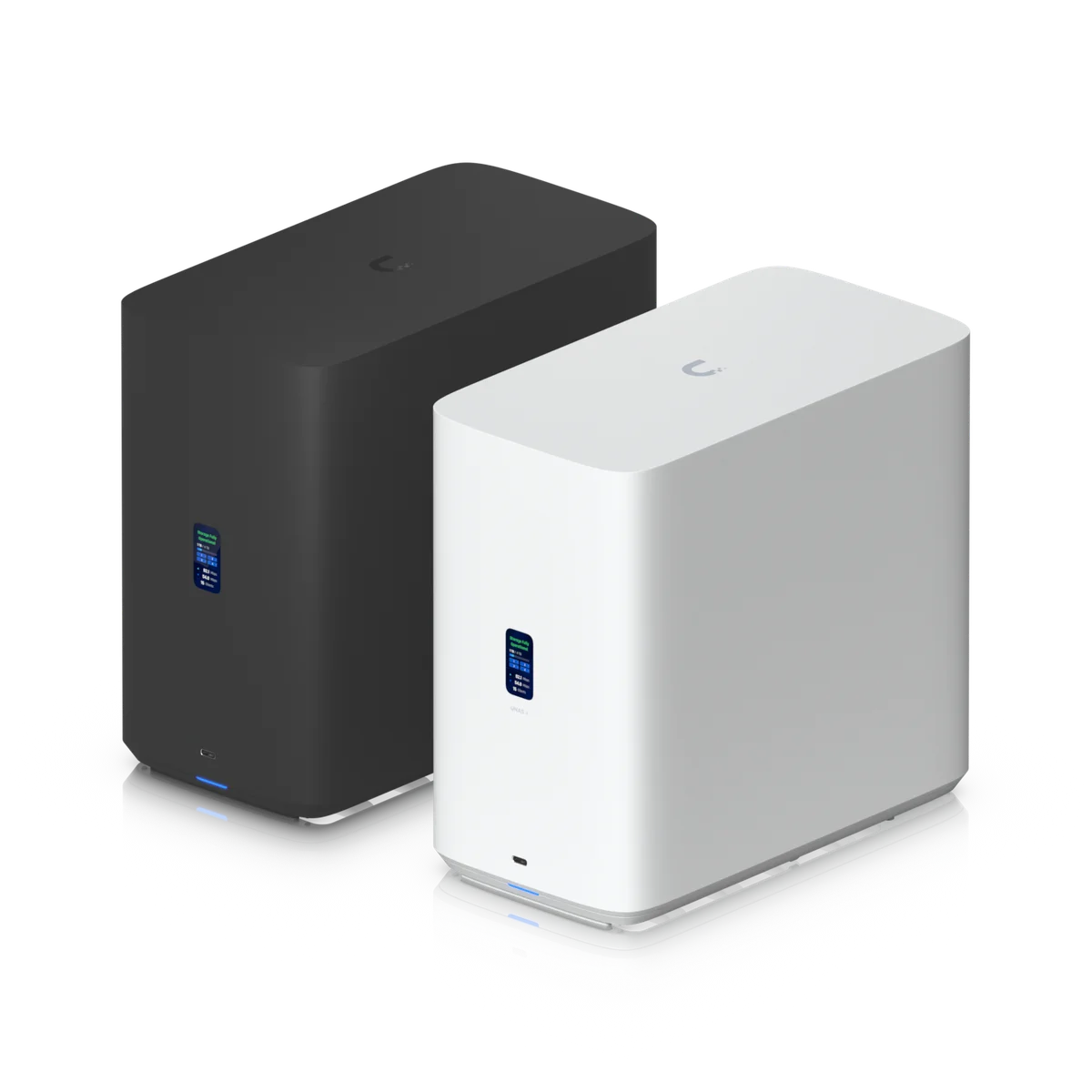

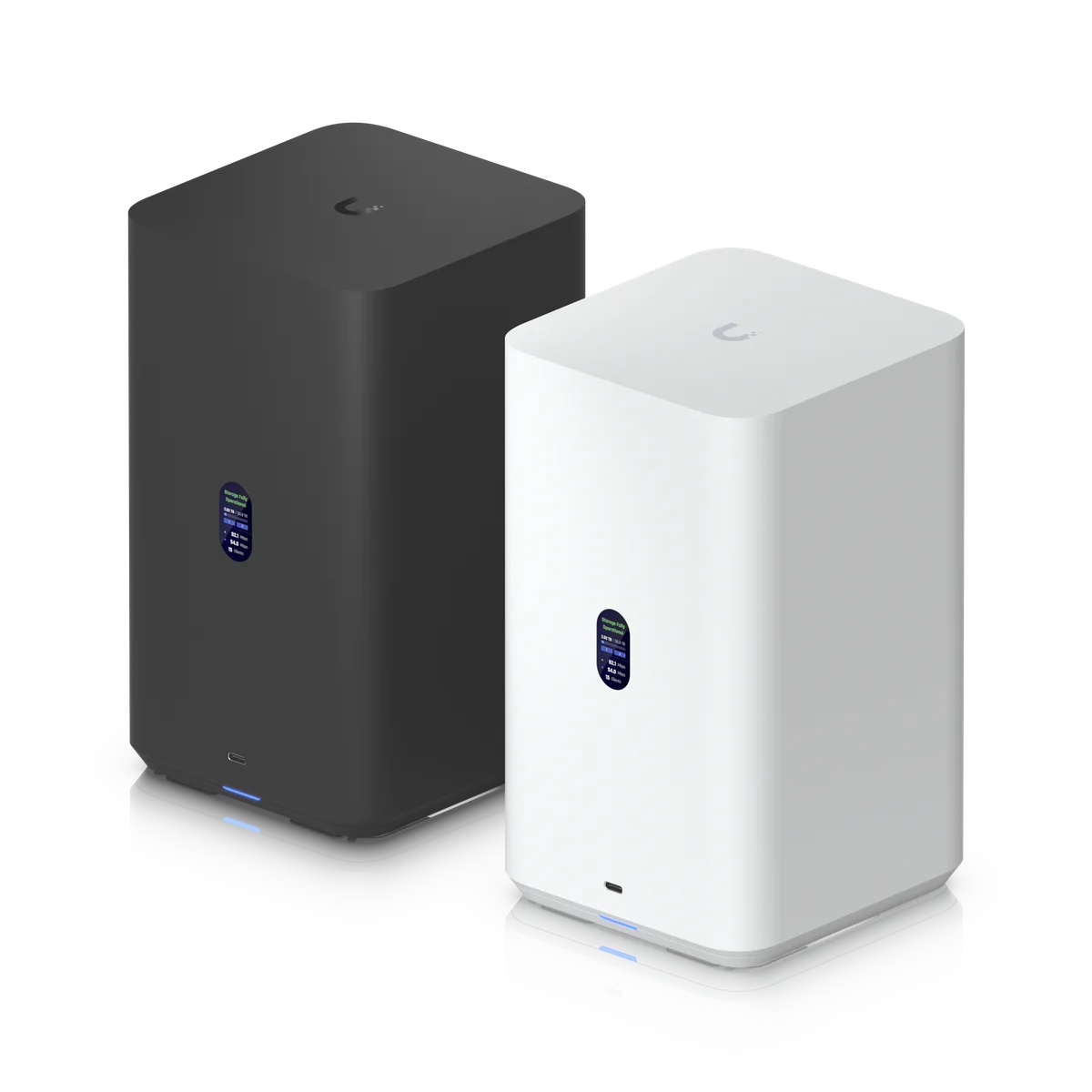

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
