Plan your UniFi UNAS 4 installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UNAS-4.
Color: Black · White

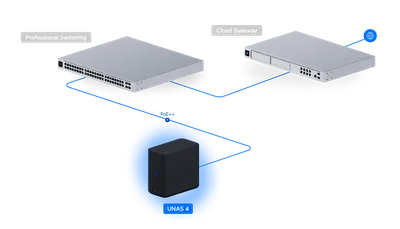

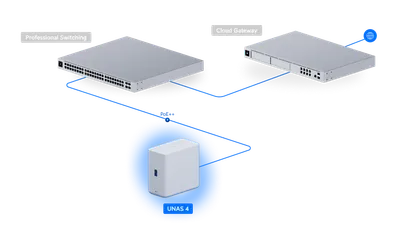

Before installing UNAS-4, we review the intended workload, available drives and the network connection. Camera recording and shared file storage are different jobs; the application supported by this exact model determines how it can be used.
Power Method: PoE+++. Max. Power Consumption: 90W. Networking Interface: (1) 2.5 GbE RJ45 (2.5G/1G/100M/10M). Dimensions: 246 x 129 x 224.5 mm (9.7 x 5.1 x 8.8"). Ambient Operating Temperature: -5 to 40° C (23 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Disk capacity is not the same as usable protected storage. Drive compatibility, redundancy, retention and the number of simultaneous users or cameras affect the design. We establish who is responsible for backups and recovery, and document the agreed arrangement.
The scope covers agreed mounting, cabling, setup and permissions. We test the relevant recording or file-access functions with the authorised users. Ventilation, power and access to replace a drive are included in the physical assessment.
Manufacturer specifications for UNAS-4. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 246 x 129 x 224.5 mm (9.7 x 5.1 x 8.8") |
|---|---|

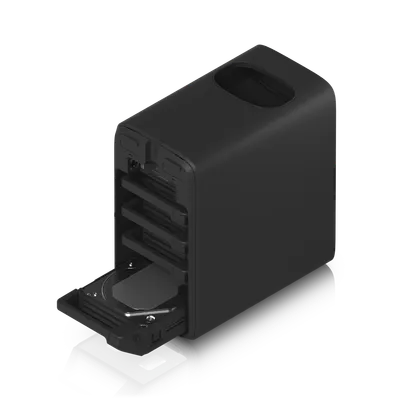

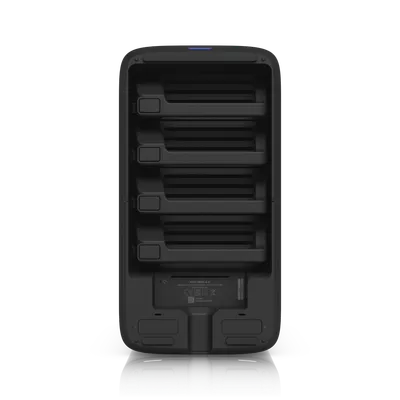

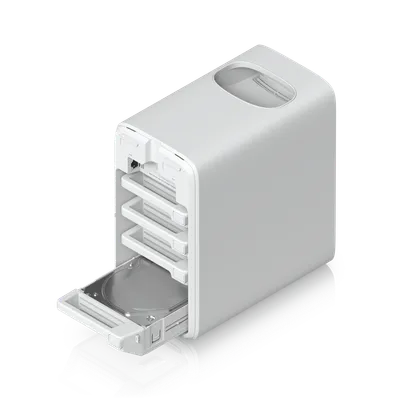

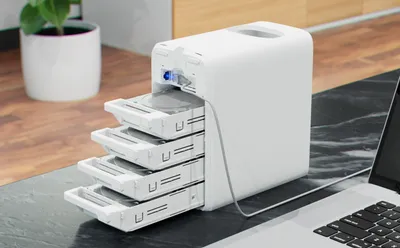

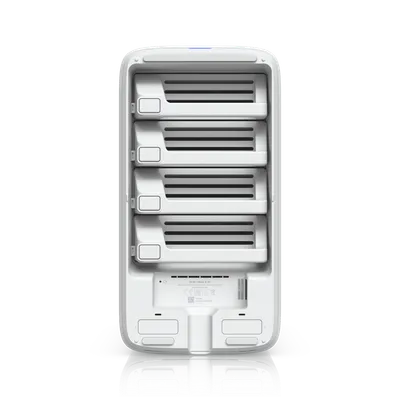

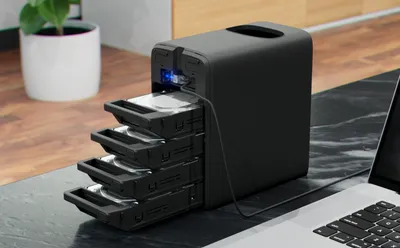

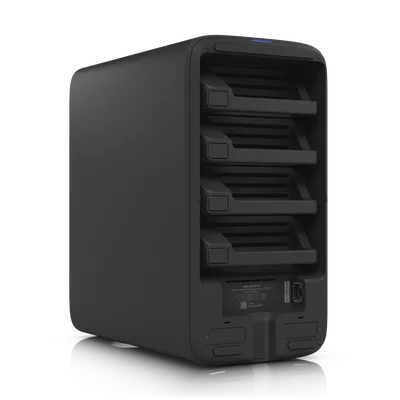

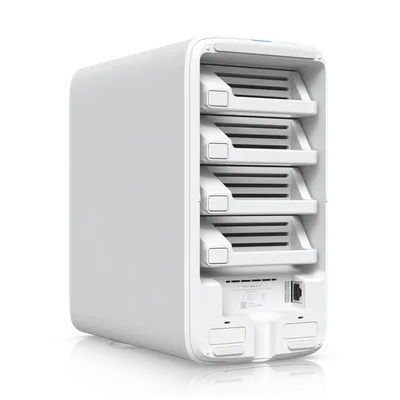

| Storage Capacity | (4) 2.5"/3.5" drive bays (2) M.2 NVMe bays |
| Networking Interface | (1) 2.5 GbE RJ45 (2.5G/1G/100M/10M) |
| Expansion Port | (1) 5 Gbps USB-C |
| Form Factor | Desktop |
| Hard Drive Capacity | (4) 2.5"/3.5" HDD support (2) M.2 NVMe SSD support |
|---|---|
| Max. Power Budget for Drives | 80WUSB-C: 4.5W max. Excluding cable loss |
| Max. Power Consumption | 90W |
| Power Method | PoE+++ |
| Power Supply | 90W PoE+++ adapter (Included) |
| Processor | Quad-Core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |

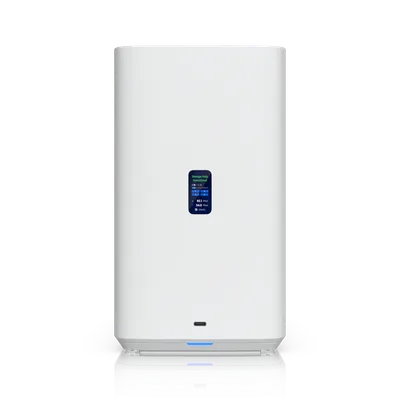

| Display | 1.47" color LCM |
| Weight | 2.6 kg (5.7 lb) |
| Enclosure Material | Polycarbonate |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, CE, IC |
| UniFi Drive | Version 3.4.5 and later |
|---|---|
| Mobile App | iOS™ version 10.32.1 and later Android™ version 10.35.1 and later |
| RAID Type | RAID 5 RAID 6 RAID 10 |
| RAID Group | Single |
| Max. NVMe SSD Capacity Supported | 2 TiB |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
