Plan your UniFi Network Video Recorder Pro installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UNVR-Pro.

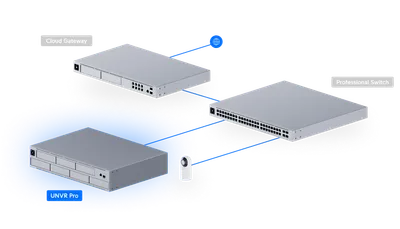

Before installing UNVR-Pro, we review the intended workload, available drives and the network connection. Camera recording and shared file storage are different jobs; the application supported by this exact model determines how it can be used.
Power Method: (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A. Max. Power Consumption: 160W. Networking Interface: (1) 10G SFP+ port (1) GbE RJ45 port. Dimensions: 442 x 325 x 87 mm (17.4 x 12.8 x 3.4"). Ambient Operating Temperature: -5 to 40° C (23 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Disk capacity is not the same as usable protected storage. Drive compatibility, redundancy, retention and the number of simultaneous users or cameras affect the design. We establish who is responsible for backups and recovery, and document the agreed arrangement.

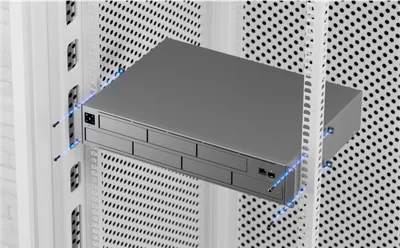

The scope covers agreed mounting, cabling, setup and permissions. We test the relevant recording or file-access functions with the authorised users. Ventilation, power and access to replace a drive are included in the physical assessment.
Manufacturer specifications for UNVR-Pro. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Managed Cameras (grid) | 70 HD or 24 4K |
|---|---|
| Ports | 1 GbE + 1 SFP+ |
| Power | RPS Ready |
| Security | RAID Protection |
| Storage | 7 2.5/3.5" HDD / SSD |
| Dimensions | 442 x 325 x 87 mm (17.4 x 12.8 x 3.4") |
|---|---|
| Managed Cameras | (70) HD (35) 2K (24) 4K |
| Managed Access Hubs | 150Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits. |

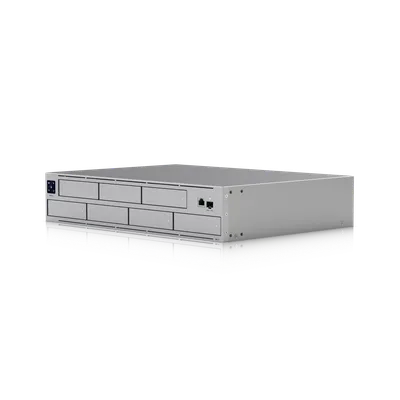

| Storage Capacity | (7) 2.5/3.5" drive bays |
| Networking Interface | (1) 10G SFP+ port (1) GbE RJ45 port |

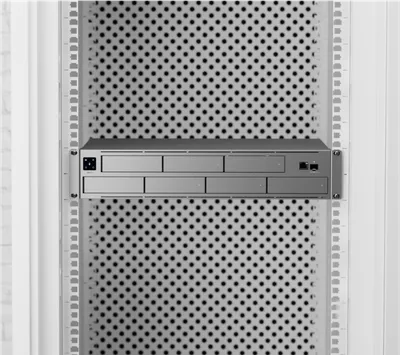

| Form Factor | Rack mount (2U) |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
| Hard Drive Capacity | (7) 2.5/3.5" HDD / SSD support |
|---|---|
| Max. Power Budget for Drives | 135W |
| Max. Power Consumption | 160W |

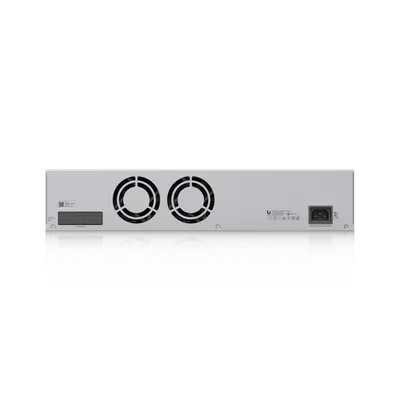

| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | AC/DC, internal, 200W |
| Processor | Quad ARM® Cortex®-A57 cores at 1.7 GHz |
| Memory | 8 GB |
| Management | Ethernet |
| Display | 1.3" touchscreen |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06697-21-08356 |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
